Metal Floor Deck Panel Roll Forming Machinery/tile making machines

Metal Floor  Deck Panel Roll Forming Machinery/tile making machines

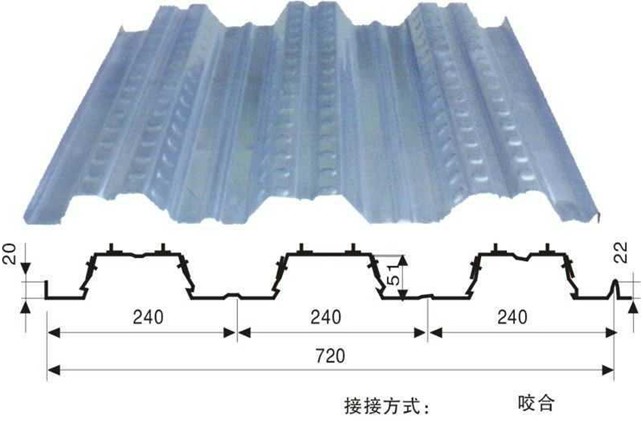

The metal deck roll forming machine in Xinnuo is mainly available in some models: 688. 720, 750,915,1000,1025 and so on. 1000model is popular in many countries. In addition to the standard ones, Xinnuo provides custom roll formers to meet clients actual requirements.

In construction, the adoption of metal deck for concrete floor will not only improve the floor’s rigidity, but also cut on the consumption of reinforcement and concrete. The combination of the max binding force between the metal deck and concrete and the stiffener ensures a strong bearing capacity for the metal deck system.

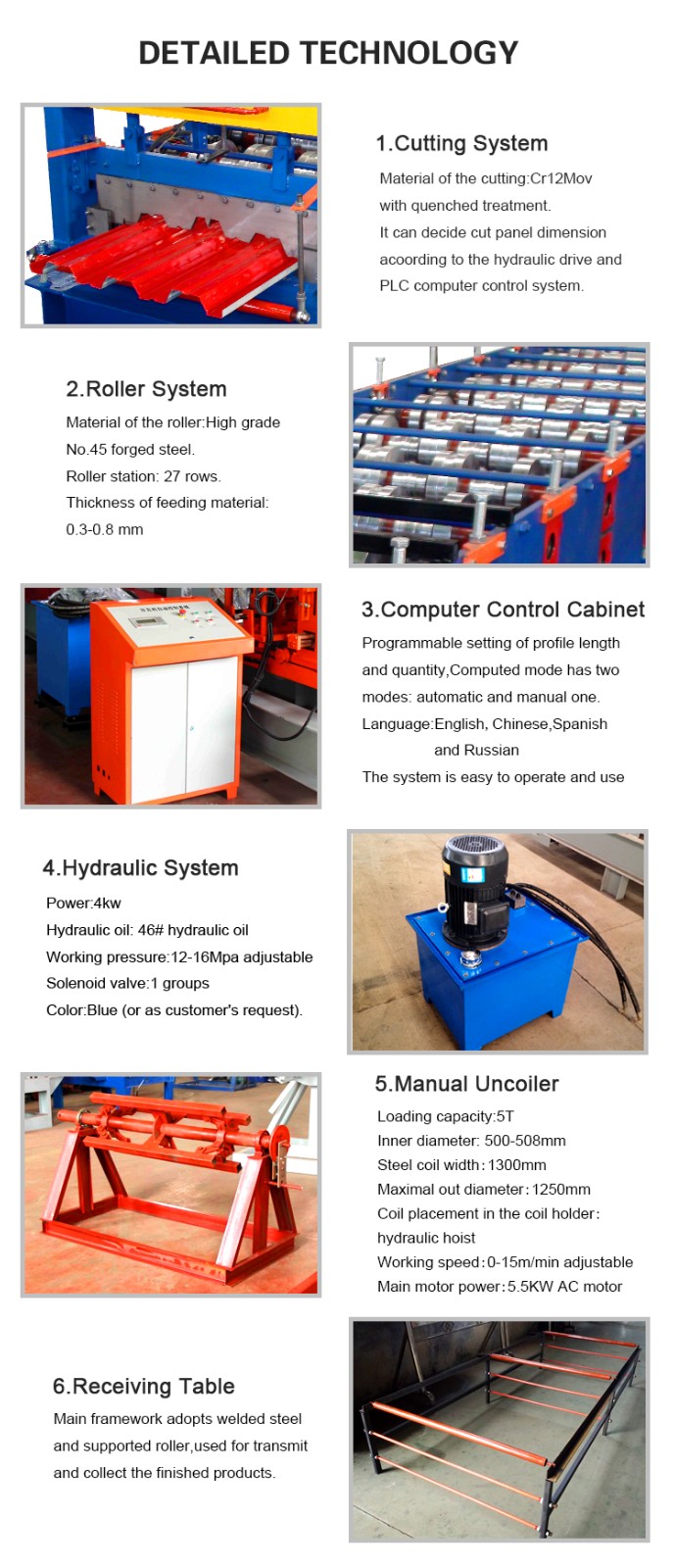

Features

1. The body of the metal deck roll forming machine is welded from 450mm H steel, with the middle plate welded from 20mm steel plates. Width of the raw material is 1219mm. With an intelligent PLC control system, the length of the metal deck is controlled within 2mm, and the forming speed reaches 6-12m/min.

2. To ensure that the shaft of the roll former won’t get bent due to the high forming speed, we have especially designed several pressure rings for the former. The panels produced by the roll former are of smooth and flat surface.

3. The roll forming machine is equipped with double power system connected with couplings to avoid the concentric problems between the shaft and the reducer.

4. The panels will not get deformed after being sheared. The special cutter allows for small shearing force either for thick or thin panels.

5. The metal deck roll former employs 2inch chain wheel which have been given high-frequency quenching treatment. It runs stably with no noise.

Applications

Metal deck is extensively applied in the steel structures of power station, electric power equipment company,automobile exhibition hall, steel structure workshop. cement warehouse, steel structure office, airport terminal, railway station, stadium, concert hail, grand theater, large supermarket, logistics center, Olympic venues, etc.

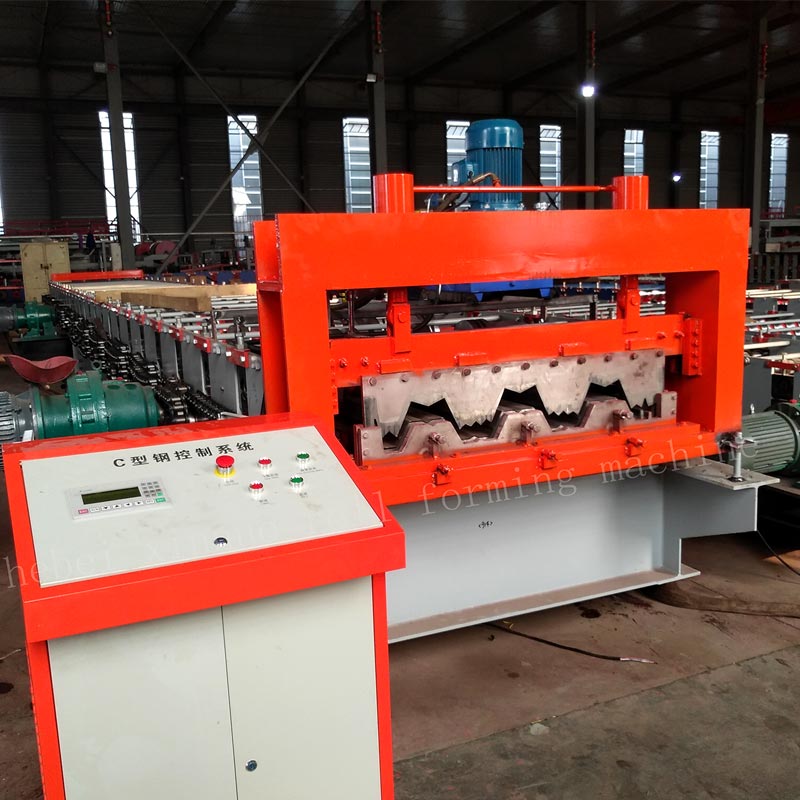

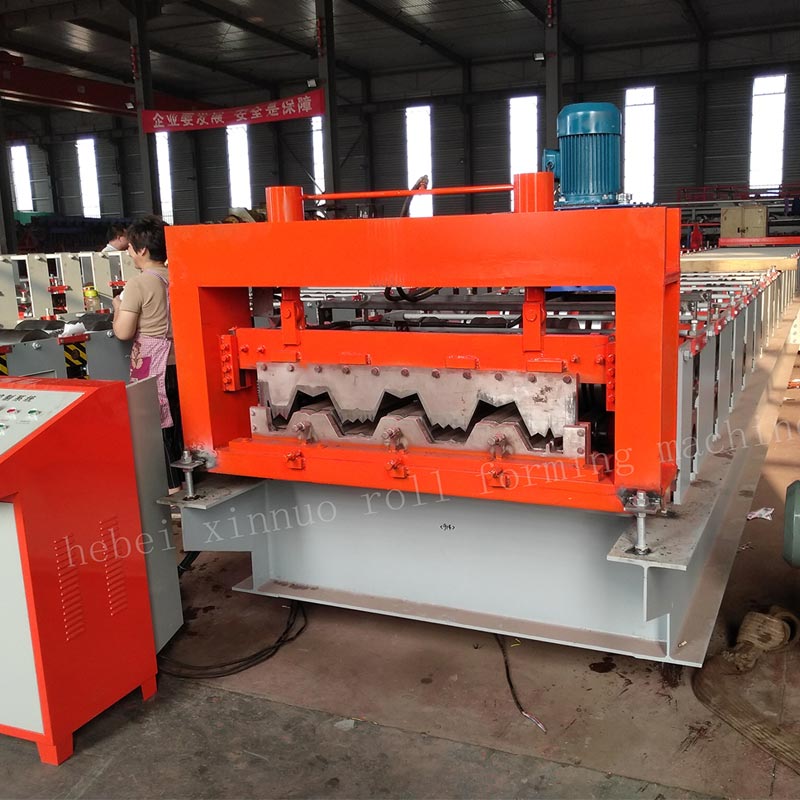

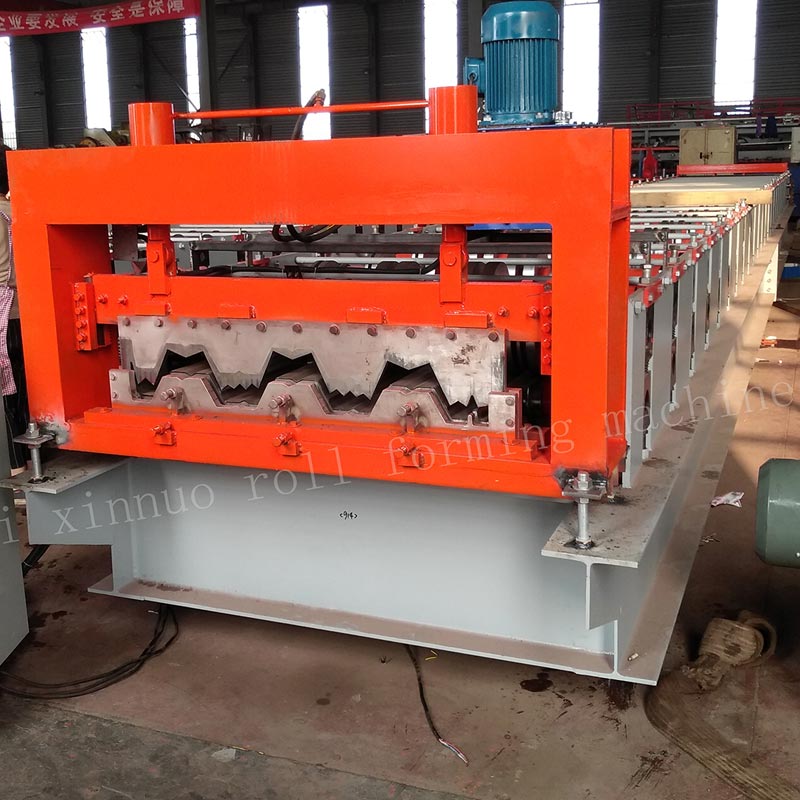

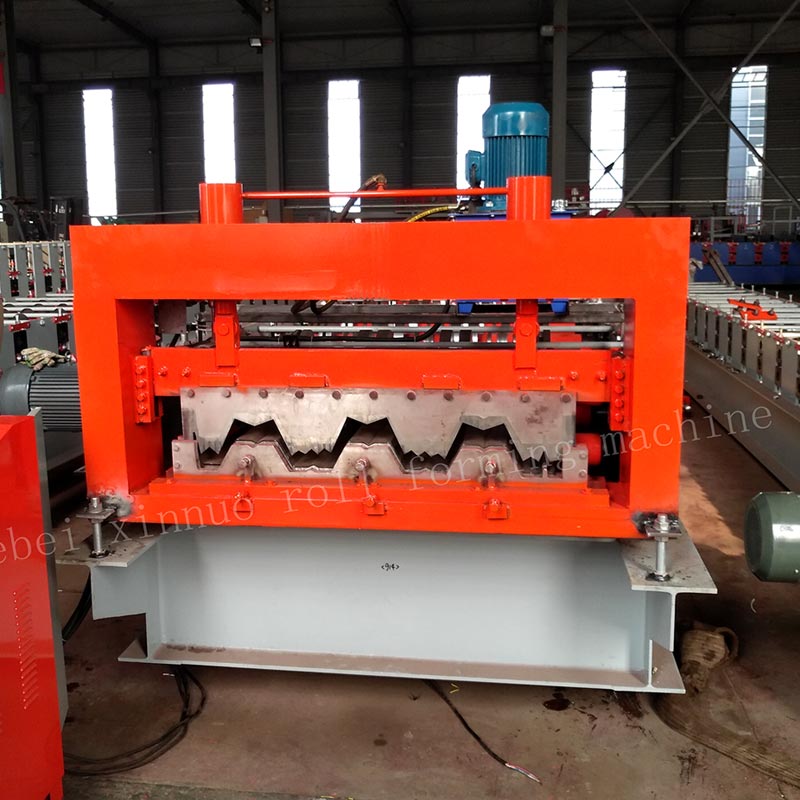

Floor Deck Roll Forming Machine

Model:1000 Floor Deck
