Features

1. The motor power of the sandwich panel roll forming line is 4k and the production speed reaches 6mmln. With the stepless speed regulation system, the efficiency of the roll forming line is optional within O-6m mm.

2. ben producing EPS sandwich panel, the speed is generally controlled at 2-6 m mm. It will be slightly lower for making rock wool board (depends on actual needs)

3. The composite panel production line Is equipped with K.9 glue metering pump, featuring low rotating speed and high accuract The glue is fed at a rate of 0.1-2.0 kg mm. It is controlled by frequency converter.

4. The thickness of the composite panel the roll forming unit can produce is varied from 50mm to 0mm. By adjusting the upper and lower rack, and the distance between the cutter holder and the material feeding rack, we can get sandwich boards with different thickness and specifications.

5. Total installed capacity: 34KW”; total weight (including accessories): 17.5t.

6. Dimension of the panel roll forming machine: 12500 (16000 for rock wool boards) X2200X2800; the roll former for 5 type EPS sandwich panel adopts 23 rubber shafts and 160X80 square tubes with thickness of 6mm; the roll former for 7 type composite rock wool panel employs 43 rubber shafts, and upper and lower independent glue suppb It is equipped with 1. 7m rock wool panel conveyor belt, with the diameter of the drive shaft to be 30mm; length of the machine frame Is up to Qm; the roll former Is welded with 180X80 square tubes which thickness Is 8mm.

Requirements for Factories

The factories where our metal deck roll forming machines are applied can be either flat-roof or sloped-roof type. The height of the cornice should be larger than 3m, and the effective width should be at least 45m. The floor of the factory should be flat and concrete. For foundation of the roll forming line, it is required to be designed according to the drawings and fmished before the equipment arrives. The power supply is required to be 380 and the total installed power Is 34kw. It Is necessary for the facto to be equipped with 0.4-0.6MPa compressed air supply and illumination devices. The roll forming machine shares the same power supply with the auxiliary devices. The fluctuation of voltage should be no more than l0%, or it may lead to an abnormal running of the system.

The stroke is no less than 29m, the load for a lifting process is larger than 5000kg, and the lifting height Is no less than 3.Qm. For daily production and maintenance, about 8.10 people are needed, with 3.4 operators for some core processes included.

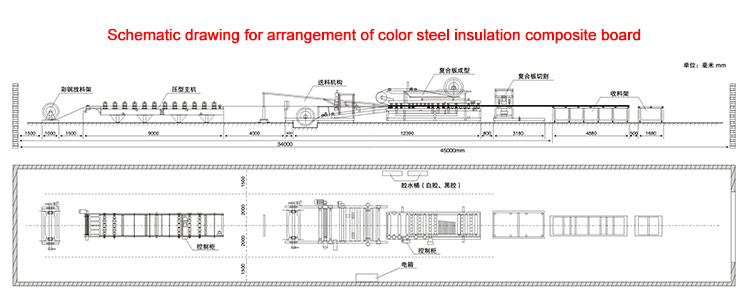

  Flow chart
