Solar Siding Panels Roll Forming Machines
product description:
We are a manufacture of roll forming machine, all of the parts we made ourselves, so, we can insure the quality of our products.
1.Final product main parameters
Feeding material width range: 40-300mm
Feeding material thickness:1.5-2.5mm
Suitable material: Q235, Q345 cold steel strips, hot galvanized strips
Produce speed: 20m/min
The min length of product: 2000mm
The final product straightness error: ≤±1.5 mm /1500 mm
The final product angle error: ≤±1.5 mm /1000 mm
The final product length error: 10m±1.5 mm
2.Produce processing flow:

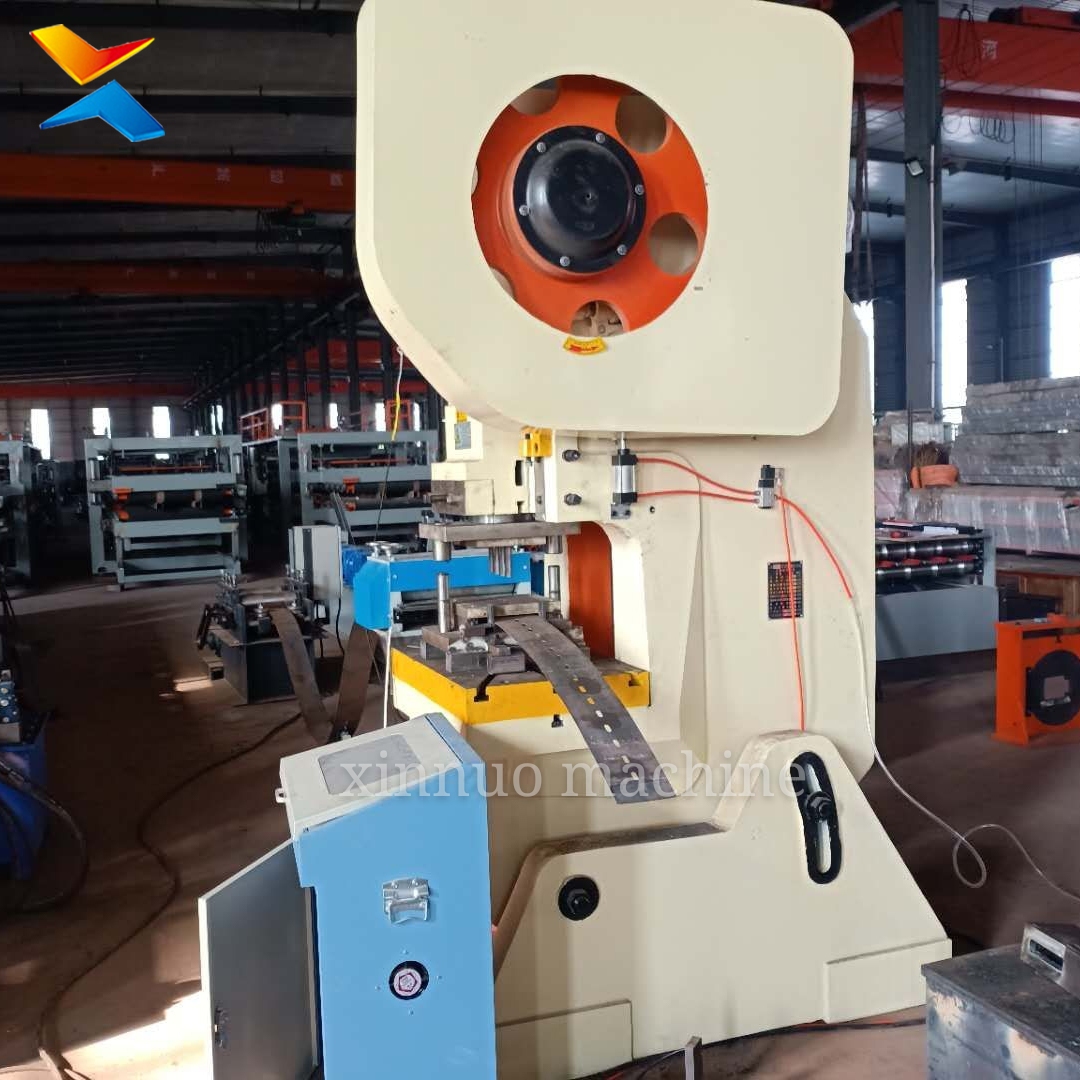

3T automatic decoiler and straightener→servo feeding→punching machine with mould→main roll forming machine→sizing→tracking hydraulic cutting→out put table
3.Main part specification:
3T electric decoiler
Inner diameter: 508mm inner diameter range of shrinkage: 480-520mm
Max out diameter: 1500mm
Man support weight: 3T
