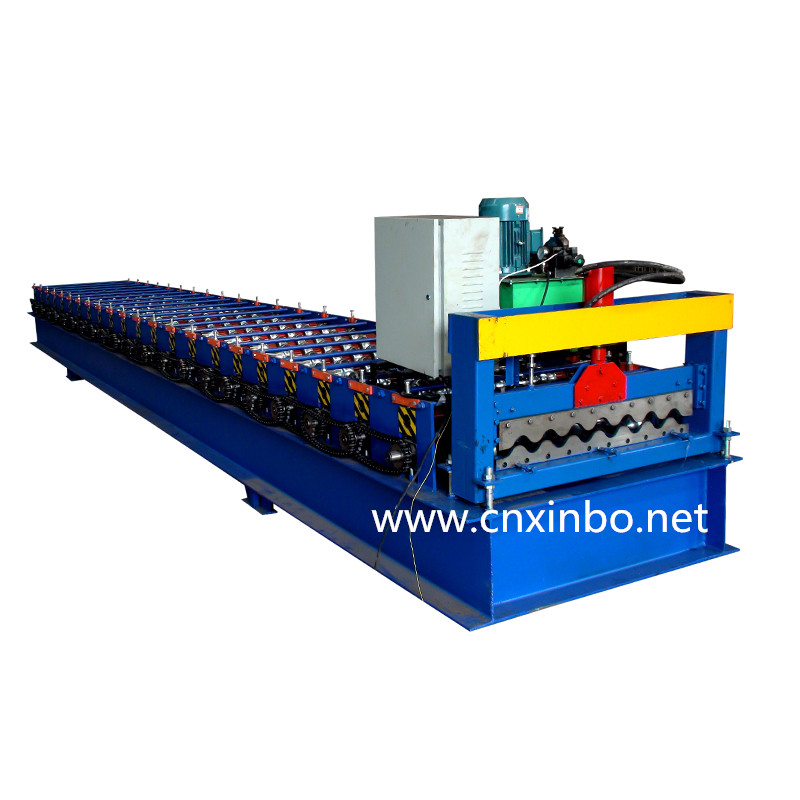

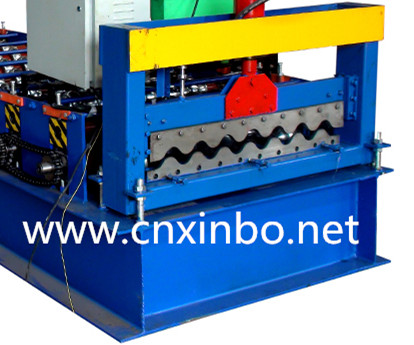

Corrugated Wall Panel Forming Machine
Name | Corrugated Sheet Panel Cold Roll Forming Machine |
Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
Thickness Range | 0.3-0.8 mm |
Coil Width Range | 914, 1000, 1220 or 1250 mm. According to your actual drawing. |
Electric Power | 380V, 50 Hz, 3 phase or according to your need. |
Dimension | About 7.2*1.3*1.1m(L*W*H), as per the drawing |
Cutting | Automatically stop and cutting when it comes to the set length. |
Length of the Sheet | You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm. |
Working Flow

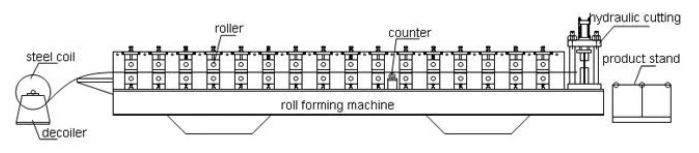

Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

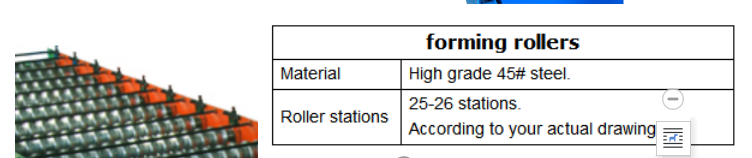

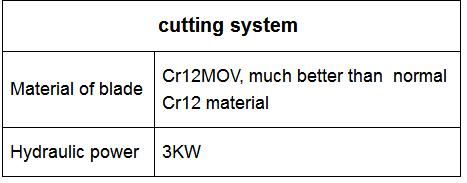

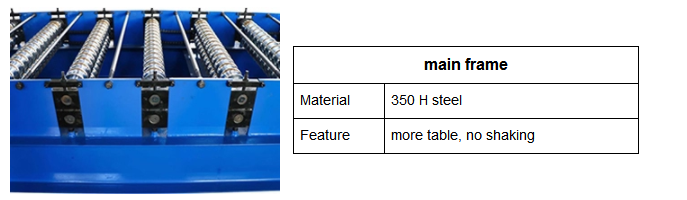

Details Show

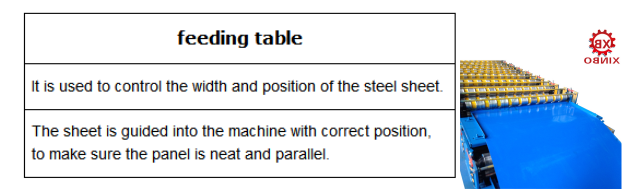

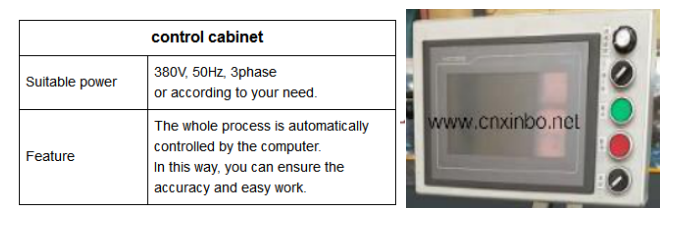

——Product Details——

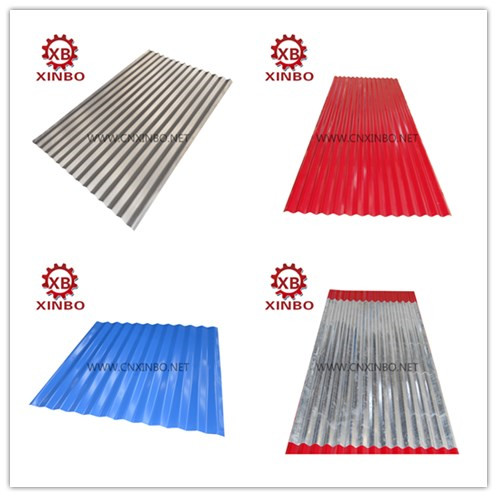

Product Display

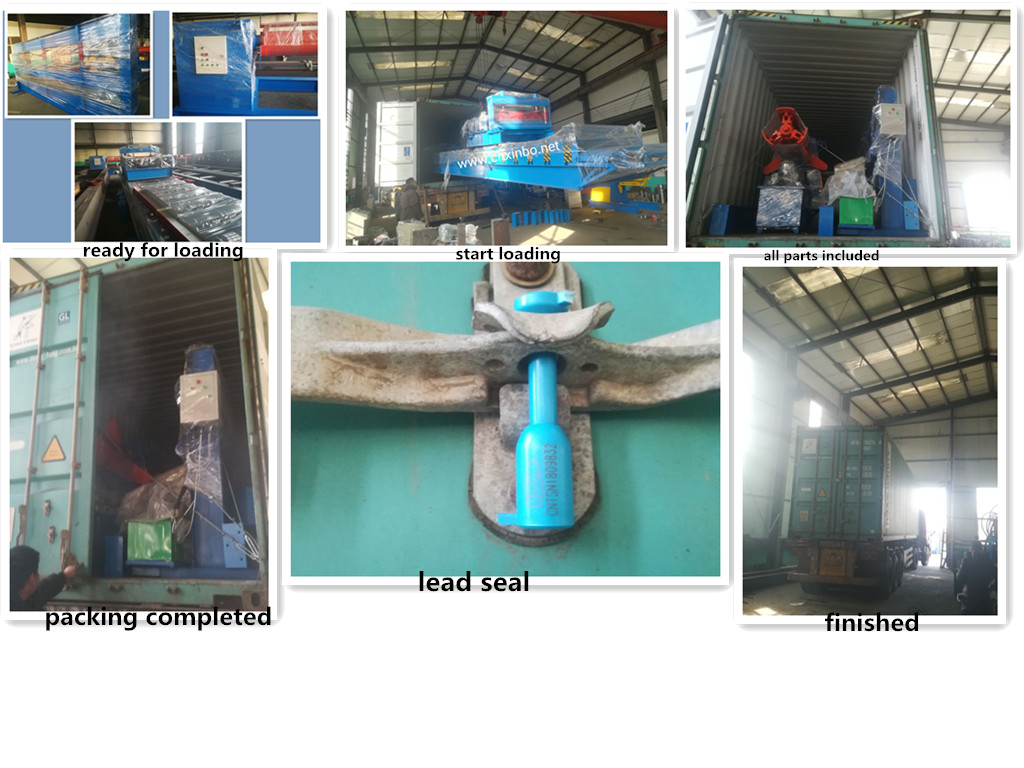

a. Need one 20 or 40 ft container, according to your final drawing.
b. The main body of machine is fixed to container by 8mm diameter steel wire, rollers and shaft is
covered with anti-rust oil.
c. Spare parts in carton box.

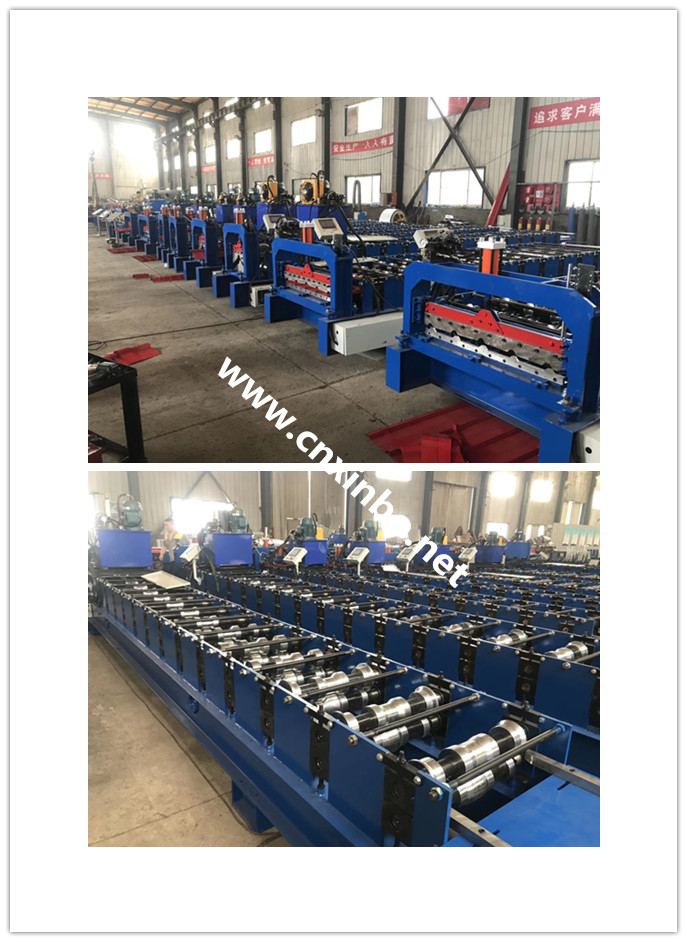

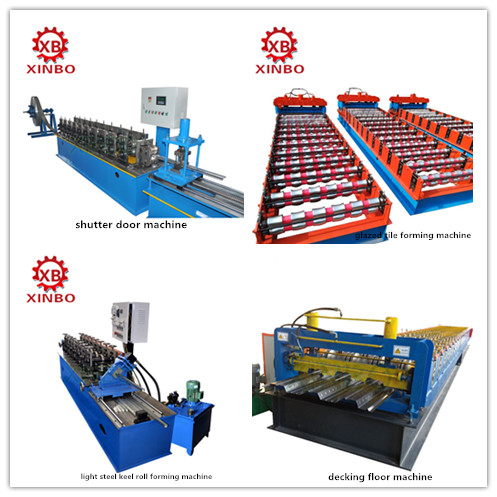

Our Factory

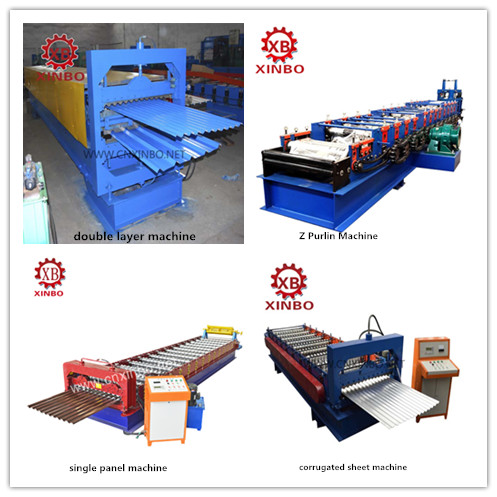

Botou Xinbo Import & Export Co.,Ltd mainly produce and sell All kinds of machines and cnc machining services. roll forming machines,C Z purlin machine, deck floor machines,stud &track light keel machine, T grid machine, downpipe machine,EPS and Rockwool sandwich panel machines for the building structure and all kinds of CNC machining services.
FAQ
1. what is your guarantee period?
Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.
2. Do you provide training for my workers?
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping. It only needs 2 hours and you can operate well.
3. I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.
4. What is included in the machine?
The process for work: decoiler→feeding→roll forming→measuring length→cutting to length→product to stand

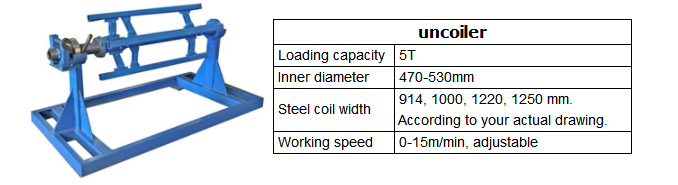

The whole line includes a manual decoiler, roll forming machine and product stand. when you get the machine in your factory, you just need to do following 3 things, and then you can start working.
a. Put the machine on the flat level ground.
b. Inject gear oil and hydraulic oil.
c. Connect 3 phase electric wire.
