Botou JCX Metcoppo metal glazed tile roll forming machine for sale in Nigeria

Name: Botou JCX Metcoppo metal glazed tile roll forming machine for sale in Nigeria
Brand: BOTOU GOLDEN INTEGRITY ROLL FORMING MACHINE CO.,LTD
SKU: 20081016700

ID:20081016700

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 12000.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

glazed tile making machineglazed tile forming machine930 type glazed tile machinemetal metcoppo forming machineroll forming machine

Payment Method:

L/CMoney GramOthers

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

JCX

Product Package

Packing: nude, with waterproof cloth and stow-wood. The computer controlled cabinet is packed with waterproof cloth and box.

Specification

1.6*1.3*1.1 m (L*W*H)

Place of Origin

Botou City,China

Port

Tianjin

Metcoppo Profile Roll Forming Machine

Product Description

1. Machine pictures

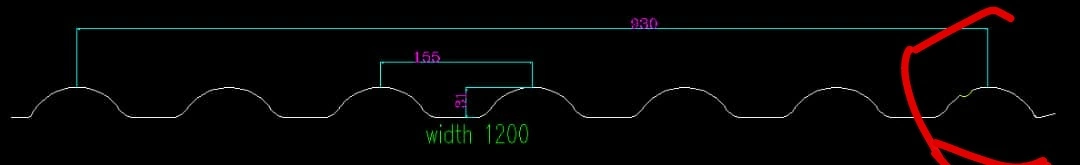

2. Machine Profile Drawing

China factory Botou city metal 1200 input metcoppo glazed tile sheet making roll forming machine

3. Machine specifications

1.	Power requirement	Type	220v/380v/3ph/50hz
		Main Motor power	3kw
		Cutter power	3kw
2.	Forming speed(m/min)		2-3m/min	Not include the time of cutting
3.	Forming stations		15 stations
4.	Material of rollers		CR12
5.	Thickness of structure		16mm
6.	Forming shaft diameter(mm)		75
7.	Chains		1 inch
8.	Type of cutting		Hydraulic cutting
9.	Control system		PLC Panasonic and Inverter
10.	Install dimension(depend on the final design)		8.5m×1.6m×1.2m	Without panel length
11.	Total weight (Approx)		6T	Depend on final design
12.	Screen		Text screen /touch screen

4.Machine Advantage

1. Nice appearence.2. Low noise.3. High efficiency.4. Good quality.5. Esay control.

5. Machine Main Parts Introduction

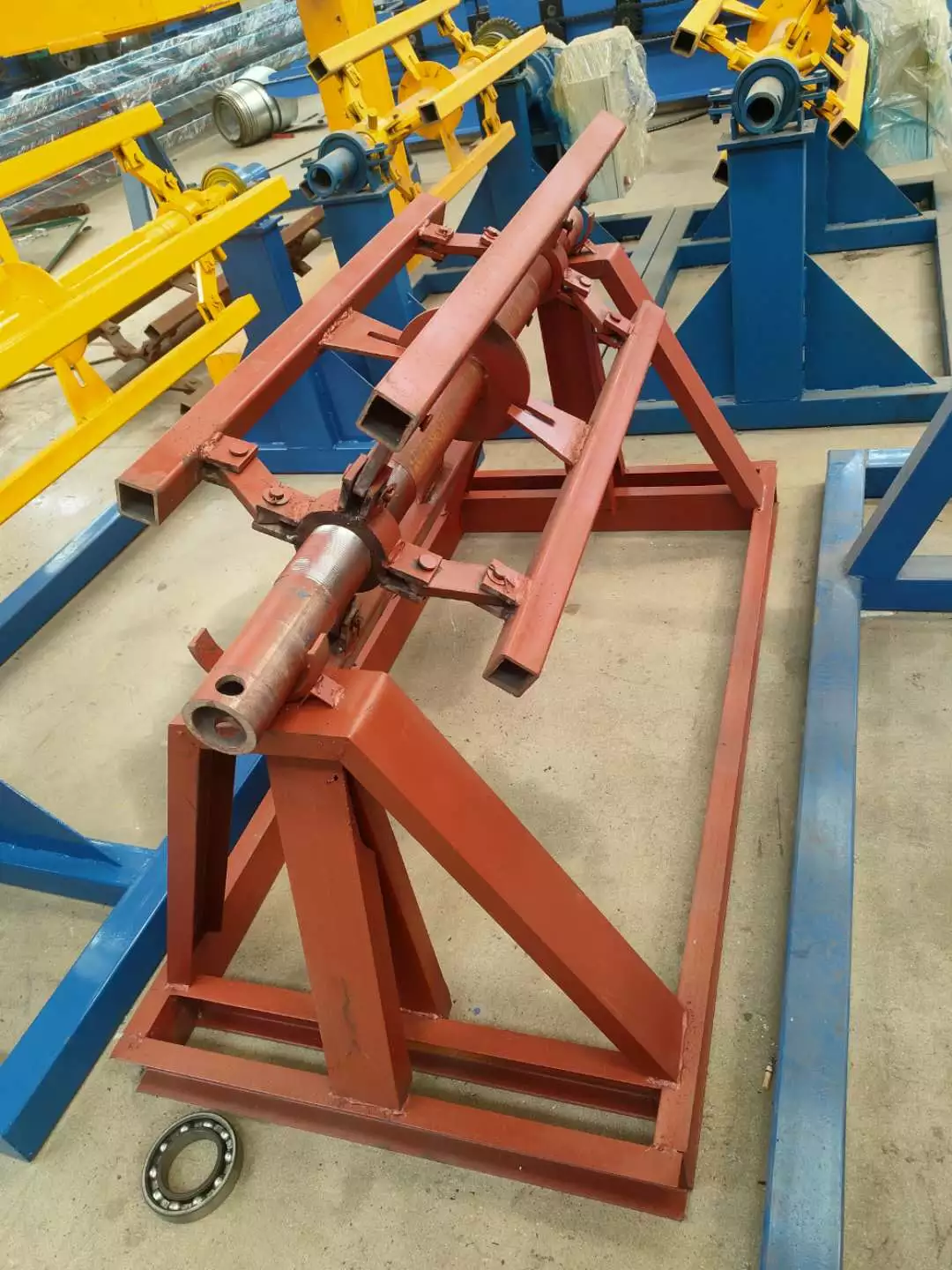

a. Manual decoiler

It is passive type could load coil by expend the blots fix at coil inner diameter.It's easy to operate and economical solution.

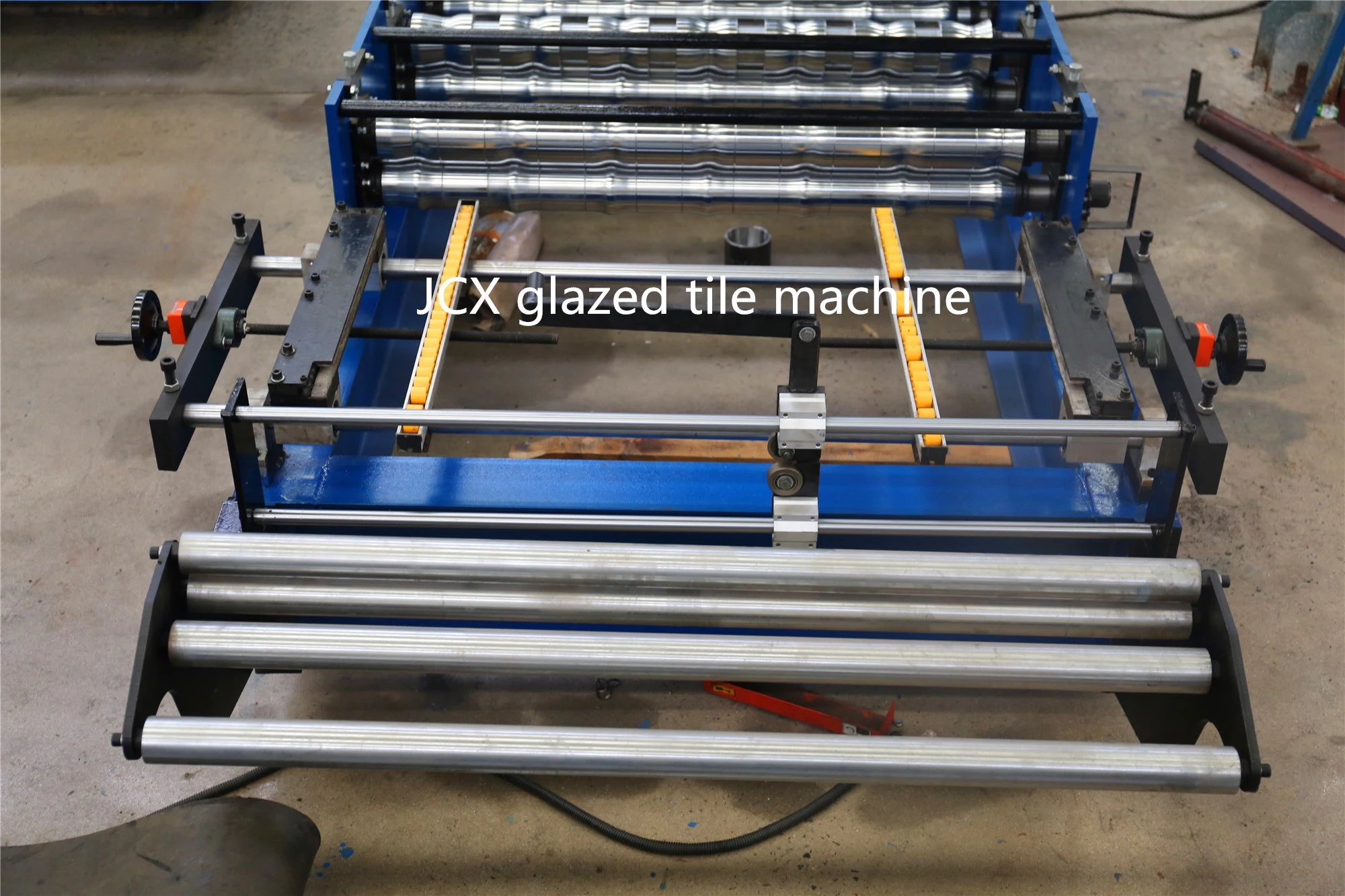

b. Guiding device
China factory Botou city metal 1200 input metcoppo glazed tile sheet making roll forming machine

Adopt guiding bar and sliding block to control the width and position of the steel sheet. The coil is guided in the correct position and passed to the roll forming system. Can adjust the guiding bar with loosing the fixing bolts to feed sheet in right position. It's fixed structure to make sure can not move easily.

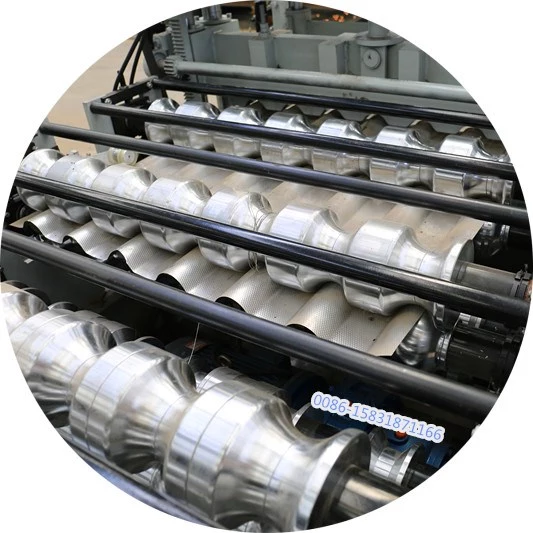

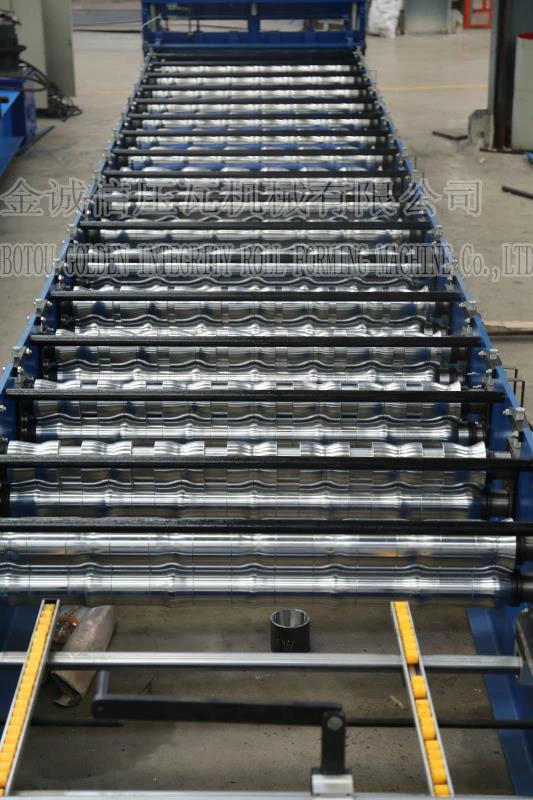

c. Roll Forming System:
China factory Botou city metal 1200 input metcoppo glazed tile sheet making roll forming machine

Roll forming system consist of machine frame, transmission system, electrical motor and roll forming system.
A. Machine frame adopts welding structure with shot blasting and painting treatment
B. All rollers material adopt high quality No.45 steel, with hard chrome coated on surface, all treatment by full CNC machines, to make sure the rollers with good rigidity and precision, and form perfect roofing sheet as per design.
C. All rolling shafts are made by high quality No.45 steel with quench and temper treatment, so the shafts with good rigidity which could use for long tern without deformation.
D. Rolling shafting supporting structure type is steel wall and welded with the basement together to have rigidity.
E. Cycloidal pin gear speed reducer motor driven, the back/forward roller driven by chain, part of upper/lower rollers driven by gear
F. Adjust the screw bar manually to adjust the distance between upper/lower rollers for difference thickness of sheet.
(Attention: all rolling system has adjusted in our company as a perfect situation, we don't suggest to adjust the rollers at random, if necessary, should adjust by a experienced technician or after train by our engineer. Otherwise will cause the machine can not form a good profile

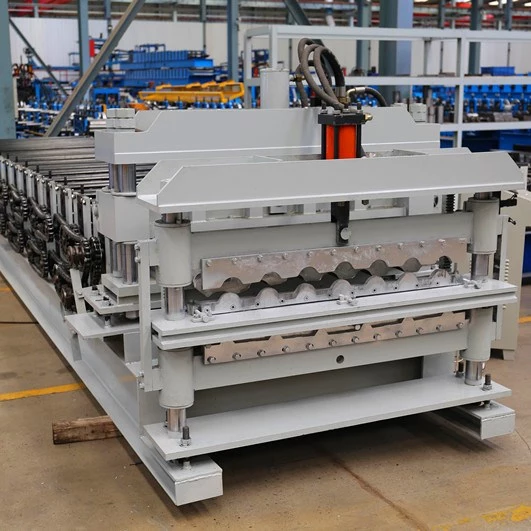

d. Cutting device

A. Adopts post cutting, the cutting blade material is Cr12 with quenched treatment, after cutting, there is no material wasted.
B. Adopts welded frame for good rigidity.
C. The cutting action is droved by the power from hydraulic station which guarantees the procession of the cutting and low noisy, long life.

e. Hydraulic System

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 3kw
Hydraulic oil :46#

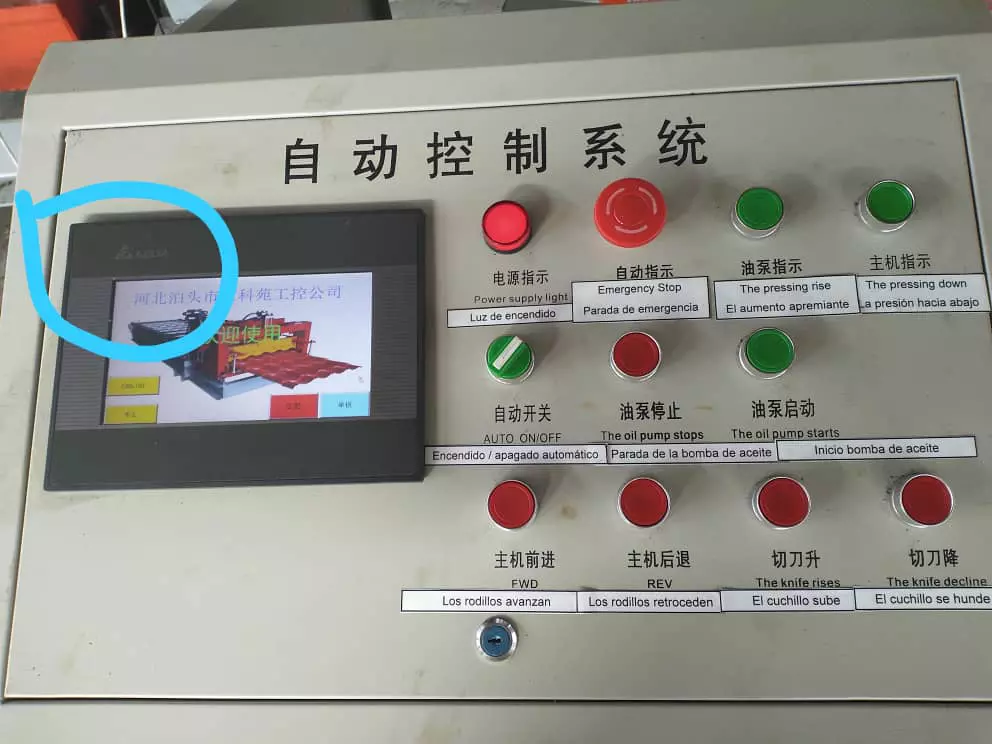

f. PLC control system

It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Touch screen
PLC is Taiwan Panasonic
Transducer brand is taiwan taida
The seller should provide Chinese and English language screen

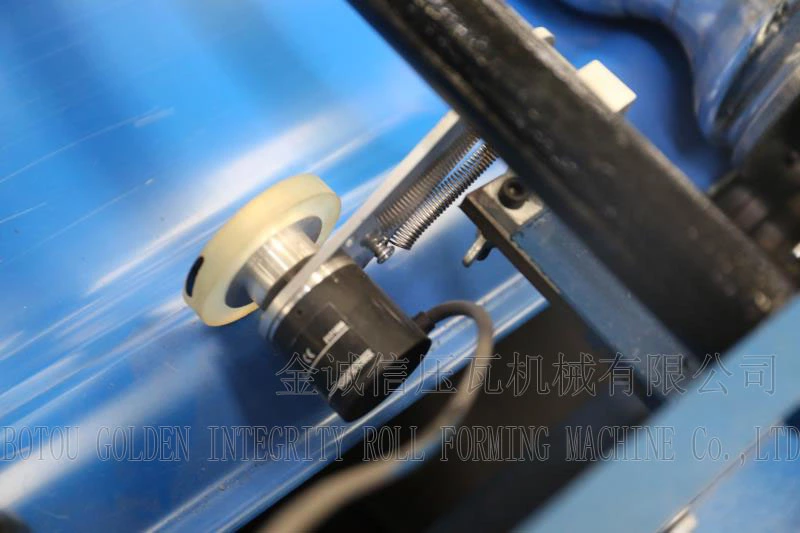

7. Counter
China factory Botou city metal 1200 input metcoppo glazed tile sheet making roll forming machine

One counter gauges length, pulses, and decides length.

Our Services

Company Information

Botou Golden Integrity Roll Forming Machine Co., Ltd. is a professional manufacturer of high-end cold forming equipment integrating independent research and development, production, sales and service, with an annual output of 4,000 units. Excellent design engineers and good processing technology ensure the quality and performance of equipment, product quality is stable, and cost-effective. Our cold bending machine has a complete and scientific quality management system and has passed various quality system certifications. The products are exported to Southeast Asia, Middle East, South America, North America, Europe and other countries and regions, and have won wide acclaim and praise.

China factory Botou city metal 1200 input metcoppo glazed tile sheet making roll forming machine

FAQ

1. Payment term

30% TT as deposit and 70% TT as balance

2. Delivery time

If our machines have in stock, the delivery time is about 3 working days.

Most machines need customized, the delivery time is about 30-45 working days.

3. How to place an order and finish this trade?

More details, please add my whatsapp number 0086-15831871166 and please provide me with your profile drawings and i will send you quotation. After you confirm the price, and we can sign contract and after receiving your deposit , we make machines for you and after we receiving your balance, we load the machines for you.
