Glazed Tile Roll Forming Machine

    Glazed Tile Roll Forming Machine

    This machine can be used to produce Color Steel Roof Tile Board, Metal Sheet Roof Board, Metal Sheet Wall Panel Board, Color Steel Roof Sheet, Glazed Roof Tile Board, Color Steel Wall Panel Board, Color Steel Roof Tile Panel, Metal Ridge Cap, Iron Steel Ridge Sheet Roll, PPGI Corrugated Roof Tile, Color Glazed Steel Roof Tile, Steel Corrugated Roof Tile, Corrugated Color Steel Roof Tile, Wall Panel, Corrugated Wall Panel Board, Corrugated Sheet Panel etc.

Brief introduction

      Feeding platform

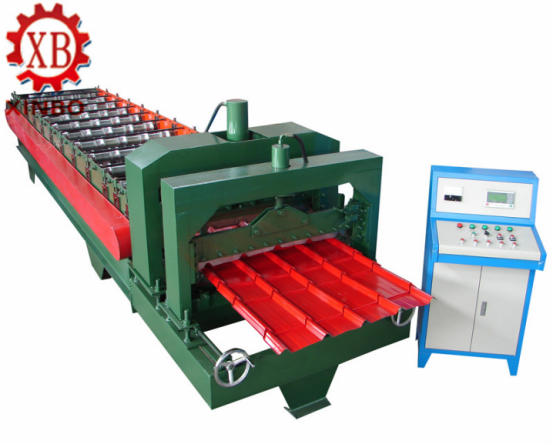

Main molding core

 Hydraulic system

Automatic shearing system

 Computer control system

 High-precision automatic counter

       Driven system protective covering

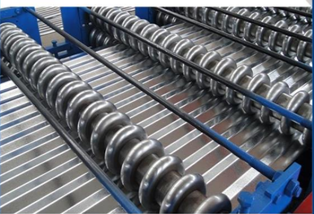

Rollers

In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

Roller chrome coated thickness: 0.05 mm.

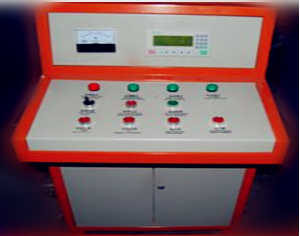

Computer Control Cabinet

It adopts MITSUBISHI PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

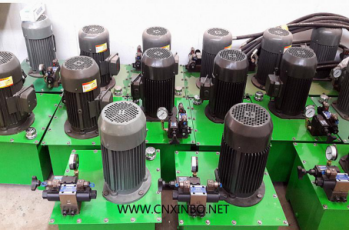

Hydraulic Station

It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.

Power of The Pump:4kw

Hydraulic oil :40#

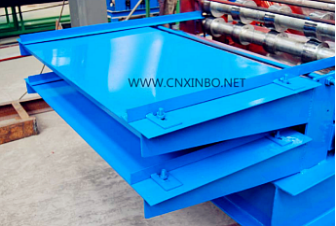

Entry Beach

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

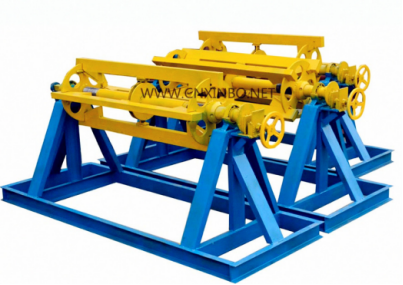

Automatic Uncoiler With moving car

It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by automatic.

Loading capacity:5T

Inner diameter: 450-508mm

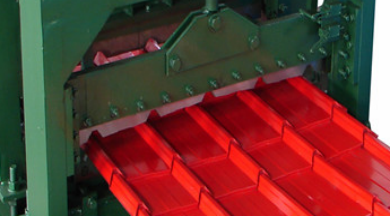

 Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12

Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine.
