sandwich panel machineEPS panel making machine
L/CT/TD/PWestern UnionPaypalMoney GramOthers

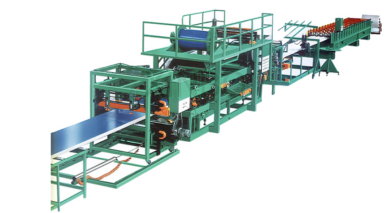

This metal panel machine production line adopts superior technology by pneumatic,electricity,and mechanism,which is the specialized machine for producing color steel sandwich panel.The production speed can be adjusted by stepless speed regulation.The complete line includes uncoiling machine,forming machine,compositing machine(ribs forming,rubber coating,warming up.compositing,hemming,notching,edge processing,pneumatic auto cutting),It’s necessary for making wall and roof panel of workshop,storage and so on.
Technical parameter：
Overall power equipment: | 55 kw |
Size of the line: | overall length of the line is 28000mm |
Voltage | 380V,50Hz or as customer's need |
Produced panel thickness | 0.3-0.8mm |
Overall width of the line: | 1250mm |
Overall height of the line: | 2100mm |
Overall weight of the line: | 20000KG |
Detailed Images:
Name: cutting part
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Name: computer box
It adopts MITSUBISHI PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Name: feeding part
Name: sandwich panel
Our service
Packing：

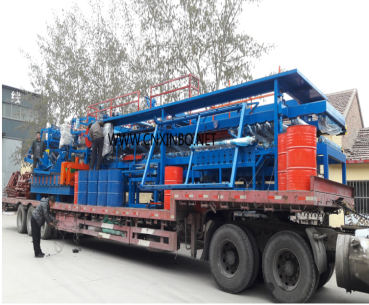

Main machine is nude, the computer control box is packed with wooden frame.
Main machine is nude in the container, the computer control box is packed with wooden packaging.
Our service：
This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.
Company Information：
Botou Xinbo Machine Making Company mainly produce and sell All kinds of machines and cnc machining services. roll forming machines,C Z purlin machine, deck floor machines，stud &track light keel machine, T grid machine, downpipe machine,EPS and Rockwool sandwich panel machines for the building structure and all kinds of CNC machining services.
FAQ
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler
Q: How to visit your company?
