Business Type: Manufacturer
Main Products:roof panel roll forming machinedoor and door frame forming machinec z u purlin section machinewall panel making machineEPS sandwich panel roll forming machinedownspout making machinegutter making machinestud and track light keel roll forming machinedecorative panel forming machinesteel plate cutting and bending machine
ID:20081116769
Category: Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1.00 Piece(s)
pipe making machinedownpipe forming machinesteel pipe making machine
L/CT/TD/PWestern UnionPaypalMoney GramOthers
Dimension: 7000(L) * 1700(W) * 1600mm(H)
Machine weight: Approx. 4.8 T
Frame material: 300 H steel
Thickness of steel plate: 16mm
Forming axis: diameter of 75 mm, 45 # quenched and tempered
45 # forged molding chakra: material, hard chromium plating
Drive: by wheel and chain
The computer automatic control, PLC of Siemens
Line speed: 650 m/h
Production rate: 2.2 T/h (for 0.4-0.5mm sheet)
Coil weight: Max. 8 T
Sheet thickness: 0.3- 0.8 mm
Gear reducer: 5.5 KW planetary cycloidal reducer
Pump station: 4 KW
Power supply: 380V, 50Hz, 3 phase

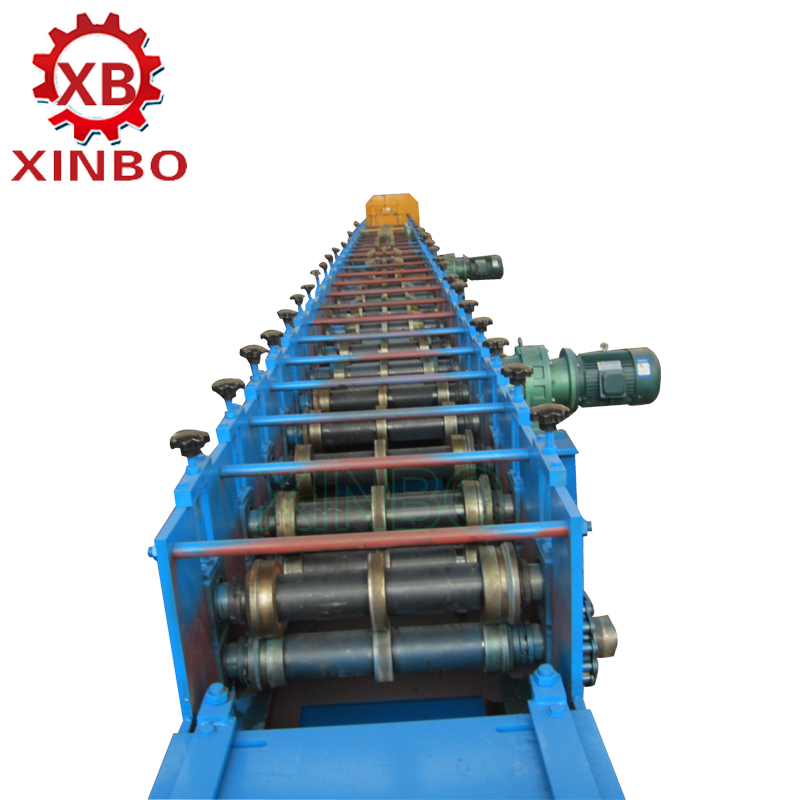

This roll forming line mainly consists of main frame, pump station, electric control panel and exit roller way etc.
Packaging & Shipping
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.
Step 1: Tell us your requirements |
Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative |
Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract. |
Step 4: Advanced payment and production |
Step 5: Factory Examine Goods/ rectify and reform to meet the requirements of contract. |
Step 6: Balance payment and shipping |
Step 7: Handing Shipping files to help clients get goods from transporter in time. |
Step 8: Clients get goods and go into warranty time. |
Botou Xinbo Import & Export Co.,Ltd mainly produce and sell All kinds of machines and cnc machining services. roll forming machines,C Z purlin machine, deck floor machines,stud &track light keel machine, T grid machine, downpipe machine,EPS and Rockwool sandwich panel machines for the building structure and all kinds of CNC machining services.
FAQ
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler
Q: How to visit your company?
A:a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
Q: What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
