container beam forming machineroll forming machinecontainer bottom beam machine
L/CT/TMoney GramOthers

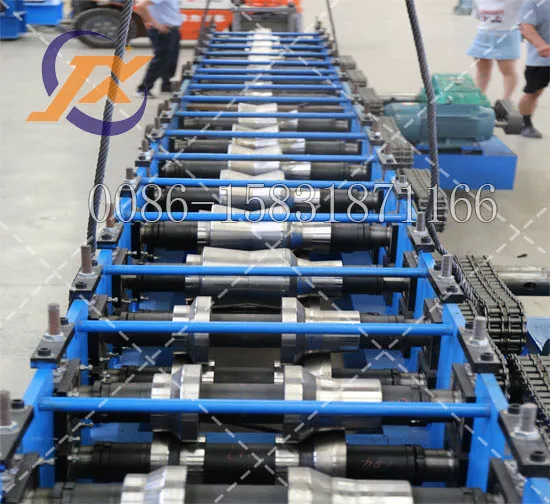

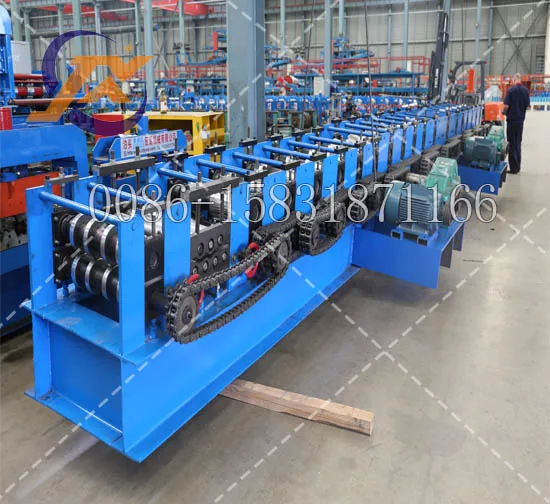

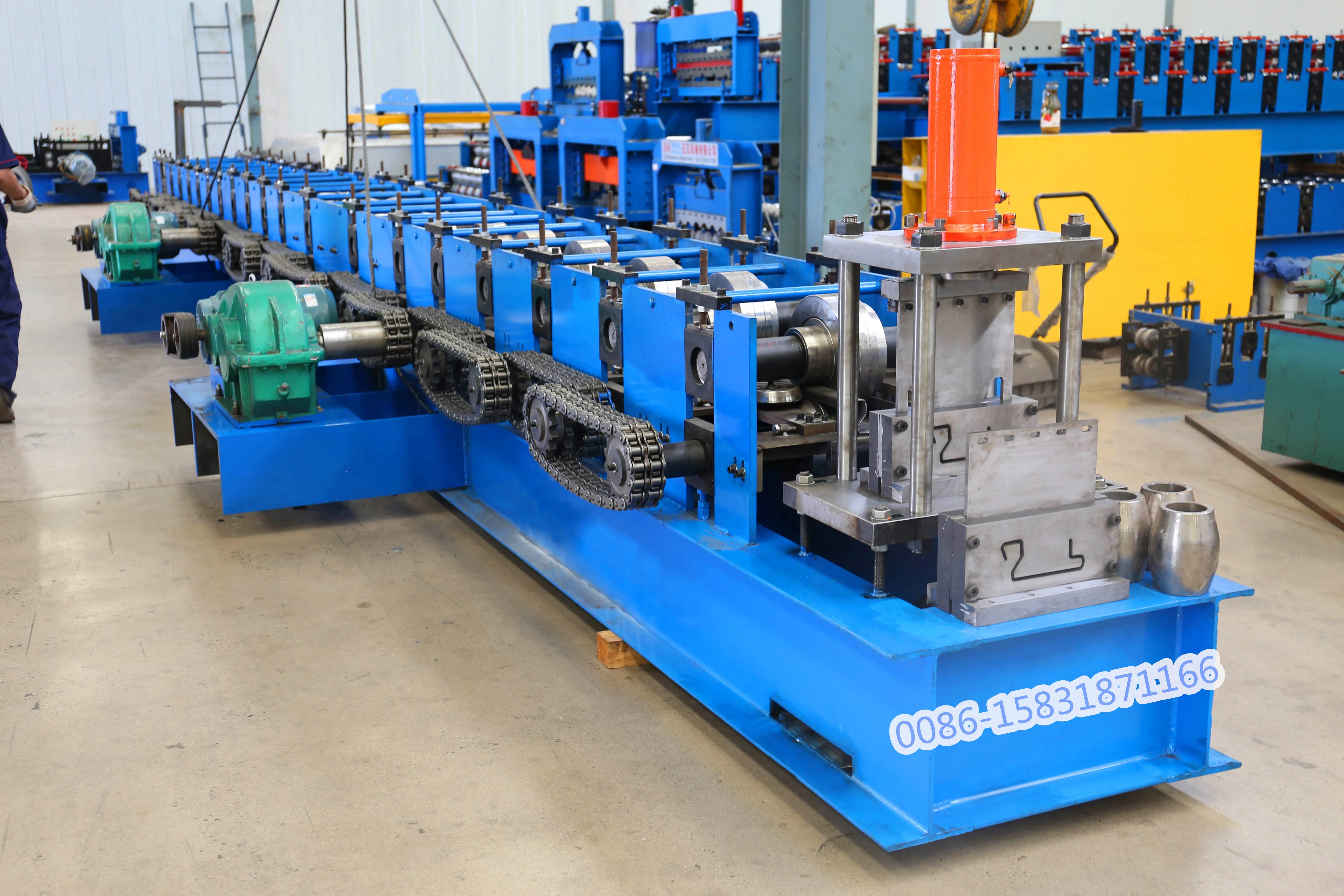

1. machine pictures

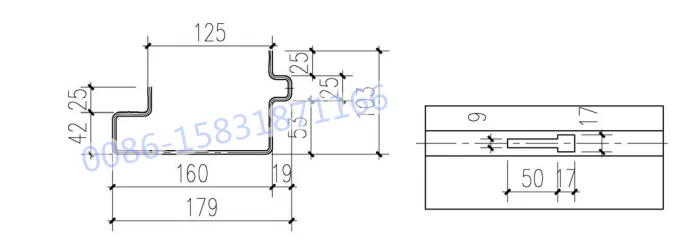

2. Profile drawing

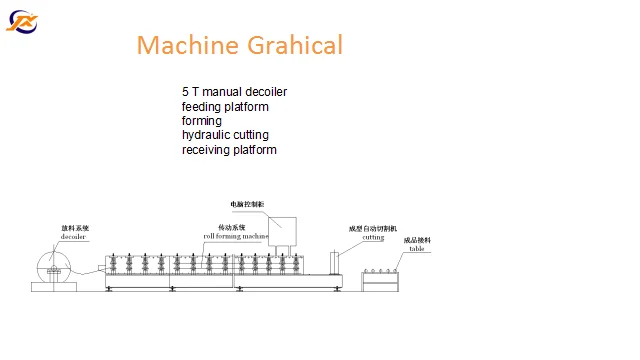

3. Machine Grahical
4.Parameters:
No. | Item | Specification |
1 | Decoiler | 5T Manual decoiler |
2 | Mill bed material | 450 H steel welding |
3 | Feeding platform type | Side roller type |

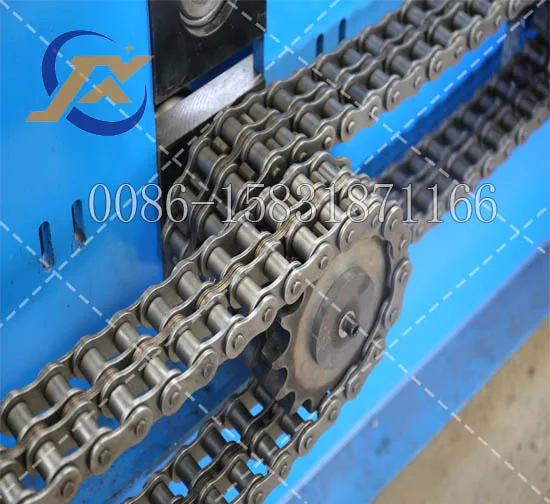

4 | Transmission method | 1.5 inch double chains |
5 | Side wall thickness | 20mm |
6 | Shaft diameter | 95mm diameter with solid shaft |

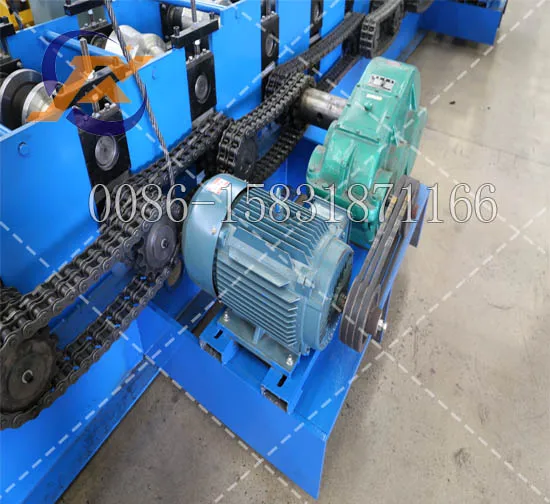

7 | Main motor power | 2*18.5kw |
8 | Machine speed | 8-10m/min |
9 | Forming stations | 20 stations |
10 | Shaft material | GCR 15 with heat treatment |
11 | Cutting blade material | CR 12 |
12 | Pump station power | 5.5 kw gear pump |
13 | Raw material Thickness | 4mm |
14 | Length sizing accuracy | +/- 2mm |
15 | lacing hole mold | One set |
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard and enjoy great popularity all over the world. Now We are the leading manufacturer of roll forming machine in China.
We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
1. How many times to delivery?
Generally the delivery time is 35 working days.
2. How can you guarantee your machine quality?
I am Elna,sales manager of Botou Golden Integrity Roll Forming Machine Co.,LTD. We are more than 15 years to do and export roll forming machines. And, we have strong engineer team to design your machines' drawings and provide you with comfortable and timely after-sale services. Additionally, we have mature workers to do your roll forming machines. So, buy roll forming machines from our comppany will save money and time.
3. If i don't have profile drawing, how can i buy the machine?
Dear, it's okay. Please provide me with your profile drawing. And answer me some below questions and our engineer will draw for your needed profile drawings.
