Light Gauge Steel Villa Keel Roll Forming Machine

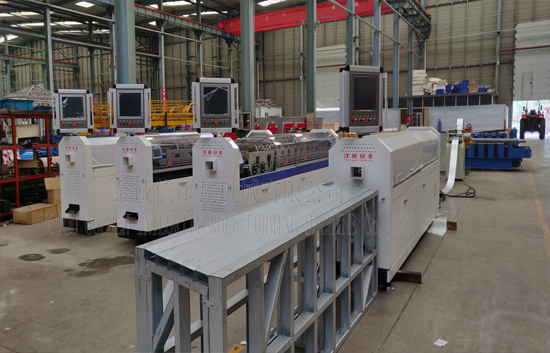

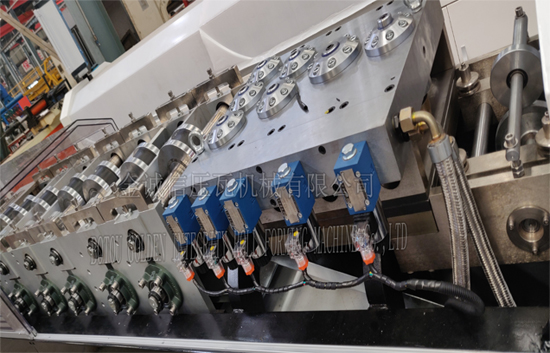

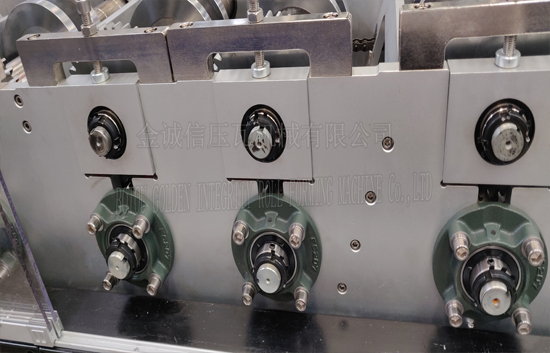

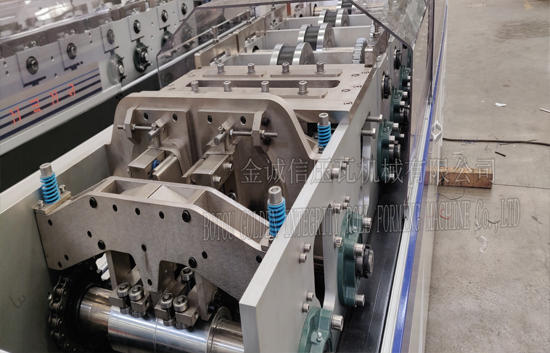

1.Machine pictures

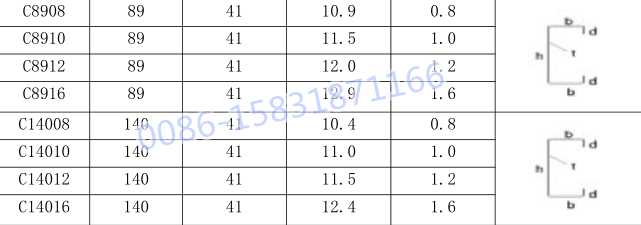

2. Machine types
3. Machine parameters
| decoiler | max. weight capacity | 3 tons |
| inner diameter | 450-530mm | |
| out diameter | 1300 mm | |
| type | electric decoiler | |
| running method | automatic | |
| roll forming part | weight | about 3 tons |
| size | 4*0.8*1.8 | |
| total power | 15kw | |
| number of rollers | with 8 groups and 4 groups' correctional rolers | |
| transmission method | gear and chain | |
| brand of main motor | Invet | |
| powerof main motor | 7.5 kw | |
| material of rollers | Cr12 with heat treatment | |
| material of shaft | 40 Cr with vacuum heat treatment | |
| material of cutter | Cr12mov | |
| productivity of machine | 50m/minute with out punching, 0.5-0.6 tons/hour | |
| tolerance of punching hole | +/- 3mm length distance:+/-0.5mm straightness accuracy: 0.3mm | |
| brand of inject printer | SOJET double head printer | |
| highlight | some parts of the machine we make innovation to make make use more long time and more stronger | |
| control system | Brand of PLC | Delta |
| Brand of speed controller | Delta | |
| Brand of low voltage/switch/encoder/button | Schneider | |
| design software | Vertex BD | |
| task software | Self development program | |
| hydraulic system | power | 5.5kw |
| oil tank | 80L | |
| brand of solenoid valve | HUADE | |
| receiving table | size | 4 meters long |
| After-sale services | warranty | one year |
| training items in China freely | operation training and finished products installation training | |
| machine maintenance | immediate feedback and use real-time communication to solve problems and engineer avaliable to overseas |

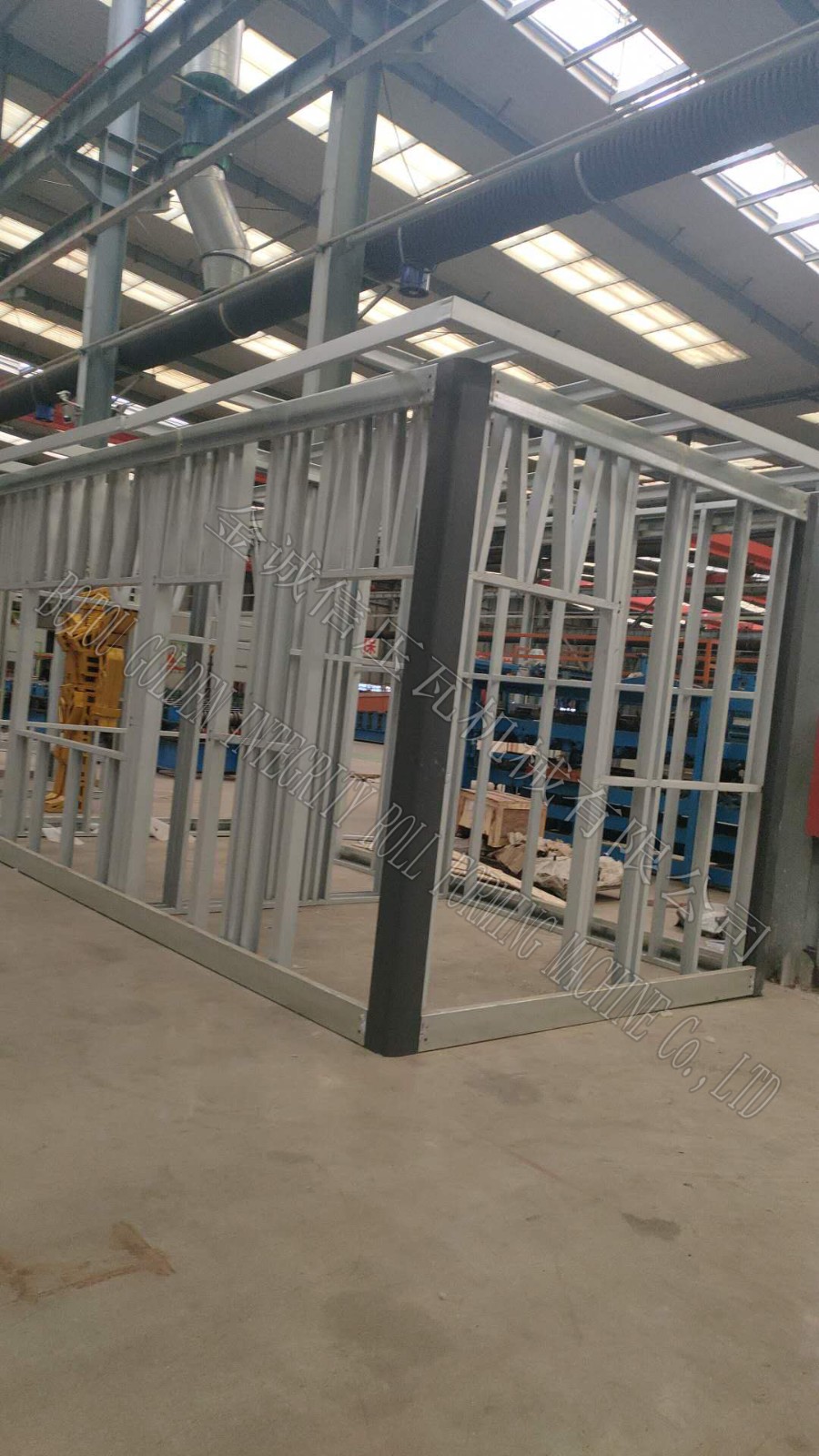

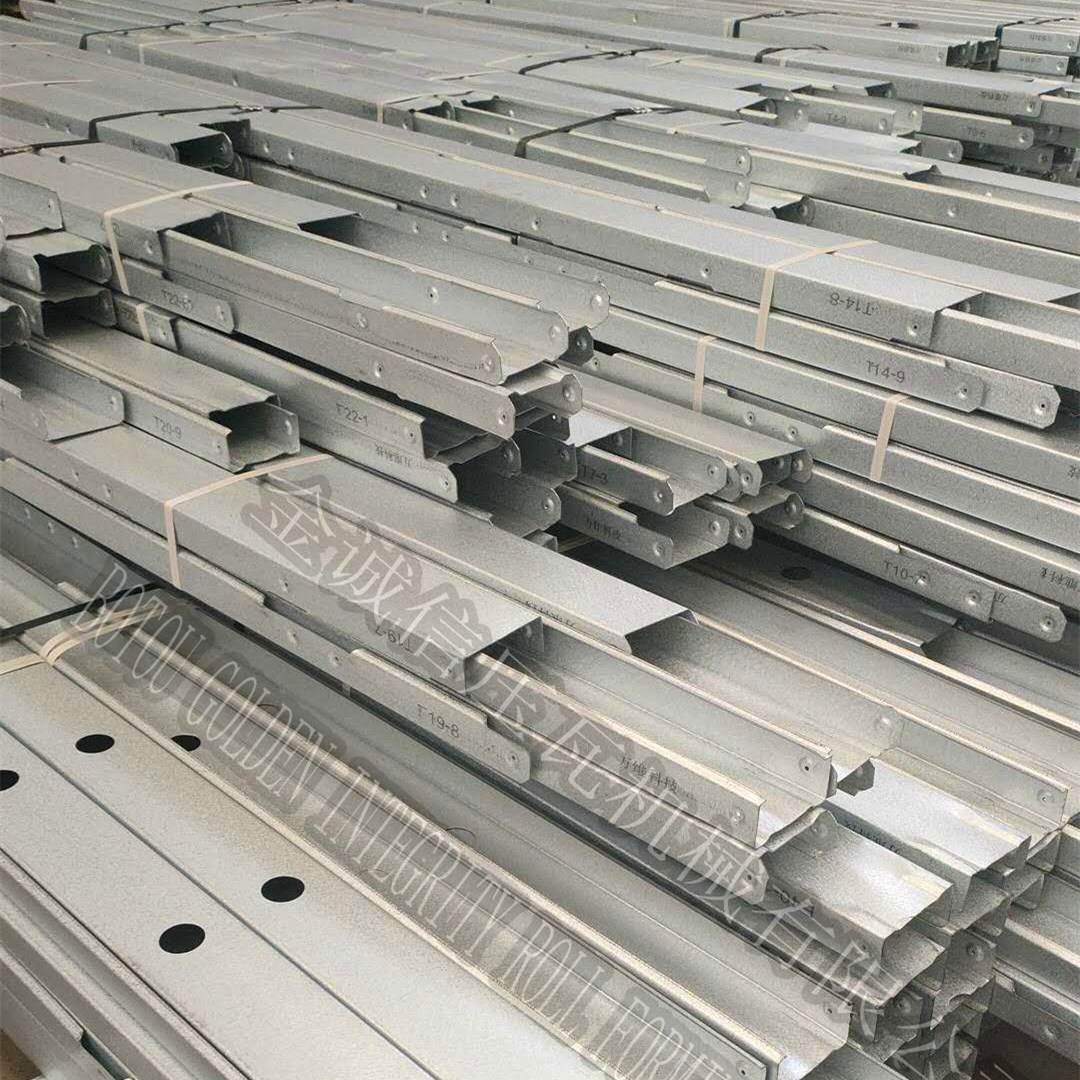

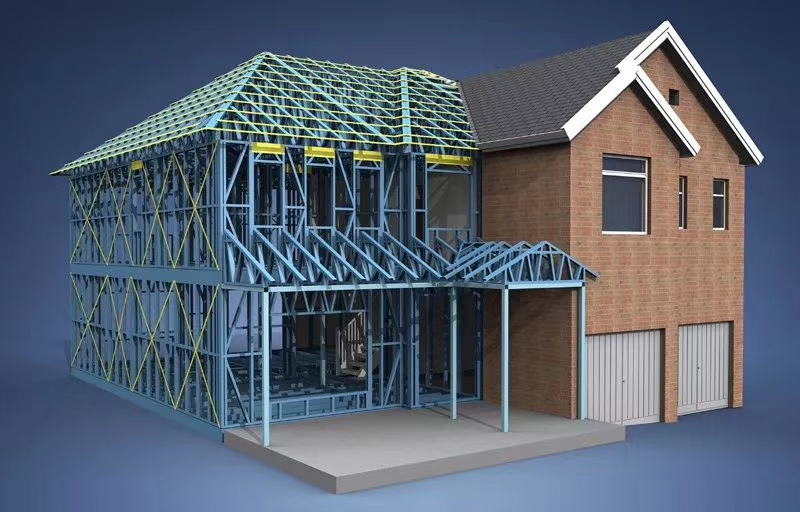

4. Machine finished light gauge steel keels application
