floor decking froming machinefloor deck forming machine720 floor decking steel plate
L/CT/TMoney GramOthers
1. machine pictures

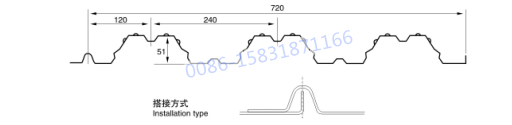

2. Profile drawing
3.Parameters:
No. | Item | Specification |
1 | Decoiler | 5T Manual decoiler |
2 | material | PPGI |
3 | material thickness | 0.8-1.2 mm |
4 | Transmission method | 1.5 inch double chains |
5 | Side wall thickness | 20mm |
6 | Shaft diameter | 85mm diameter with solid shaft |
7 | Main motor power | 5.5kw+4kw |
8 | Machine speed | 10-12m/min |
9 | Forming stations | 24 stations |
10 | Shaft material | GCR 15 with heat treatment |
11 | Cutting blade material | CR 12 |
12 | Index Error of Length | 10m±1.5mm |
Main Components
Decoiler ----------------------------------------------- 1 Unit
Feeding ----------------------------------------------- 1 Unit
Main roll forming machine ----------------------------- 1 Unit
Hydraulic cutting device ------------------------------- 1 Unit
Hydraulic Station ------------------------------------- 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ----------------------------------------- 2 Unit

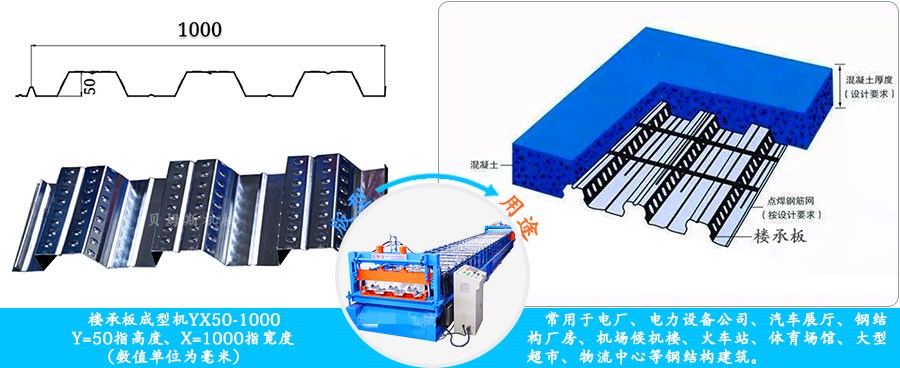

Application
Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...
Our Advantage
High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

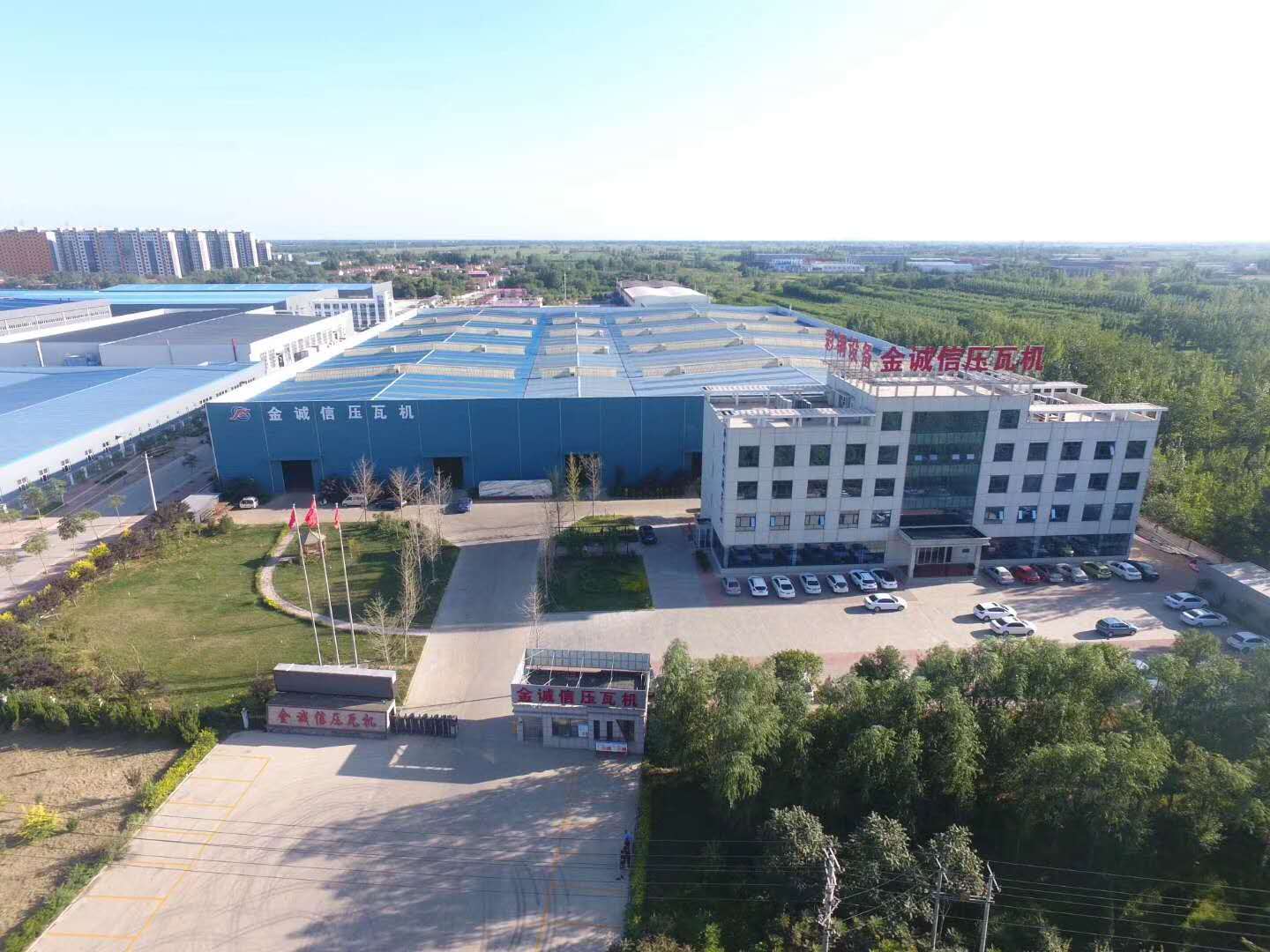

We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard and enjoy great popularity all over the world. Now We are the leading manufacturer of roll forming machine in China.
We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
1. How many times to delivery?
Generally the delivery time is 35 working days.
2. How can you guarantee your machine quality?
I am Elna,sales manager of Botou Golden Integrity Roll Forming Machine Co.,LTD. We are more than 15 years to do and export roll forming machines. And, we have strong engineer team to design your machines' drawings and provide you with comfortable and timely after-sale services. Additionally, we have mature workers to do your roll forming machines. So, buy roll forming machines from our comppany will save money and time.
3. If i don't have profile drawing, how can i buy the machine?
Dear, it's okay. Please provide me with your profile drawing. And answer me some below questions and our engineer will draw for your needed profile drawings.
3. How to connect you?
