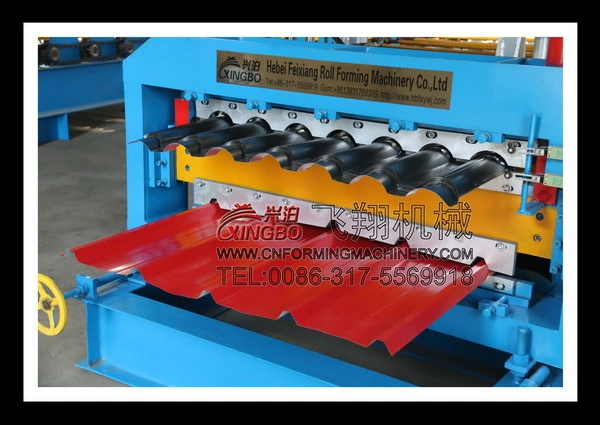

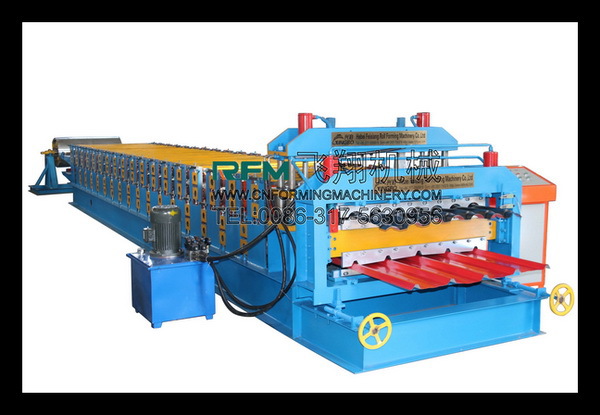

Color steel double layer roll forming machine from China
Advantages:
? As a manufacturer we are specialized in all kinds of roll forming machine.
? Good experience of 20 years to make roll forming machine.
? Good experience for export more then 40 countries.
? Provide best price,good quality and fast delivery.
This machine is perfectly combined two different model machines together, this can save the space and also
is easy to operate. The two models are chose according to customers’ need.
It consists of feeding platform, main molding machine, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.

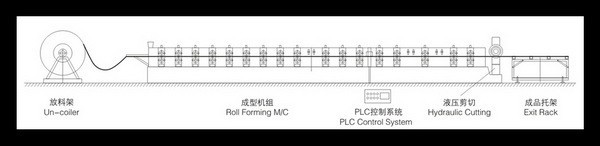

Machine working flow:
Manual Uncoiler---Feeding Platform---Main Roll Forming---Measuring Length---Computer Control Box---Hydraulic Station---Auto Hydraulic Cutting---Products Receiving Table
Technical Specification of Color steel double layer roll forming machine :
Material sheet:G.I.sheet/A.L.sheet/colored steel sheet | |
Equipment operation | Automatically |
Voltage | 380V,50/60Hz or at buyer's request |
Thickness of material sheet | 0.3----0.8mm(normally) |
Width of material sheet | 914/1000/1200/1220/1250mm |
Control system | By PLC(imported brand) |
Cutting method | Hydraulic cutting |
Material of roller station | 45# steel with hard chromed |
Formed width | As drawing |
Working speed | 10---12m/min |
Length of sheet | Just according to your own need |
Transmission type | Chains and gears |

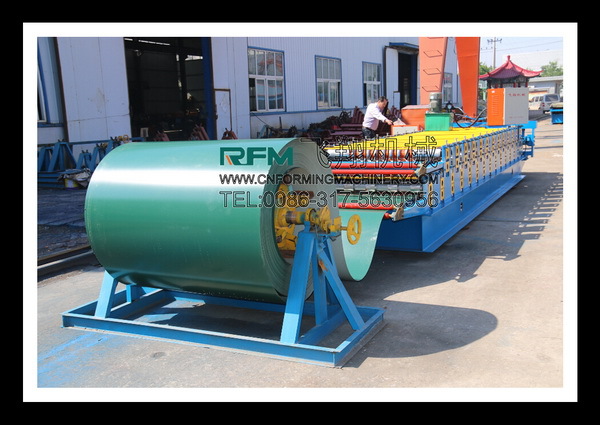

Manual Decoiler
Capacity: 5.0T
Inner diameter: 450---550mm
Feeding platform: which is to support the expand material sheet and help to feed into the main roll forming machine

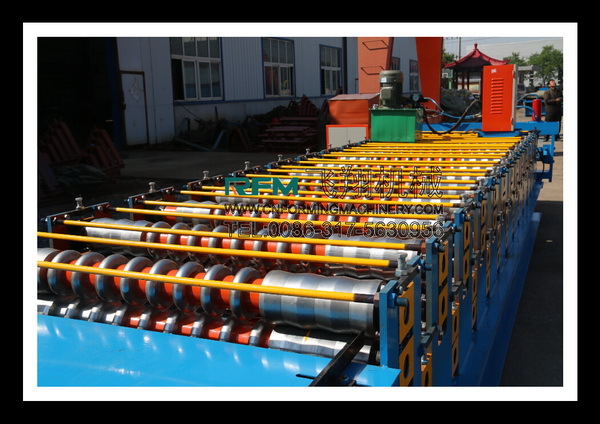

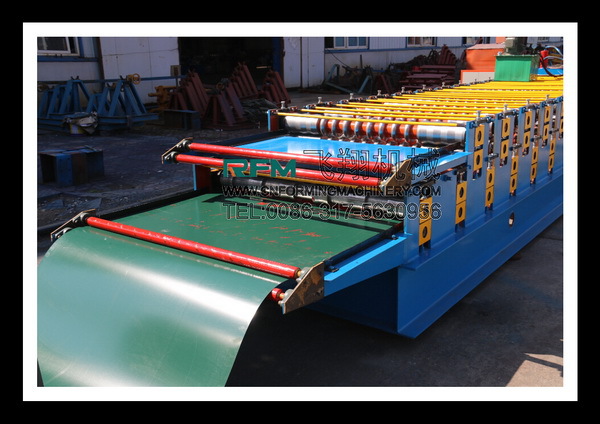

Main roll forming machine
Power: 5.5kw

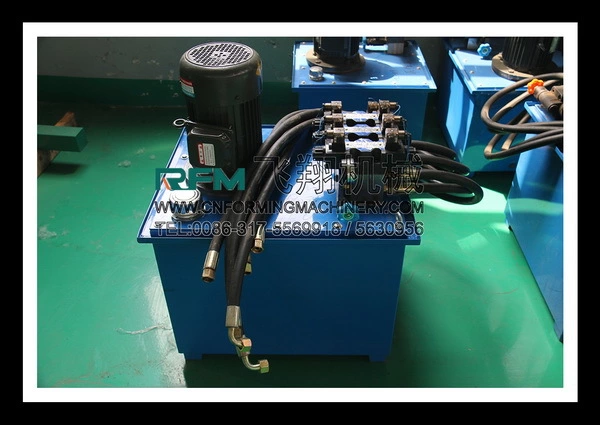

Hydraulic System: this is the power for cutting system.
Power: 3kw
Hydraulic Cutting System of Color steel double layer roll forming machine
All machine is packed with waterproof cloth,computer control box is also packed with bubble cloth.

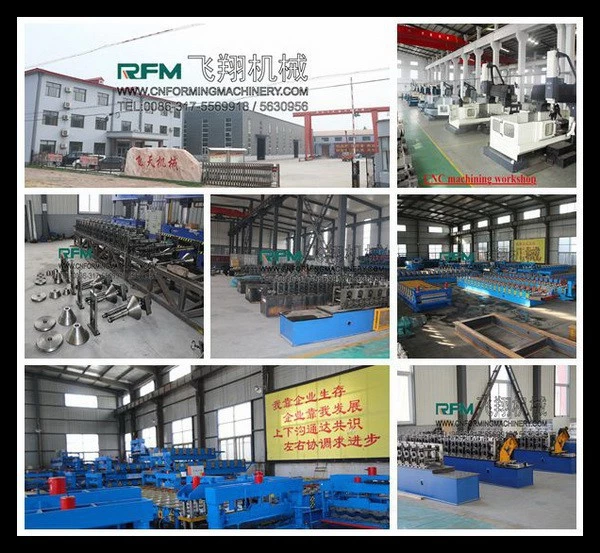

Factory overview
Certificates:
Customers:
Warmly Welcome to Visit My Factory!
