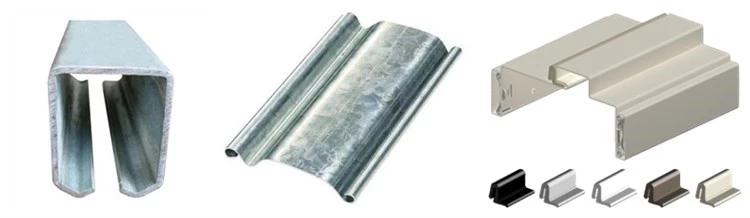

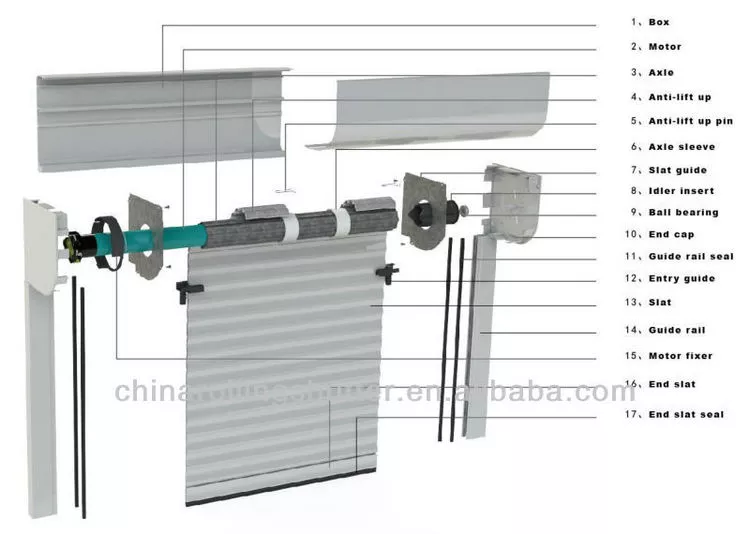

What is the application of window guide rail roll former?
Our company specializes in making door system machines since 1996. Now, we can manfacture almost every part of the shutter door, like door frame roller door guide machine,window guide rail roll former, bottom lath machine,roller shutter slats roller door guide machine and so on.
What is the working flow of rollwindow guide rail roll former?

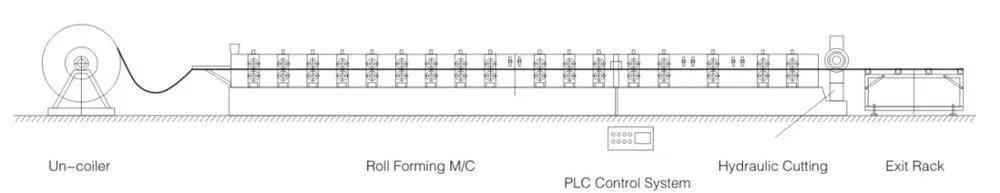

window guide rail roll former is consisted of manual decoiler, main forming machine,cutting device,runouttable.The working flow is as follows:

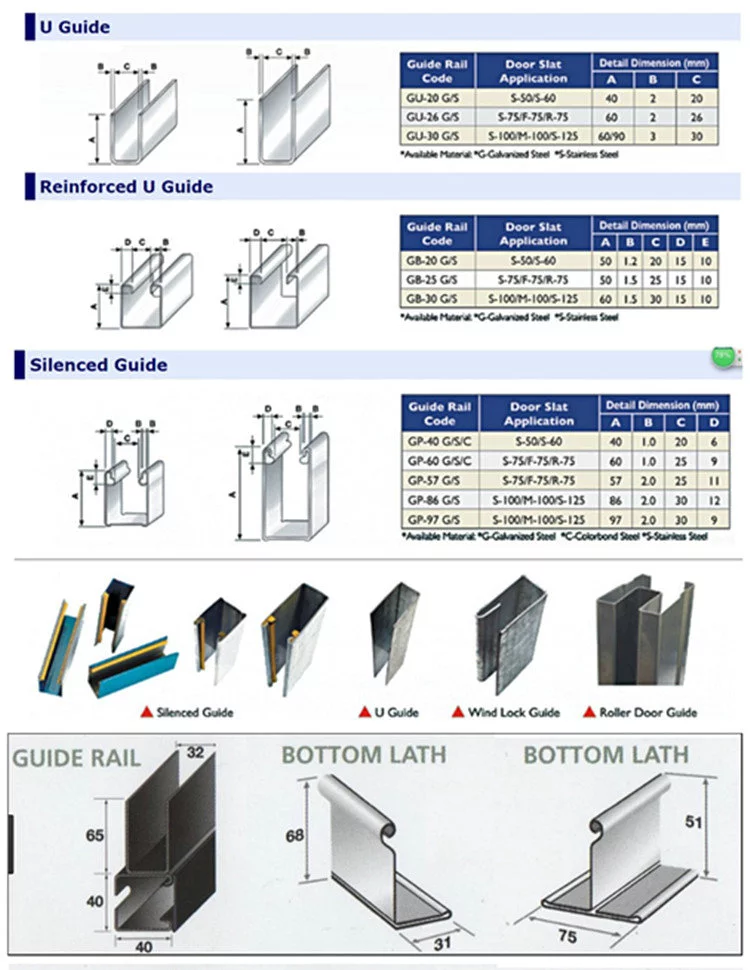

some drawings of window guide rail roll former
If you want to buy a window guide rail roll former, first you should give us a profile drawing of hte roller shutter guide rail like the following.
And if you don't have a drawing, we can recommend you the most popular roller shutter guide rail drawing in your country.The following is some drawings for your reference, we can also design the window guide rail roll former according to your drawing.
Usually if you want holes on the roller shutter guide rail, we can add a punching machine.
the basic Information of window guide rail roll former
| name | window guide rail roll former |
| Processing material | galvanized plate |
| Material thickness | 0.8---2.0 mm |
| Material hardness | 550 mpa---350 mpa |
| Material width | 200mm(according to the profile) |
| Formed width | 101.6mm (according to the profile) |
| Forming speed | 12m/min |
| Working speed | 8m/min |
| Voltage | 380V 50HZ 3Phase |
| Roller fixer | Guide column |
| Frame | 400 H steel |
| Drive mode | chain |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Material of shafts | 45# steel with tempering |
| Diameter of shafts | φ70mm |
| Number of rollers | 20 rollers |
| Main power | 5.5kw |
| Hydraulic power | 3kw |

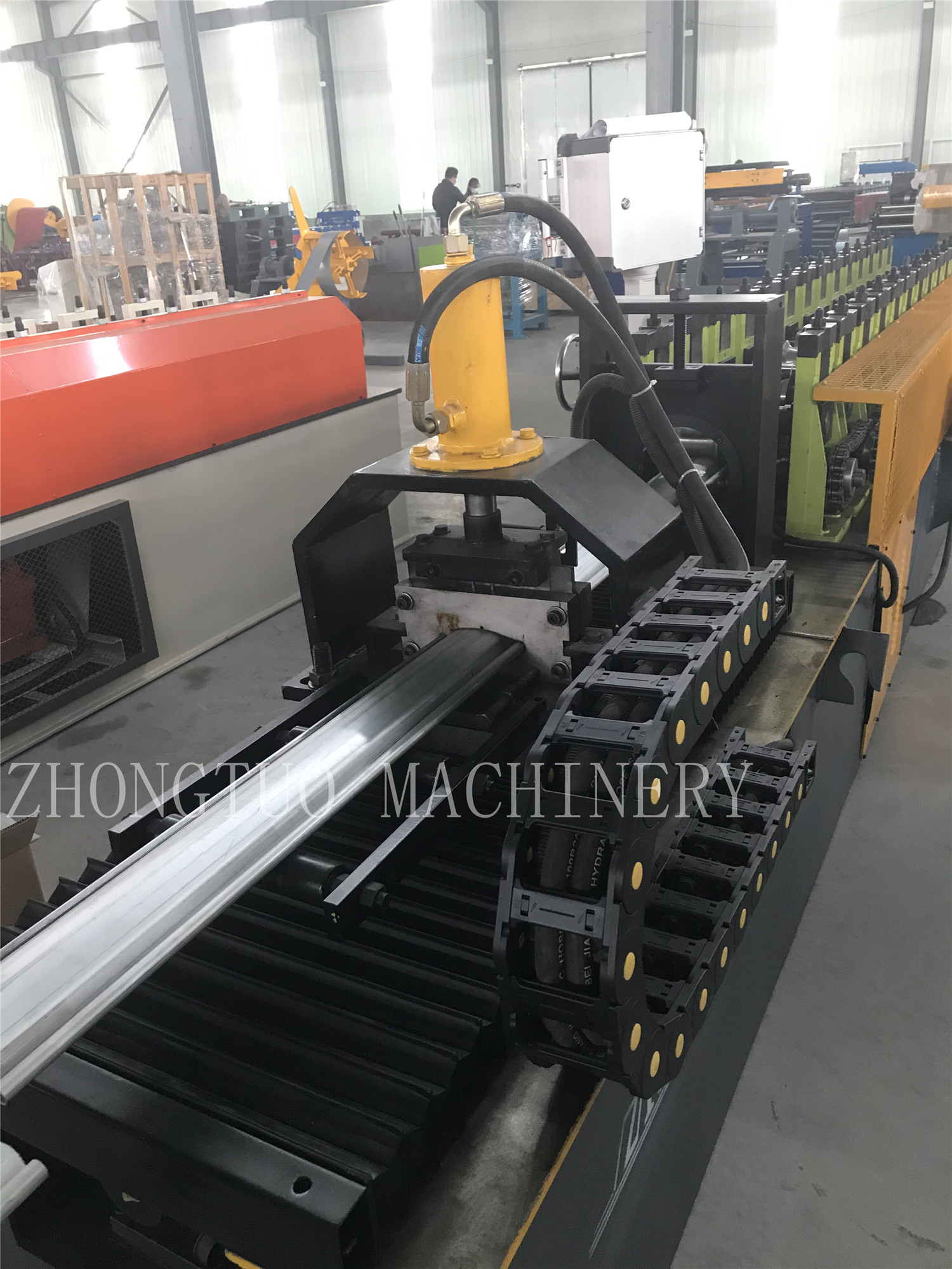

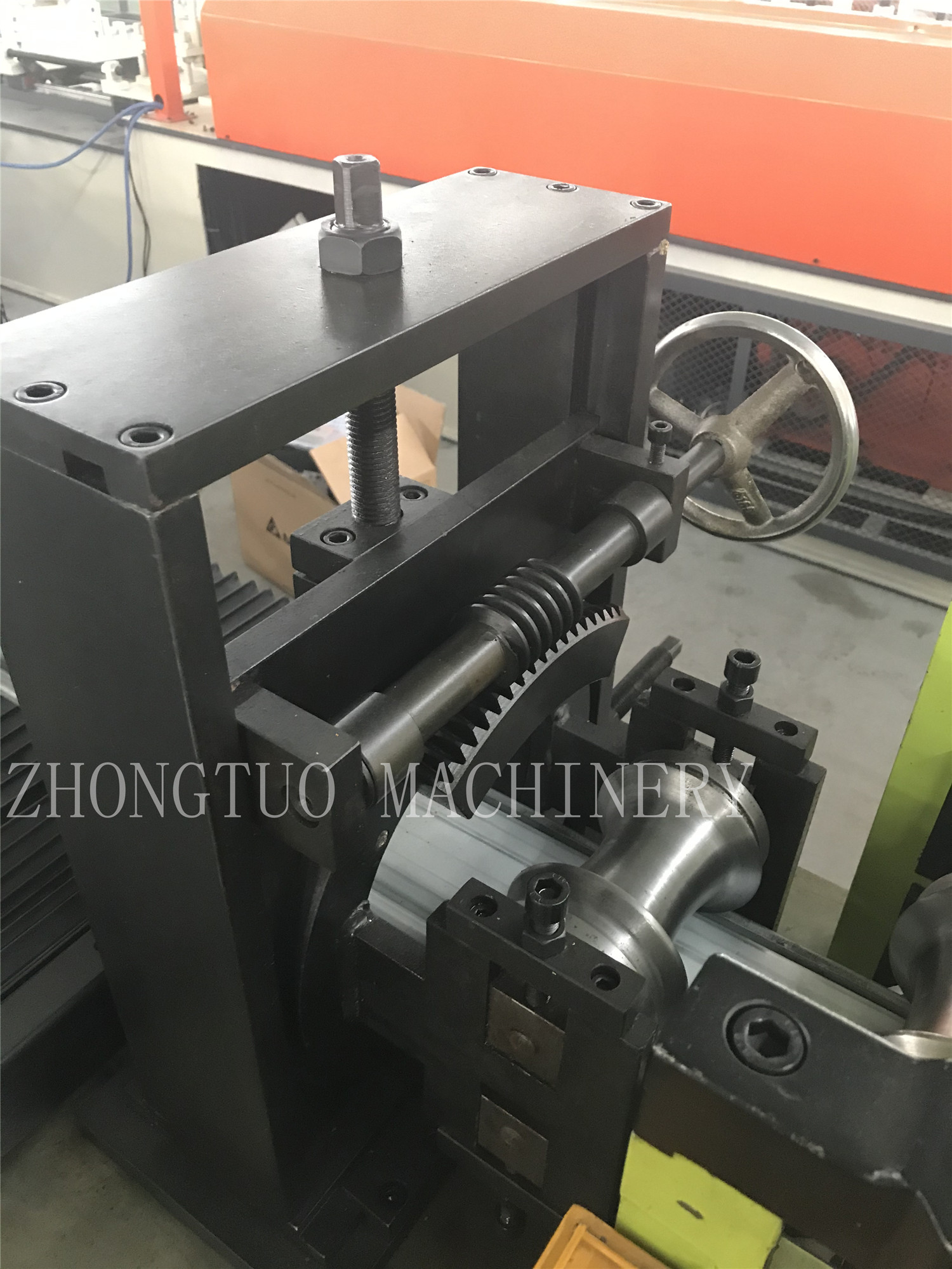

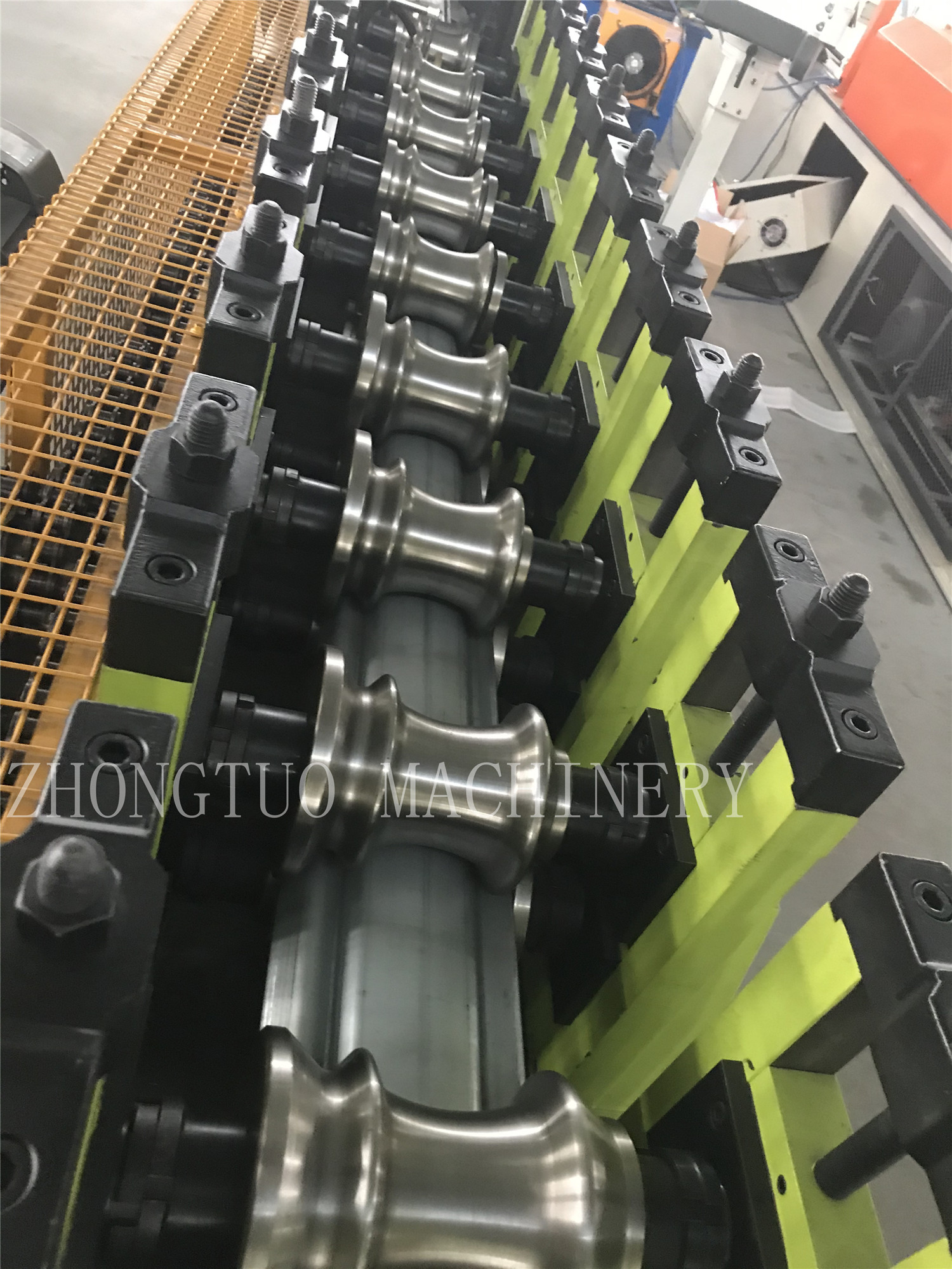

some details of window guide rail roll former
