(1) Brief Introduction
Storage Rack Roll Forming Machine, Upright Shelf Roll Forming Machine is one brand equipments used for making rack for supporting supermarket shelf, Storage Rack, Ware House Rack and others.The Upright Shelf Roll Forming Machine can be called as storage rack roll formign machine, it adopts three pieces cutting blades for ensure the shelf rack product is beautiful.
This Storage Rack Roll Forming Machine adopts servo controlled material feeding technology for complex punching to guarantee precision.Except this, we also manufacture solar rack roll formingMachine,Pallet Rack Roll Forming Machine,Unistrut Forming Machine.
What is Metal storage rack / upright pillar working system?
The upright shelf system nomrally uncludes by the column, steel plate composition. Column with roll forming process, with the oblique rod, horizontal rod connected to form a column. According to the needs of the side beam with a layer of laminates or beams used, the board can be adjusted for every 50 mm pitch up and down any height, the shelf for the modular structure, high stability, easy installation and disassembly. Unit shelf each load between 200kg-800kg, the total load is generally not more than 5000kg. Unit shelf span is usually not more than 2.6m, the depth of not more than 1.2m, the height is generally within 5m. Applicable to carrying small and medium goods. Widely used in shopping malls, supermarkets, corporate warehouses and institutions and other industries.
| Profile | Thickness:2.0mm |
| Process flow | Decoiling---feeding---leveling---punching---forming---cutting---production |

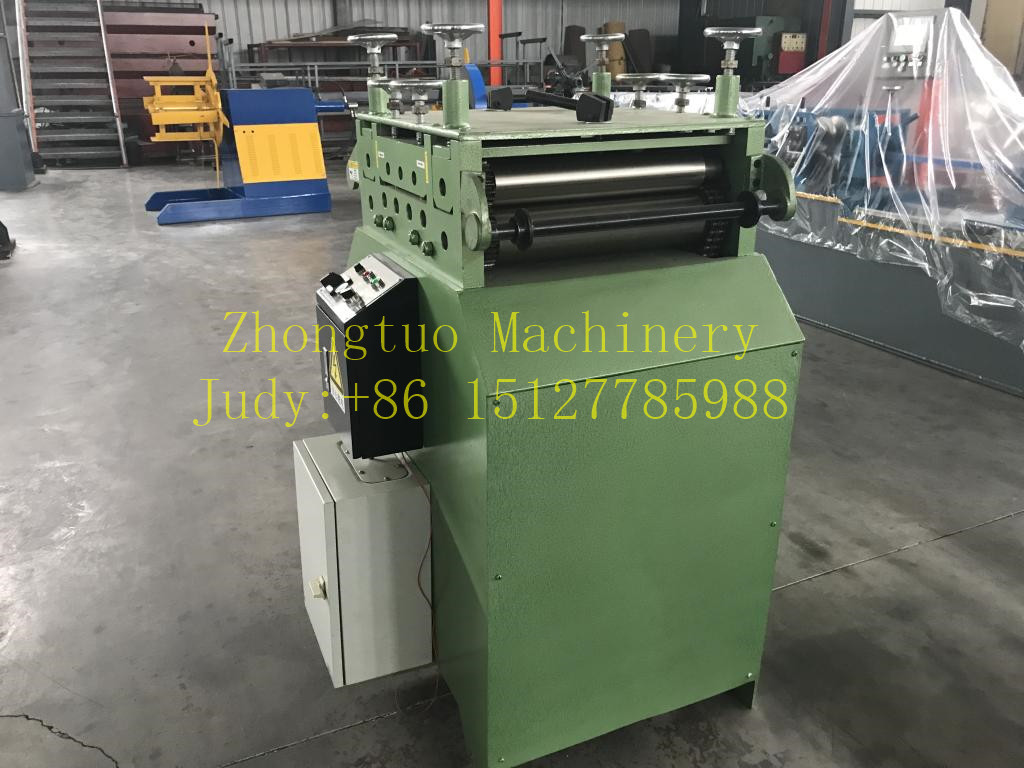

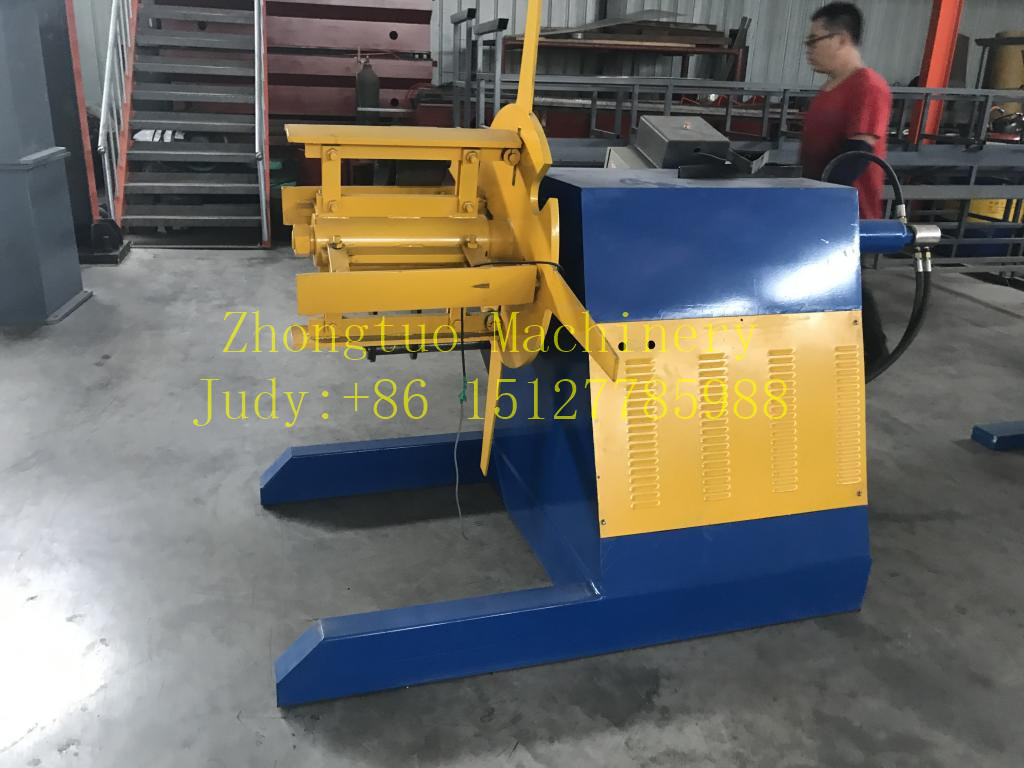

| Decoiler | 1).Material coil inner diameter: 450mm-550mm 2).Max coil width: 600mm 3).Carrying capacity: 1500kg |

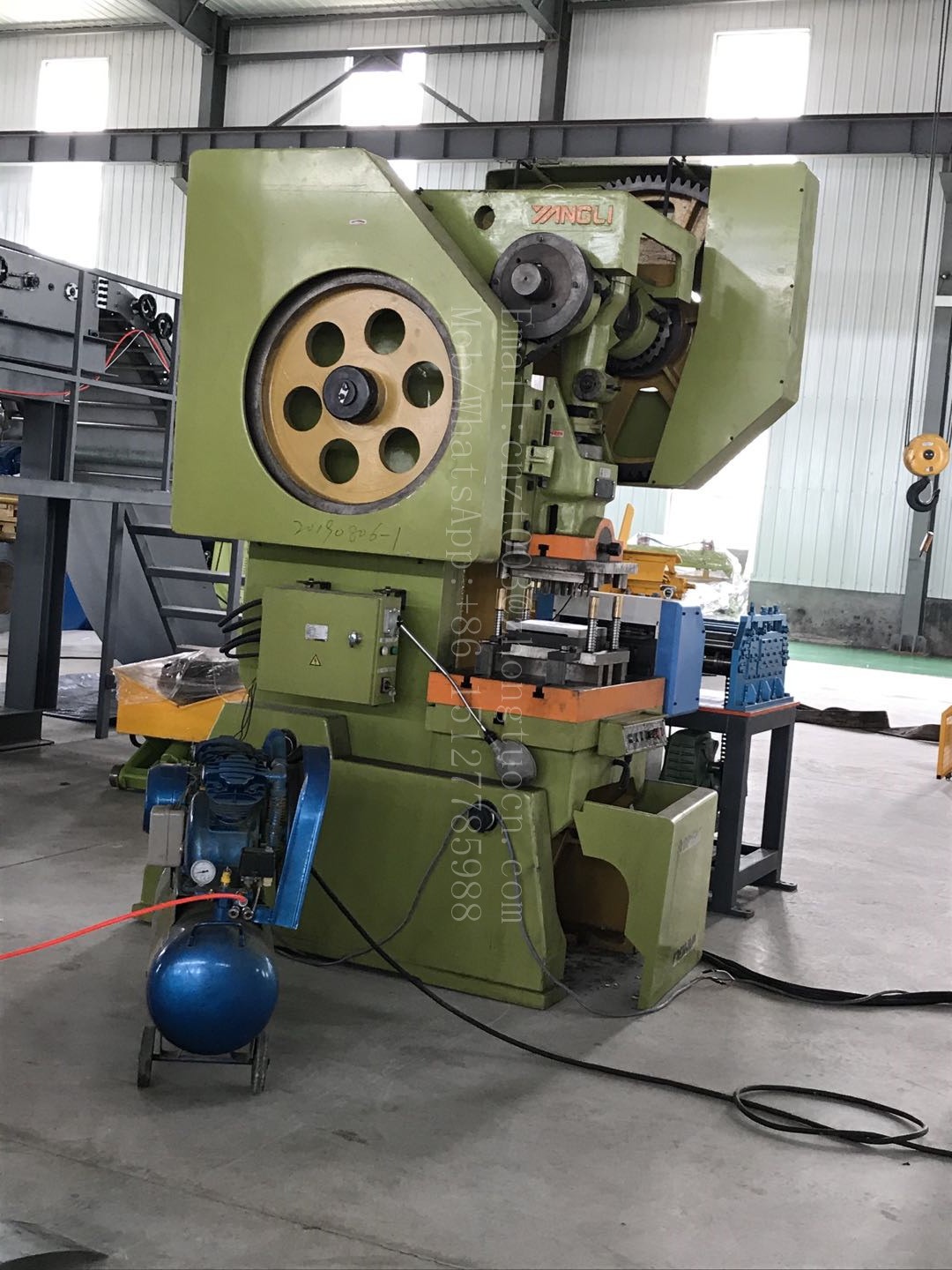

| Punching machine | 60t Automatic punch holes(with one set of mold) |

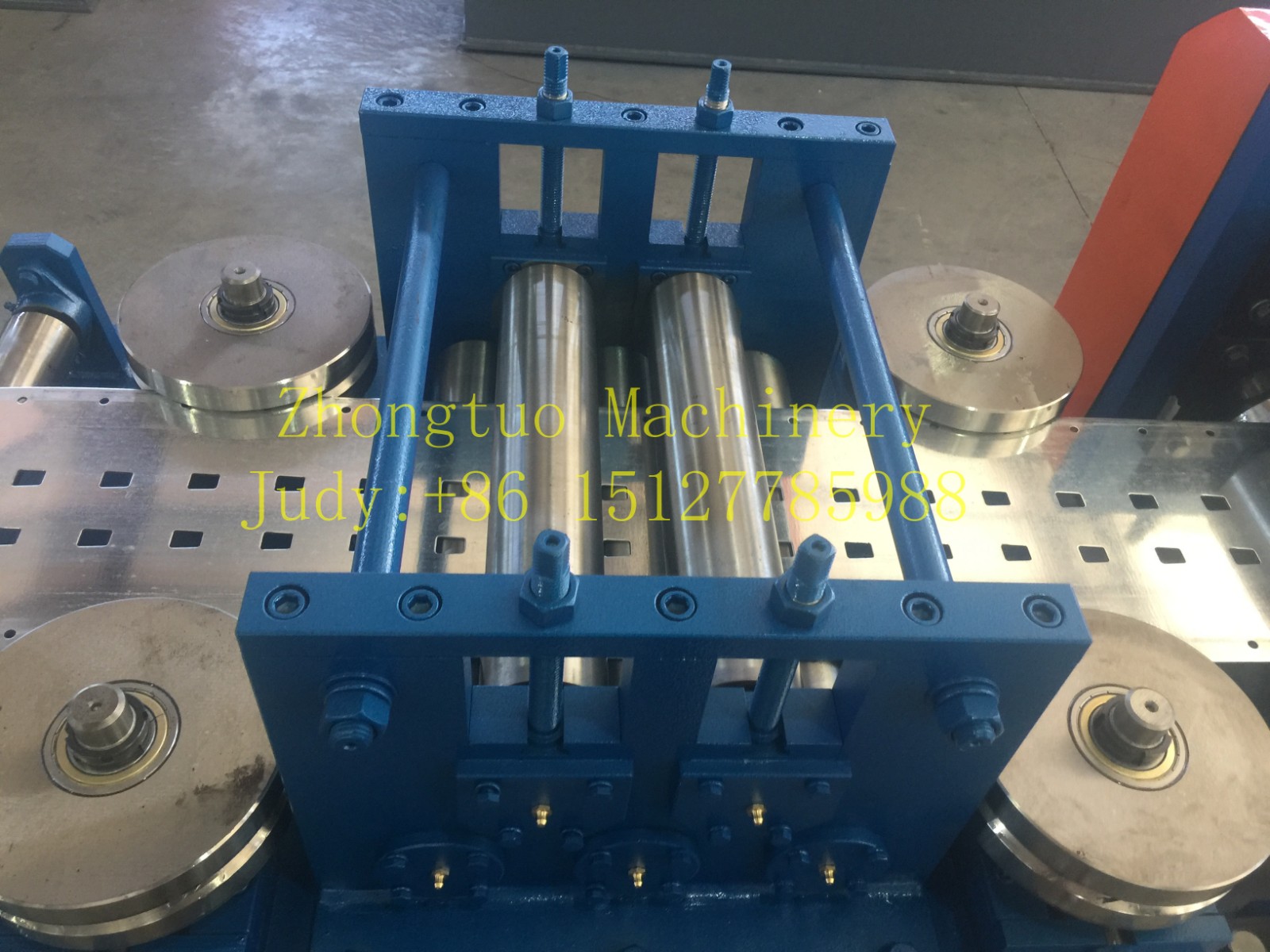

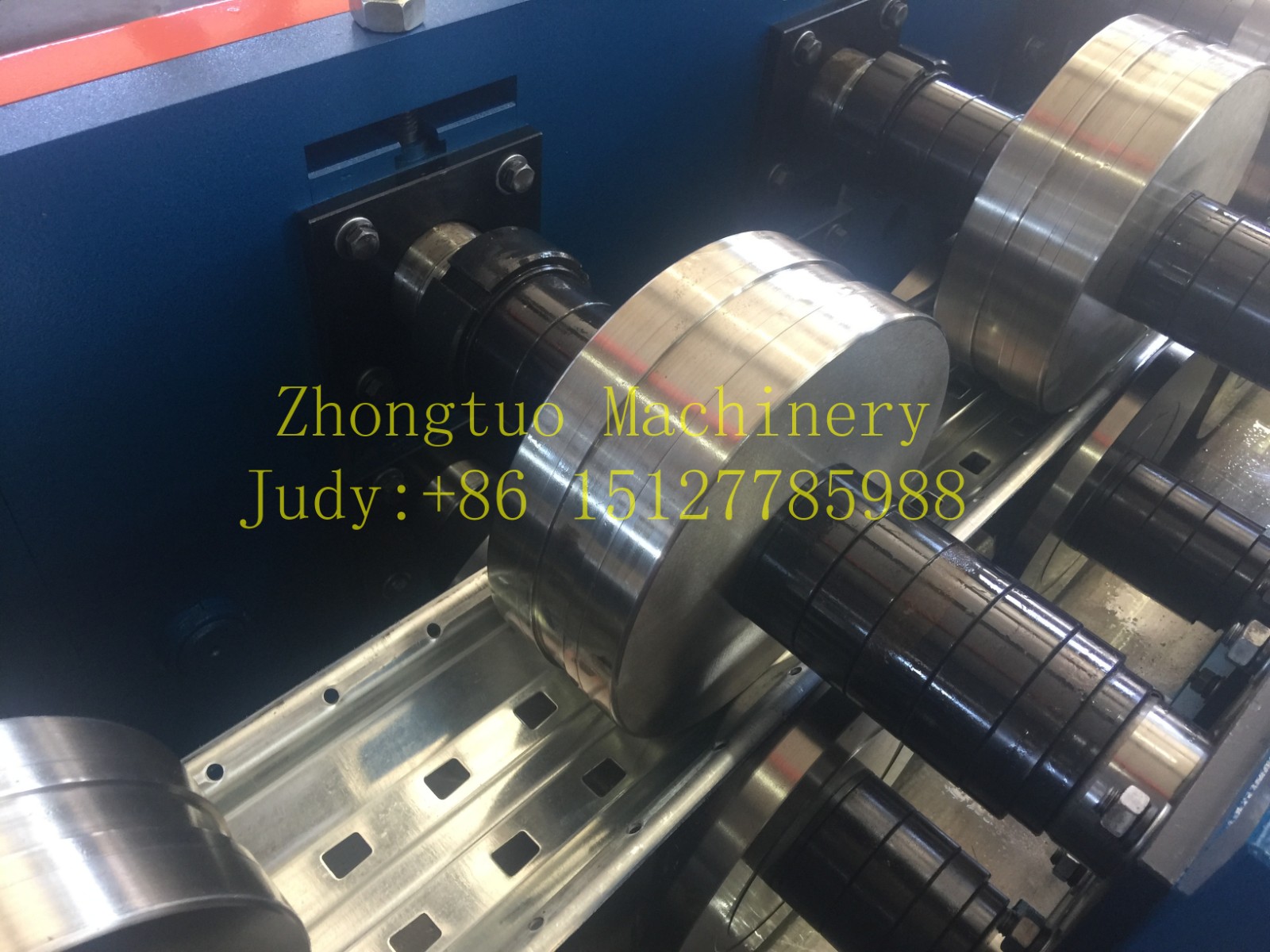

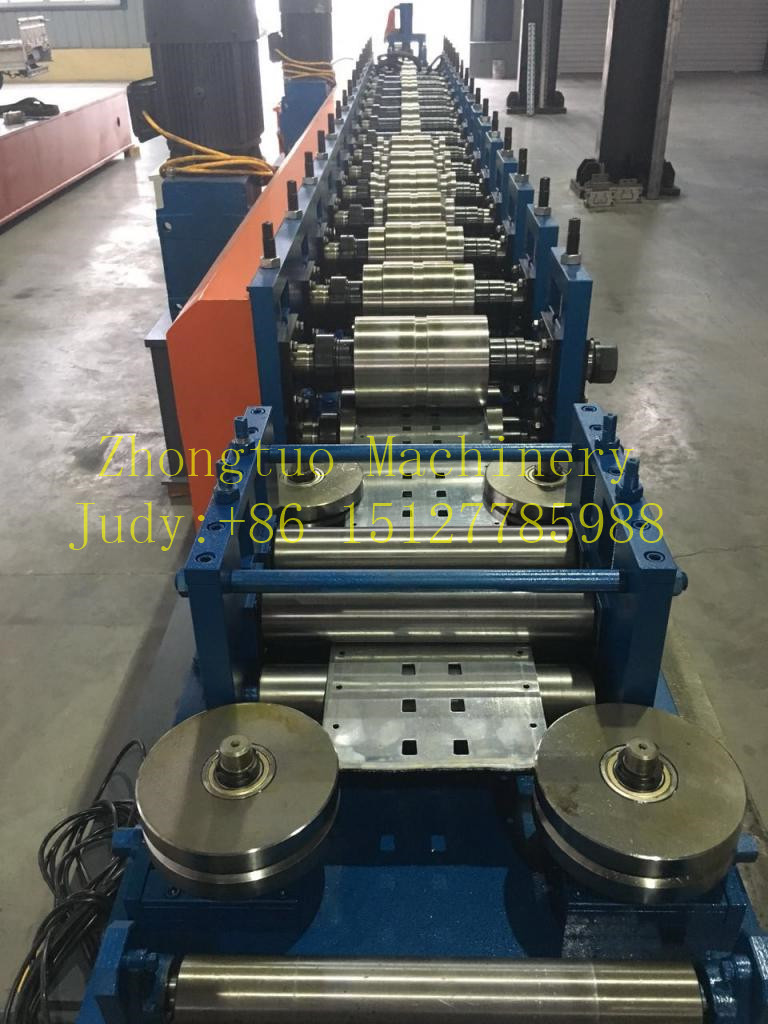

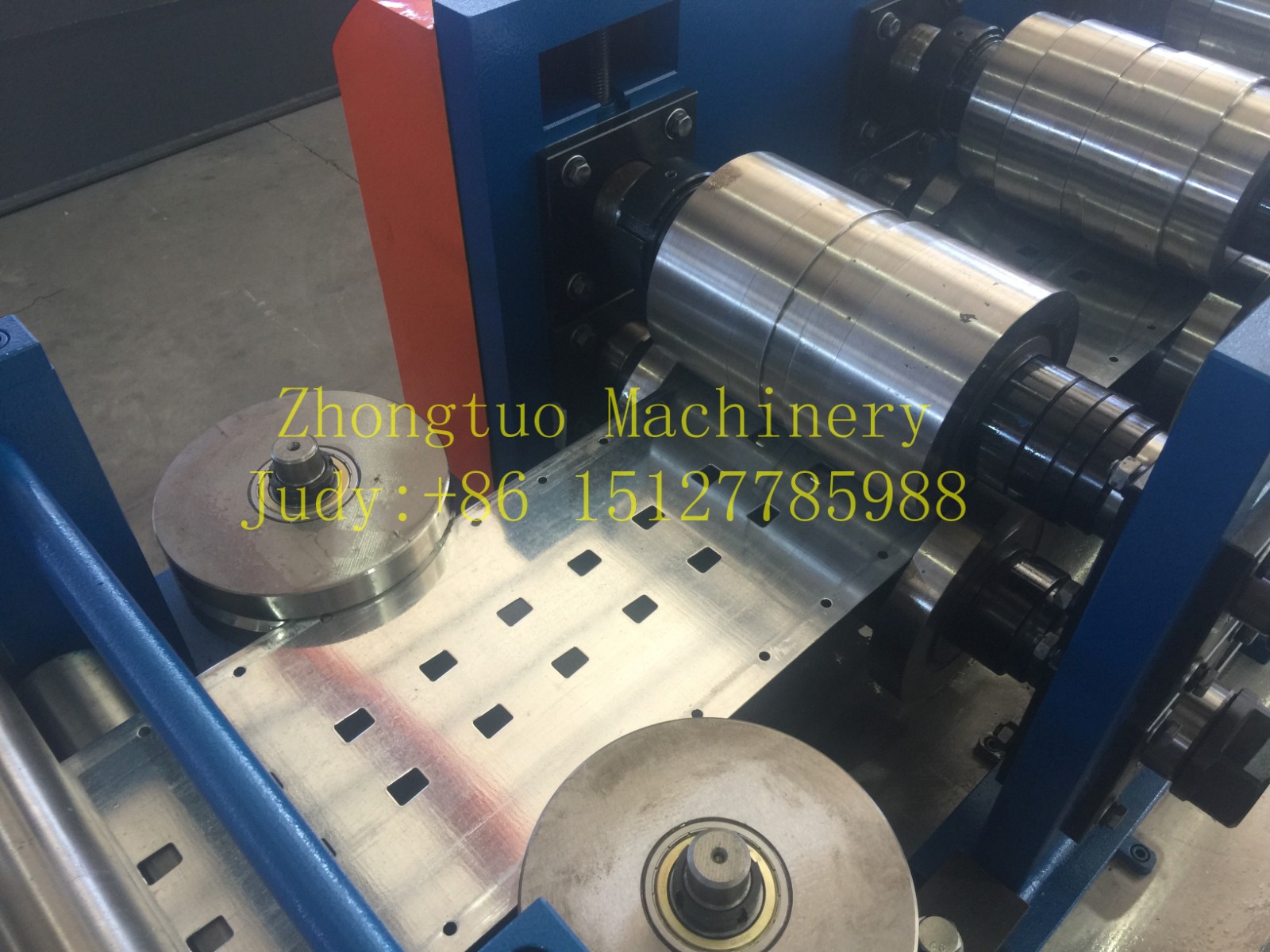

| Roll former | 1). Number of forming steps:2 steps feeding rollers,4 steps leveling rollers, 12steps forming rollers, 1). Shaft material:45# steel Roller material:45# steel Outer diameter:80mm 2). Transport: by chain Chain:1 inch 3). Forming speed:5-10m/min 4). Motor:11 kw 5). Voltage:380v,50Hz,3 phase 6) Size of the machine line :9.5*1.5*1.2m 7) Weight :6 tons |
| Cutting system | 1).Material: blade and mold material: Cr12 steel with quenched treated 60-62℃ 2).Cutting system:advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. |
| Control system | 1). Screen: Delta screen from Taiwan 2). PLC: Delta DVP14ES from Taiwan 3). Coder: ENC-1-1-1T-24 from South Korea |
| Hydraulic system | 1). Advanced hydraulic system from Taiwan 2). Power:5.5kw |
| Spare Parts | 1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2).Rubber mat 1 pcs; 3).Bolt spanner 1 pcs |

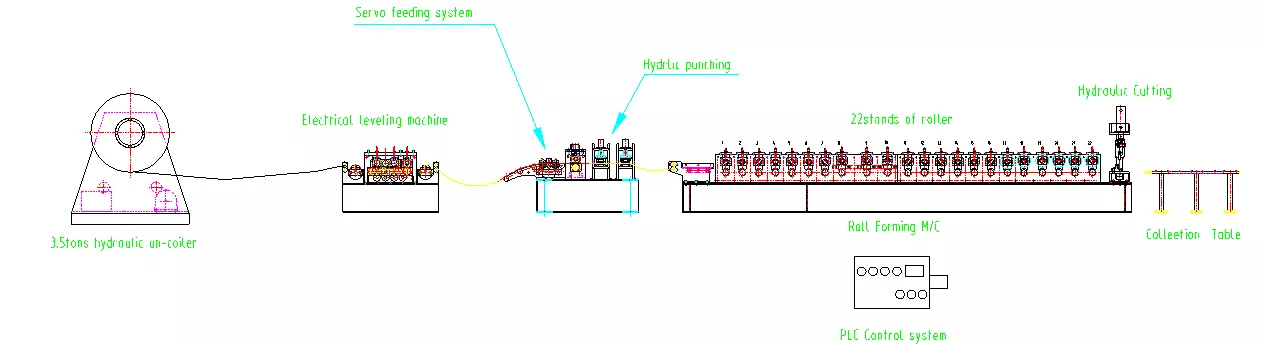

(2) Working Flow of Roll Forming Machine

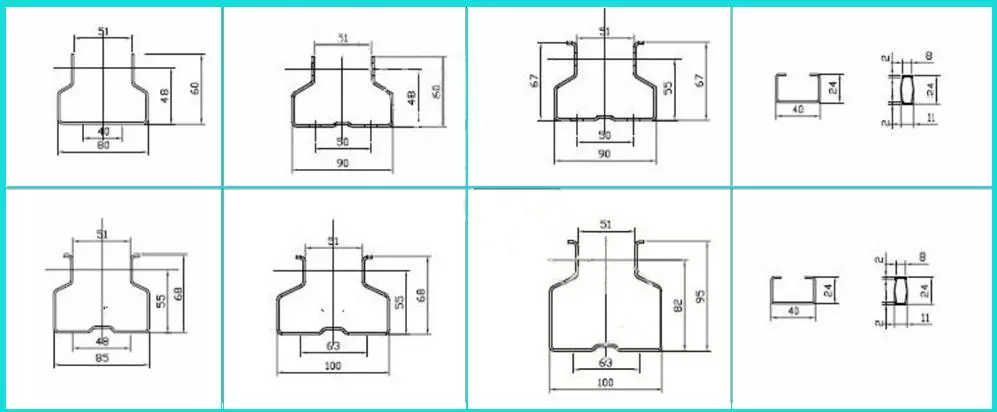

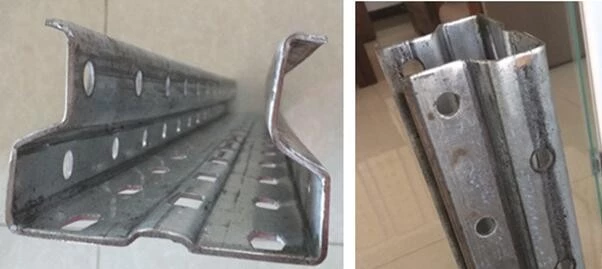

(3) Drawing Profile

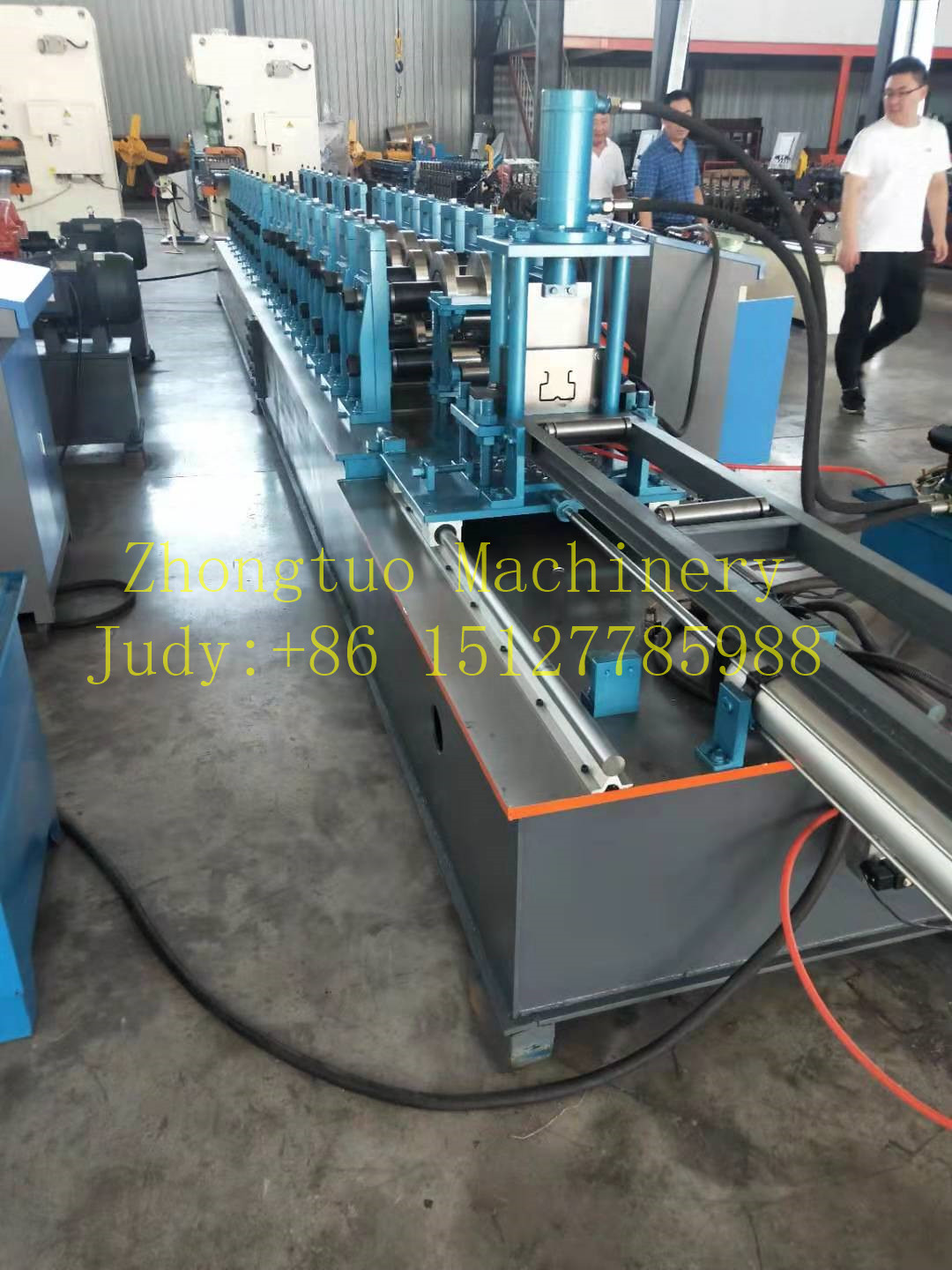

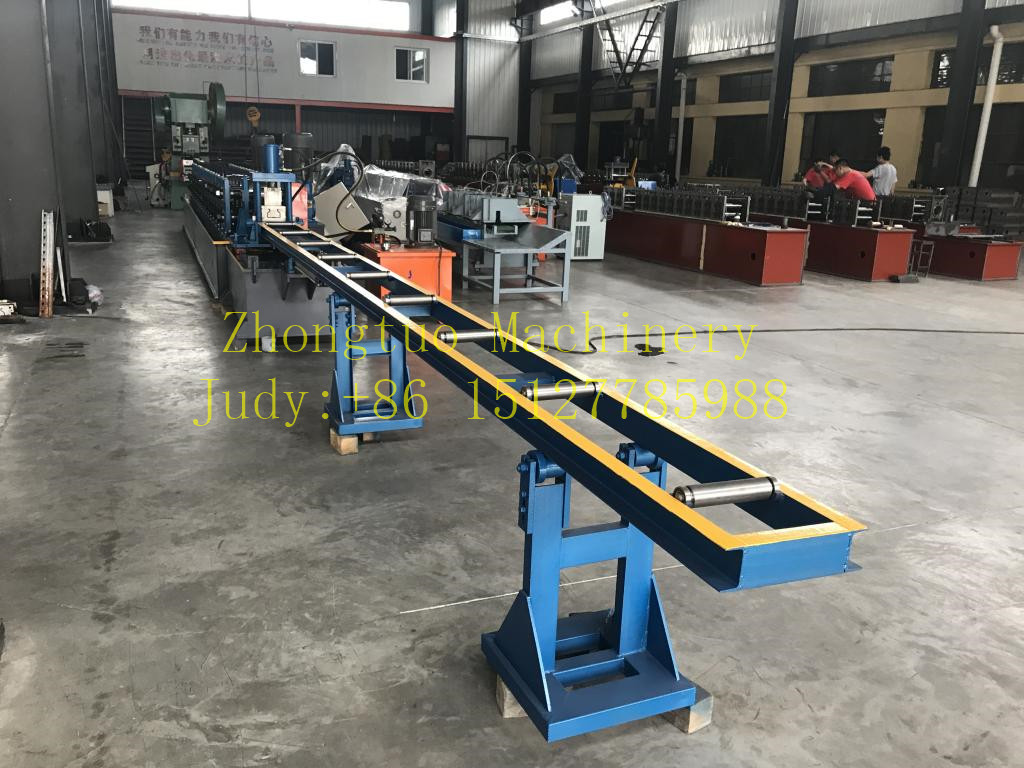

(4)Overall photo of the machine
