Light gauge steel framing steel frame purlin machinesmetal stud roll forming stud and tack machinelight steel making machinefurring roll forming machineT bar forming machinelight gauge forming machine
L/CT/TD/P
This u shape profile roll forming machine can be designed with the normal speed, 15-20 meters/min, it also can be designed as the high speed if the buyer need high capacity, the highest speed can be as 50-60 meters/min. with the reducer transmission and the servo motor. with the fly saw cutting system so that to keep its high speed.

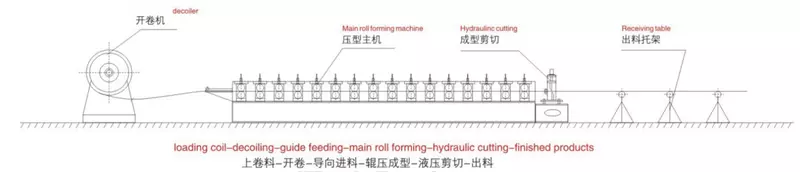

What is the producing process of u shape profile roll forming machine
What is the specifications of u shape profile roll forming machine?
| Name | u shape profile roll forming machine |
| Raw material | Galvanized |
| Thickness | 0.3-0.8mm |
| Inner Diameter | 450-550mm |
| Max Coil width | 300mm |
| Capacity | 1.5T |
| Forming steps | 10 rollers |
| Shaft diameter | 40mm |
| Design type | Memorial arch |
| roller material | GCr12MoV steel |
| shaft material | 45# steel |
| Work speed | 0-25m/min |
| Transport | By gear |
| Power of main machine | 3kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
| Cutter | Gcr12 |
| Hydraulic oil | 46# |
| Hydraulic power | 3kw |
| PLC Brand | Delta(as your requirement) |

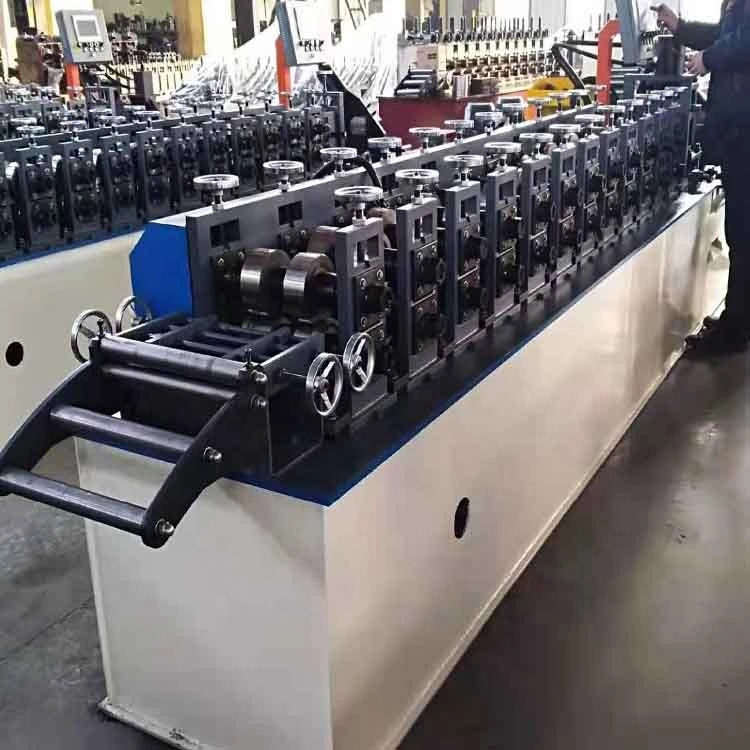

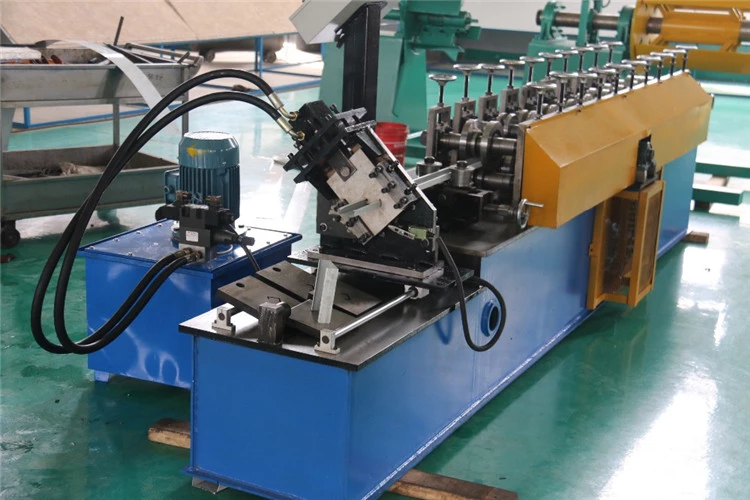

Some details of u shape profile roll forming machine
Holes and embossing

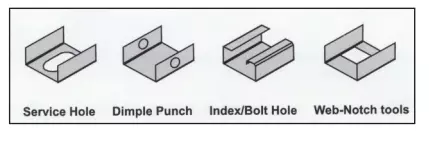

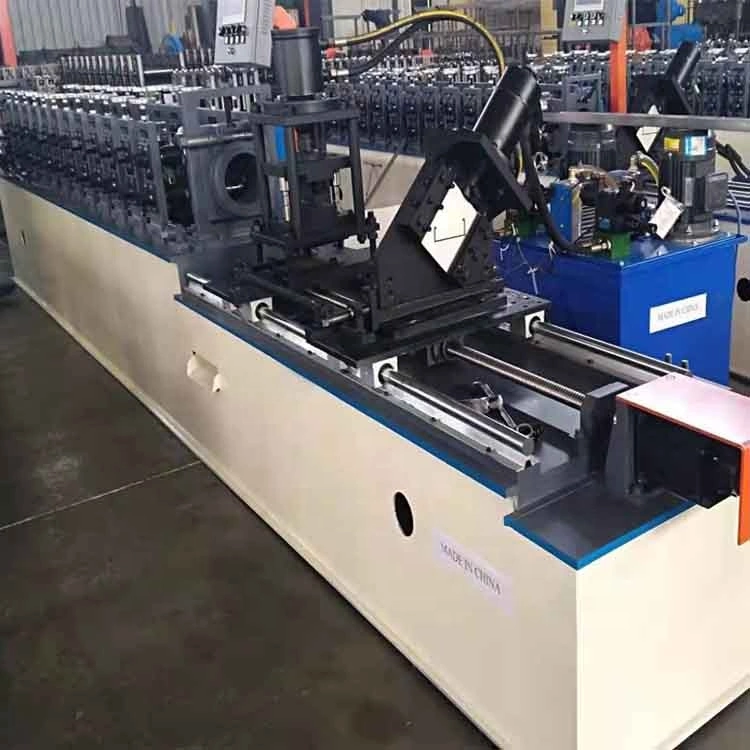

All u shape profile roll forming machine can be set-up with a Service Hole, Dimple Punch, Index/Bolt Hole and Web-notch tools.This machine is also can be designed for in line punching, punching and cutting in one time. After roll forming, automatic in line punching and cutting continuously. Automatic products piling table is special designed for high speed production capacity and reduce the production cost, create more profit for the customers.

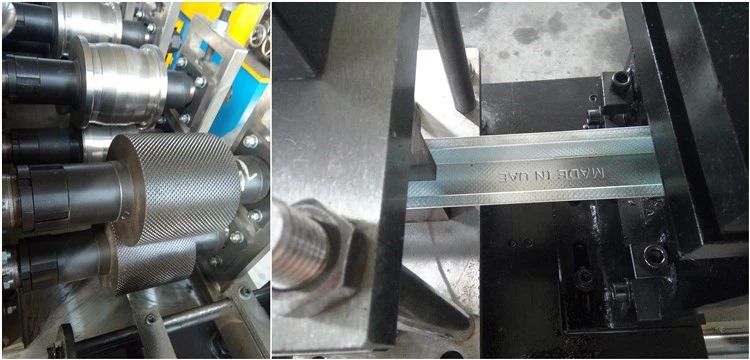

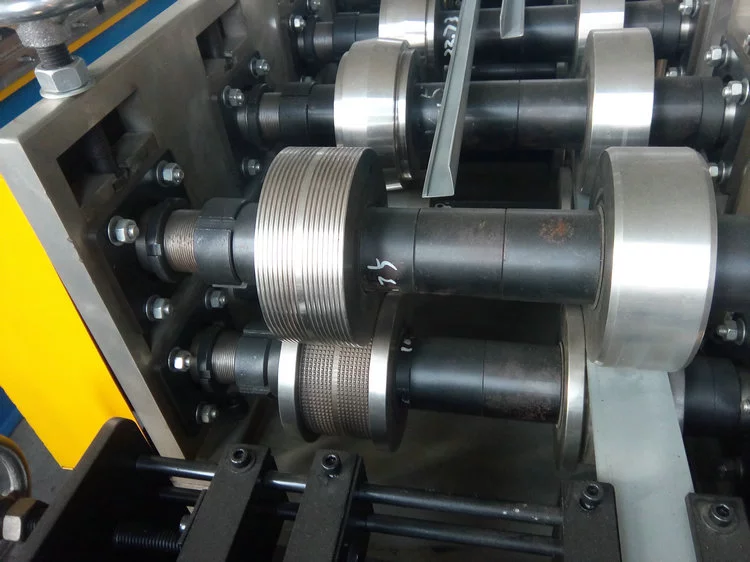

This u shape profile roll forming machine can also be designed with the logo punching system. If you need the logo puching on the profile, you just need to send us your logo, we can design for you. when you need the logo punching, you please just turn on the logo punching system, if you do not need this logo punching system, you just need to turn off the logu punching system.
It is very popular and easy to operate !
