Description

925 IBR SingleLayer Roll Forming Machine

Special Requirements

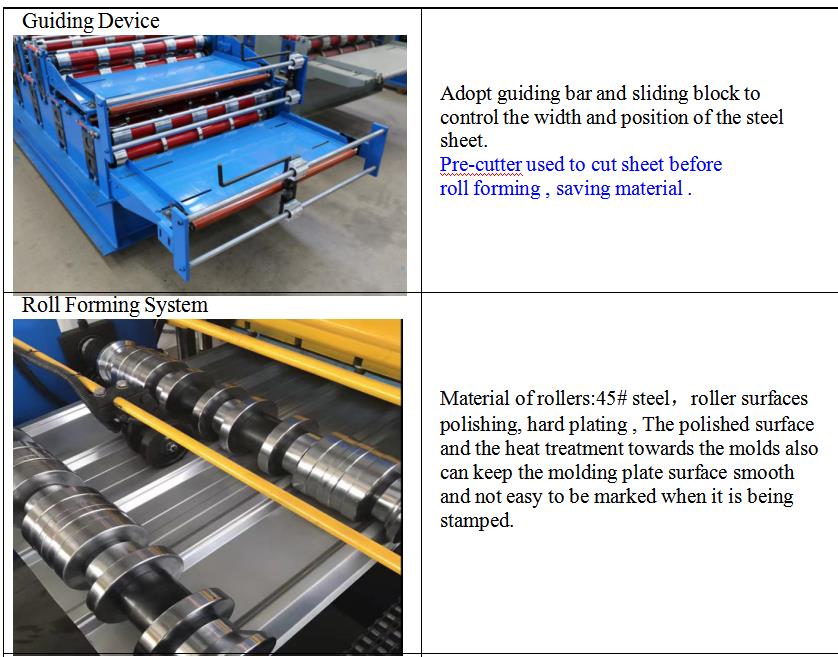

Molding wheel：

45 # high quality steel finish processing,Chromium plating, finish grinding of inner hole, wheel insert key

Encoder: omron

System languages: English and Chinese

Scissors material: chrome 12

Length, width and height 9000 x 1250 x 1350 mm

Weight: about 4.5 tons

Fuses: 2

Relays: 2

Limit switch: 2

Solenoid valve: 1

Raw material information:：

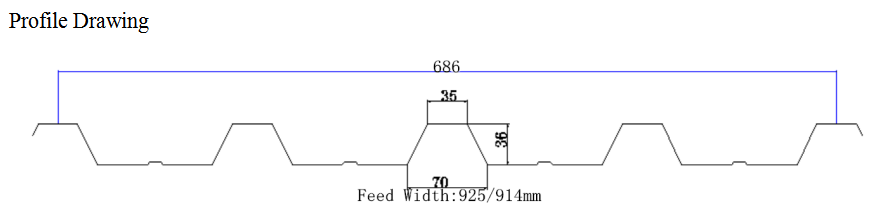

Feed width： 925/914 mm

Feed thickness：0.2--0.5mm

Number of rows：

18 rows

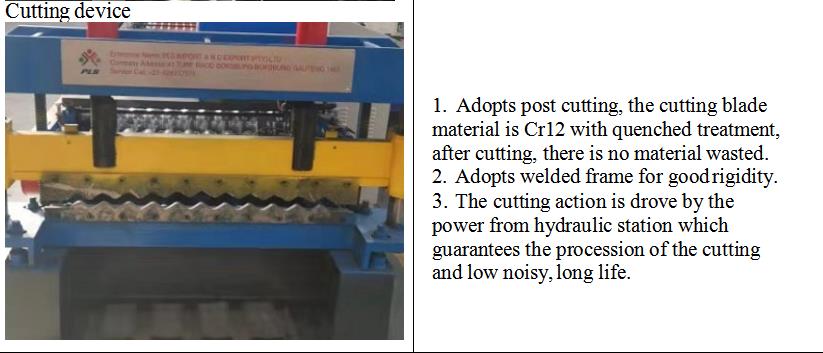

Shear head requirement：

Double cylinder hydraulic guide shear,

Floor-standing cutting

Spindle diameter：

70mm

Medium board of machine：

16mm

Main motor power：

5.5KW

Host chain:

1 inch

Large rack:

350 H steel

Mains input:

400V

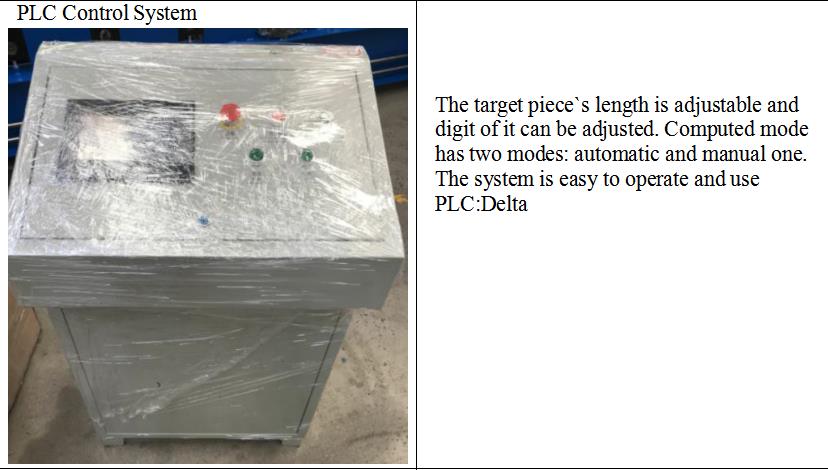

Electronic control system:

PLC，Frequency converter

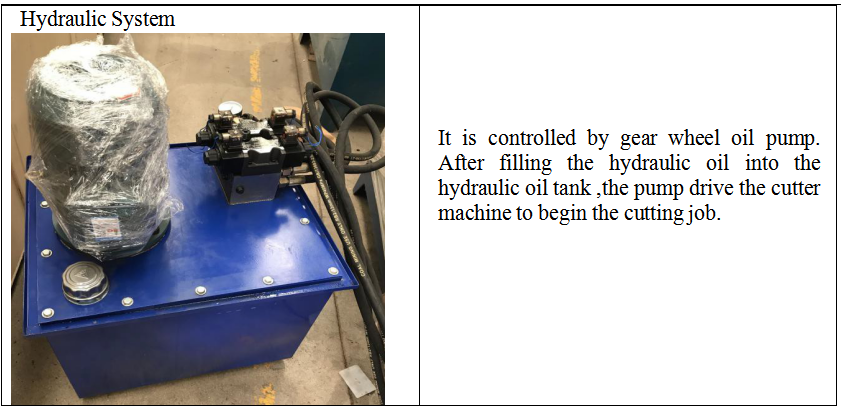

Pump station power:

3KW

Tighten Loading Rack

2 sets
