Prudcut Description

Pruduct

Description

1000 IBR SingleLayer Roll Forming Machine

Special Requirements

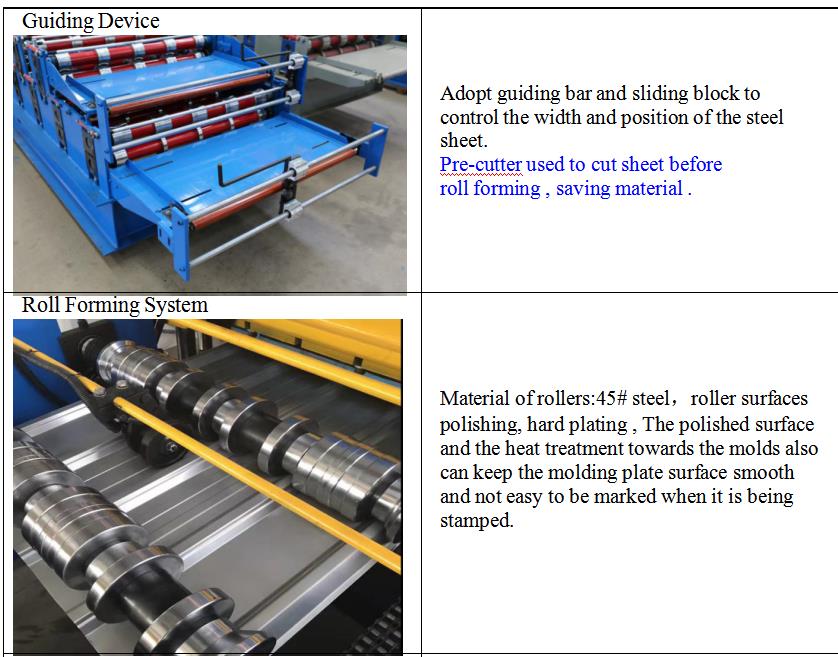

Molding wheel：

45 steel polished,quenched,chrome plated

T-type Tile Forming Machine(high configuration with bright tile box cover,U-protective cover,body color:blue-gray)

Length, width and height 6800 x 1300 x 900 mm

Weight: about 2.5 tons

Warranty:1 years

Feed width： 1000 mm

Feed thickness：0.2--0.6mm

Number of rows：

15 rows

Forming shaft：

High hardness 45 steel

Diameter：

70mm

Medium plate thickness：

16mm

Main motor power：

4KW

Bearing:

6210 bearing

Large rack:

300 H steel

Voltage:

400V, 50HZ, 3 phase

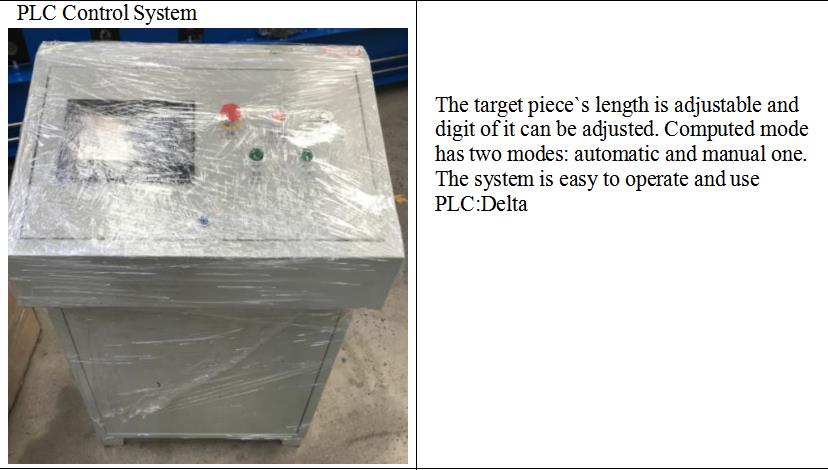

Electronic control system:

PLC，Frequency converter

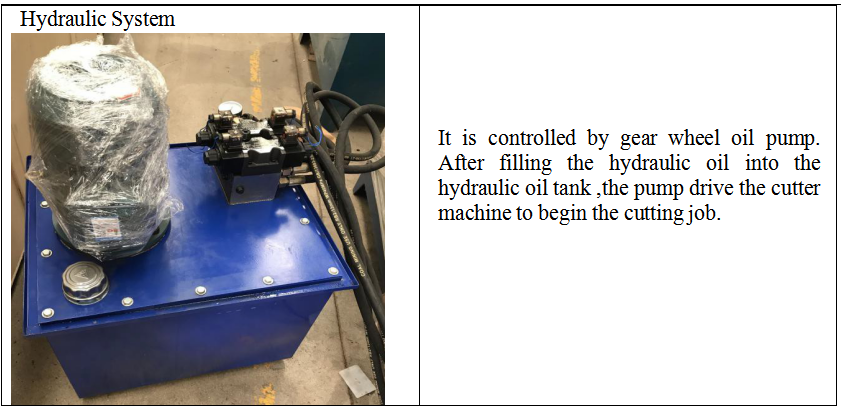

Pump station power:

3KW

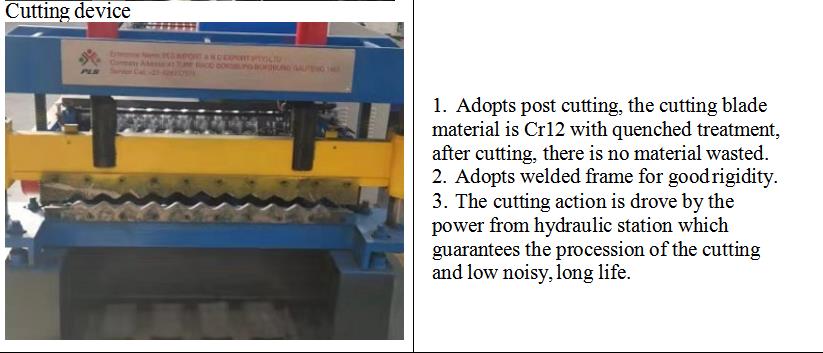

Cutting blade

Cr12
