Glazed roof tile sheet press step glazedtile roll former lineroof tiles sheet machineroof press making machinecolor steel roofing tile3D effect machine
L/CT/TD/P
(1) Brief Introduction
We Cangzhou zhongtuo roll forming machine co.,ltd have marked a distinct position in the market by providing High Speed Glazed Tile Roll Forming Machine to our valuable clients. It is designed by our professionals utilizing high grade component, in compliance with international standards to ensure its flawlessness at users' end. The offered machine is rigorously tested on various parameters before supplying to our renowned clients. This machine can be availed in various specifications and can be customized as per needs of the clients.
Features:
Durability
High operational fluency
User friendly
Application areas of :
Roofing Manufacturing
Construction Industry
Channels Making
| No | Item | Parameter |
| 01 | Material feeding width | 925~1220mm |
| 02 | Material thickness | 0.3~0.6mm |
| 03 | Uncoiler | Manual Uncoiler |
| 04 | Loading weight | 5ton |
| 05 | Forming speed | 2-5m/min |
| 06 | Forming Steps | 13 stations |
| 07 | Shafts materials | 45# high quality steel |
| 08 | Shafts diameter | 80mm |
| 09 | Roller materials | 45# high quality steel, hard chrome coated 0.05mm |
| 10 | Transmission | Chains-sprockets |
| 11 | Main motor power | 5.5kw |
| 12 | Cutting blade | Cr12 with quenched treatment 60-62 |
| 13 | Hydraulic power | 4kw |
| 14 | Approx 6.2t | |
| 15 | Overall dimensions | 8600x1500x1300mm |
(2) Working Flow of Roll Forming Machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter.

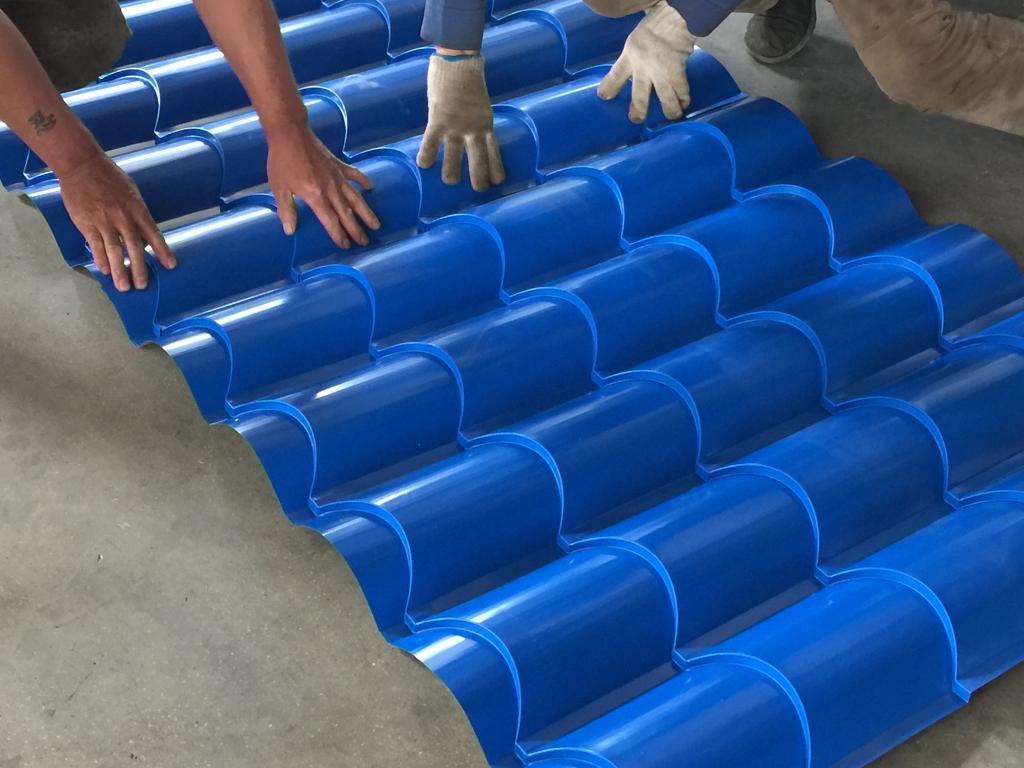

(3) Drawing Profile

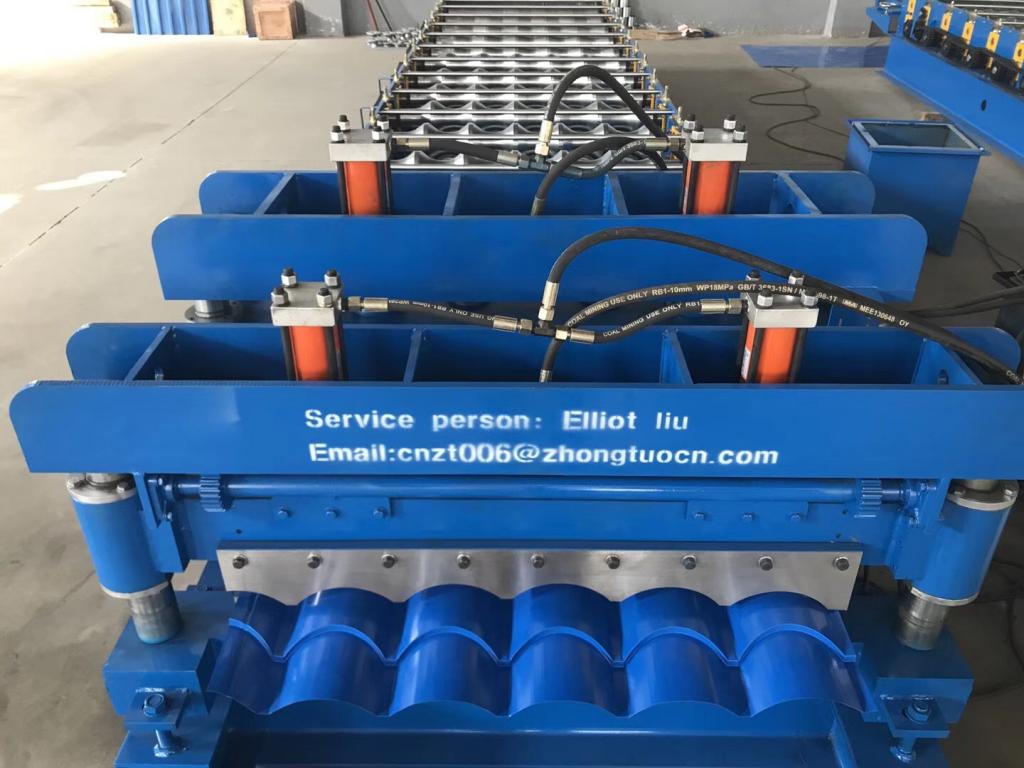

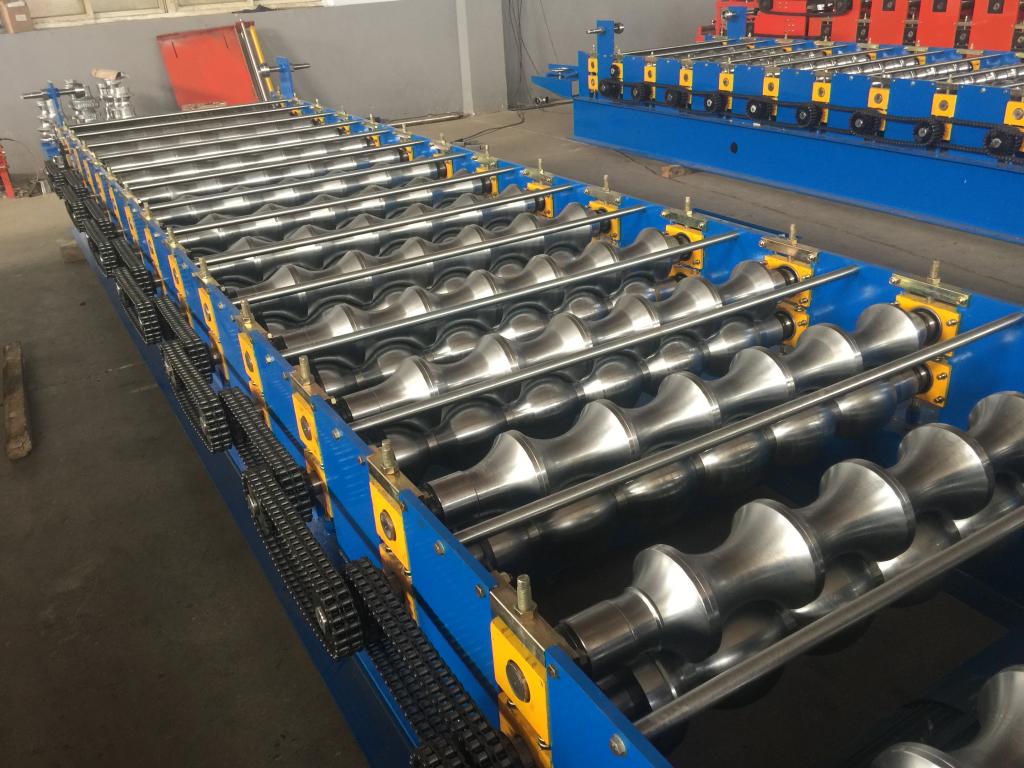

(4)Overall photo of the machine
