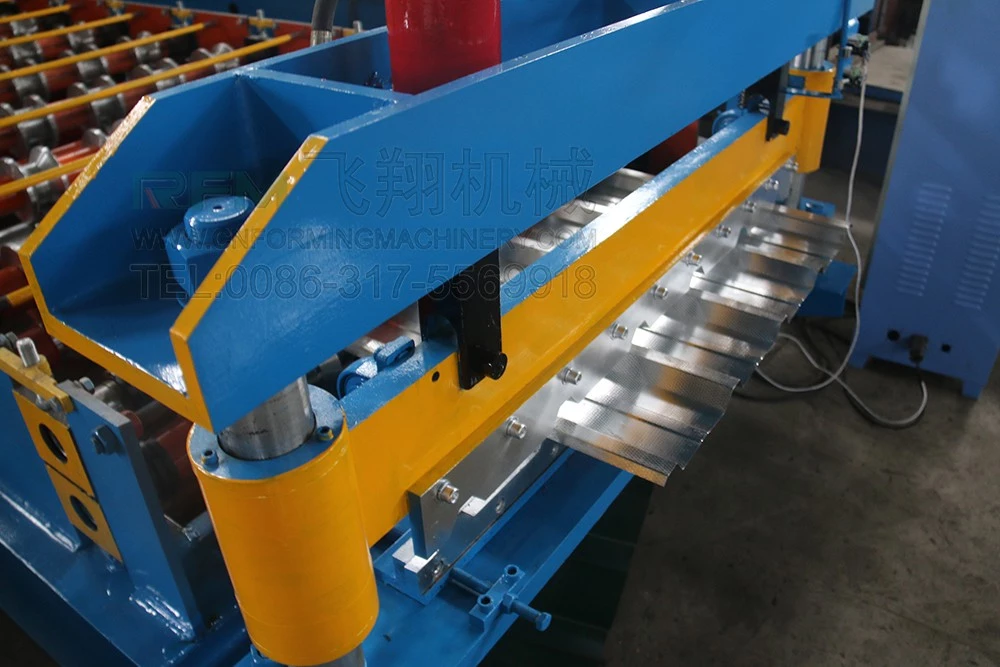

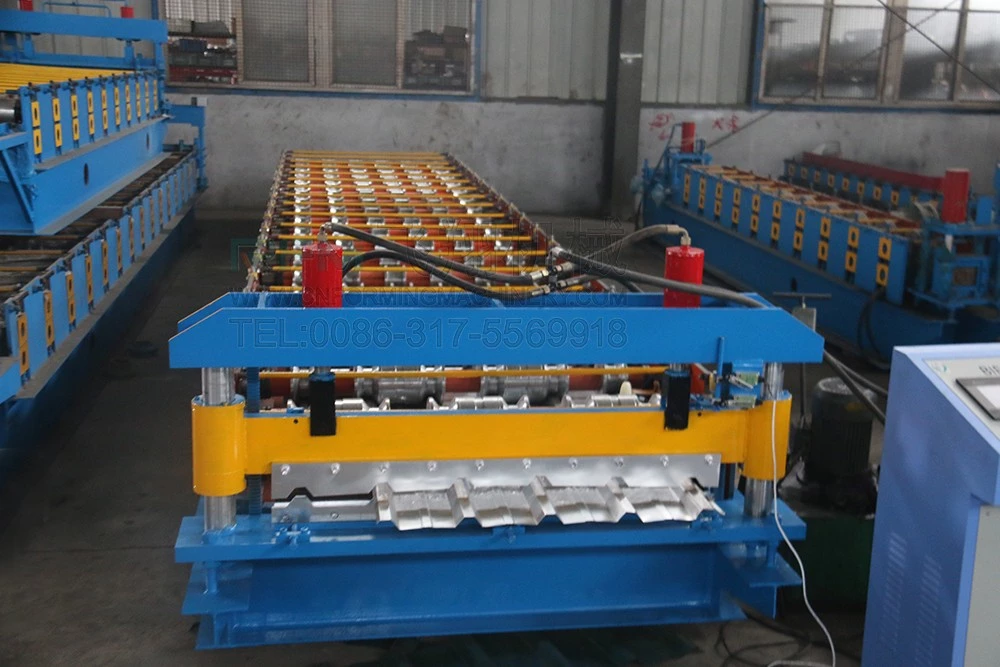

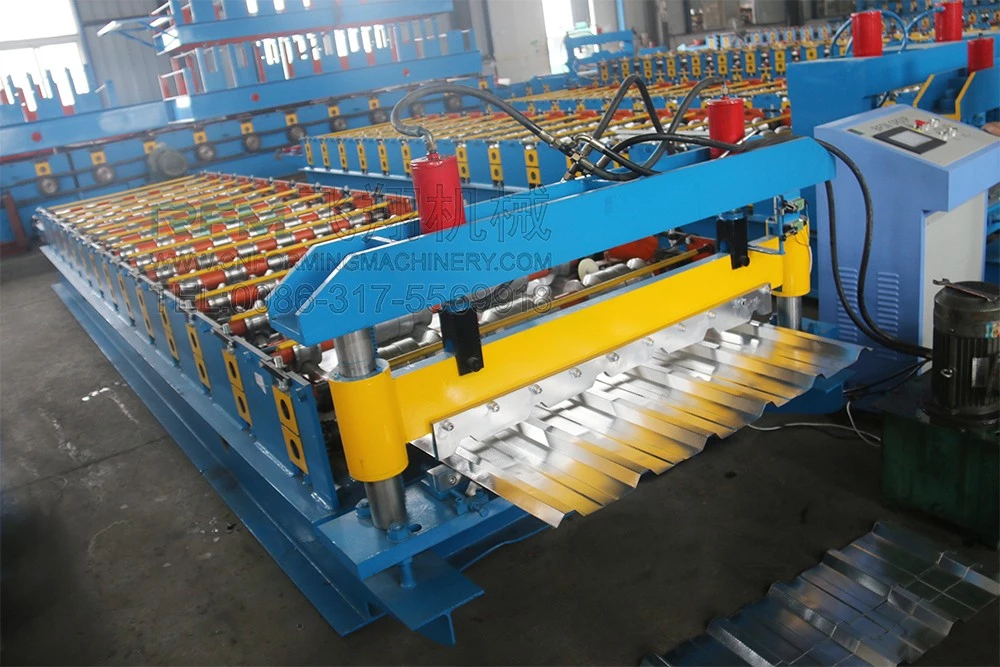

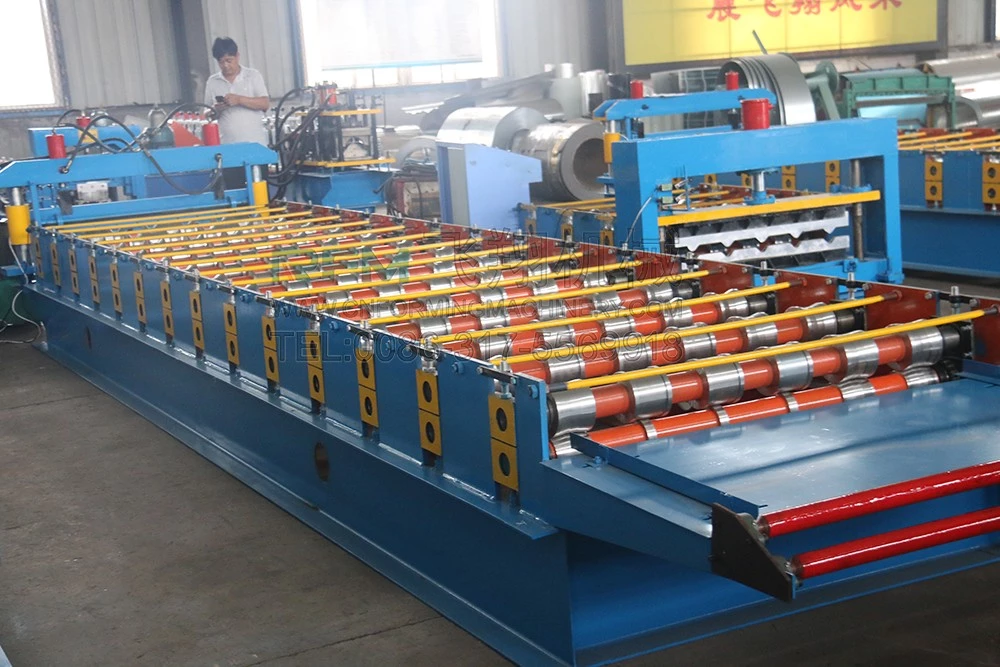

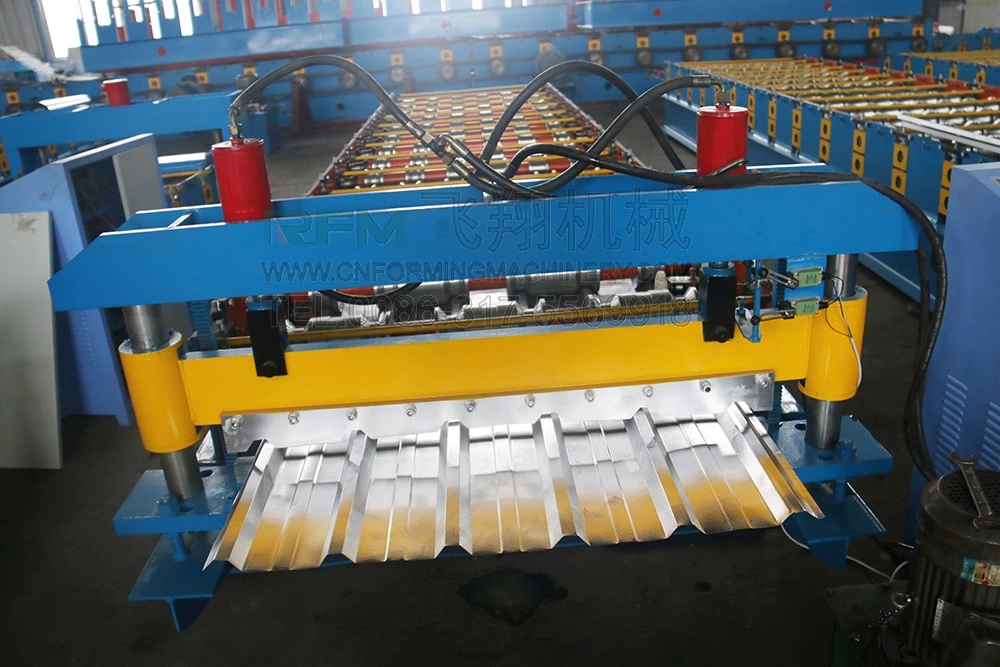

Metal roofing tile roll forming machine
| ||||||
No. | Item | Parameter | Note | |||
1 | Suitable | Type | PPGI & PPGL | |||
Width | 1220mm | |||||
Material | Thickness | 0.30—0.80mm | ||||
Yield stress | 240Mpa TO 550Mps | |||||

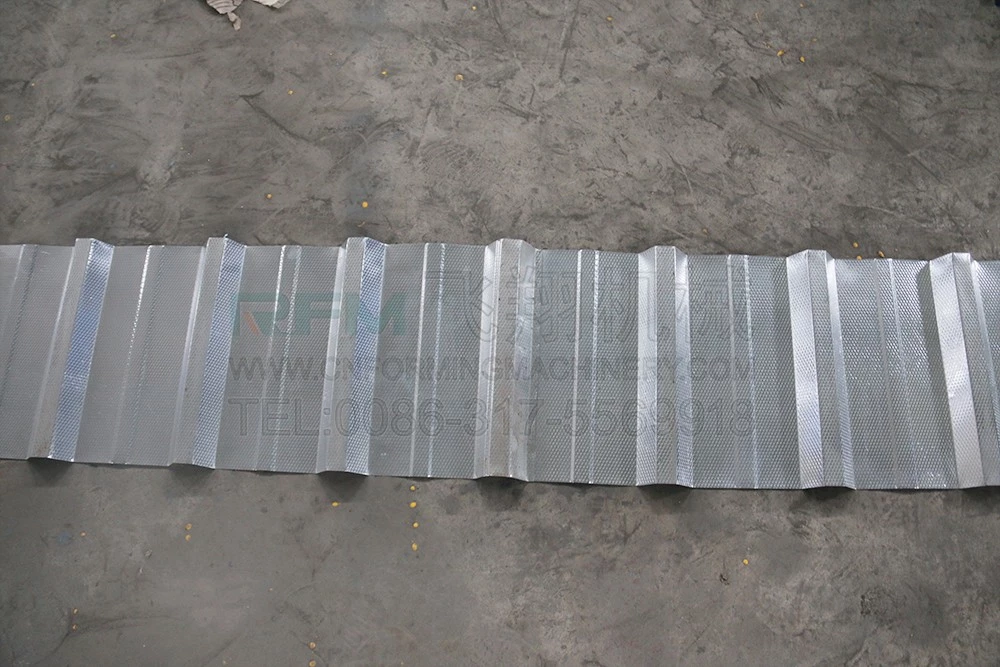

2 | Product | Cover width | 1000mm±2mm | Refer to drawing | ||
Wave height | 28±1mm | |||||
Specs | Pitch Width | 200±2mm | ||||
Length | Any length | |||||
3 | Machine | Active shaft | No. 45 steel | |||
Roller | 70mm and No. 45 steel Chrome plated | |||||
Material | Cutting Blade | SKD11 | ||||
4 | Power Requirement | Type | 440AC/50HZ | Customized | ||
Main motor | 15Kw | |||||
Hydraulic | 4kw | |||||
5 | Speed | Forming Speed | 4-8m/min | Excludes Cutting | ||
Hydraulic | Type | Automatic with coil car | ||||
Max. Capacity | 10 T | |||||
6 | Automatic | Suitable coil OD | 1200mm | |||
Suitable coil ID | 508mm | |||||
Decoiler | Max Coil width | 1250mm | ||||
Uncoiling style | Active uncoiling | |||||
7 | Forming Stand | About 22-24 groups | Complete full rollers | |||
8 | Transmission style | Chain, sprocket | Entire chain | |||
9 | Main machine structure | Guide column or wallboard | ||||
10 | Type of Cutting | length-set cutting | ||||
We can design the machine according to your specification and profile drawing.

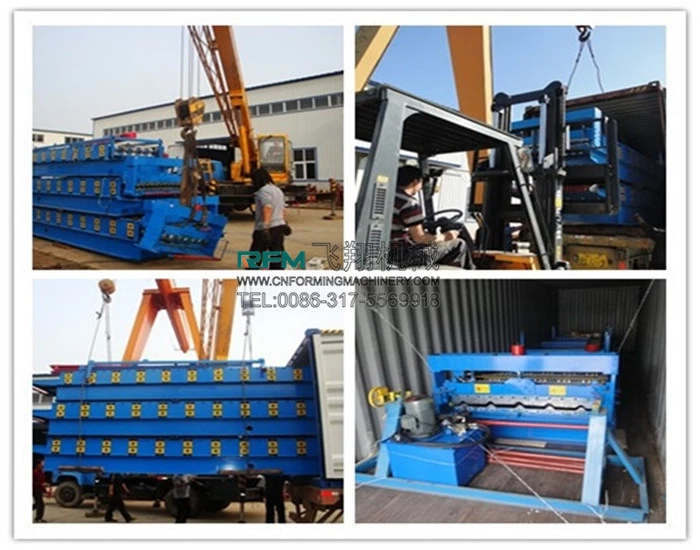

Packaging and delivery:
(1)Package standard:
Control box and easy damage parts: protective paper and waterproof packaging material,or wooden boxes .
Main forming device: waterproof material
Hydraulic pump and spare parts: paper boxes with waterproof material.
(2)Delivery:
We will arrange the shipment within 30 working days upon confirmation of purchasing order or recepit of deposit.
About Feixiang
(1)Simple introduction of our factory:
HEBEI FEIXIANG ROLL FORMING MACHINERY CO.,LTD:
(1)Two decades frofessional cold steel forming equipments manufacturer
(2)One comapny with two factory,about 30000 square meter,more than 100 employees
(3)National GB/T,CE,ISO9001:2008 Certificates
(4)Built business relationship with customers from more than 65 countries and areas
(5)Main product : Color steel roll forming machine,C&Zpurlin machine,Glazed tile forming machine,Steel structural floor panel roll forming machine,Sandwich panel roll forming machine,Highway guardrail forming machine and Other cold bending forming equipments .
(6)Perfect after-sale service

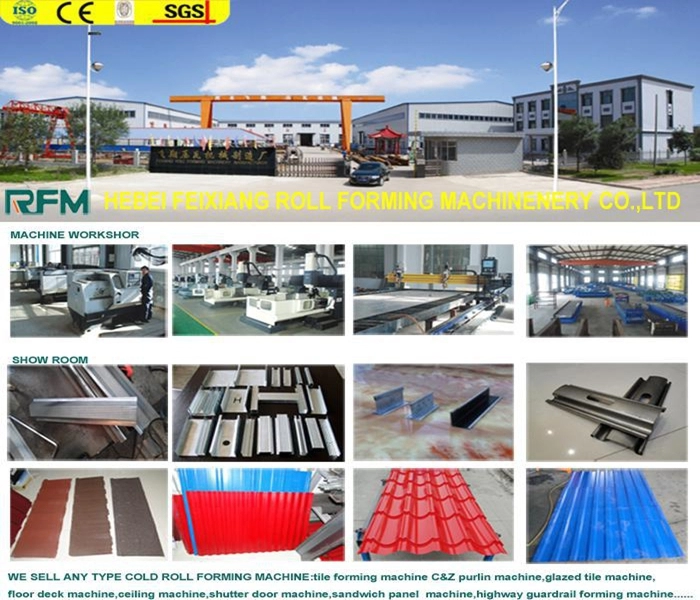

(7)Photos of our company:
Thanks very much for your time, welcome to contact Feixiang , we are with you within 24 hours.
We want to know following information.
1), What is the exact profile you want to produce?
2), What kind of material you will use, such as steel or aluminium, max coil weight, thickness?
3), What kind of decoiler and stacker you need?
Pls contact us as below informaiton,hope can cooperate,thanks advance
