c z Shaped Purlin Interchange Steel Profile Cold Roll Forming MachineC purlin machineZ purlin machineC Z purlin machineC Z interchangeable machinePurlin machinePurlin forming machine
L/CT/TD/P

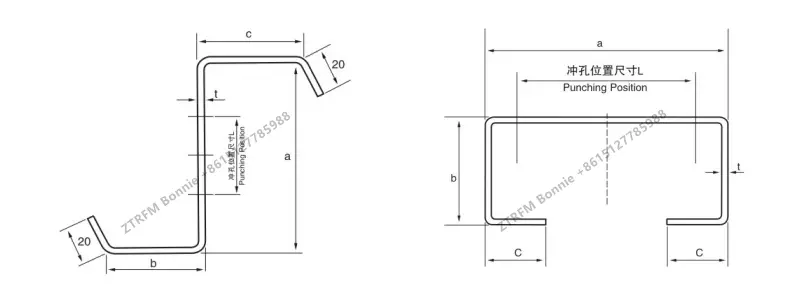

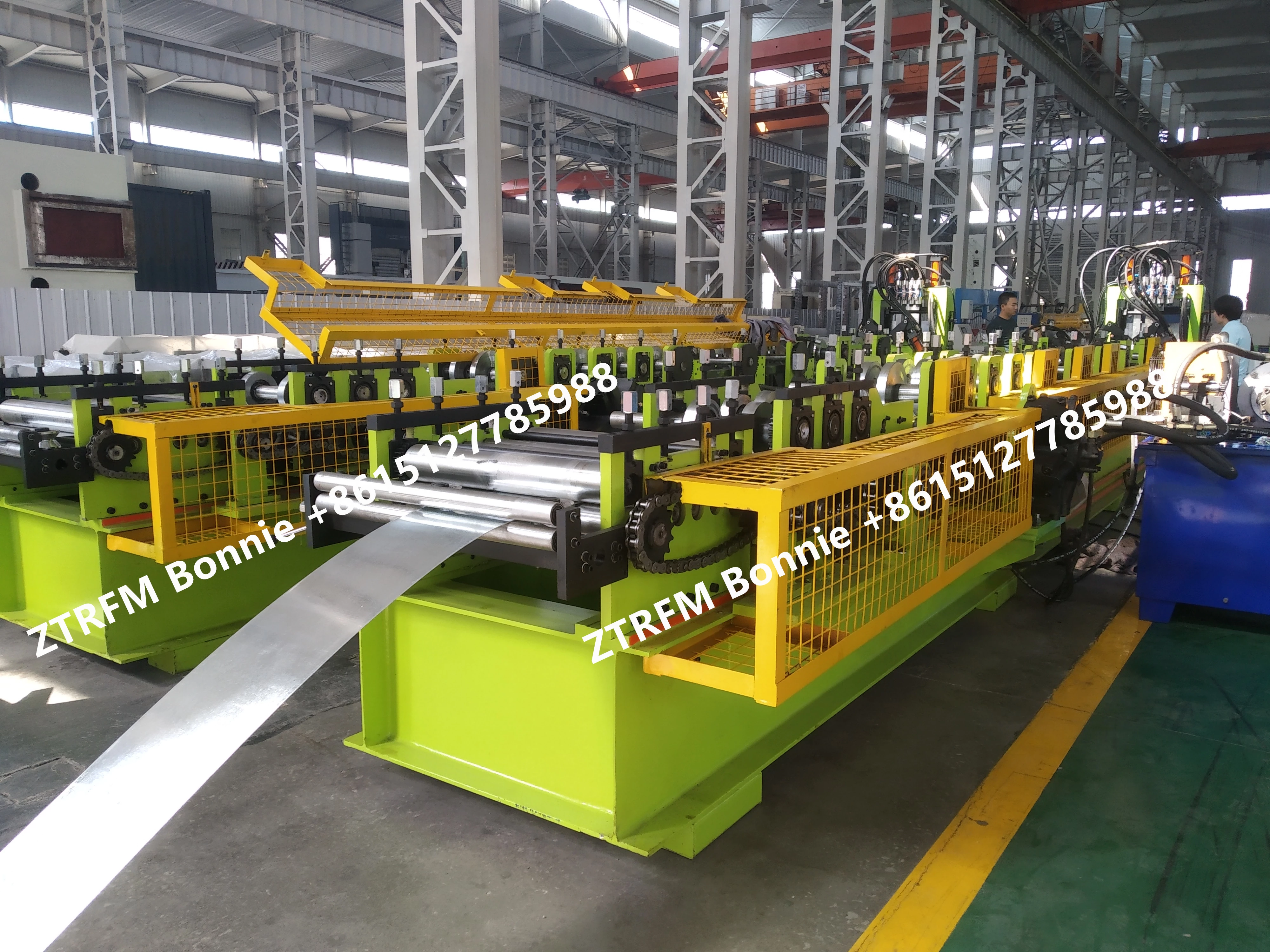

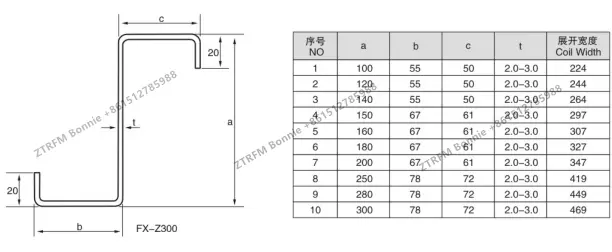

Drawings of Auto changeable C/Z section forming machine
1. Advantage of Auto changeable C/Z section forming machine
A. Save time. It only costs within 15 minutes to change shape from C To Z
B. Limitless sizes. Sizes of C and Z can change infinitely,help to save material
C. Highly automatic. Optional Punch hole at any position of purlin flat side and flange side
D. Durable apparatus. It adopts world famous parts, such as Schneider and morn.
E. Produce different purlin size without changing rollers or spacers

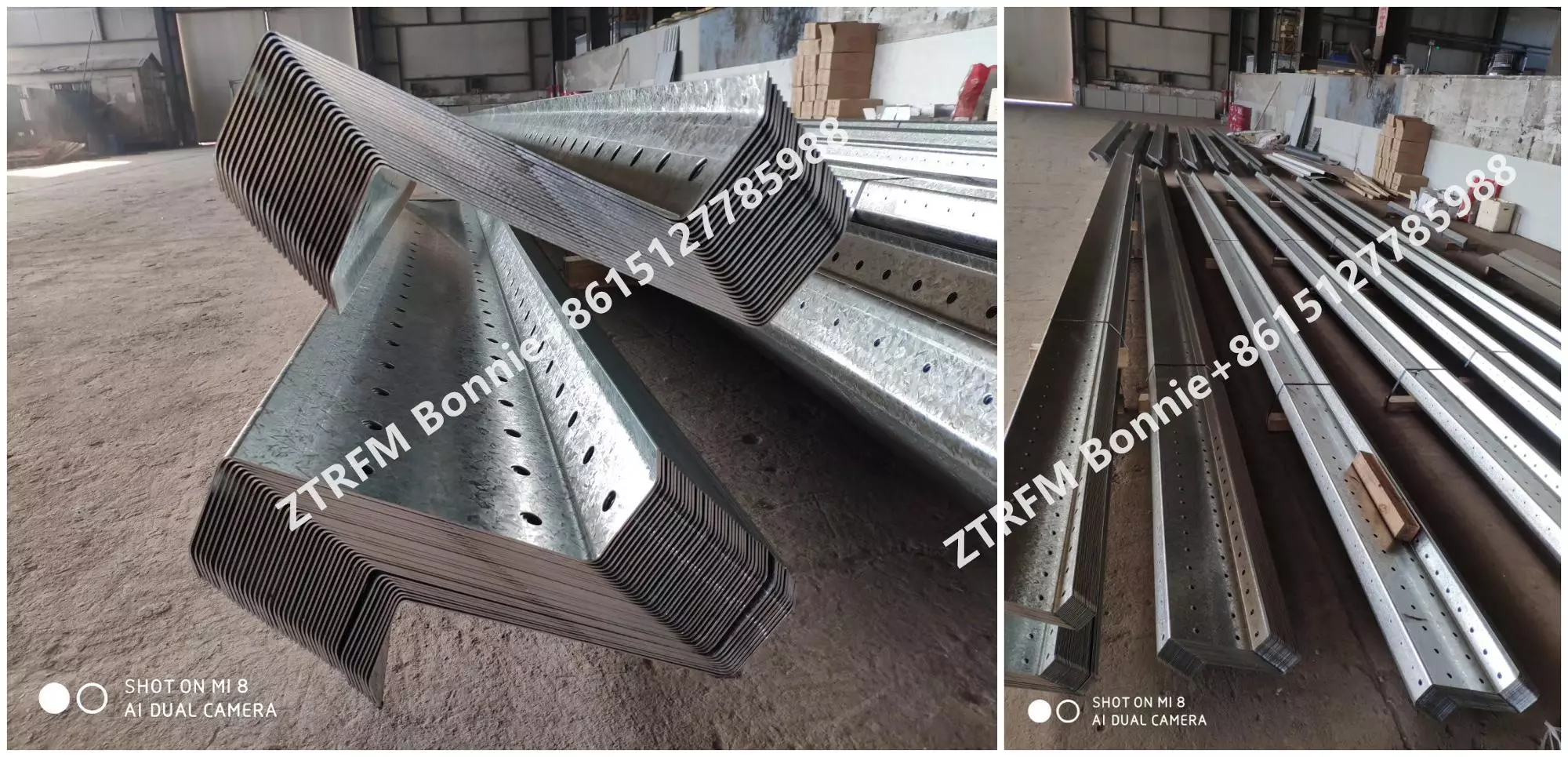

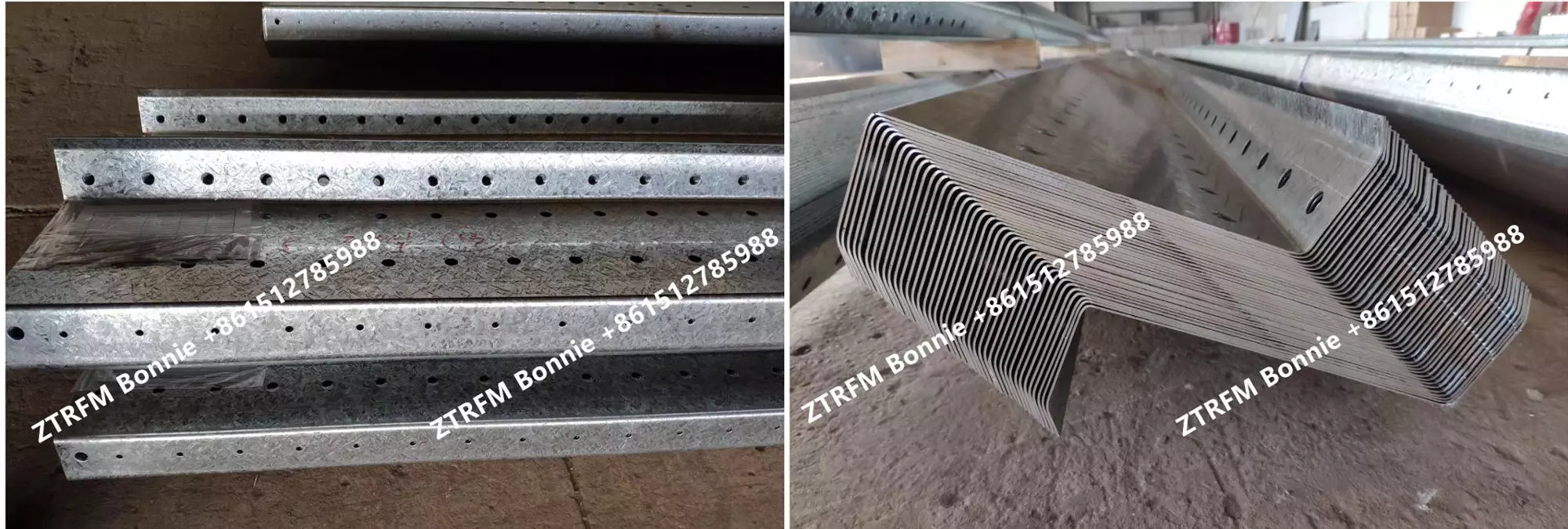

Final CZ purlin made by our machine
2. Auto changeable C/Z section forming machine components
No | Name | Unit | Qty |
1 | 5 tons manual decoiler | Set | 1 |
2 | Auto Changeable C&Z Section Forming Machine (with one set of flattening device and two sets of punching device) | Set | 1 |
3 | PLC control cabinet | Set | 1 |
4 | Hydraulic station | Set | 1 |
5 | Run-out table | Set | 1 |
6 | Spare parts | Set | 1 |
| power | main motor 22kw+hydraulic motor7.5kw | ||
| thickness | 1-3mm | ||
| width | 80-300mm |
3. Introduction of CZ purlin machine
(1) Working Flow :
Feeding steel belt---Flatten steel belt---Forming C Z shape---Punching---Cutting

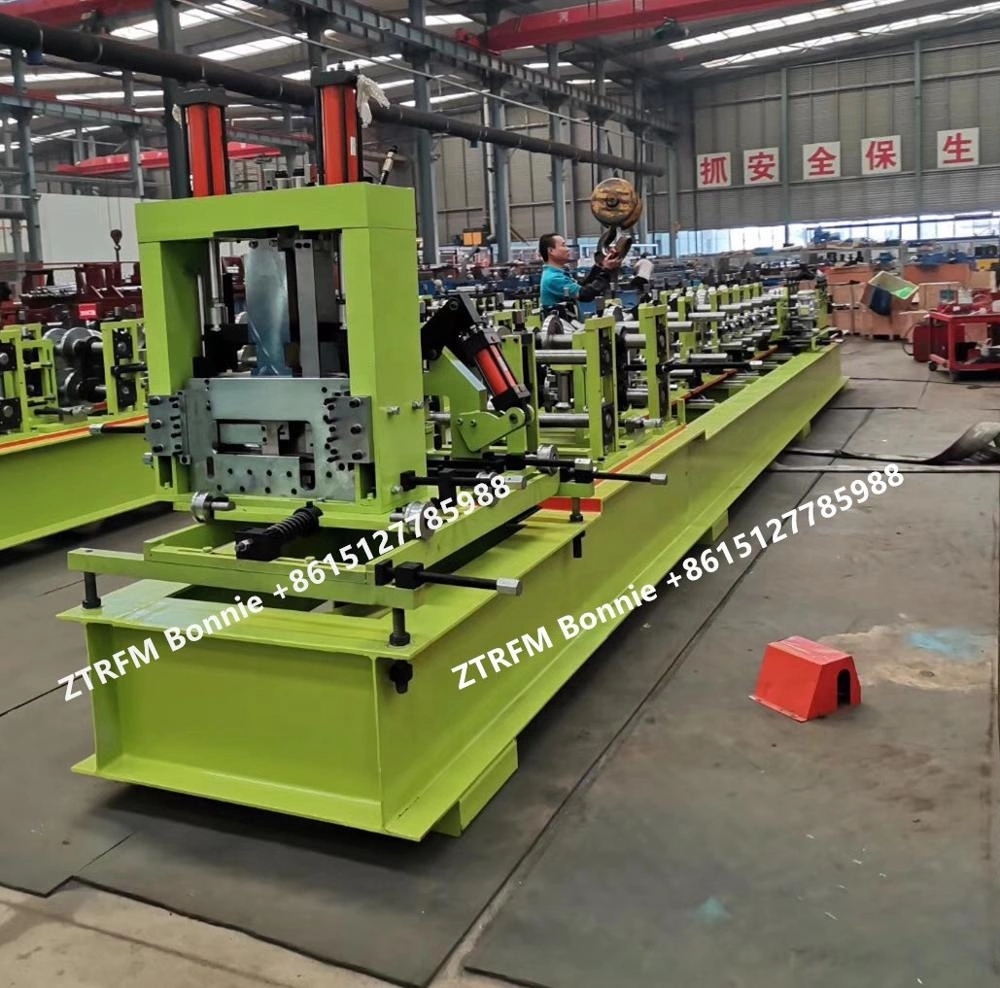

(2) cutting system of CZ purlin machine
No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 40mm steel plate by welding
hydraulic motor:7.5KW

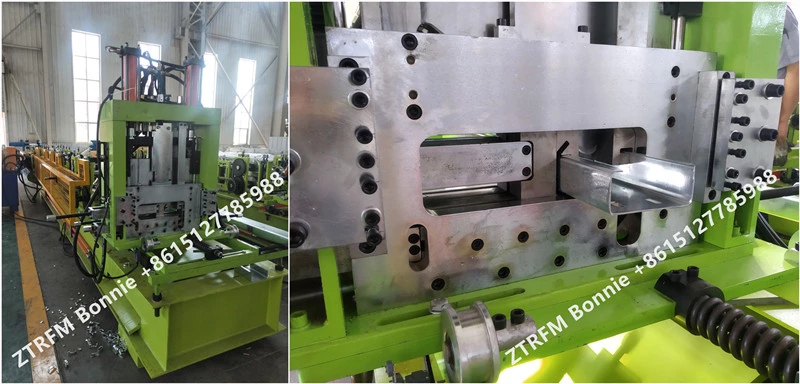

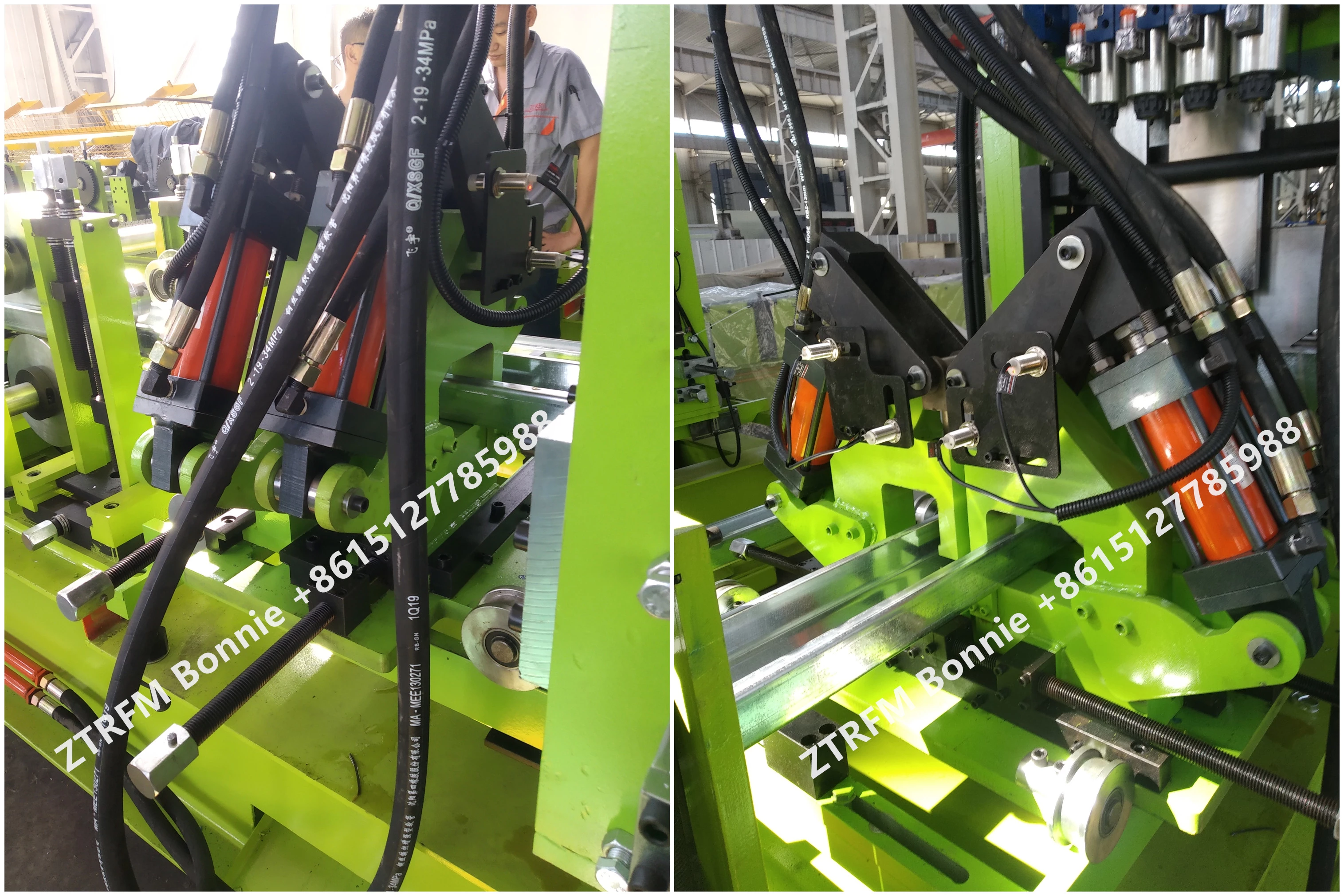

(3) punching system of CZ purlin machine
with 4 cylinder (Punching two holes at flat side and two holes at flange side)
(3) rollers of CZ purlin machine
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by welding

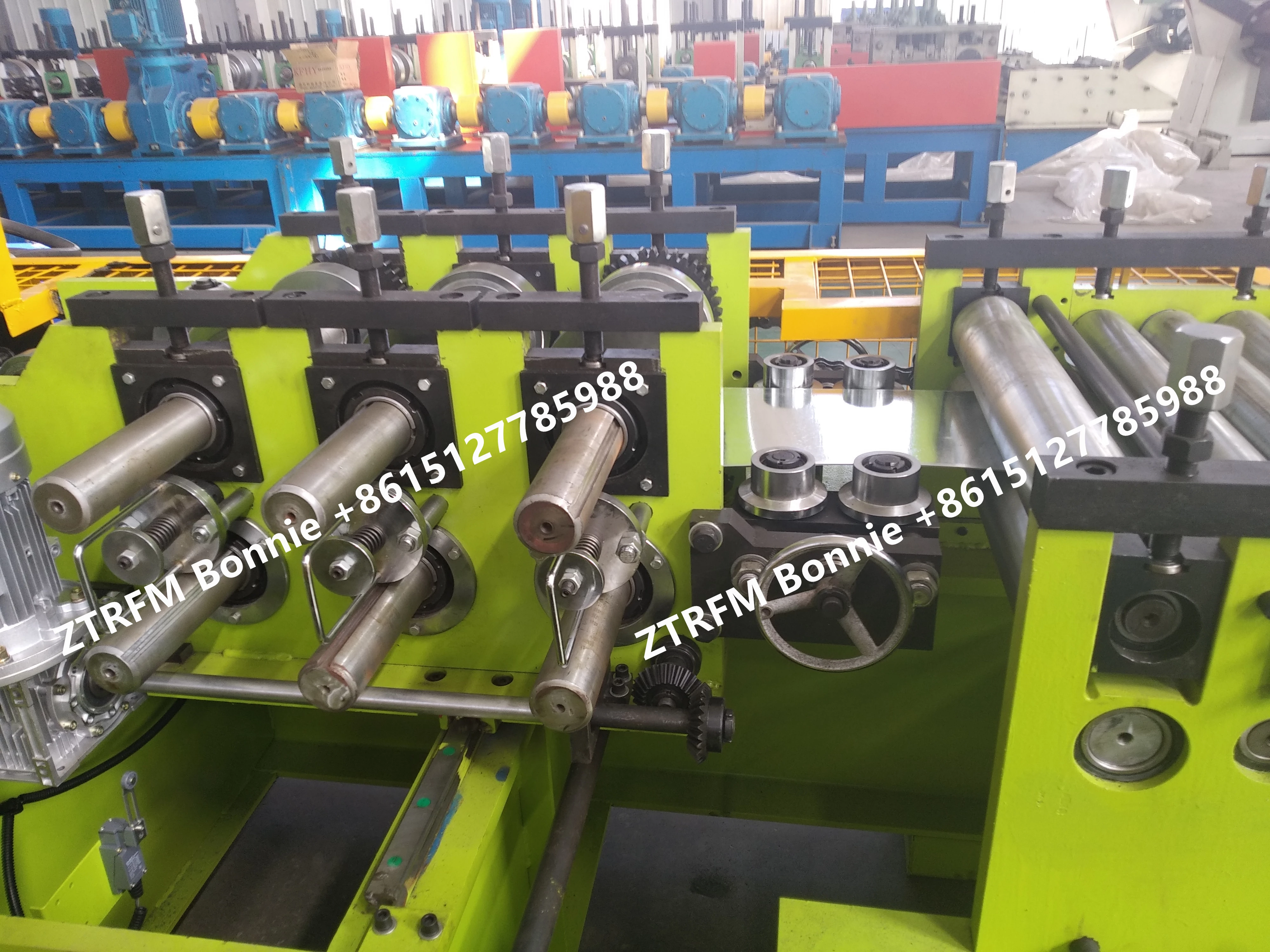

(4) flatten system of CZ purlin machine
upper 6 shafts and down 7 shafts shaft diameter 95mm-110mm

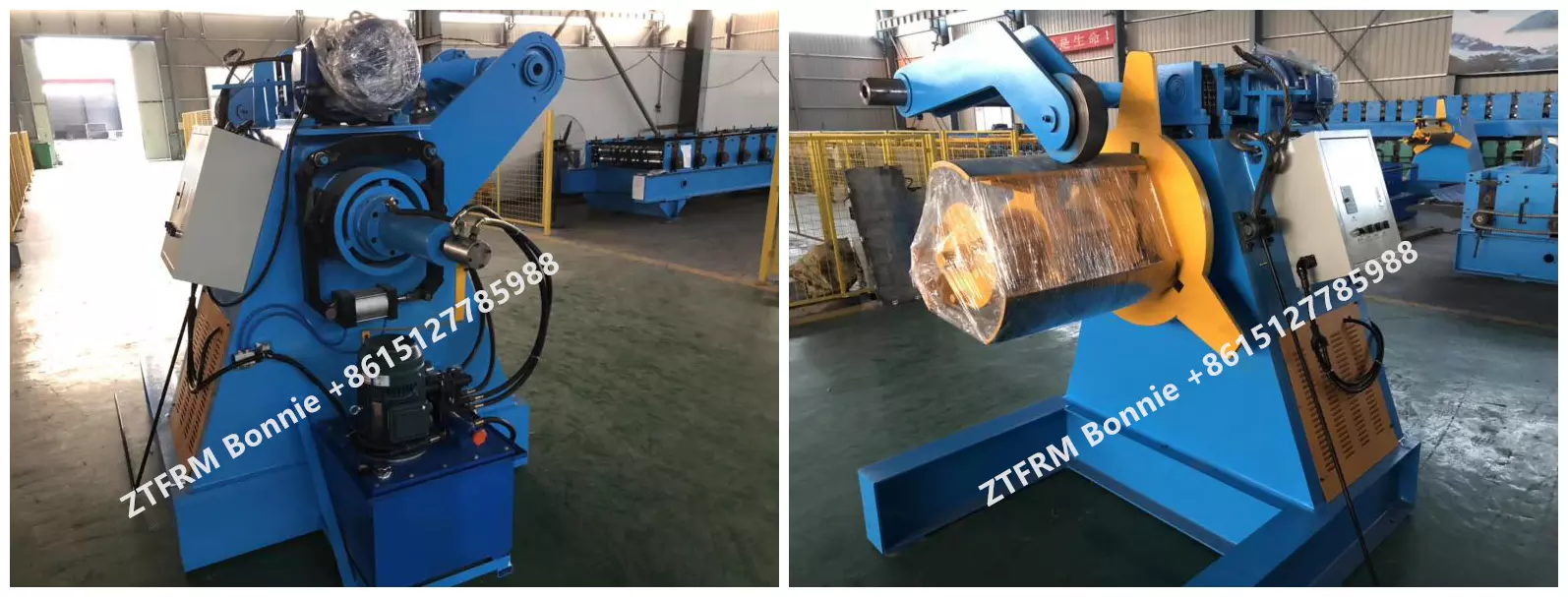

(5) Hydraulic decoiler of CZ purlin machine
5 tons hydraulic decoiler with press arm

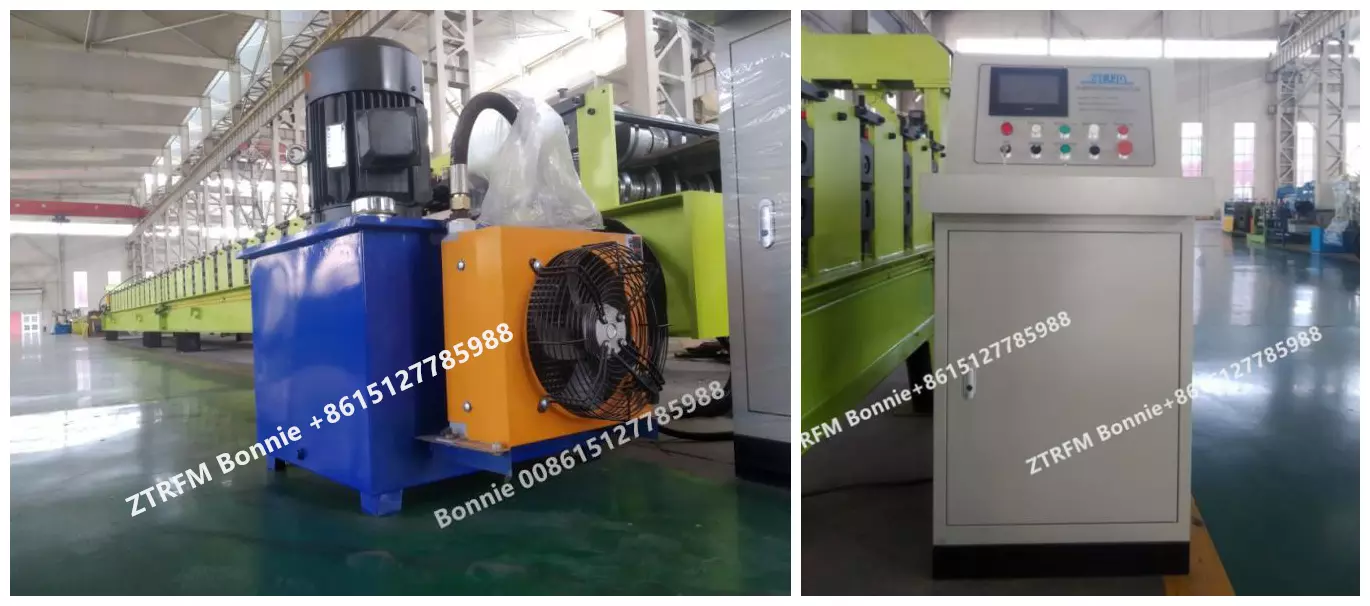

(6) Hydraulic station and control systerm of CZ purlin machine
hydraulic station power: 7.5 kw cooling systerm: by fans
screen brand:Siemens
encoder: Siemens
PLC: Delta
Final product made in customers factory
