High Efficiency Highwayguardrail crash steel safety Barrier Roll FormingHighway guardrail machinecold roll forming machineSafety Highway Guardrail highway saftey guardrailsteel Guardrail Barrier
L/CT/TD/P

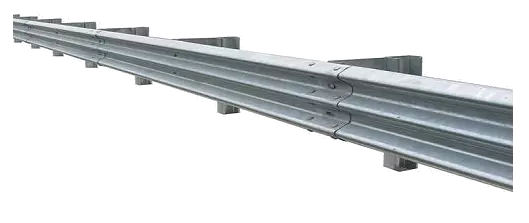

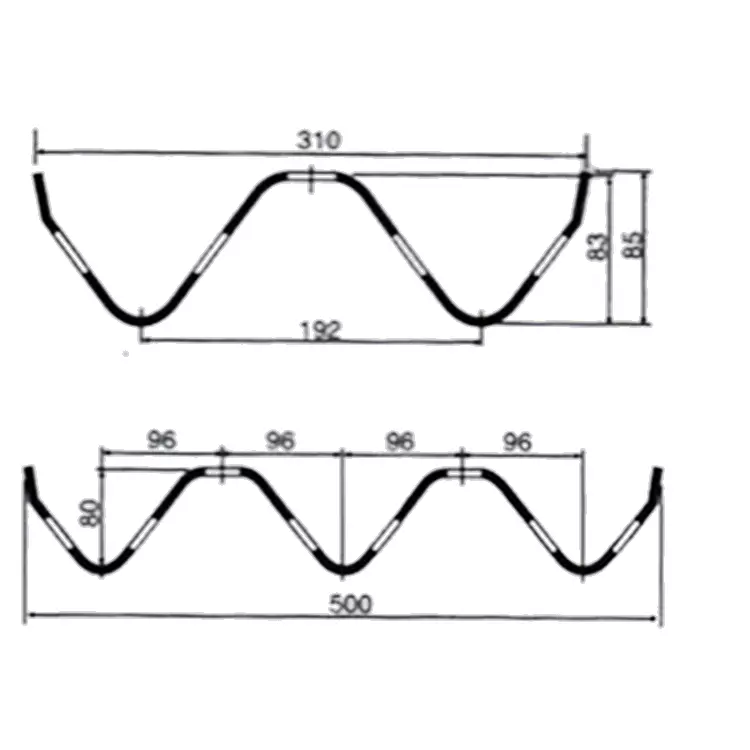

For the guardrail production line we have the two waves and three waves two wave fence guardrail production line. Each type we have the standard profile drawing and punching sketch. Steel guardrails provide a visual and physical barrier between traffic and work areas. It is used for protection against accidents due to lift trucks or other mobile equipment in dock areas, aisles, around special equipment, or offices.
This guardrail production line is especially used for producing the guardrails of road. The whole line adopts PLC controlling system and AV inverter speed adjustment, it can run full automatically. It`s the essential equipment in the steel structure industry and road transportation industry.

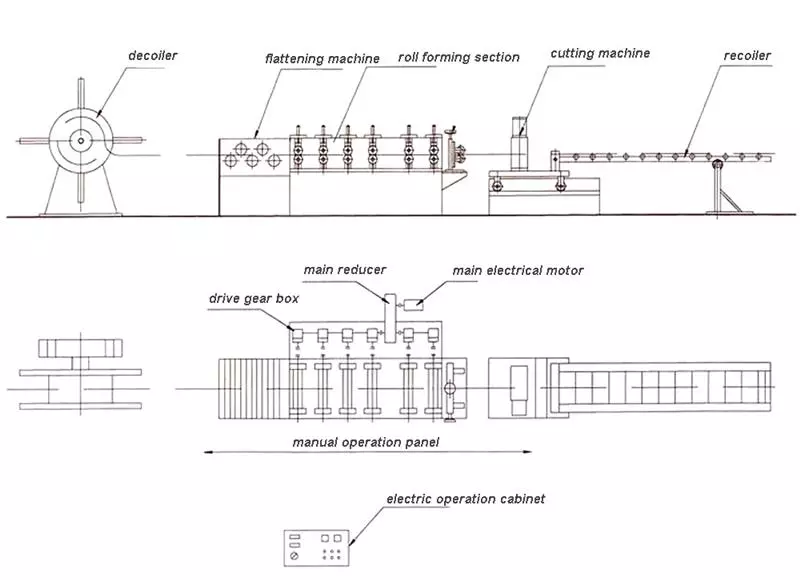

Processing flow of 3 wave guardrail machine
Components of 3 wave guardrail machine
No. | Name | Unit | Quantity |
1 | 5T decoiler | set | 1 |
2 | Guiding device | set | 1 |
3 | Leveling device | set | 1 |
4 | Punching system | set | 1 |
5 | Main roll former | set | 1 |
6 | PLC control station | set | 1 |
7 | Hydraulic oil pump | set | 1 |
8 | Cutting system | set | 1 |
9 | stacker | set | 1 |
some details of 3 wave guardrail machine
parameters of 3 wave guardrail machine
Series | Details | Parameter |
Roll forming machine |
Guiding&leveling device | Placed on the machine by seller |
Shaft numbers:11pcs | ||
Shaft diameter:80mm | ||
Shaft material: 45# steel | ||
Drive power:5.5kw | ||
Rolling shaft material | 45# STEEL | |
Shaft diameter | 90mm | |
Roller material | GB-Cr15 with heat treatment | |
Rolling station | 15 stations | |
Machine frame | Cast iron vertical structure | |
Machine body | 400# H steel welded | |
Bearing | Chinese famous brand Harbin | |
Work power | 22kw | |
Control system | Frequency brand | Delta from Taiwan |
PLC brand | Delta from Taiwan | |
Hydraulic system | Work type | Hydraulic |
Punch mode | Four pillar hydraulic powered punching system | |
Driving method | By Cylinder | |
Motor power | 22kw | |
Mold material | GB-Cr12 | |
Mold quantity | 2 sets | |
Punching frame | 1 set | |
Press power | 80T | |
Cutting length tolerance | ±1.5mm |

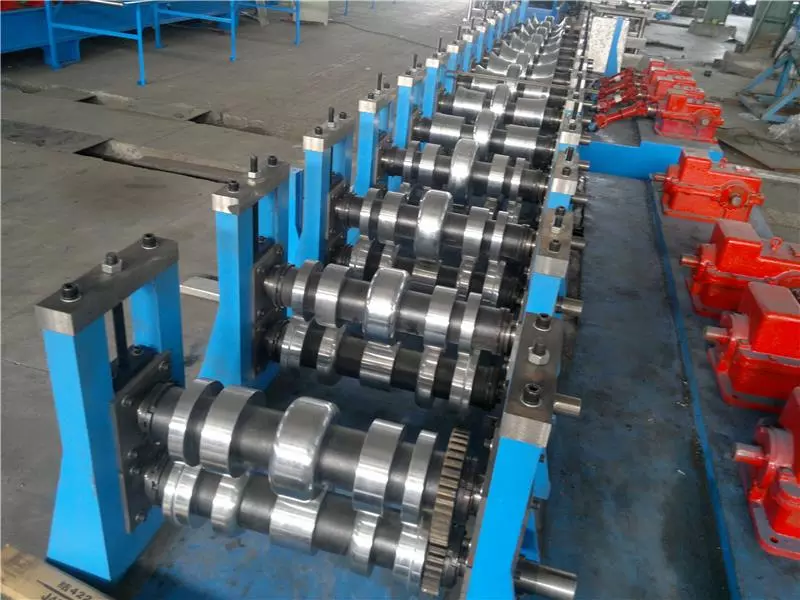

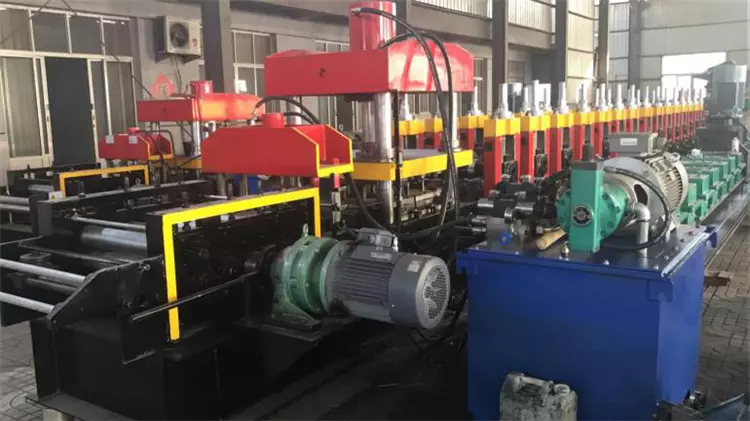

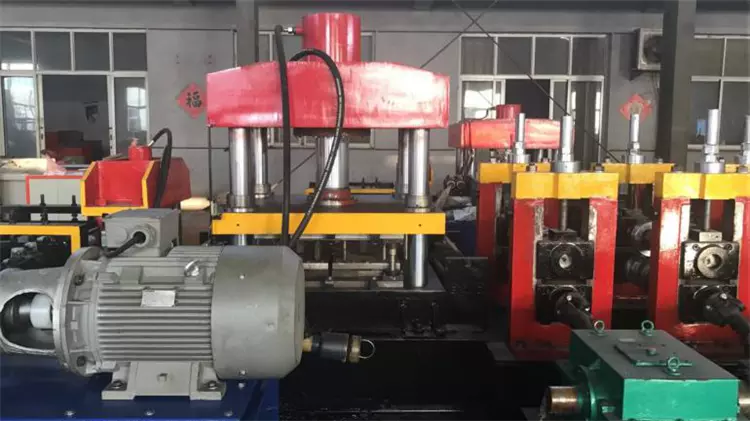

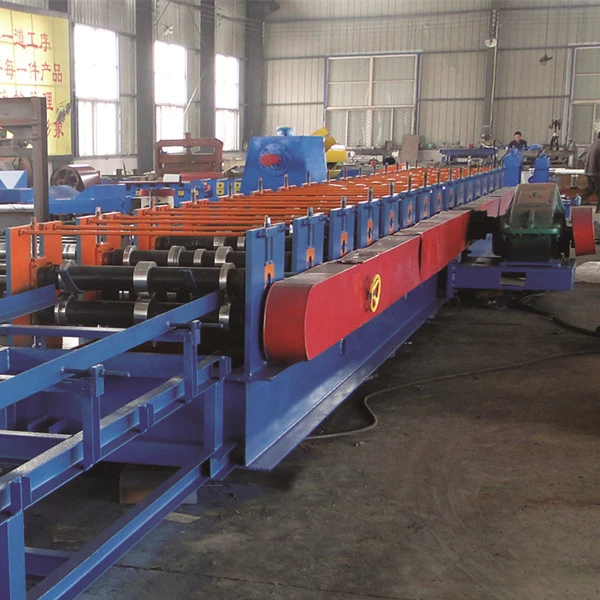

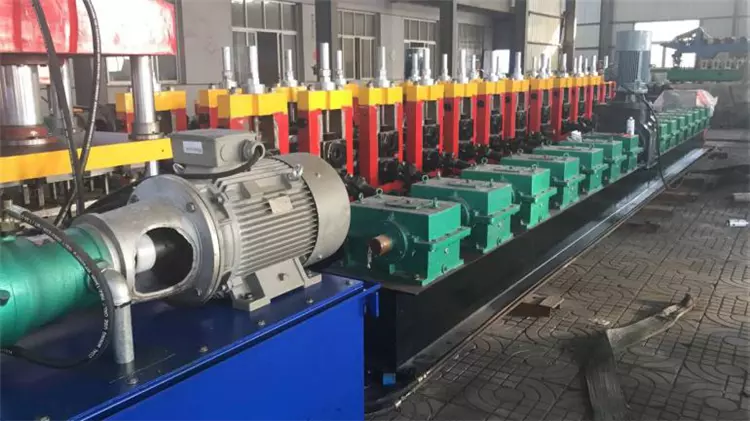

some photos of 3 wave guardrail machine
