chimney platformchimney lifting platform
L/CT/TWestern UnionMoney GramOthers

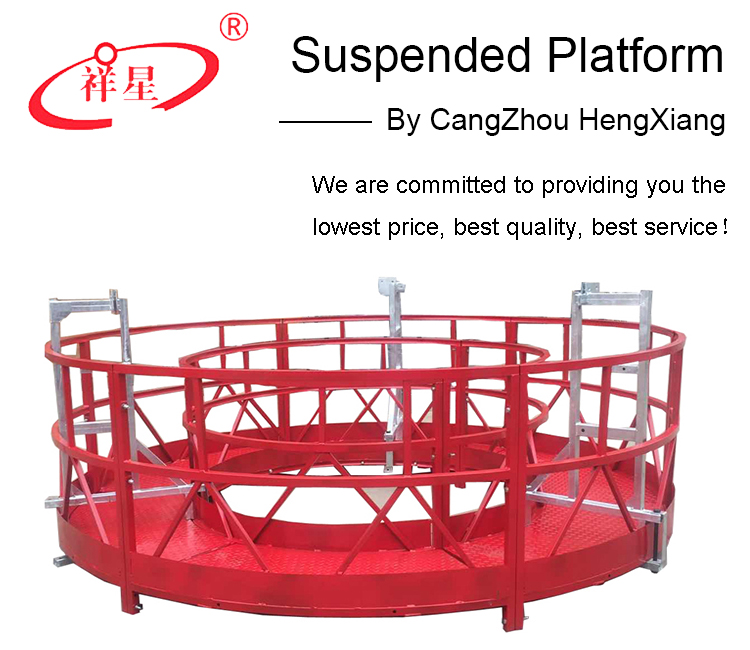

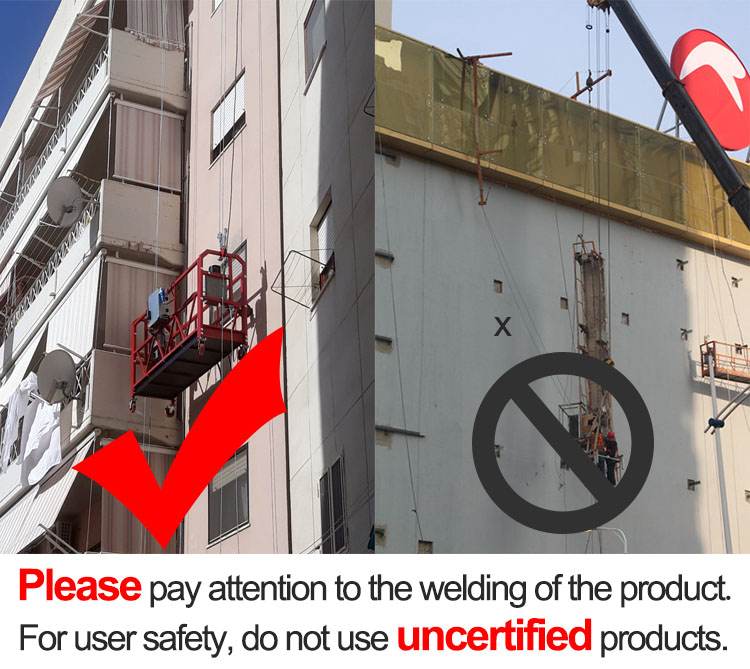

Suspended platforms have taken over the role of scaffolding ladders. Suspended platforms are mechanical devices that lift workers into the air to complete work at hard to reach heights. It is widely used in exterior wall construction, cleaning, maintenance, painting, power station, ship yards, municipal projects, etc.
Next is the data of our conpany's products
Product Parameters:
| MODEL NUMBER | ZLP1000 | ZLP800 | ZLP630 | ZLP500 |
| Rated Capacity(kg) | 1000 | 800 | 630 | 500 |
| Lifting Speed(m/min) | 8-10 | 8-10 | 9-11 | 9-11 |
| Rated Power(KW) | 2.2x2 | 1.8x2 | 1.5x2 | 1.1x2 |
| Hoist Model | LTD100 | LTD80 | LTD63 | LTD50 |
| Safety Lock Model | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 | LSA30/LSA20 |
Dimension of platform L x W x H(mm) | 7500x690x1180 | 7500x690x1180 | 6000x690x1180 | 5000x690x1180 |
suspension mechanism
weight(kg)
| 250 | 250 | 250 | 350 |
| Counterweight(kg) | 1250 | 1000 | 800 | 750 |
suspension platform | Steel | 700 | 600 | 500 | 400 |
| weight(kg) | Aluminum | 590 | 440 | 340 | 290 |
| Note | Suspension platform including hoist, safety lock, electric control panel. |
After sales service
1. All products are warranted for two years.
2. Additional consumables are given.
3. Our company has warehouse in Mumbai, which guarantees timely delivery and after-sales service.
4. Detailed installation of after-sales video.
5. Strong technical team support.

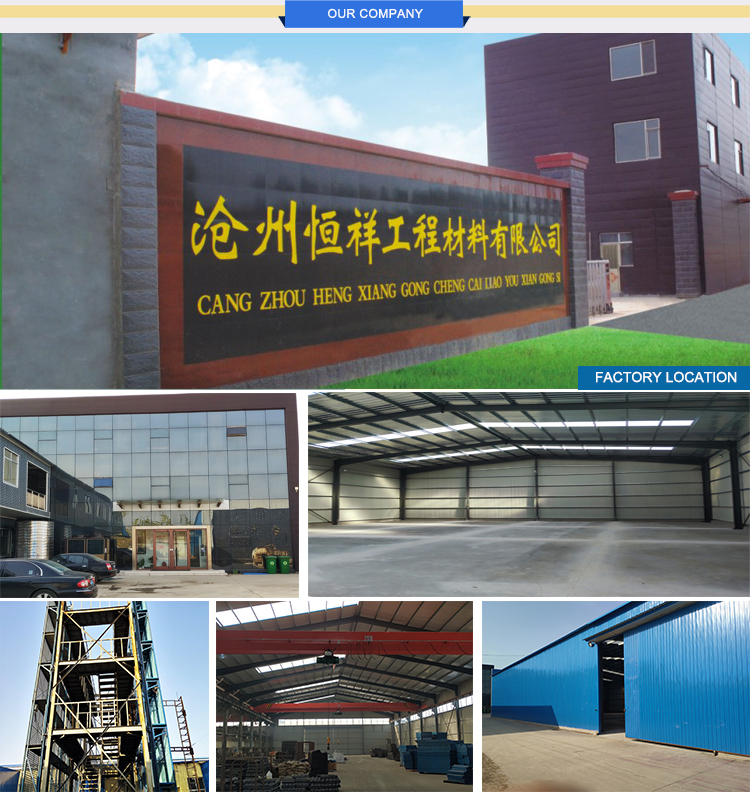

Cangzhou Hengxiang Engineering Materials Co., Ltd., Ltd is a professional manufacturer and developer for construction building materials. Our main products are high altitude electric hanging platform, climbing scaffolds, mobile tower scaffolds, Type 42 swivel coupler, security lock, scaffolding hoist etc.
We have earned good reputation and trust from our clients, since our products being launched on the market. Product’s Quality and Human Life first is always Hengxiang’s concept, all our products have to past strict tests during production and before sending out of factory. Best technology, Best quality, Best services has been always our pursuit.
we are 24-hour online to provide you our best services!
A: We are a manufacturer with our own factory. We have more than 25 year’s experiences in producing suspended platforms and accessories.
A: Generally, within 3-7 days after receiving payment or depends on the quantity of your order.
A: Yes, OEM service is available here. We can adjust it according to your requirement.

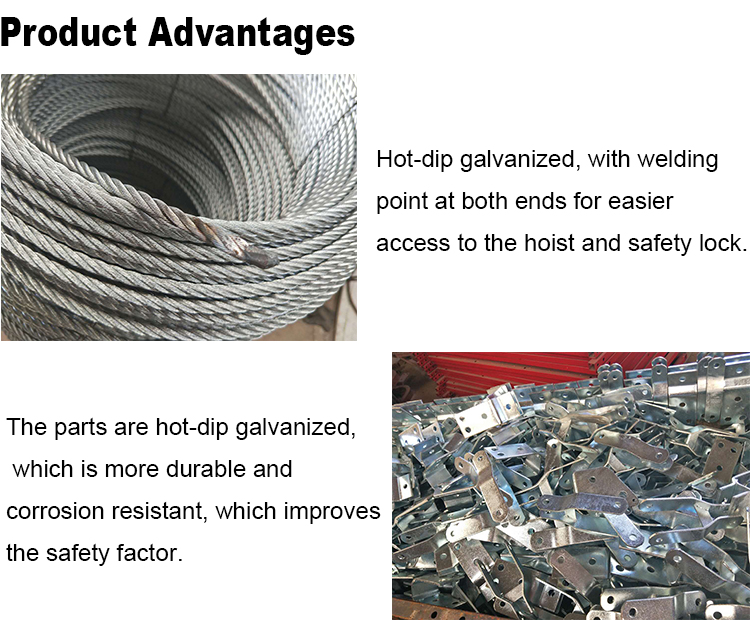

A: The materials we use are aluminum alloy; hot-dip galvanized steel and painted steel.
Q: Do you have relevant certificate?
A: We have CE, ISO9001 certificate, and we can assist you with any certificate application you need.

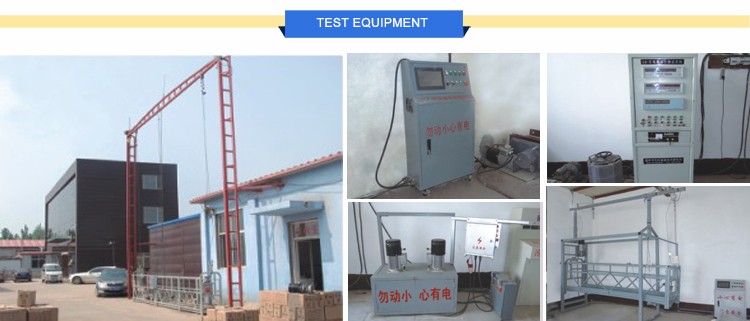

Q: Do you have inspection procedures for the manufacture line?
A: We have 100% self-inspection quality management system during production and before packing.
Q: Can I have a visit to your factory before the order?
A: Why not? Welcome to my factory. You may contact us before you visit, our sales personnel will provide you a full assistance.
