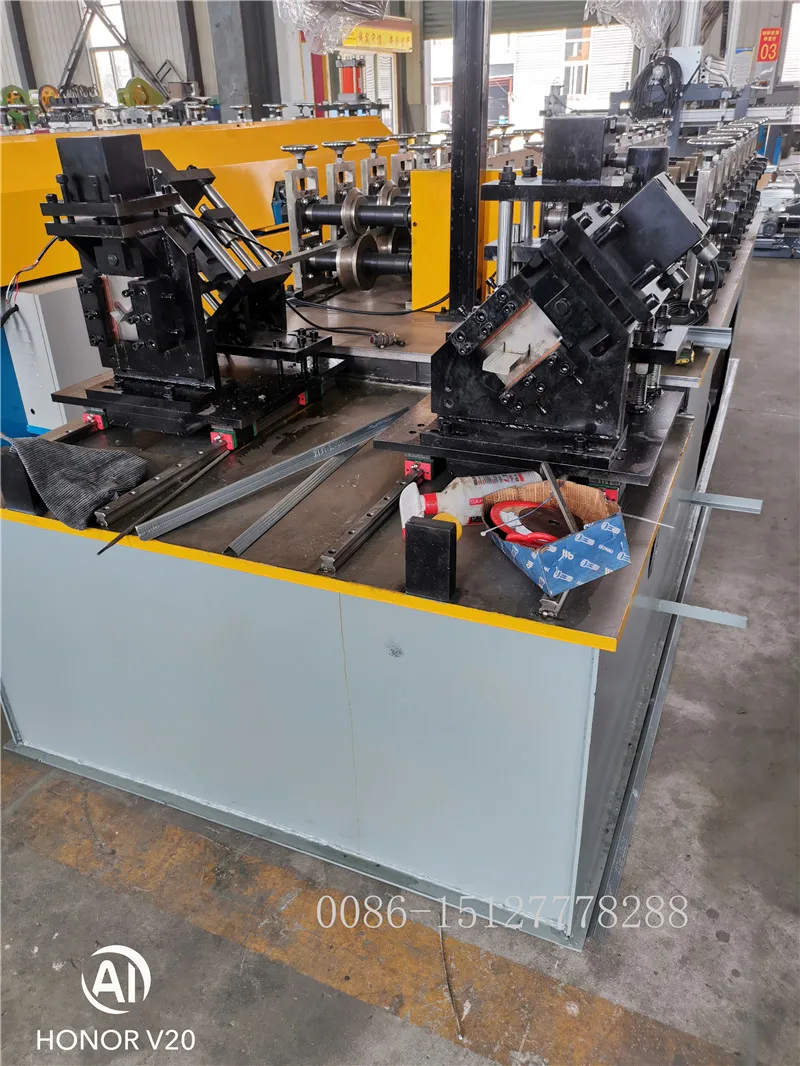

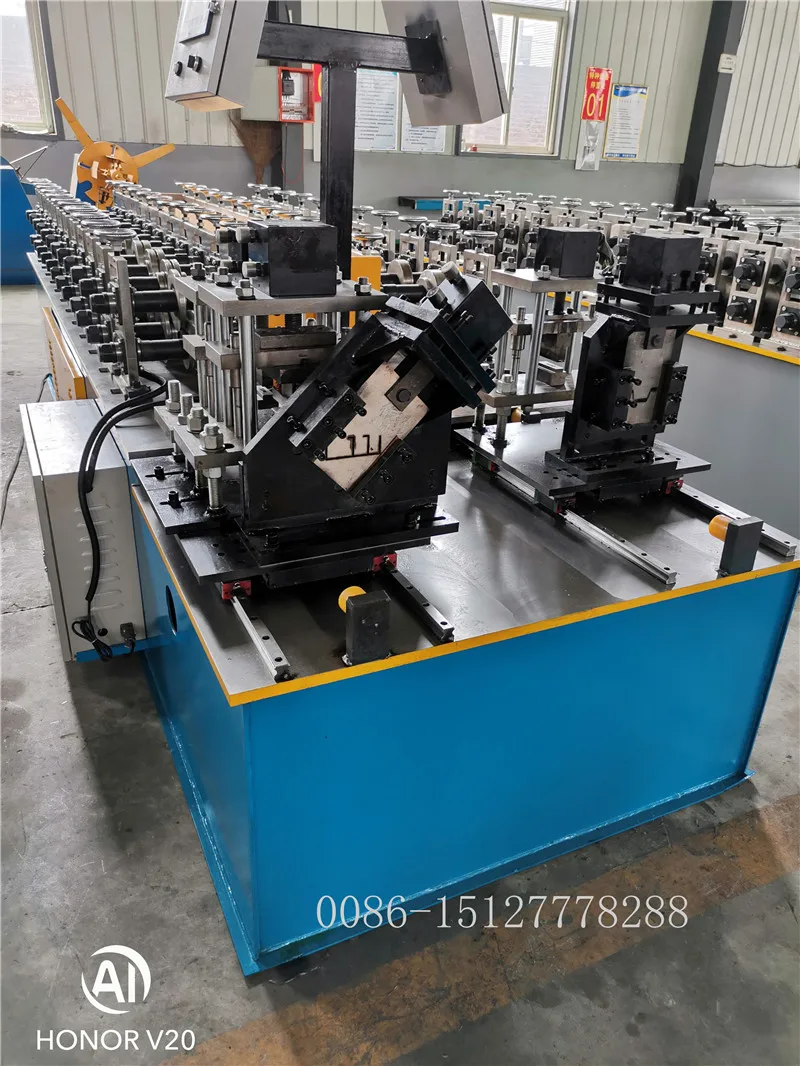

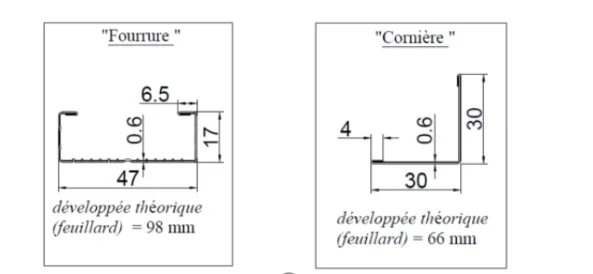

Drywall Studs Track Machine The C U Stud wall angle Roll Forming Drywall system machineMetal Framing SystemRoll Forming Machine drywall channel angle profileStud Track Machine
L/CT/TD/P
Our metal steel drywall stud & track cold rolled machine is widely used in all around the world. This metal steel drywall stud & track cold rolled machine have two forming lines, but they have seperated control systems, this kind of drywall metal process roller mahcine will save the space for the factory. And the products this machine produced is mainly used for the drywall and the ceiling structure. The speed of our Light gauge steel frame machine can reach 50 meters per minutes, of course this machine price is a little higher than the 25 meters speed machine. We will produce this machine as your personal requirements.
Working flow for drywall celling profiles roll forming machine drywall manufacturing machine

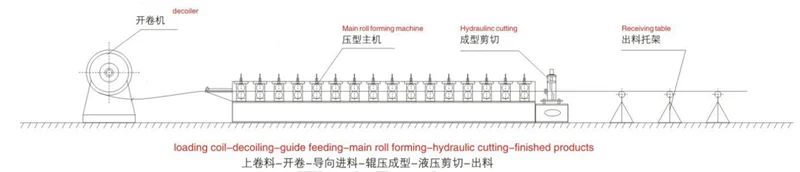

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
Product name | ||||
NO. | Items | Parameters | Remark | |
1 | Suitable Material | Type | GI/PPGI/AL | |
Thickness | 0.40-0.80mm | |||
2 | Product Specifications | Length | Any length | |
Length Tolerance | ±1mm/6m | |||
3 | Working Speed | 25 m/min | Standard machine | |
4 | Control System | Mitsubishi/Siemens PLC& transducer | Custom | |
5 | Total Power | 7KW | ||
6 | Total Weight | About 2.5T | Up to final design | |
configuration of omega channel cold rollforming machine
No. | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main forming machine | set | 1 |
3 | PLC control system | set | 1 |
4 | Hydraulic pump station | set | 1 |
5 | Post cut | set | 1 |
6 | Electric motor | set | 1 |
7 | Output table | set | 1 |
Details of drywall celling profiles roll forming machine drywall manufacturing machine

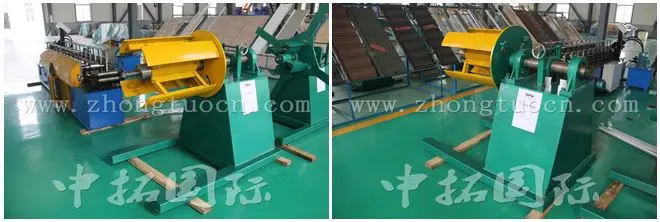

Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Loading capacity | Uncoiling width | Inner diameter |
1.5T | 300mm | 450-550mm |

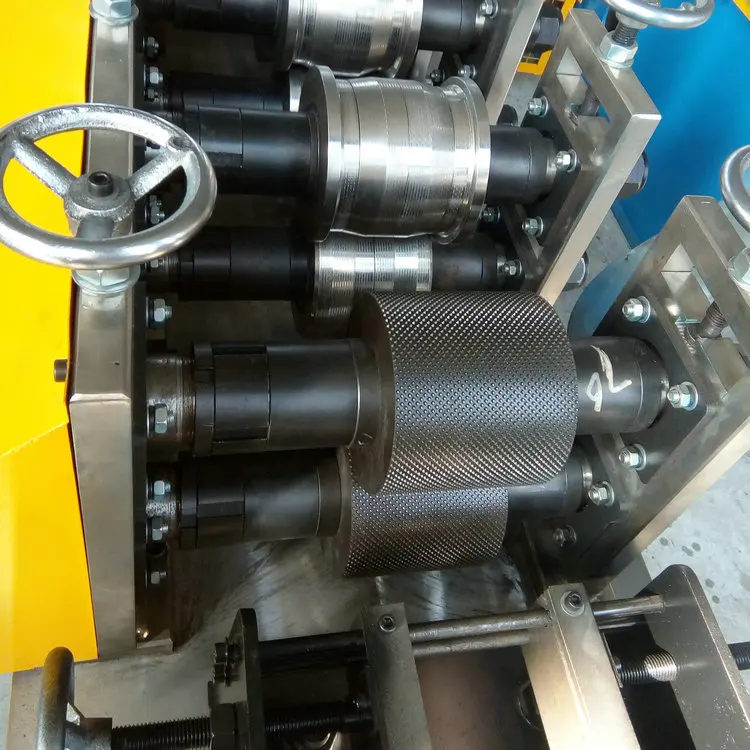

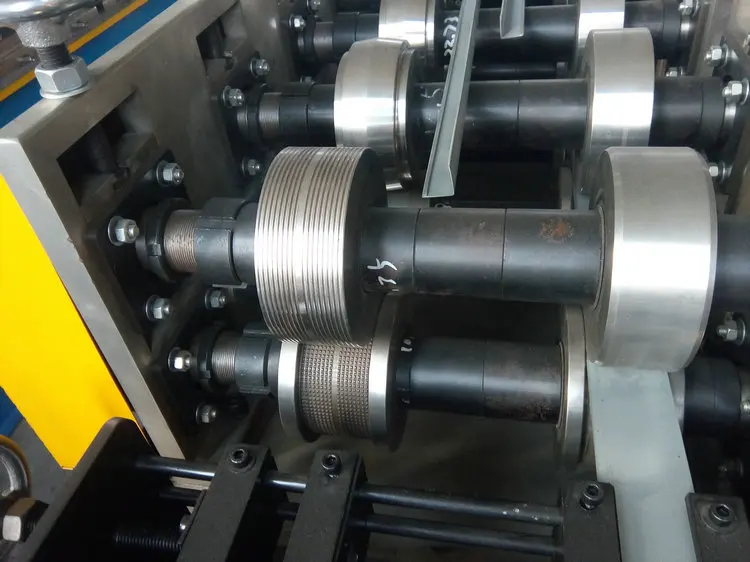

Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive,gear transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
No. | Main parameter of omega channel cold rollforming machine | |
1 | Length of the main part | 4800*800*1400 |
2 | Weight of main part | About 2.5 t |
3 | Voltage | 380V/50HZ3Phase (as customer's request) |
4 | Roller fixer | Guide column |
5 | Frame | Middle plate welded Memorial arch frame type |
6 | Frame thickness | 25mm |
7 | Drive mode | Gear |
8 | Material of rollers | GCr12MoV quenching treatment58-60° |
9 | Material of shafts | 45# steel with tempering |
10 | Diameter of shafts | φ40mm |
11 | Number of rollers | 12 rollers |
14 | Main power | 4kw (Cycloidal planetary gear speed reducer) |
15 | embossing and Logo is acceptable | |

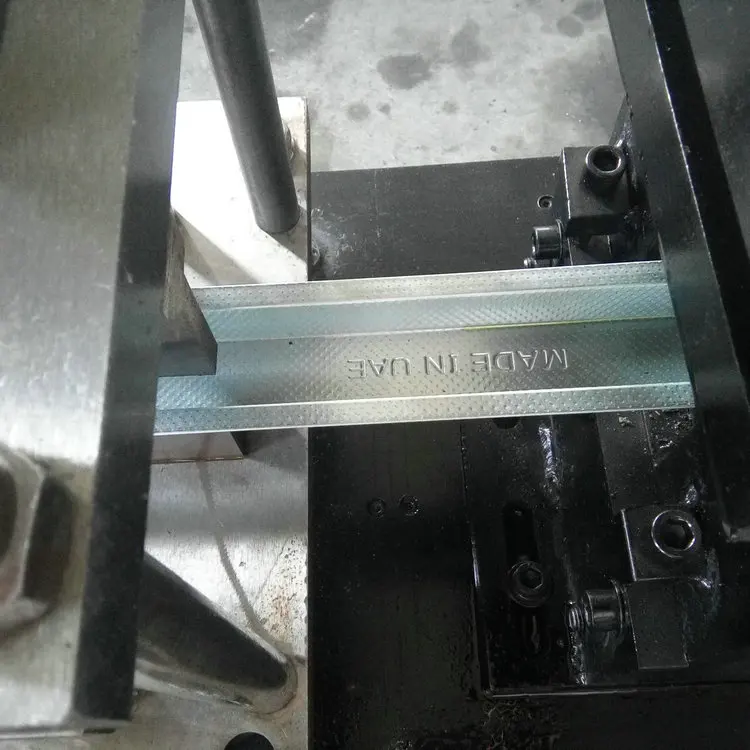

Cutting device
Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
Blade Material | Cutting system |
GCr12MoV quenching treatment58-60° | Full automatic |

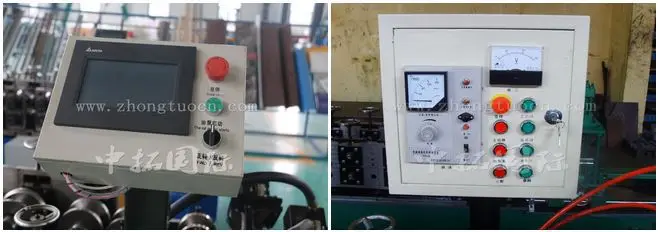

Controlling device
Screen | PLC | Coder |
Text screen displayer |
Taida DVP14ES from Taiwan |
Omron |

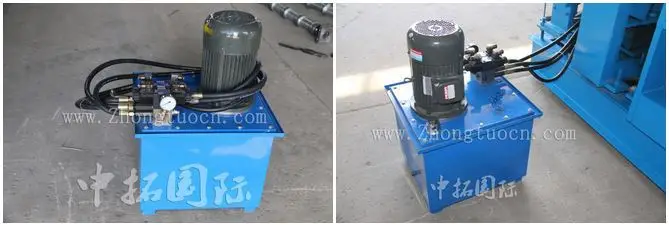

Hydraulic
Orgin | Power |
Advanced hydraulic system from Taiwan | 3kw |
