Light gauge Wall angle steel profile roll forming machine
No. | Name | Unit | Quantity | Remark |

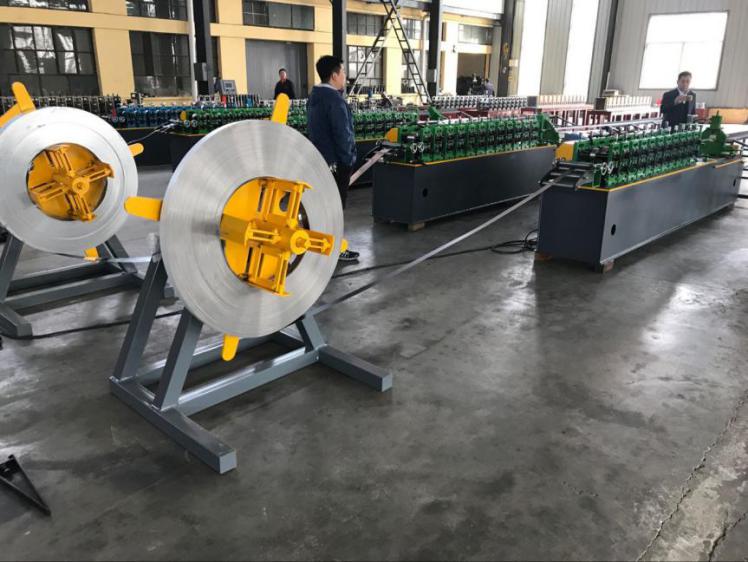

1 | 1.5T decoiler | set | 1 | Manual |

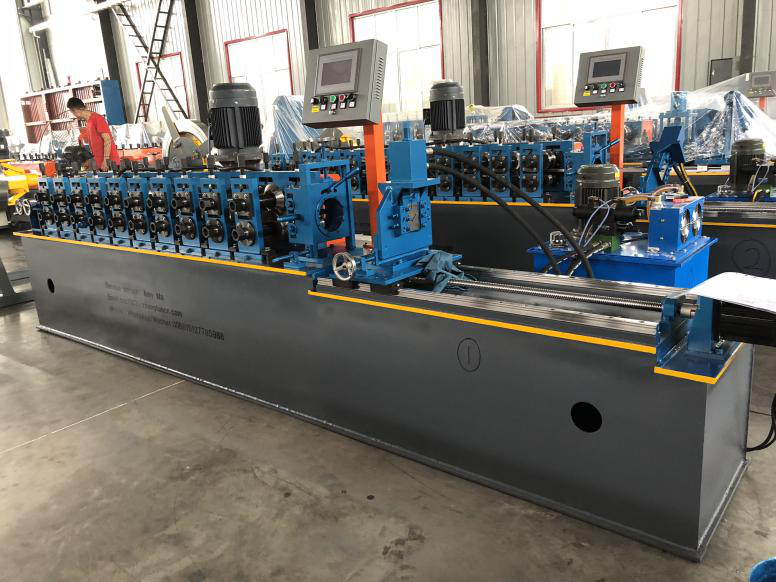

2 | Main roll former | set | 1 | Gear drive |
3 | PLC control station | set | 1 | |

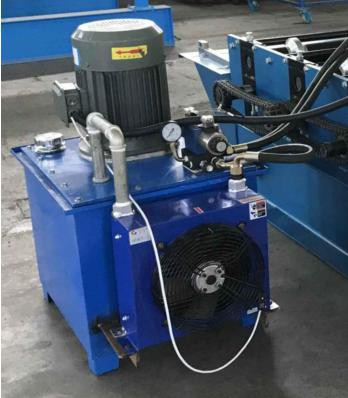

4 | Hydraulic oil pump | set | 1 | |

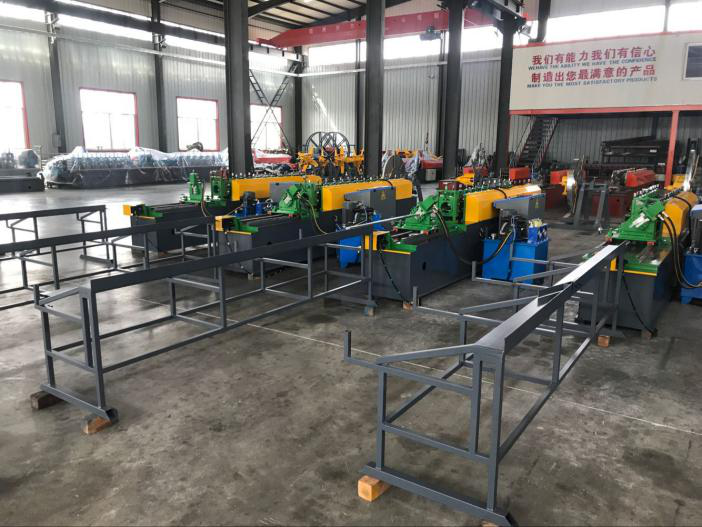

5 | Product output table | set | 1 | Manual/3m length |
Technical parameters
Series | Details | Parameter |
Material | Raw material | PPGI |
Material thickness | 0.2-0.47mm(as customers’ request) | |
Loading capacity | 1.5T | |
Coil inner diameter | 350-450mm | |
Roll forming machine | Shaft material | 45# Steel,tempering treatment |
Shaft diameter | 40mm,solid shaft | |
Roller material | ||
Rolling station | 12 stations | |
Work speed | 0-45m/min | |
Machine body | Steel plate welded | |
Work power | 5.5 kw | |
Transmission | By gear(more precision and faster than chain) | |

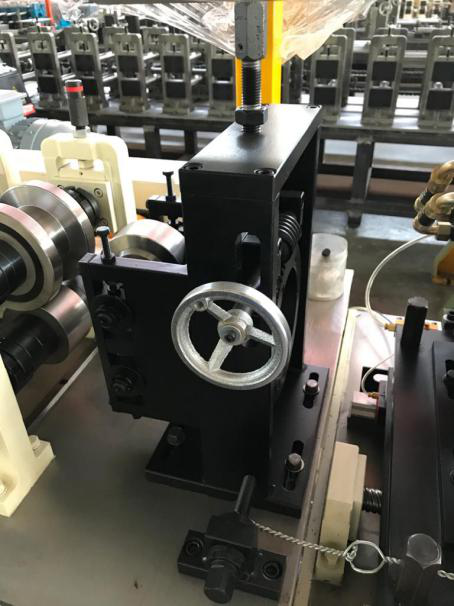

Straighten device | Turkey head | |
Appearance | Good appearance with no burrs in steel body nor traces of rust or defects in painting. Car painting make the machine more glossy | |

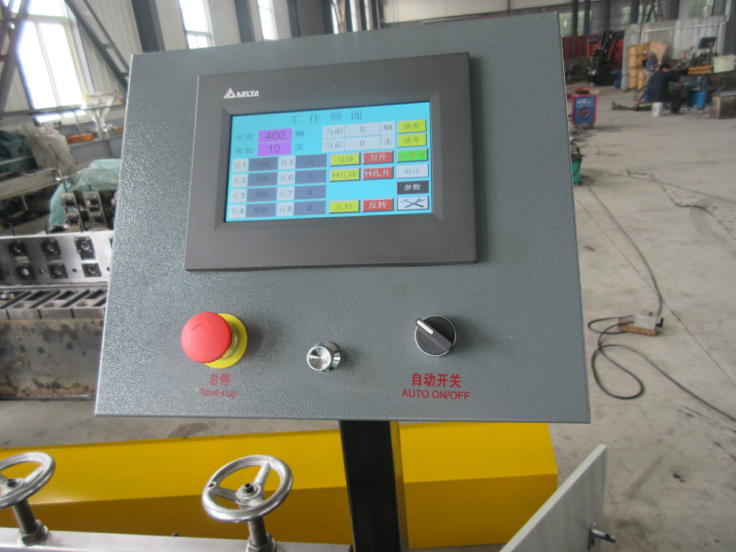

Control system | Frequency brand | Delta from Taiwan |
PLC brand | Delta from Taiwan | |
Screen type | Touch screen | |
Screen language | English/Chinese | |
Cut command | Yes | |
Profile length set-up | Yes | |
Batch quantity program | Yes | |

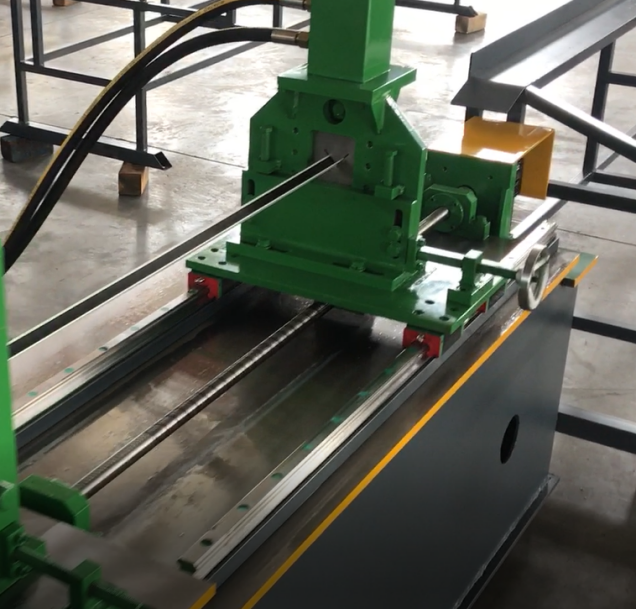

Hydraulic system | Work type | Servo tracking hydraulic cutting system |
Power supply | Hydraulic power | |
Component | It contains one set of blade, one hydraulic tank and one cutter machine. | |
Power | 3 kw | |
Cutter material | GB-Cr12 steel with quenched treatment | |

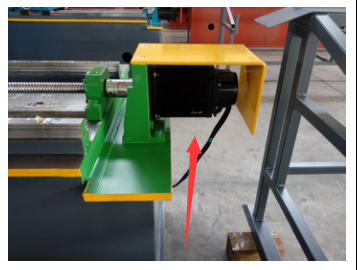

Servo motor | 1.2kw | |
Cutting length tolerance | ±1mm/3m | |
Encoder | Omron | |
Cutting feature | Automatic cutting after forming, no distorting or wasting. | |
