Key benefits
* High flexibility through quick, easy retooling. (the machine can be converted from nominal size 333 to 250 in approx. 5 min).
* During production of 2 m gutters, 2 strips can be manufactured at the same time.
* Roll sets can also be added later at minimal cost to further extend your range of products.
* Large production volumes and extremely short retooling times.
* Negligible to no stock keeping of finished gutters.
* Minimal labor costs through simple one-man operation.
* Remote maintenance for quick and easy troubleshooting.

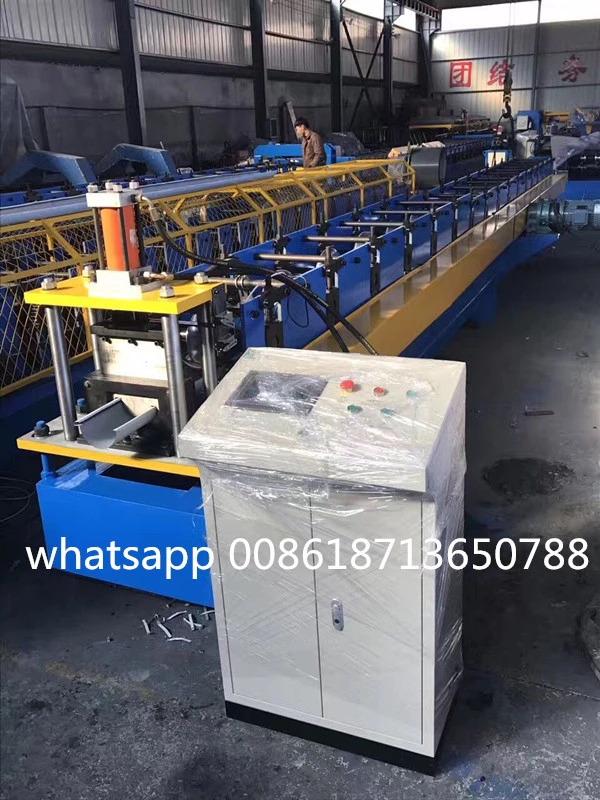

* Modern recipe management by use of a touchscreen display.
* Equipped with all safety devices incl. safety guards, light curtains, etc.
Key data at a glance
* Sheet width: 200-500 mm (-750)
* Sheet thickness: 0,4 – 0,9 mm
* Gutter length: 2 – 6 m
* Output: up to 1800m/h (for 6 m round gutter)
* Wattage:approx. 16 kW
* LxWxH: 13.2m x 3m x 2.4m
* Weight approx. 12 tons (without decoiler)

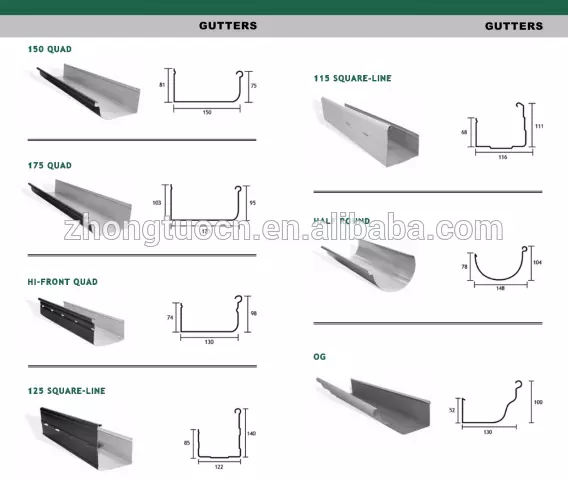

Possible guter types: K-Style, Berlin gutter, half round gutter, rectangular gutter, roof gutter, edge gutter, French drain,
Dutch gutter
These materials can be processed: Aluminium, steel, titanium zinc, zinc, pre-weathered titanium zinc, Uginox, Ugitop, copper, coated steel
Generally, we are especially manufacturing machines according to different technical requirements.
If any points is not ok for you, please contact us, we can do some change for you whatsapp 0086-18713650788
