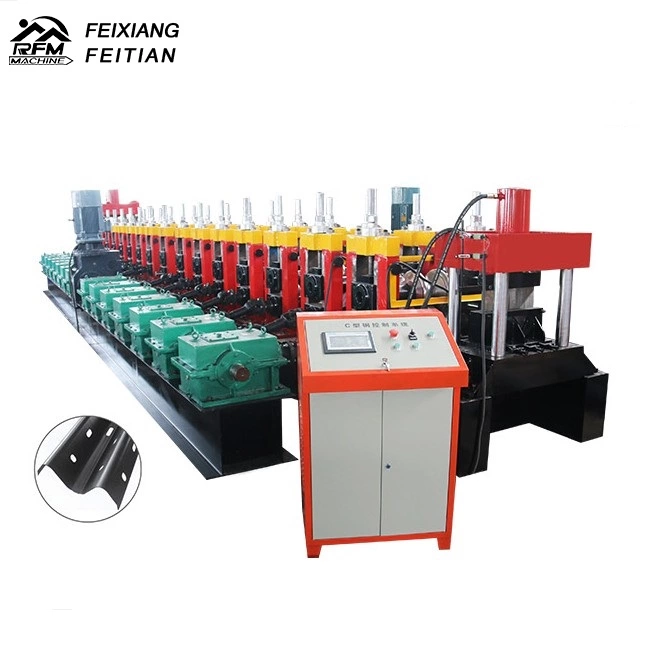

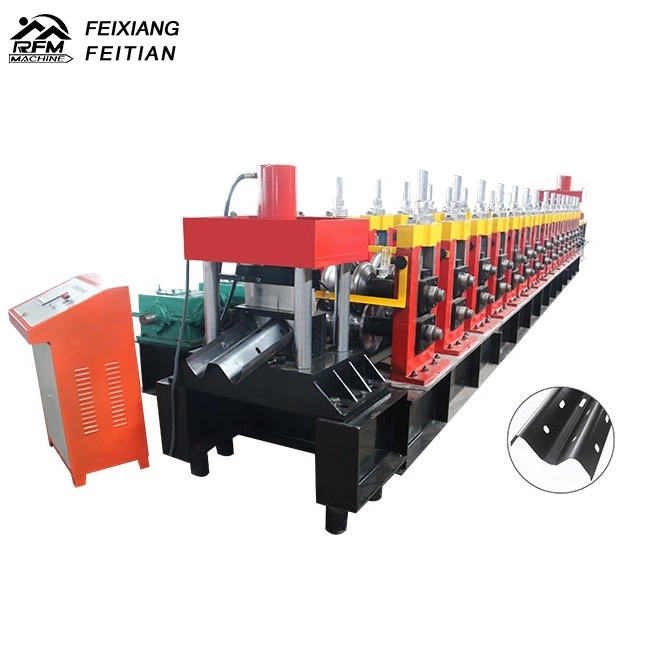

Two or three waves highway guardrail roll forming machine

ID:20081317199

Manufacturing & Processing Machinery Engineering & Construction Machinery

FOB Price:US$ 40000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

roll forming machinehighway guardrail machine highway forming machine Two or three waves machine guardrail forming machine guardrail machine

Payment Method:

L/CT/TD/POthers

Product Category

Manufacturing & Processing Machinery > Engineering & Construction Machinery

Trademark

Feixiang

Product Package

Nude

Specification

Door frame roll forming machine

Place of Origin

Heibei China

Port

Tianjin

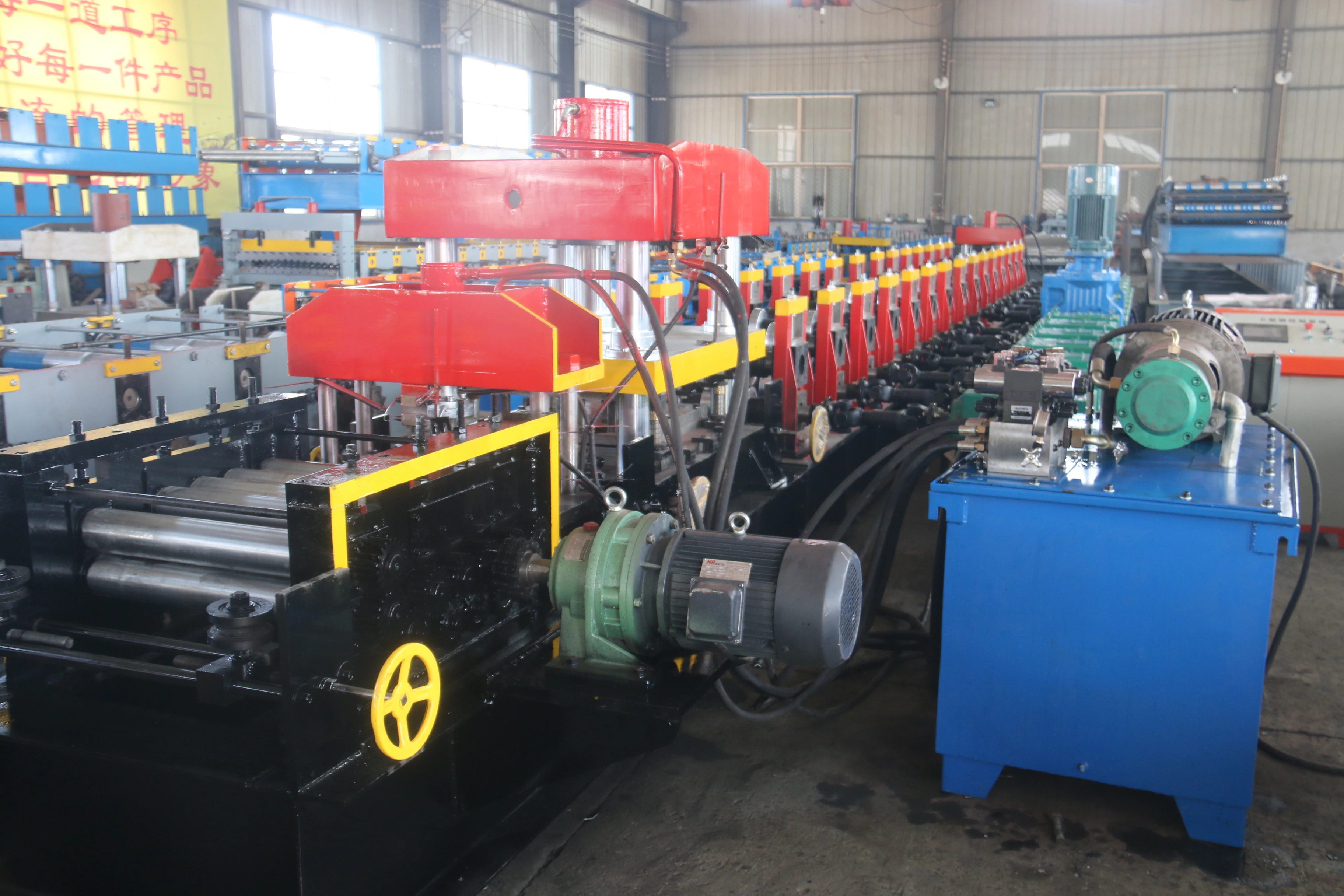

Two or three waves highway guardrail roll forming machine

Product Description

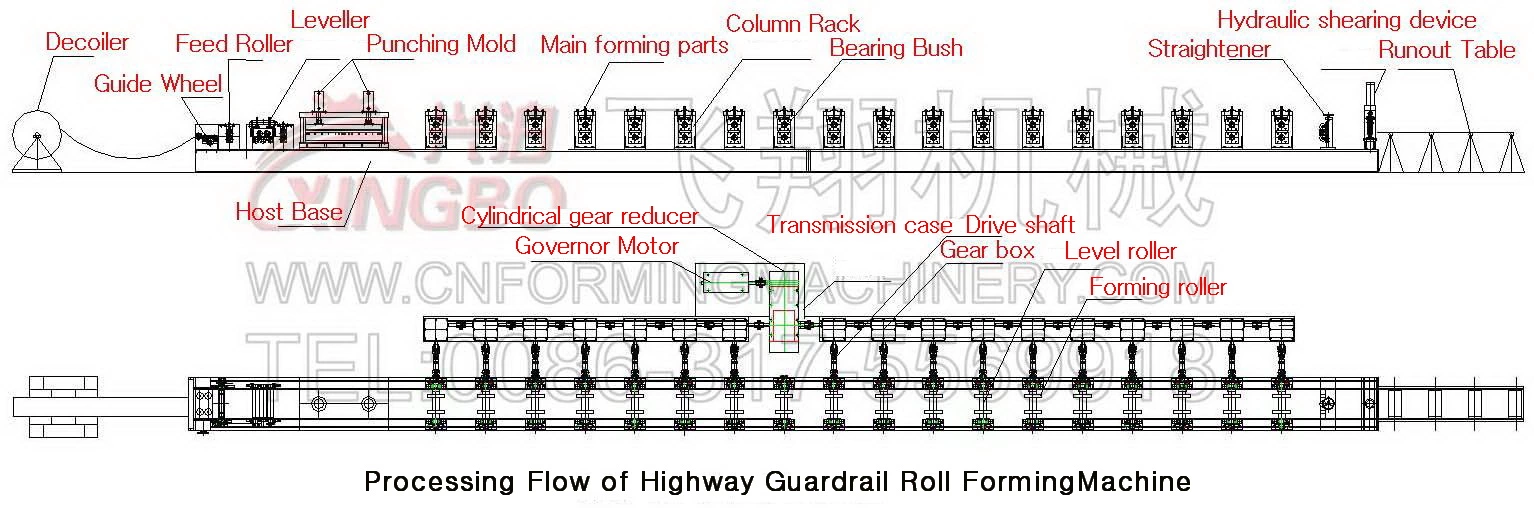

Two or three waves highway guardrail roll forming machine include manual decoiler,leveling parts,main forming machine,plc control system and cutting device,drive motor power is 22kw,pump power is 18.5kw,suitable material thickness range 3-5mm, max working speed could be 10m per minute.

Decoiler	Loading capacity 5 or 10T
Leveling and punching	Up 5 down 6 leveling shafts,diameter 80mm. punching mold material Cr12.
Main machine	15 steps forming rollers,roller material Cr15 with quenching.
Control box	Delta plc,frequency and Siemens for your choice.
Hydraulic pump	for both punching and cutting.
Run out table	Height adjustable

Direction for use

Two or three waves highway guardrail roll forming machine:

1.Put all necessary parts on the right location,make the ground falttening.

2.Connect electric wires,use 6-8 mm2 support line and keep grounding.

3.Fill hydraulic oil in the pump.not too full,three quarters are ok.

4.Feed raw materil into the machine slowly,make it run smoothly then automatic. 5.Pay attention to final sheet collection,do not scretch it or hurts people.

Description of application effect

1.The whole line working speed is about 6m/min.

2.Feeding material width should be confirmed before machine design .

3.Material thickness normal range are 2.5-5mm.

4.Both two and three waves are suitable for the line.

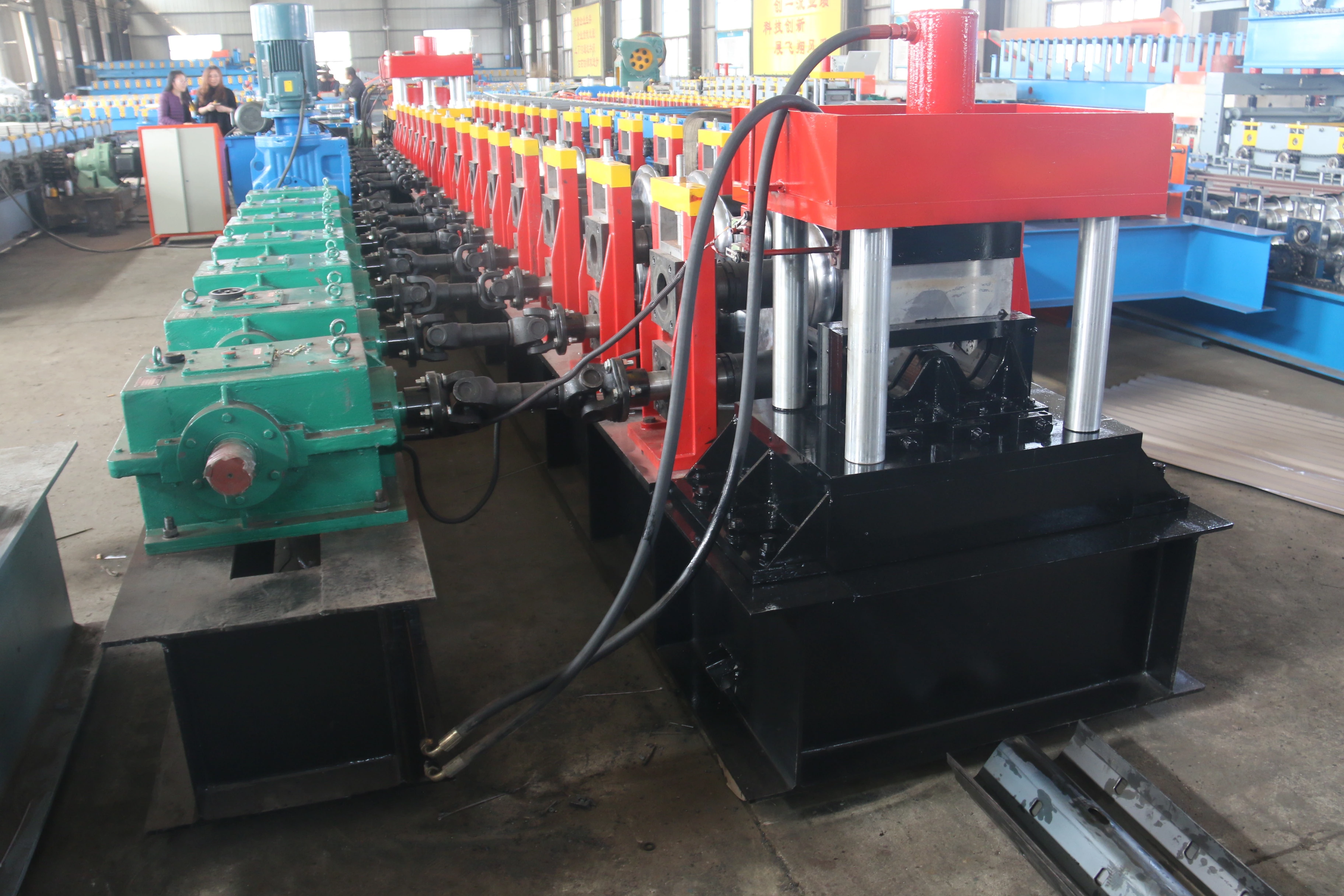

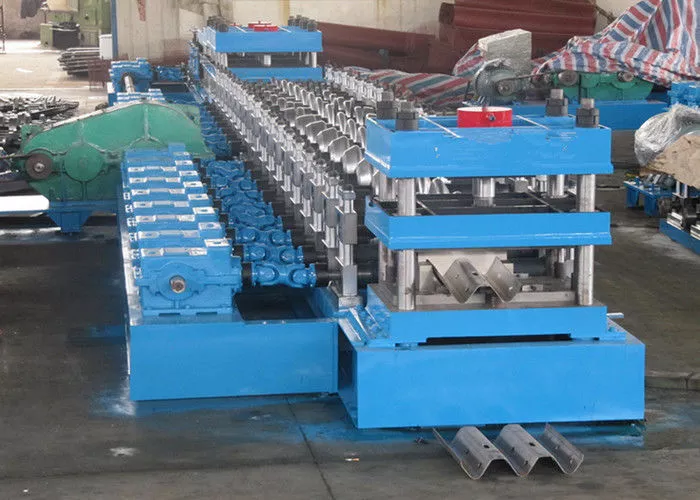

Detailed Images

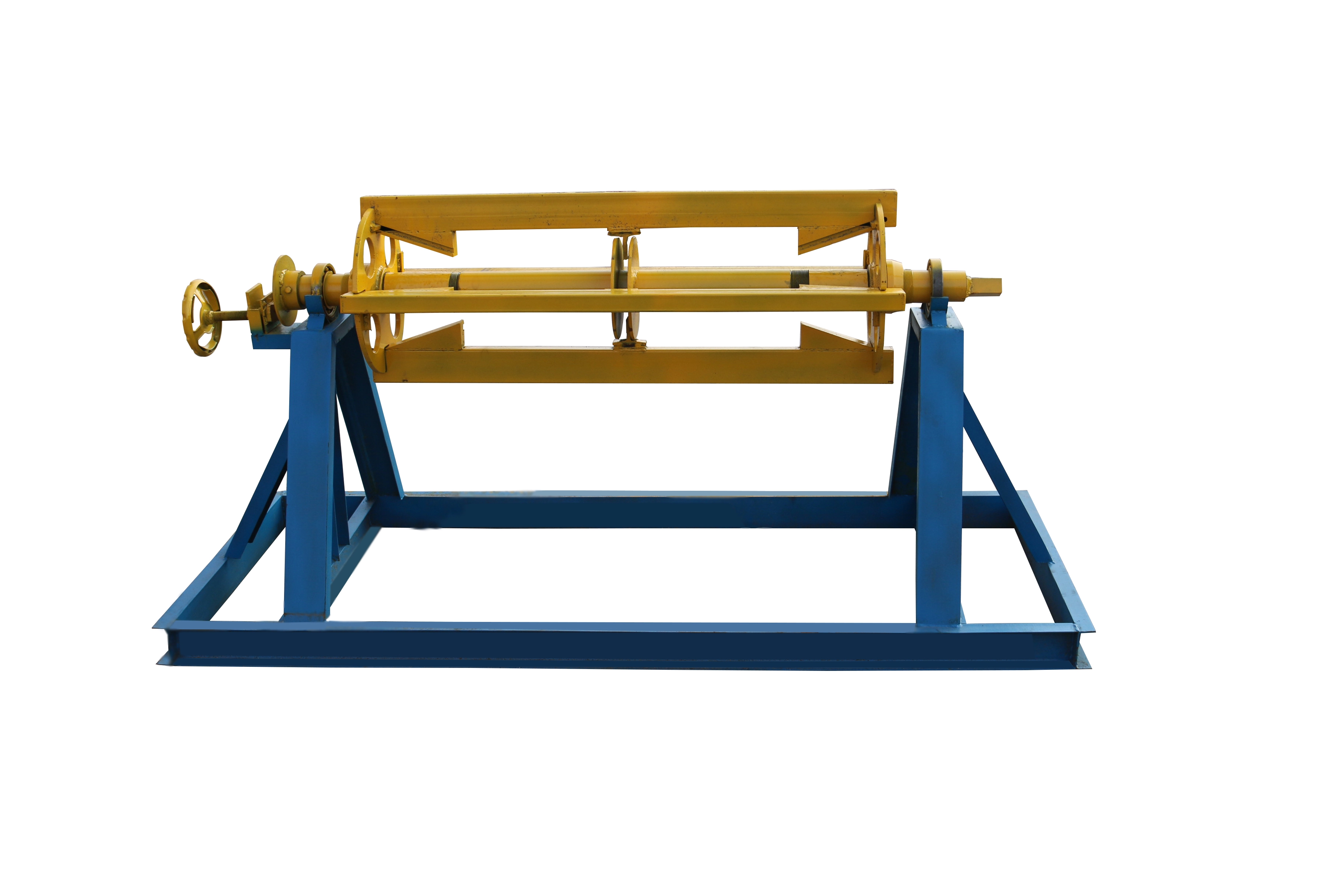

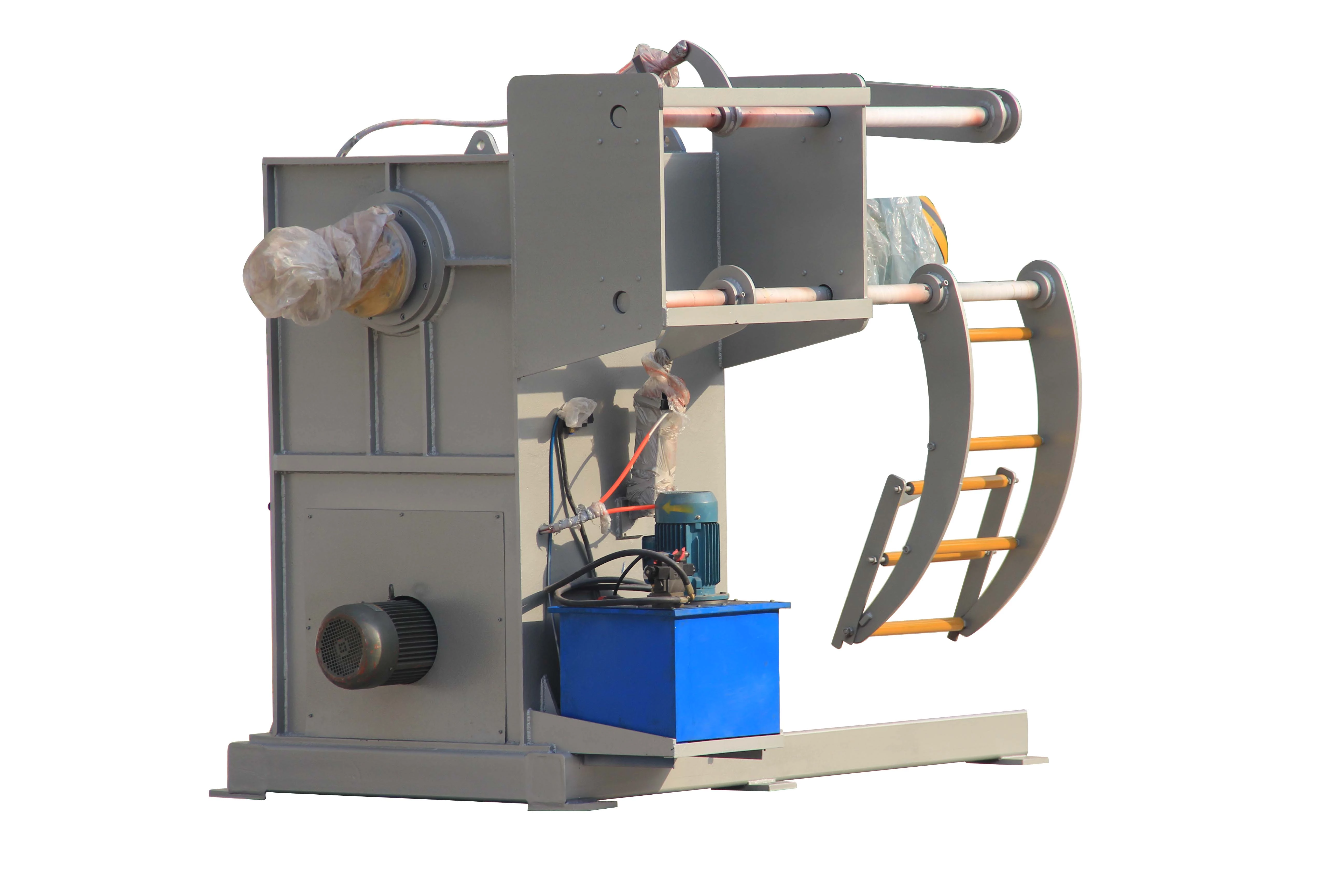

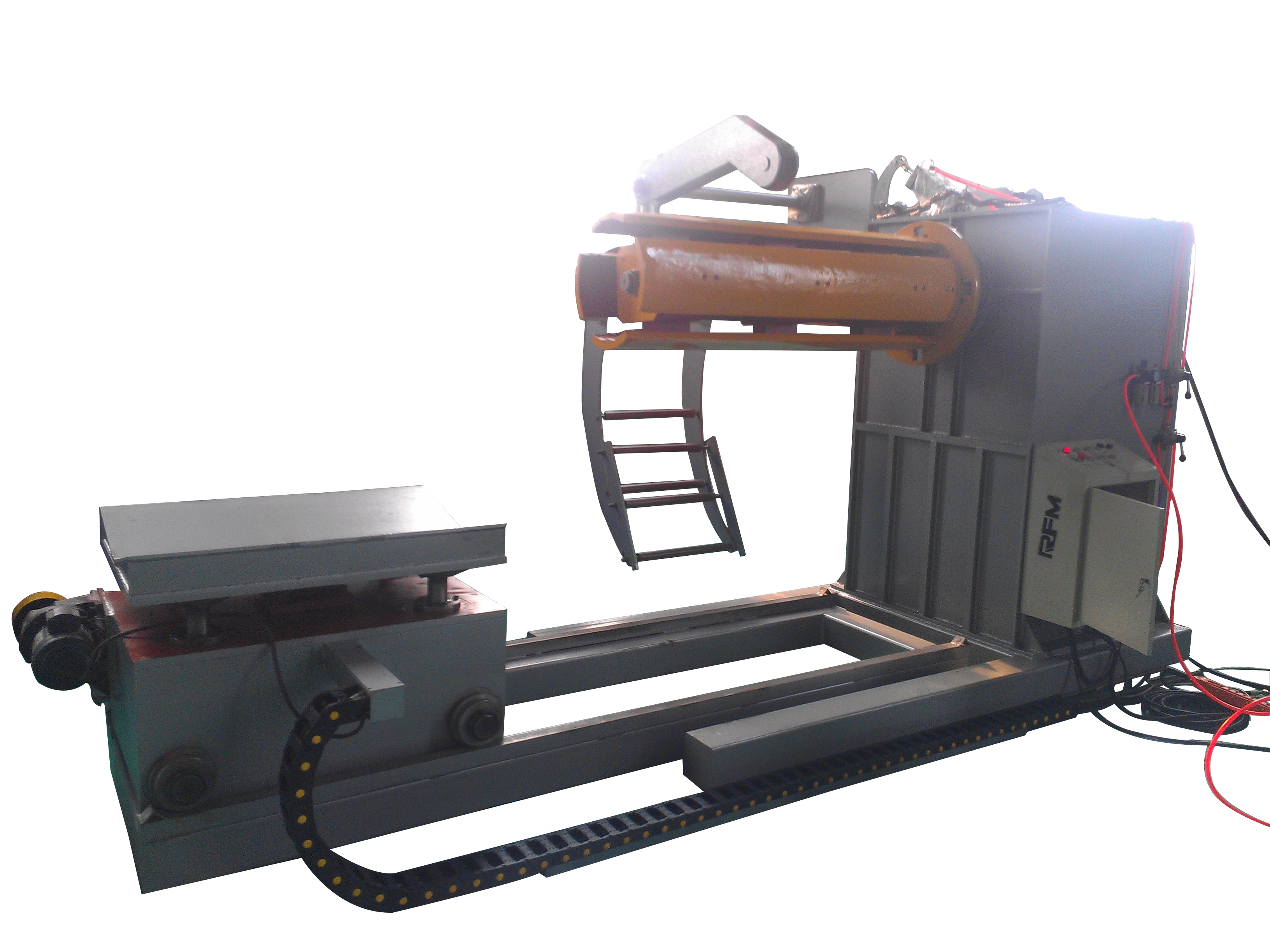

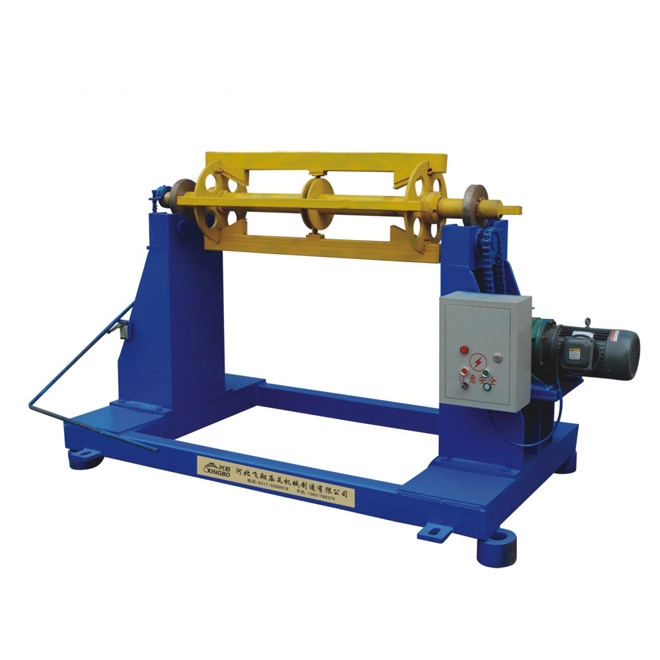

Accessary decoiler for highway guardrail roll forming machine,we call provide manual type,electric powered type and hydraulic drive type with loading capacity 5T ,10T and even more one.

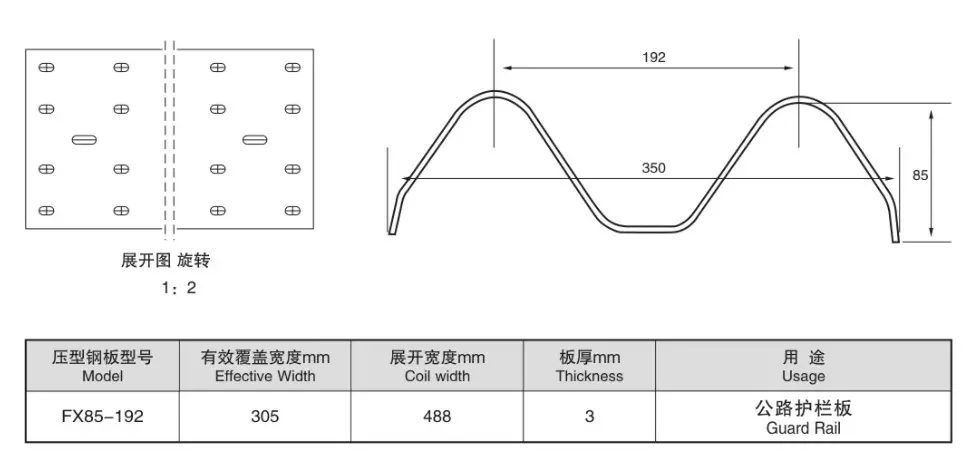

Size Information

Size Chart of This Design

Item	Decoiler	Machine	Control box	Pump	Run out table
Width	1.2m	1.8m	0.5m	1.2m	1m
Length	1.6m	12m	1.1m	1.4m	3m

Packing&Shipping

Normal standard is nude,easy damage parts are covered with plastic film or wooden frame.we can also pack the machine based on customer's special requests. We fix the bottom of the container with triangular wood,the machine is fixed with steel wire to the container.

After Sales Service

All-round after-sales service

1.We can design operate language based on customer's mother tongue. 2.We provide 24 hours online service to solve any questions . 3.Our three experienced engineer are prepared for your local installation . 4.We provide for free sapre parts for you. 5.We can slod buy suitable testing material for customer's easy operation. 6.Customer can send their workers here study to to use and operate the machine.

Our Strength:

1.Four technicans on the roll forming machine filed over 22 years.

2.60 expericend workers for machine assemble and make them qualified.

3.Three engineer who know English for foreign installment and debugging.

4.20 professional sales person for longlife customer's service.

5.More than 30 sets of grinders, milling machines and various high-precision CNC machines for raw material treatment and good machine design.

6.Highly-experienced assembly operators which underline our strong production capability helps for high-class machine together.
