Roof sheet machinewall sheet machineRoll forming machine
L/CT/TD/P
1.Title:Roof and wall sheet roll forming machine
2. Properties of processed material：
Material： galvanized steel or Aluminum
Material thickness：0.3 -0.8mm
Yield strength:235-450mpa

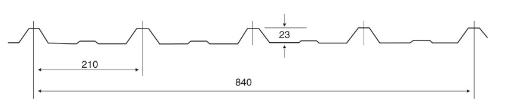

3. Profile drawing
4.Machine details
Brand: Feixiang
Model number: FX-840
Machine size: 5500*1350*1250mm
Weight: 3.5T
Voltage requirement: 380v50hz3p or request
Working speed：0-12 m/min
Electric support wires: 8m2
Labor request:2-3 workers
5. Whole line components
No. | Item | Qty |
1. | Deciler | 1set |
2. | Main forming machine | 1set |
3. | Control panel | 1pcs |
4. | Hydraulic pump | 1pcs |
5. | Manual holder | 1pcs |
6.Technical parameters
Machine base: steel plate welded
Frame: memorial arch frame
Forming stations: 12steps
Roller: 45#steel with quenching
Shaft: 45#steel,diameter 70mm

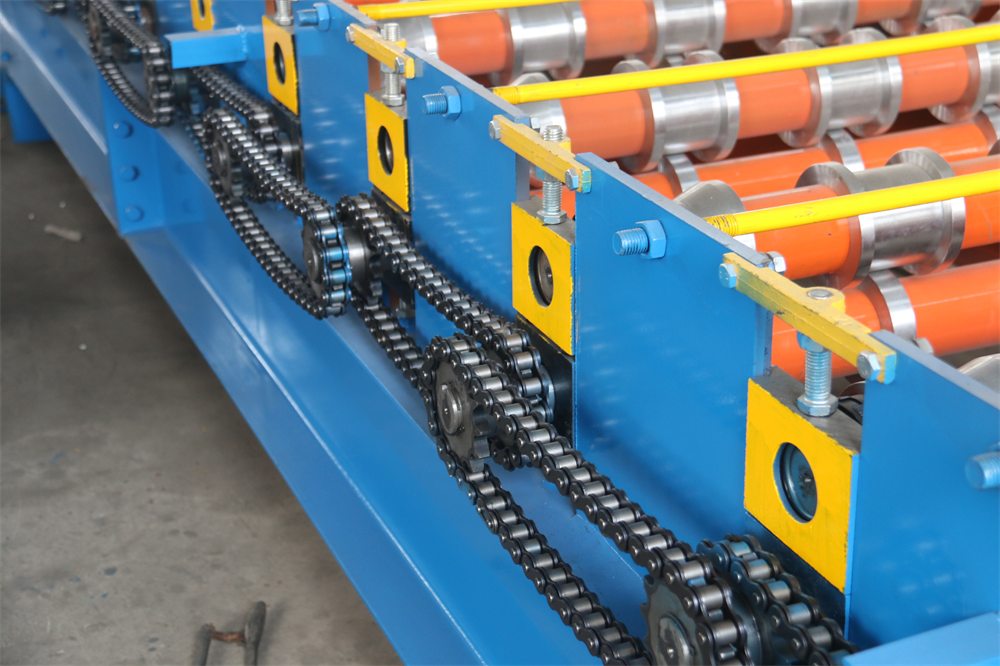

Transportation: chain
Motor:Siemens,5.5 kw
Pump: Yuken 4kw
Cutter: Cr12
7.Machine quick view

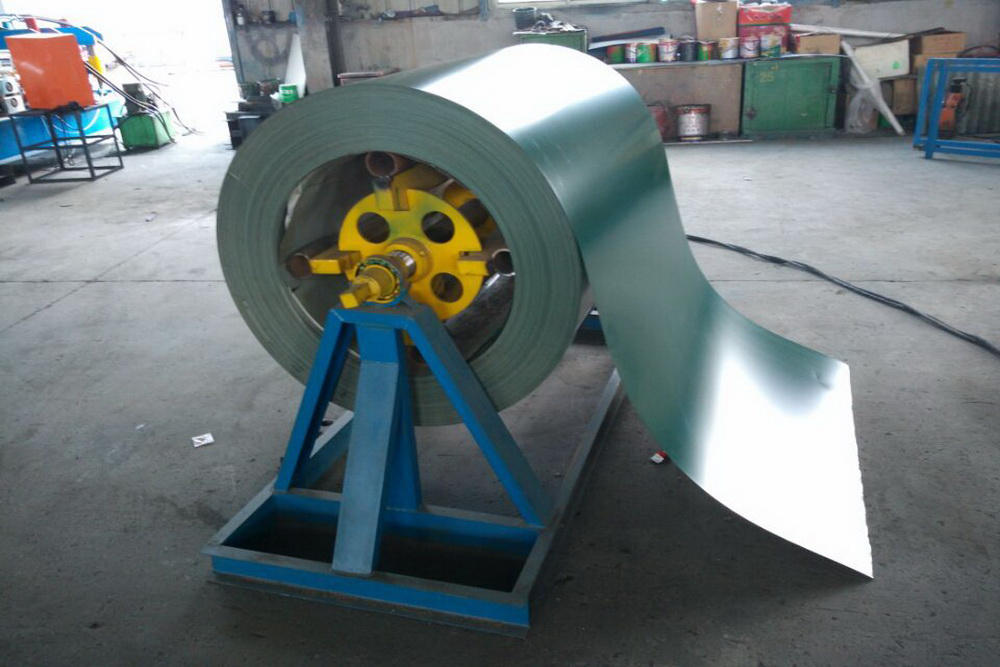

Decoiler：

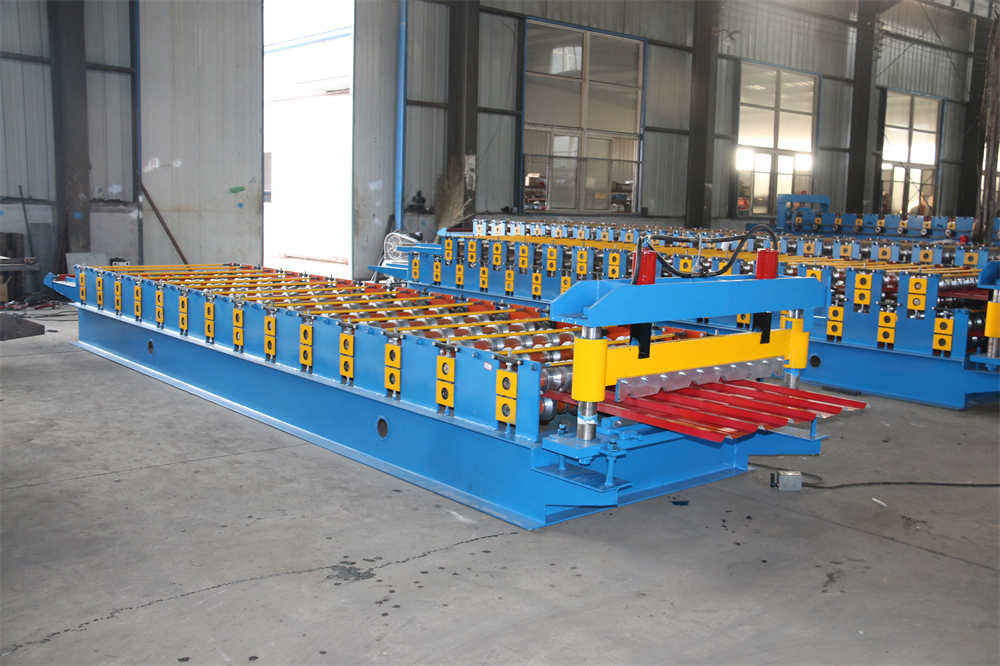

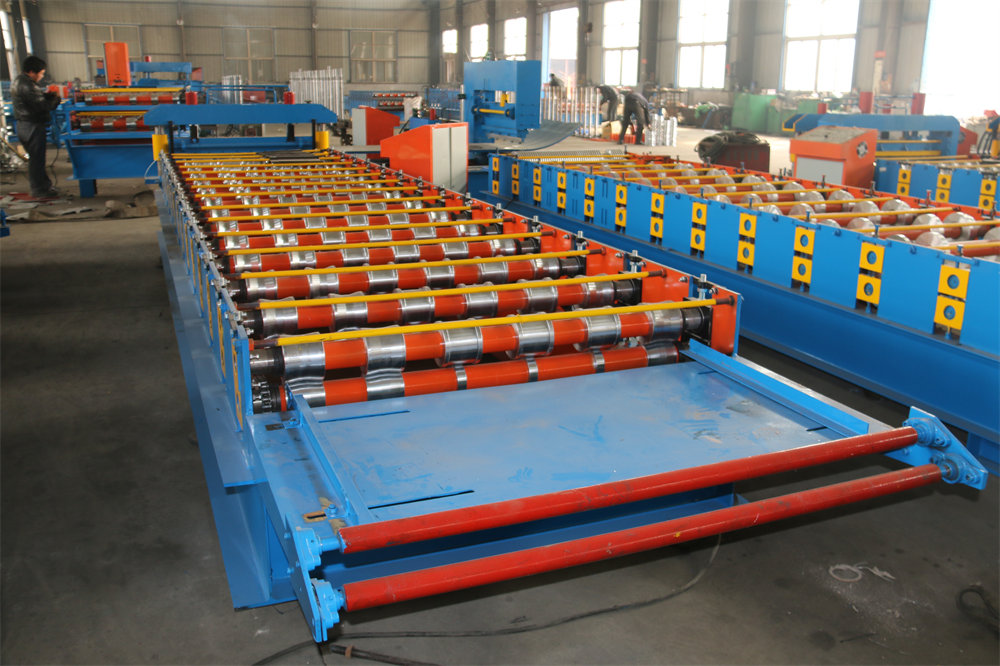

Main forming machine：

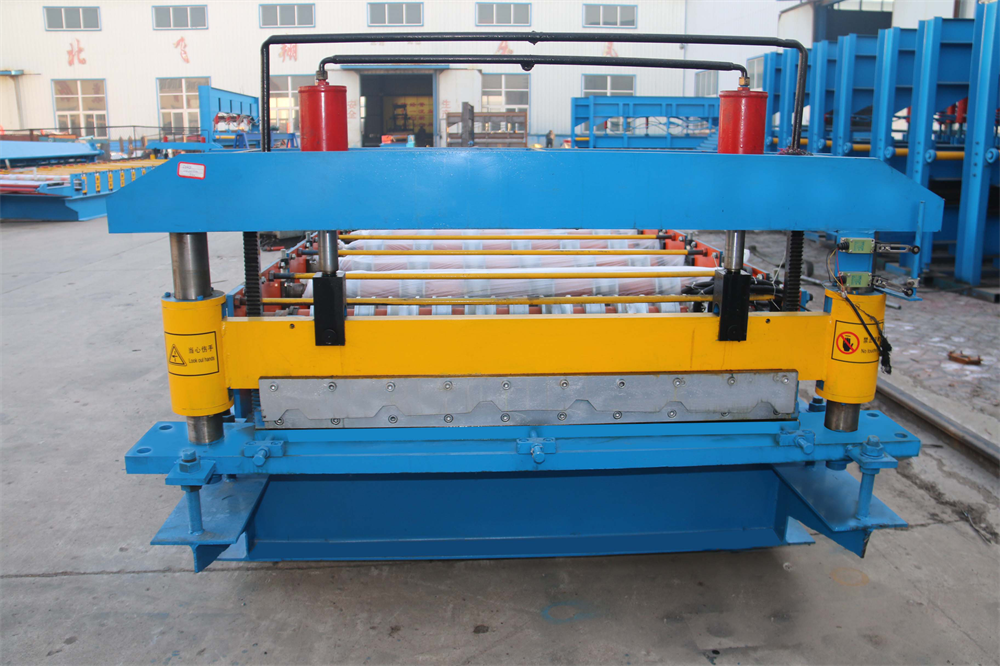

Front View，
Left side，
Right side，
Roller，

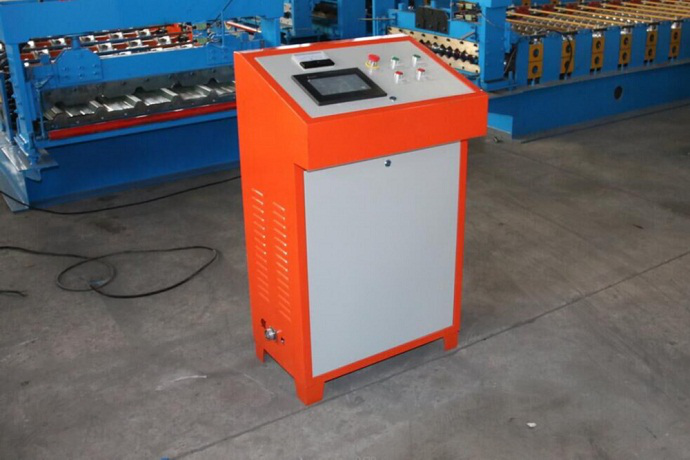

Control panel：

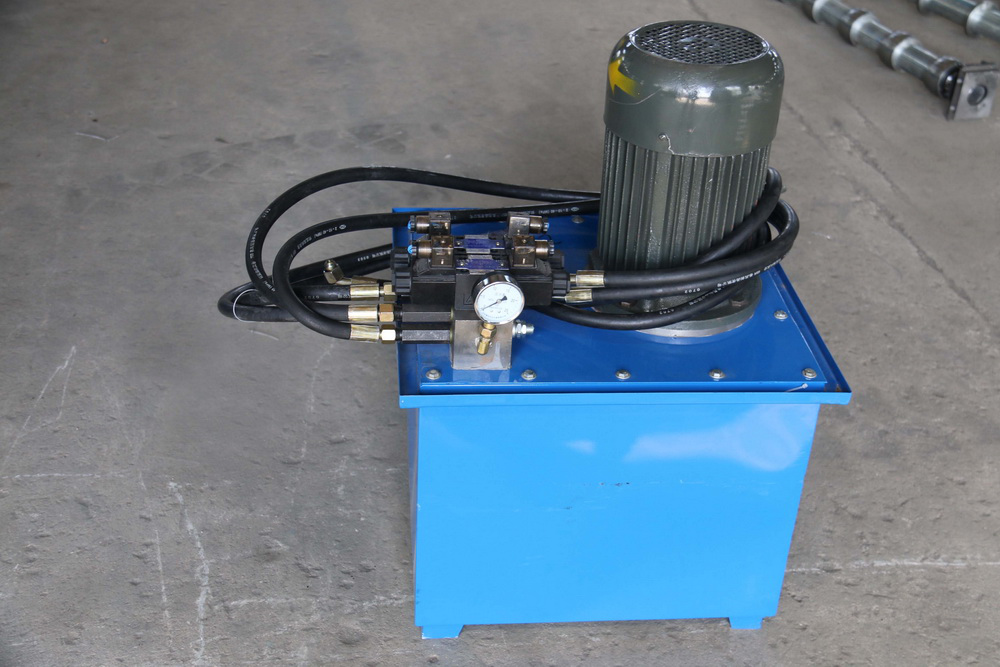

Hydraulic pump：

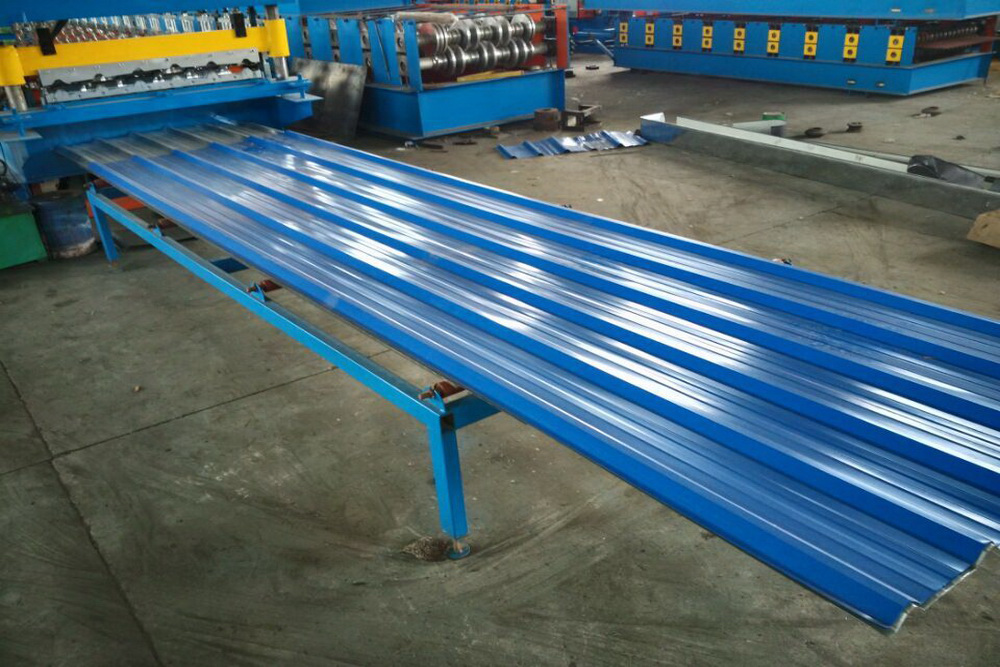

Manual holder：
More machine videos on Youtube:

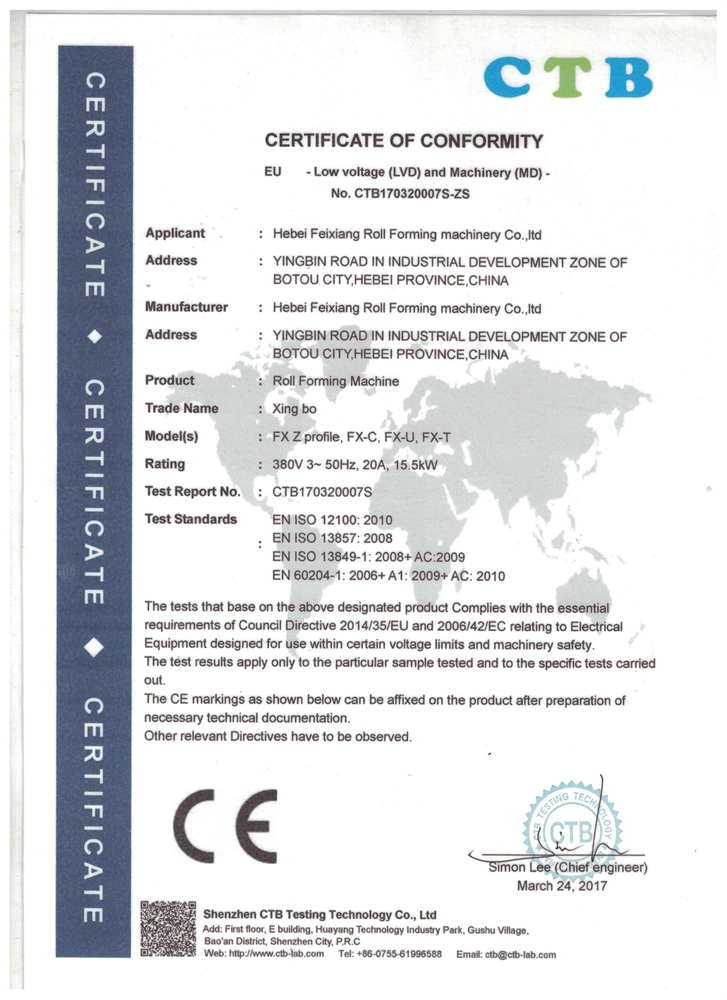

8. CE and Letters patent
9.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Machine adjusting on video call during Edidemic
10.Client evaluation：
