Corrugated tileSide corrugated sheet machineRoll forming machine
L/CT/TD/P
1.Title:Side corrugated sheet roll forming machine
2. Properties of processed material：
Material： galvanized steel or Aluminum or G550
Material thickness：0.12 -0.28mm
Yield strength:235-450mpa

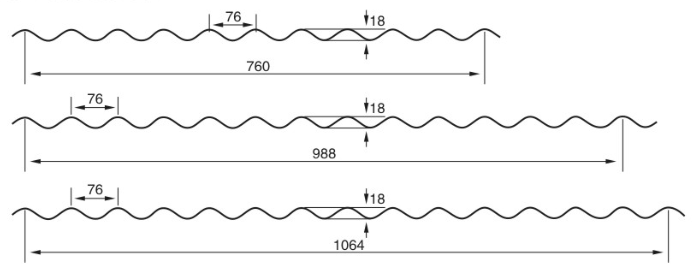

3. Profile drawing
4.Machine details
Brand: Feixiang
Model number: FX-988
Machine size: 6500*1350*1250mm
Weight: 5.5T
Voltage requirement: 380v50hz3p or as your request
Working speed：5-10 piece/min
Electric support wires: 8m2
Labor request:2-3 workers
5. Whole line components
No. | Item | Qty |
1. | Decoiler | 1set |
2. | Flatting and cutting machine | 1set |
3. | Main forming machine | 1set |
6.Technical parameters
Machine base: steel plate welded
Roller: Cr15
Shaft: 45#steel,diameter 100mm
Shaft number:4 Shaft

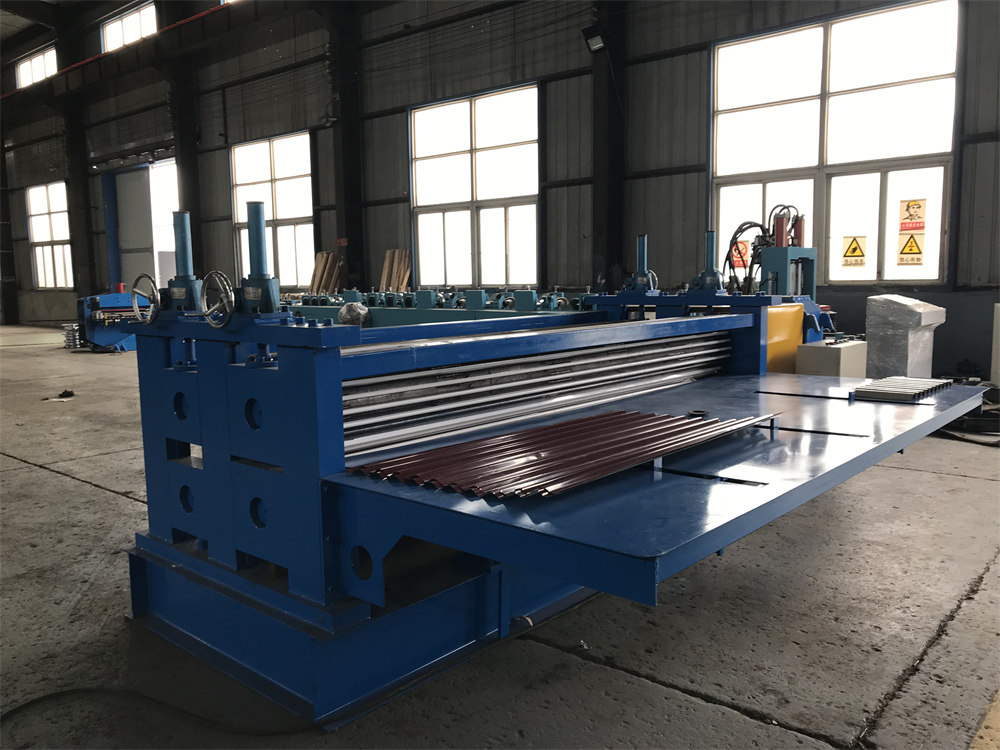

7.Machine quick view

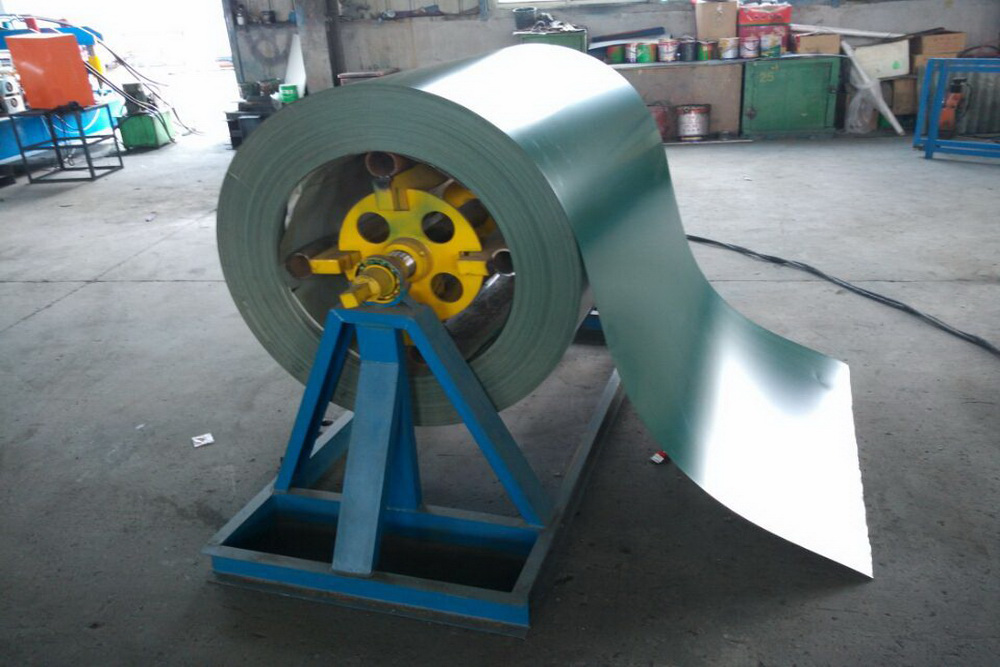

Decoiler：

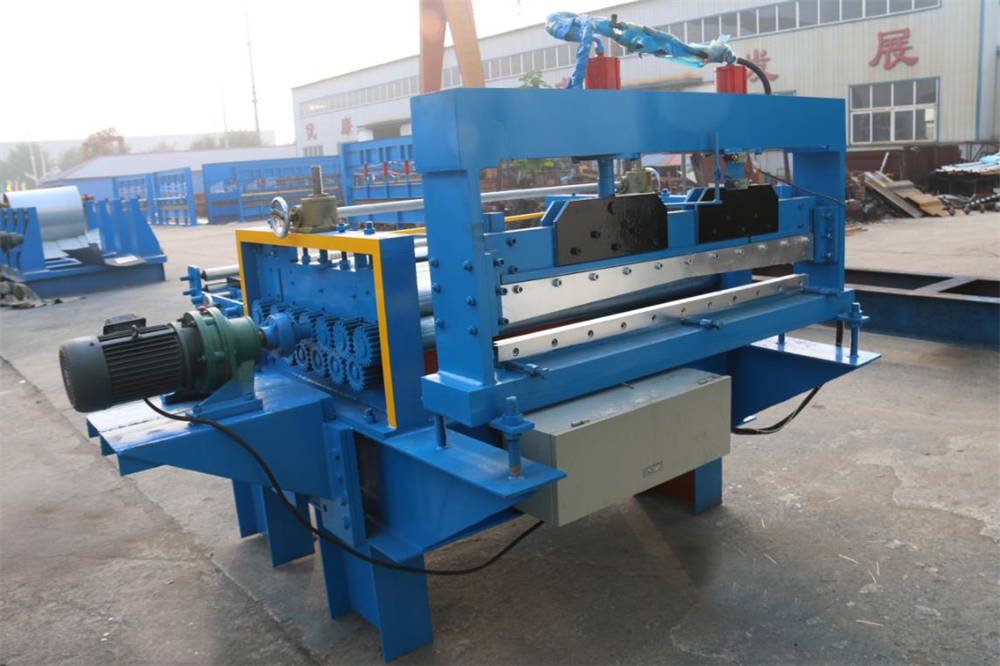

Flatting and Cutting machine:
Main forming machine：

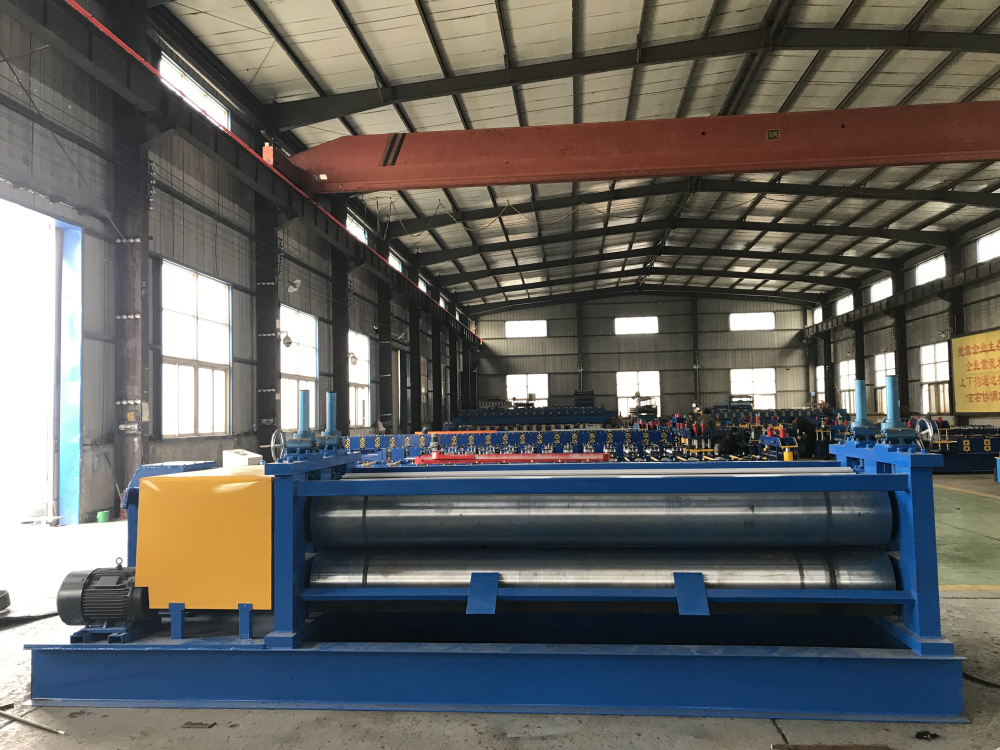

Front View，

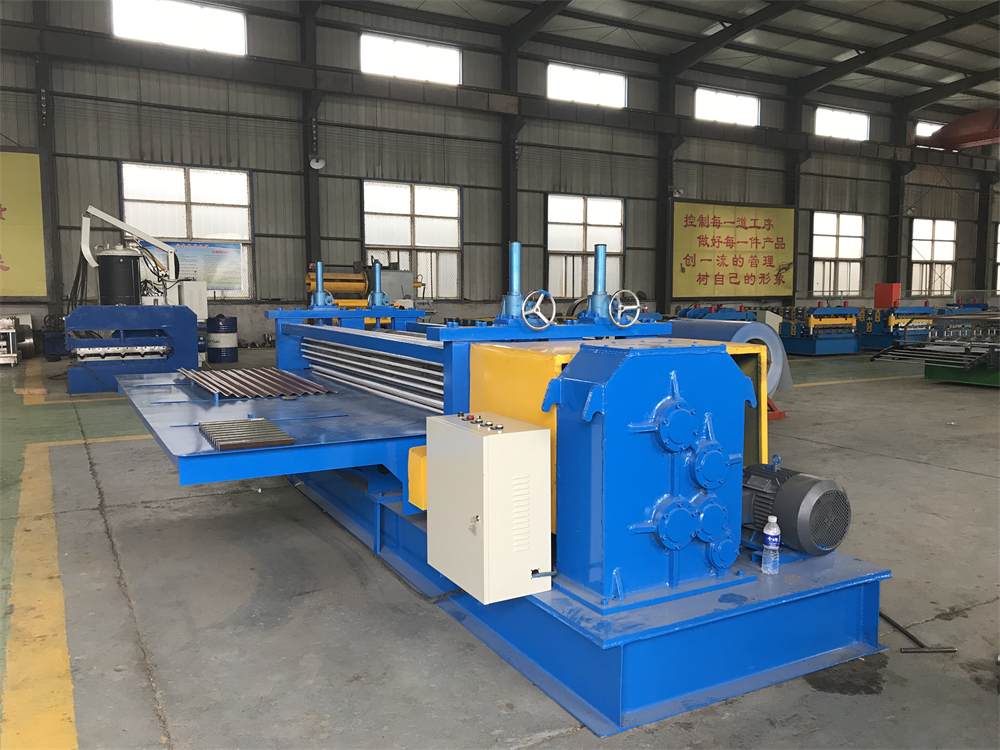

Left side，

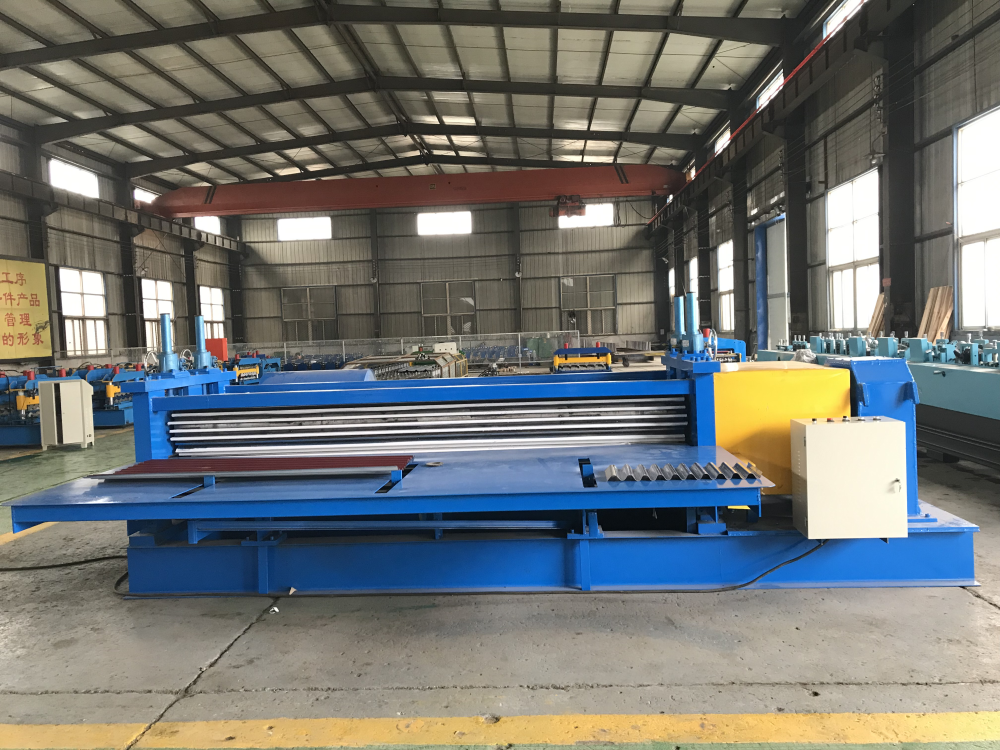

Right side，
Roller，
Company website link:http://www.rollformingmachine.top
8. CE and Letters patent
9.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Machine adjusting on video call during Edidemic

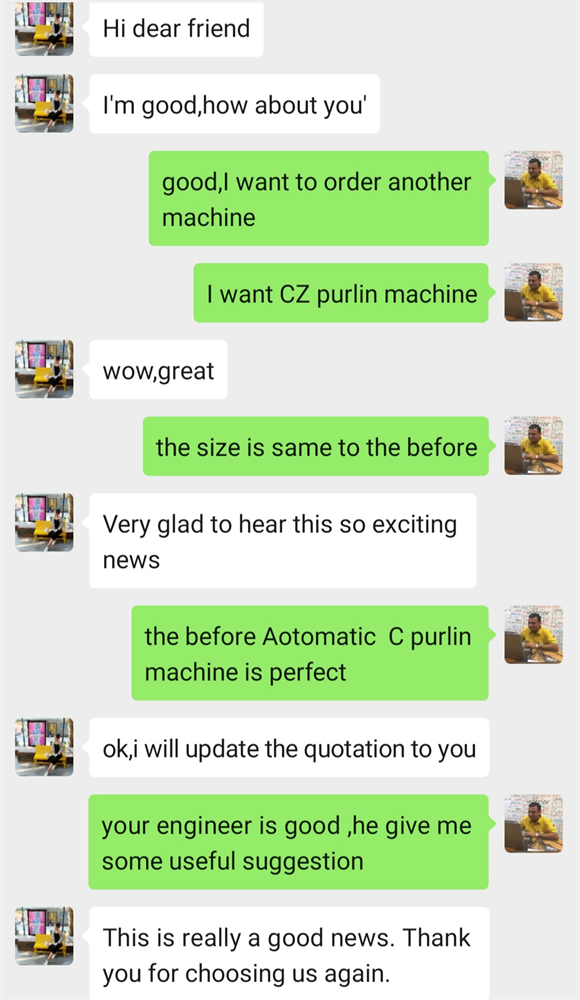

10.Client evaluation：
