Business Type: Manufacturer
Main Products:roll forming machinesingle layer tile machinekeel machineSandwich Panel MachineHighway Guardrail MachineShutter Door MachineGrape Trellis MachineHanging Board MachineFloor decking sheet machine
ID:20081317228
Category: Manufacturing & Processing Machinery Industrial Processing Machinery
MOQ:1.00 Set(s)
Glazed tiles machineroofing sheets making machinealuminium corrugatedaluminium corrugated machine
L/CT/TD/POthers
No. | Item | Specification |
1 | Can Formed Material | PPGI,GI,AI |
2 | Equipment operation | Automatic |
3 | Voltage | 380V 50Hz 3Phase or as your requirement |
4 | Thickness of sheet (mm) | 0.3-0.7mm |
5 | Material width(mm) | As your requirement |
6 | Cover Width of the sheet after formed | as your drawing |
7 | The size of the roll forming machine | 7500mmx1500mmx1300mm |
8 | Speed | 8-15m/min |
9 | Diameter of shaft | 70mm |
10 | Weight of the Machine | 4200-4600KGS |
11 | Material of rollers | C45 steel quenched and chromed |
12 | Motor brand | Siemens or Guomao |
13 | PLC | Siemens or Delta or Mitsubushi |
14 | Total power (kw) | 9.5kw |
15 | Power of hydraulic system | 4kw |
16 | Power of main molding core | 4kw |

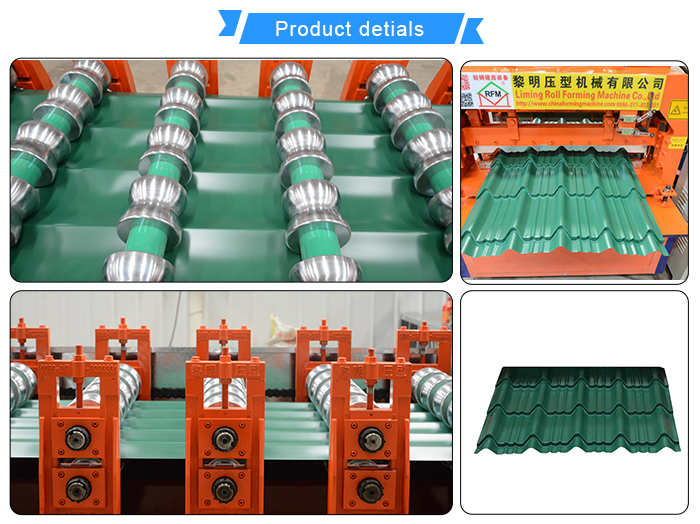

COMPONENT FOR glazed tile former machine | |||
Name | Quantity | Units | |
Decoiler | 1 | Set | |
Main Machine | Feeding device | 1 | Set |
Roll forming system | 1 | Set | |
Cut Equipment | 1 | Set | |
Hydraulic system | 1 | Set | |
Electric control system | 1 | Set | |
Supporter/Automatic Stacker | 1 | Set | |

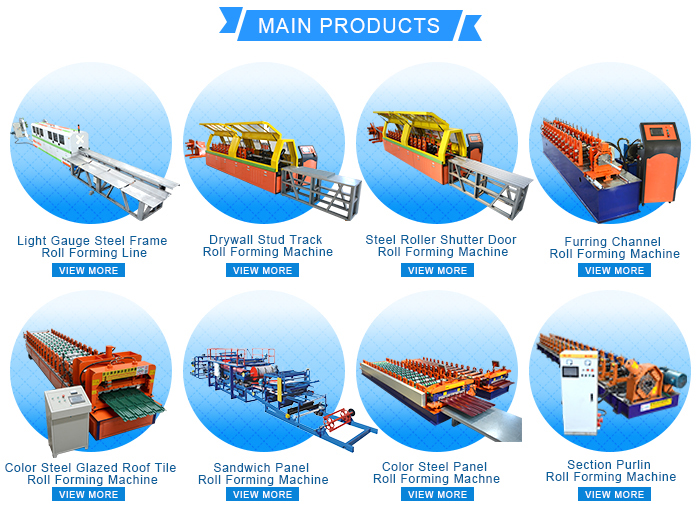

Our main products include(click for more information):
| Send Inquiry Now |
For more information,welcome to visit our website: www.chinaformingmachine.com

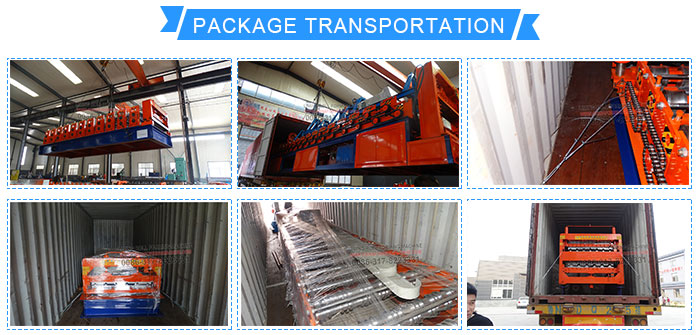

Package and Warranty:
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
