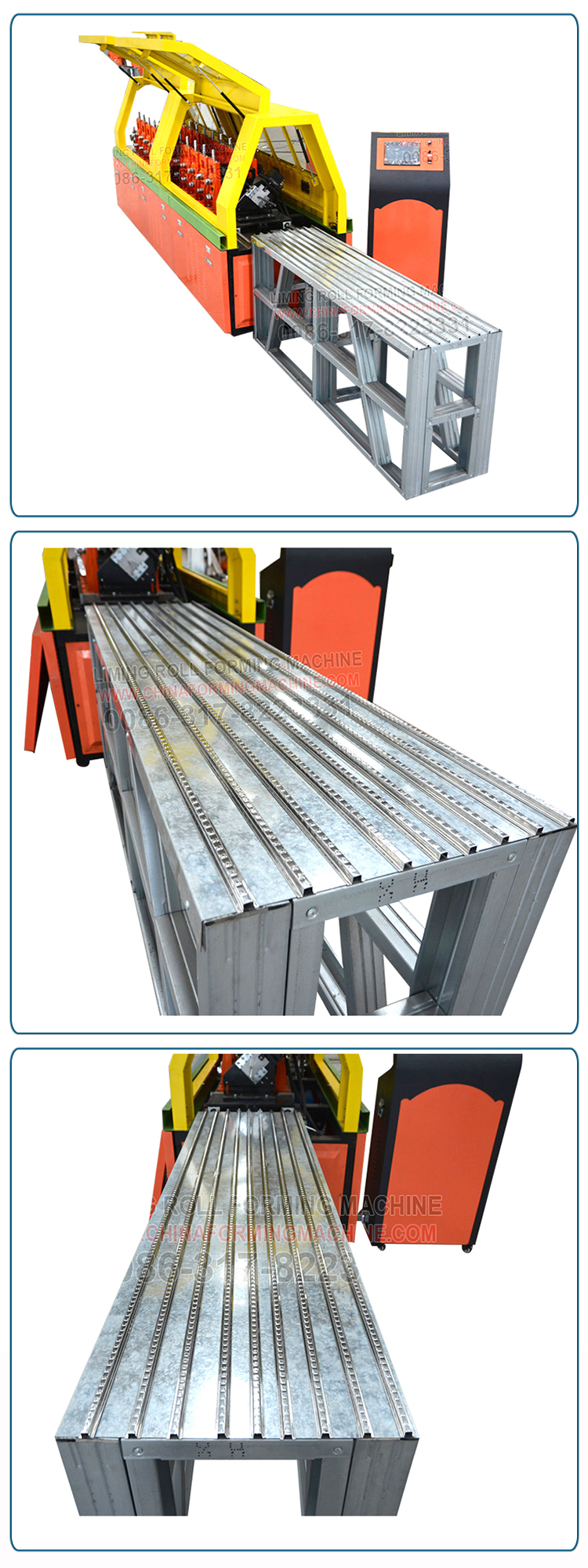

Light Gauge Steel Keel Frame Profile Roll Forming Machine
No. | Item | Description |
1 | Product’ sizes | According to customer’s request |
2 | Processing material | GI |
3 | Processing thickness | 0.4-0.7mm |
4 | Main motor power | 4kw |
5 | Power of hydraulic station | 3kw |
6 | Quantity of roller stations | 12 |
7 | Production speed | Approximate 15-25 m/min |
8 | Diameter of shafts | Φ40mm |
9 | Material of rollers | Cr12 steel with vacuum heat treatment HRC57°-60° |
10 | Material of shafts | 45# steel quenched and tempered |
11 | Material of cutting blades | Cr12 mould steel with quenched treatment |
12 | Size of machine | Approximate 4000mm(L)×900mm(W)×1300mm(H) |
13 | Theoretical weight | Approximate 2000KGS |
14 | Driven method | Chain transmission |
15 | Brand of PLC | Delta |
16 | Cut mode | Hydraulic profile cutting |
17 | Power supply | 380V 50HZ 3Phases or at buyer’s requirement |
Provide a full set of construction equipment one-stop manufacturing

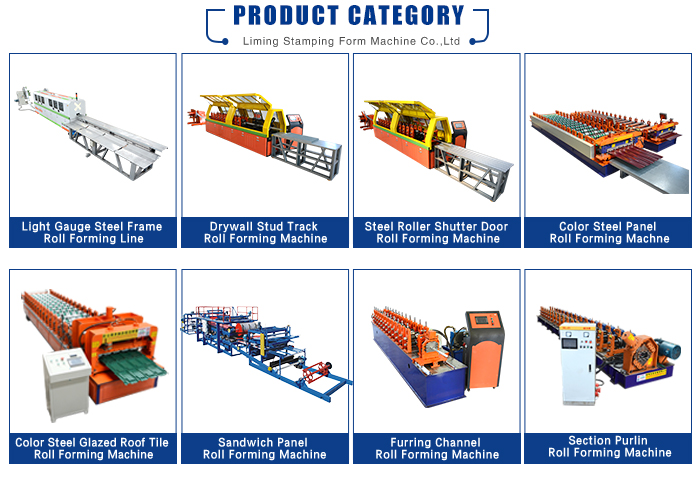

Our main products include(click for more information):
1. Design: architecture, Interior decoration, structural and landscape design.
2. Manufacture: roof truss, external & internal wall stud, floor deck, staircase, etc.
3. Customization: we can manufacture different machines to fit various requirements from different customers .
| Send Inquiry Now |

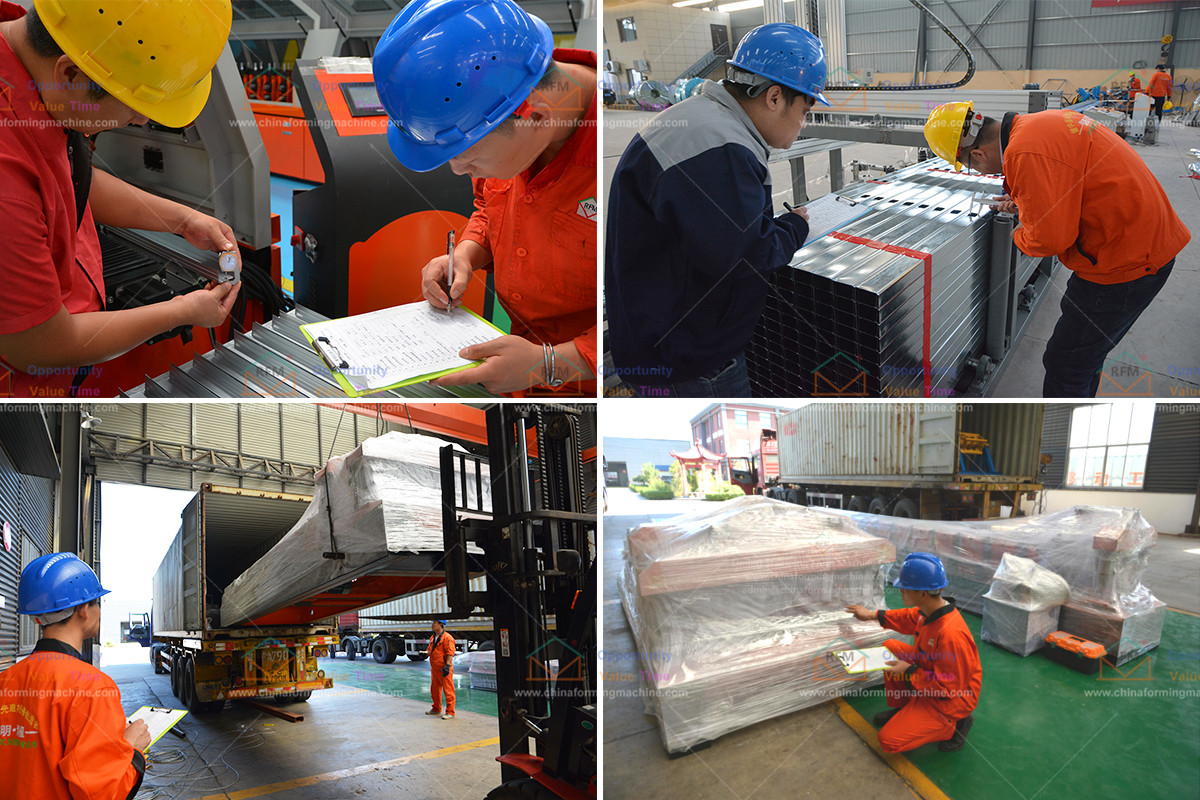

Package and Warranty:

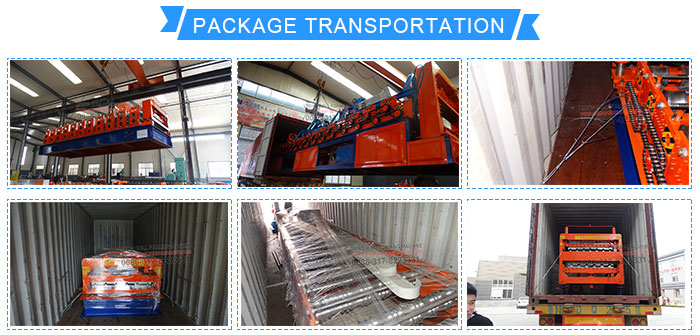

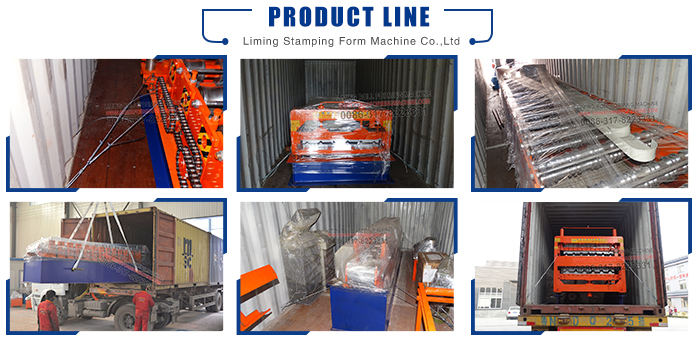

- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
