Roof panel machineroll forming machine Veneer Forming MachineRoof slab forming machine
L/CT/TD/POthers

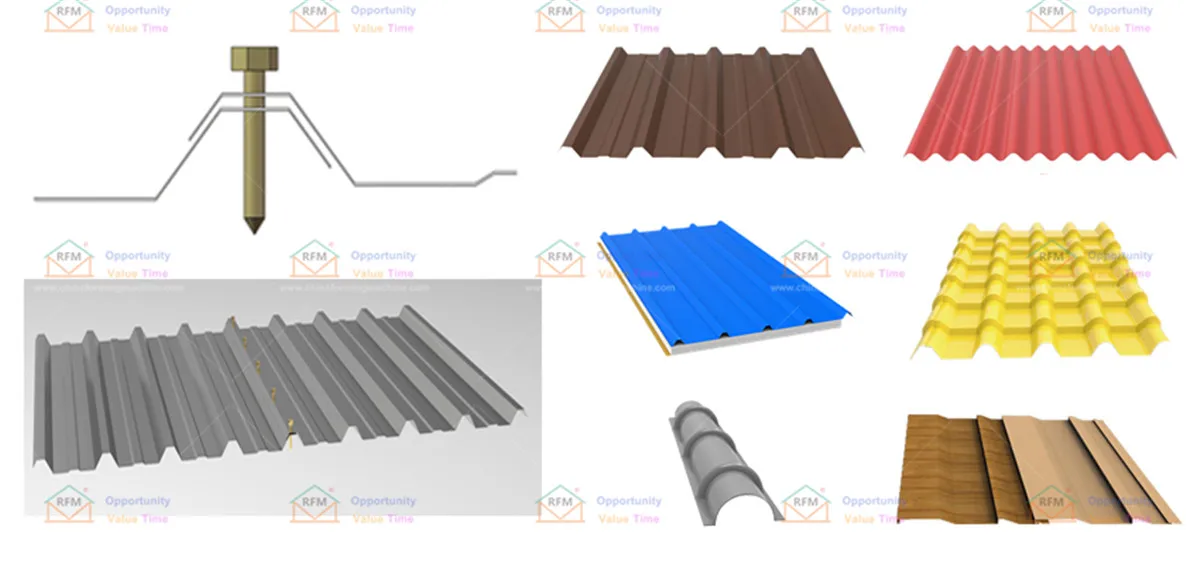

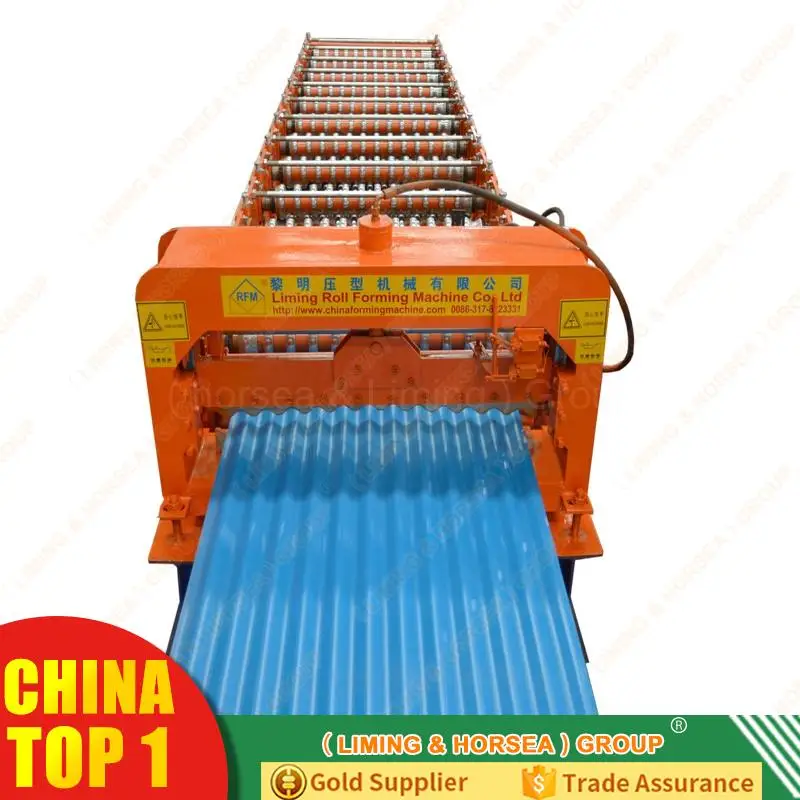

- Strong bull style roofing sheet roll forming machine, also called trapezoidal roofing sheet roll forming machine, corrugated sheet roll forming machine, very popular in Indonesia, Thailand, Philippines, Vietnam, Myanmar.
- The machine can use color steel plate, galvinazed steel plate, G550 full hard galvanizes steel coil, thickness range is 0.25-0.35mm, coil width is 914mm.
- Double layer roofing tile roll forming machines can produce 2 different type roofing sheets as customer's request, each layer has the standalone feeding table, the width is fixed by screw as customer's drawing.

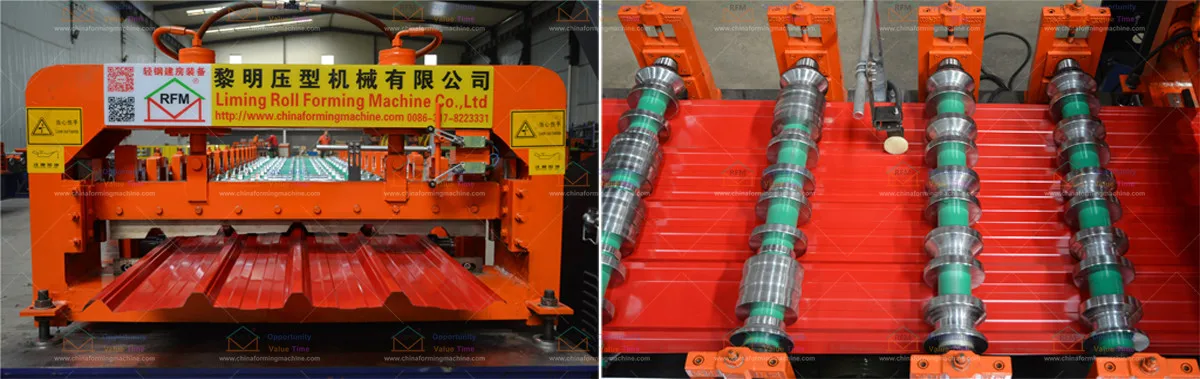

- You can see the structure frame (baffle) we used 40mm cast iron, whole piece cast iron, to make sure the structure more stronger, and can give more precise for the shafts.

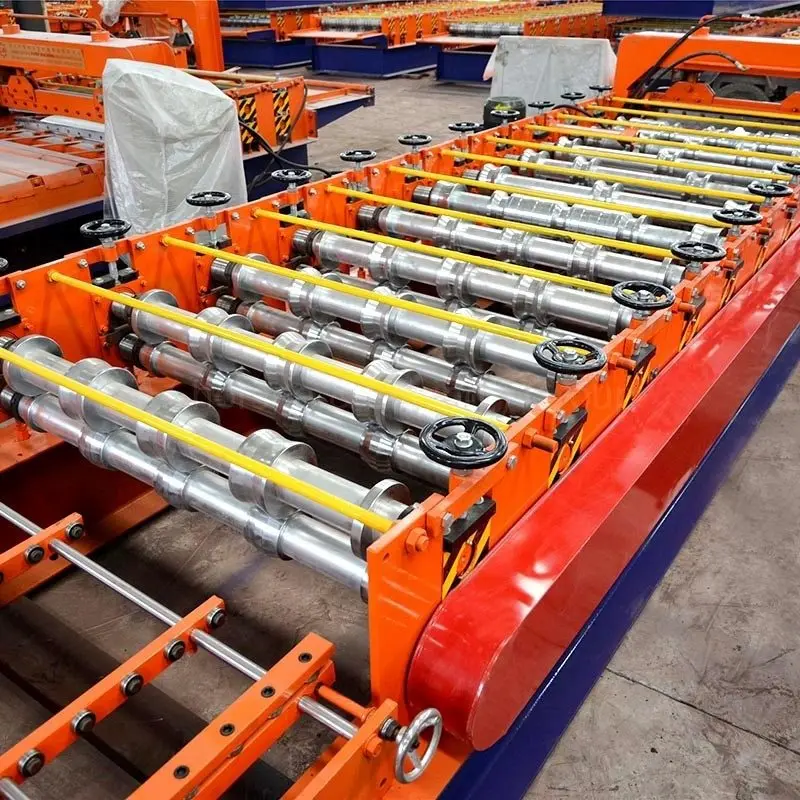

- The baffles are positioned by CNC computer, keep each space between two baffles same, and the baffle is double triangle support to strengthen, double bearing, running without noise.
No. | Item | Specification |
1 | Can Formed Material | PPGI,GI,AI |
2 | Equipment operation | Automatic |
3 | Voltage | 380V 50Hz 3Phase or as your requirement |
4 | Thickness (mm) | 0.3-0.9mm |
5 | Material width(mm) | As your requirement |
6 | Cover Width of the sheet after formed | as your drawing |
7 | The size of the roll forming machine | 6000mmx1600mmx1400mm |
8 | Speed | 8-15m/min |
9 | Diameter of shaft | 70mm |
10 | Weight of the Machine | 4300-4500KGS |
11 | Material of rollers | C45 steel quenched and chromed |
12 | Motor brand | Siemens or Guomao |
13 | PLC | Siemens or Delta or Mitsubushi |
14 | Total power (kw) | 8kw |
15 | Power of hydraulic system | 4kw |
16 | Power of main molding core | 4kw |
COMPONENT FOR corrugated zinc aluminum roofing iron sheets roll forming machine | |||
Name | Quantity | Units | |
Decoiler | 1 | Set | |
Main Machine | Feeding device | 1 | Set |
Roll forming system | 1 | Set | |
Cut Equipment | 1 | Set | |
Hydraulic system | 1 | Set | |
Electric control system | 1 | Set | |
Supporter/Automatic Stacker | 1 | Set | |
Provide a full set of construction equipment one-stop manufacturing

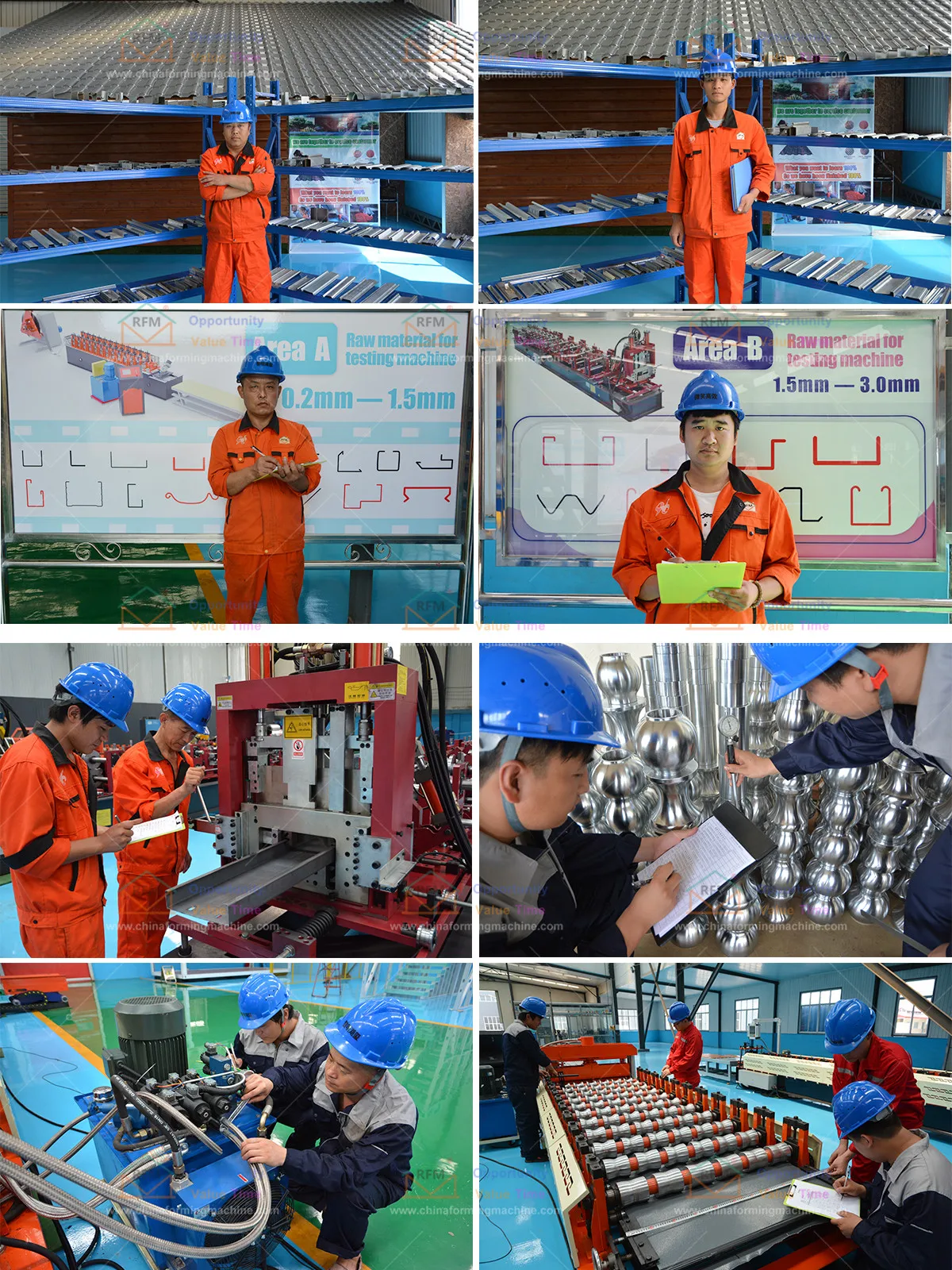

We have professional team to make different kinds of roll forming machines for our customers, from designing, processing,assembling, debugging, delivery. We can send our technicians to customer's factory for installation, and teach customer's workers how to use the machines. If there is any problems happened to the machine, we will provide solution at once. Hope we could establish win-win business relations in the soon future!
Package and Warranty:

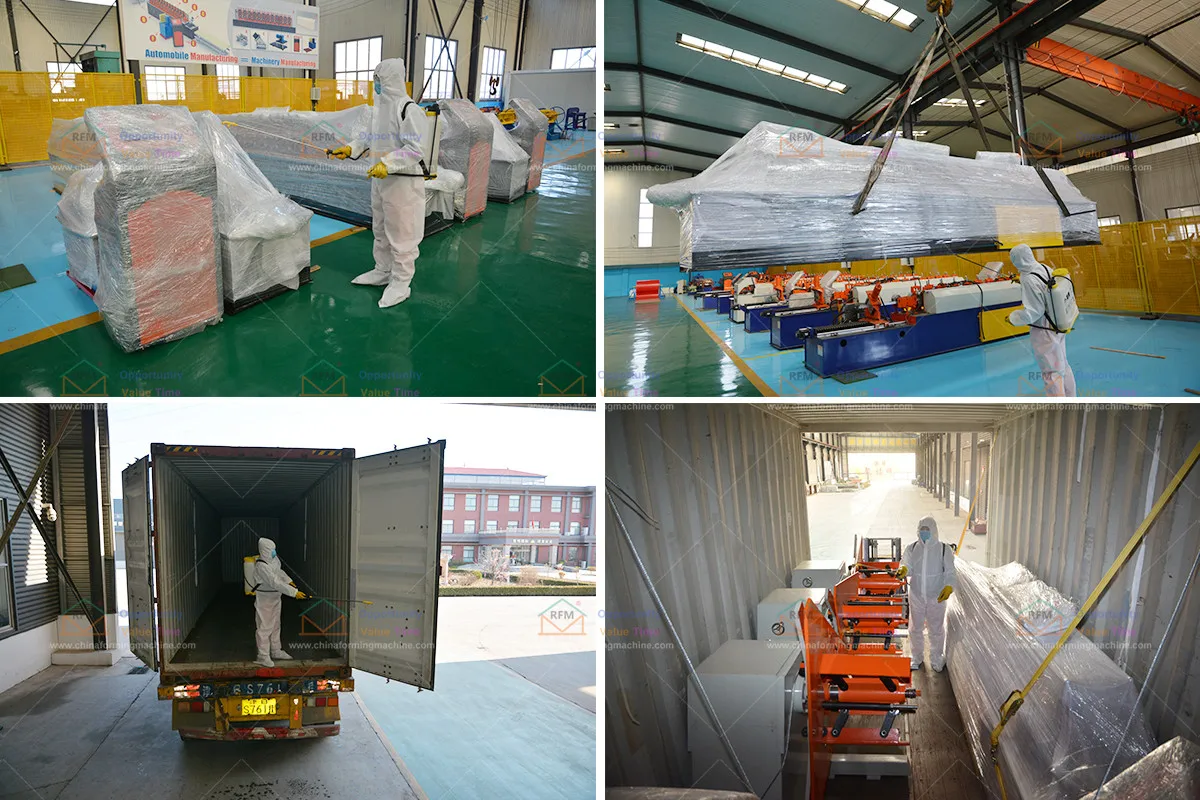

- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3.All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
