Double layer forming machinedouble deck roof machineroof plate sheet tile machine
L/CT/TMoney GramOthers

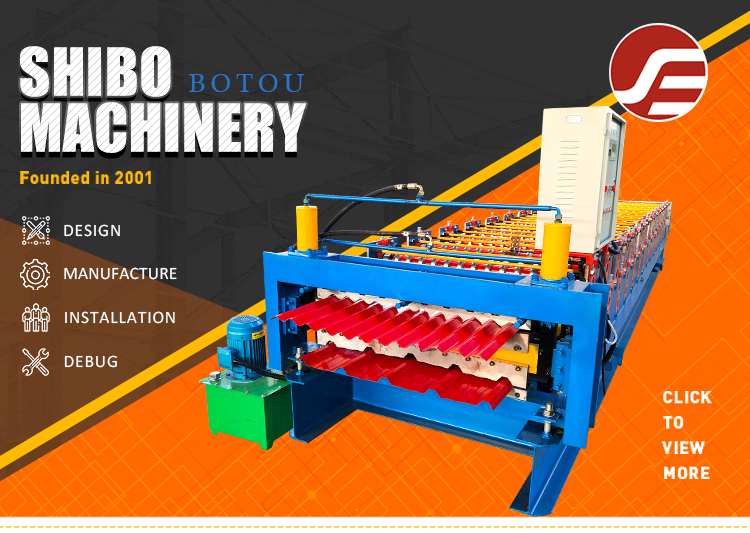

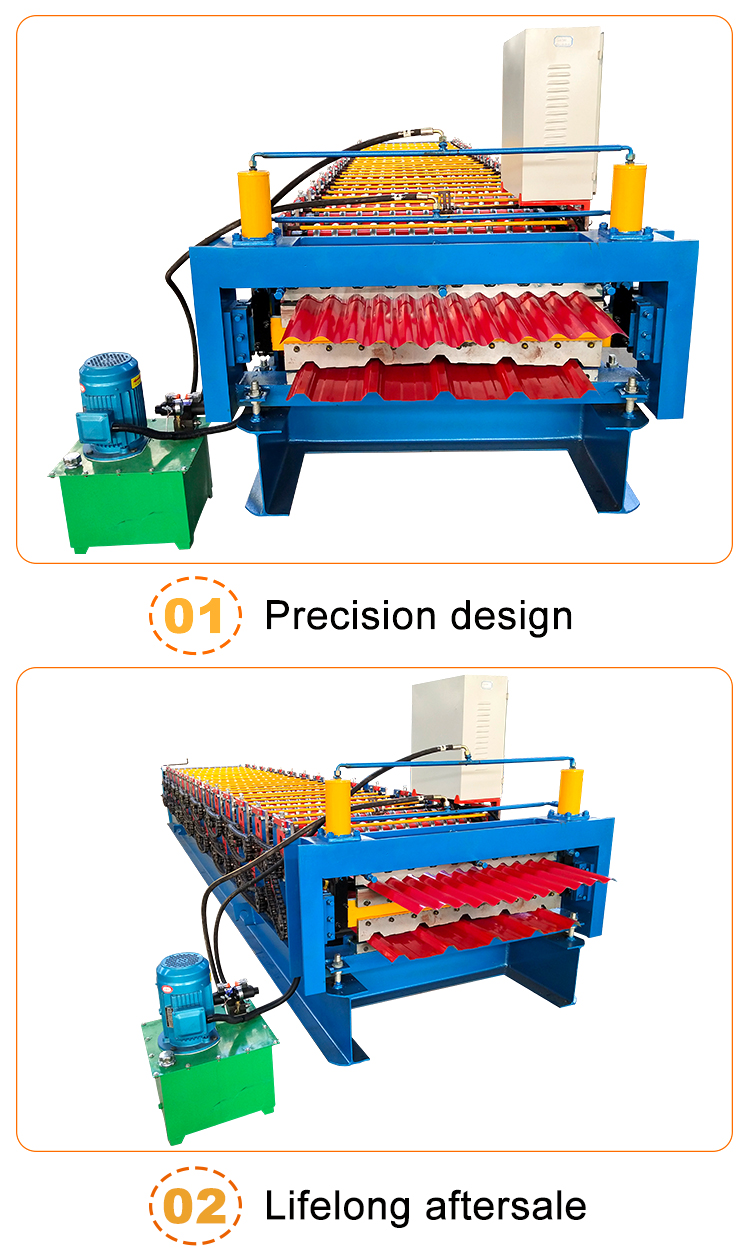

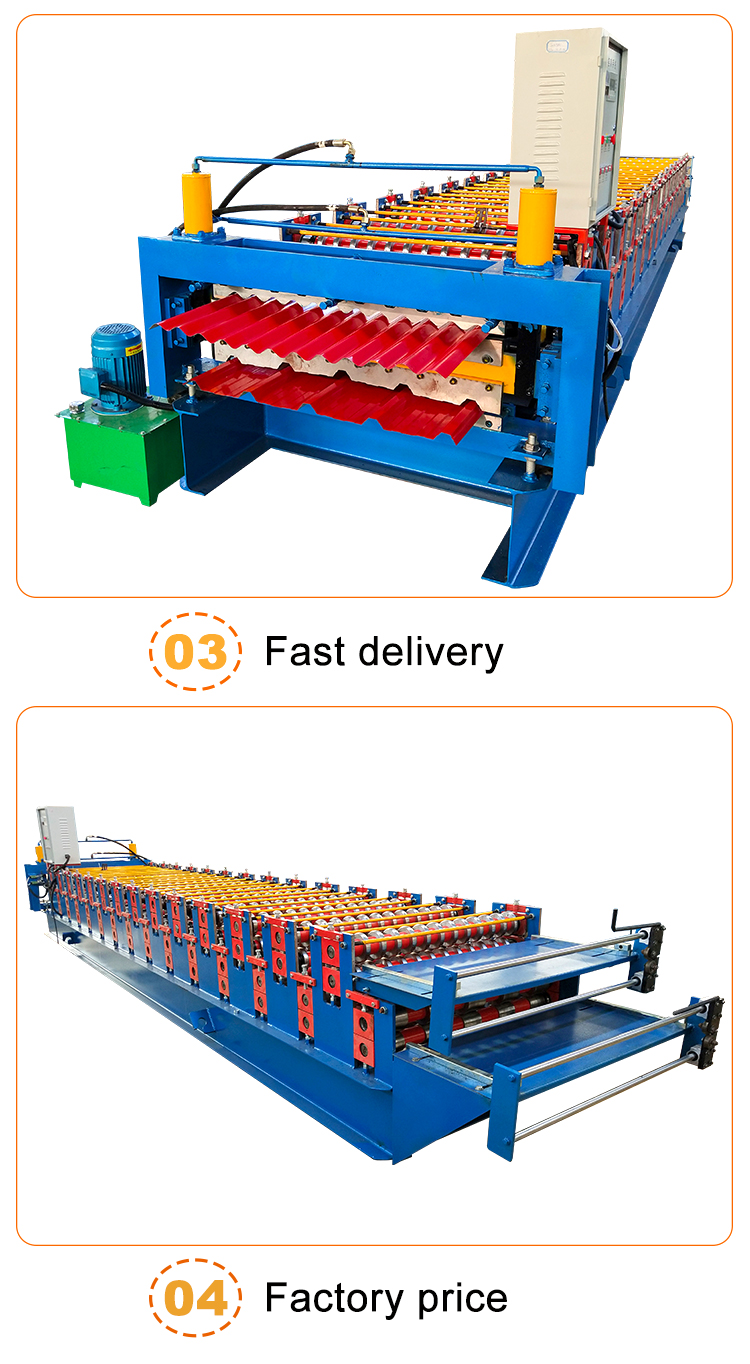

Metal Steel Double Layer Deck Roof Plate Sheet Tiles Roll Forming Making Machine
DOUBLE LAYER ROLL FORMING MACHINE | |
Feeding material | PPGI |
Feeding width | 1200mm |
Thickness of the plate | 0.65mm |
Machine size | about 6500mmX1600mmX1200mm |
Diameter of the axle | Φ75mm |
Rolling material | Forging Steel 45# |
Rolling galvanization thickness | 0.05 mm |
Rolling stages | 13-15stages |
Productivity | up layer 0-4 m/min down layer 0-15 m/min |
Total power | 4 kw +4kw |
Voltage | 220V 60Hz 3phase or as requirement |
Weight | about 4T |
Base frame | 300H steel |
Side board thickness | 14mm |
Cutting blade | Cr12 with heat treatment |
Cutting system | Hydraulic cutting system after forming |
Control cabinet | PLC and frequency changer in it |
