1.Title:PV support bracket roll forming machine
2. Properties of processed material：
Material： galvanized steel
Material thickness：1.5-2.5mm
Yield strength:235-450mpa

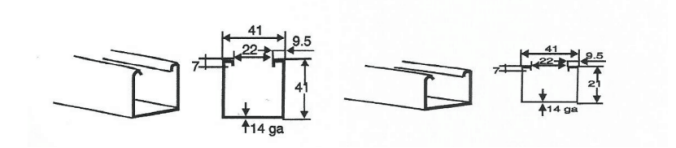

3. Profile drawing

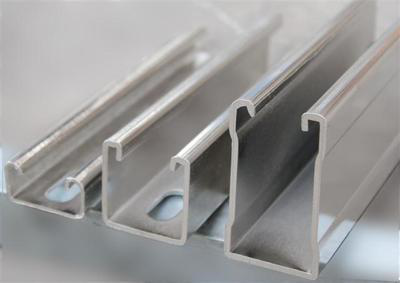

Products after roll forming
4.Machine details
Brand: RFM
Model number: FX41*41 FX41*21
Machine size: 7*0.8*1.2m
Weight: 4.5T
Voltage requirement: 380v50hz3p
Working speed：0-10m/min
Electric support wires: 8m2
Labor request:2-3 workers
5. Whole line components
No. | Item | Qty |
1. | Deciler | 1set |
2. | Main forming machine | 1set |
3. | Control panel | 1pcs |
4. | Hydraulic pump | 1pcs |
5. | Hydraulic pressing and cutting device | 1pcs |
6. | Manual holder | 1pcs |
7 | Punching machine | 1pcs |
6.Technical parameters
Machine base: steel plate welded
Frame: memorial arch frame
Forming stations: 18steps
Roller: Cr12 with quenching
Shaft: 45#steel,diameter 50mm
Transportation: Gear
Motor:18.5 kw
Pump: 5.5kw
Press mold:Cr12
Cutter: Cr12mov
7.Machine quick view

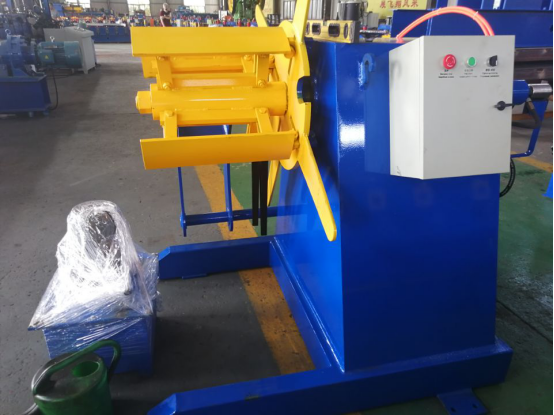

Decoiler：

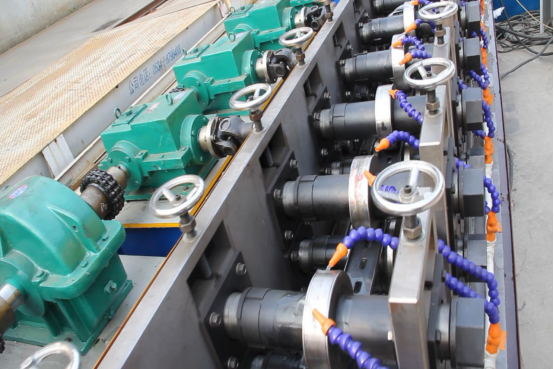

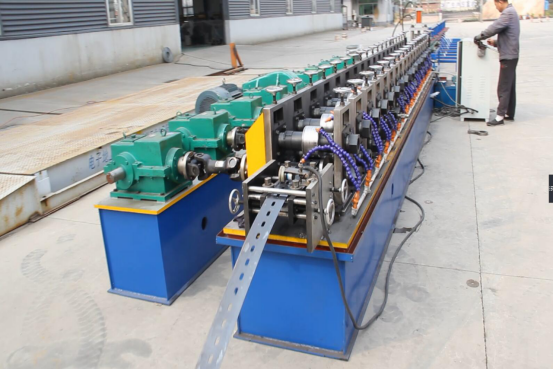

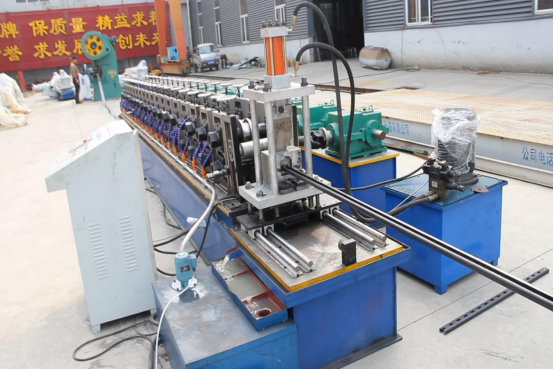

Main forming machine：
Front View，
Back View:

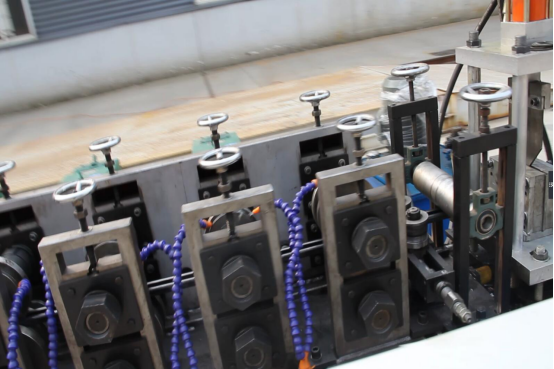

Roller and shaft:
Wall panel:

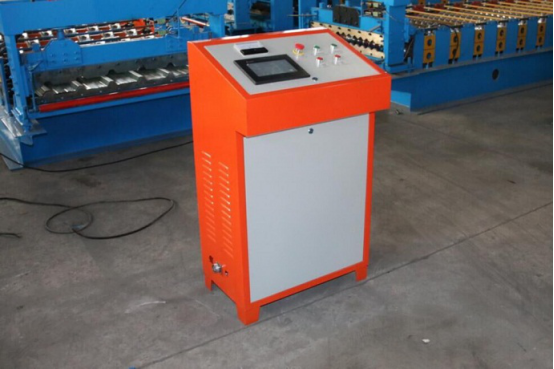

Control box:

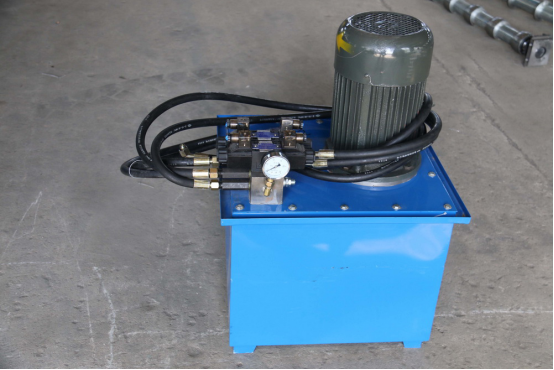

Hydraulic station:

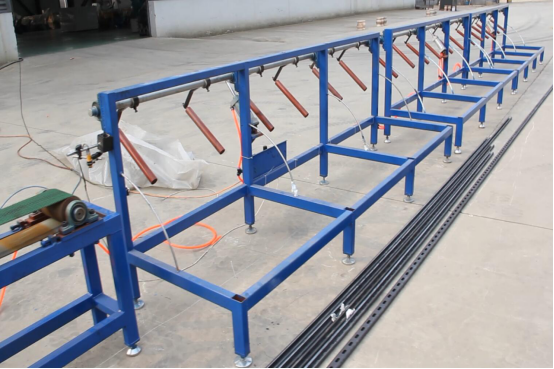

Out of table:
8.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Machine adjusting on video call during Edidemic

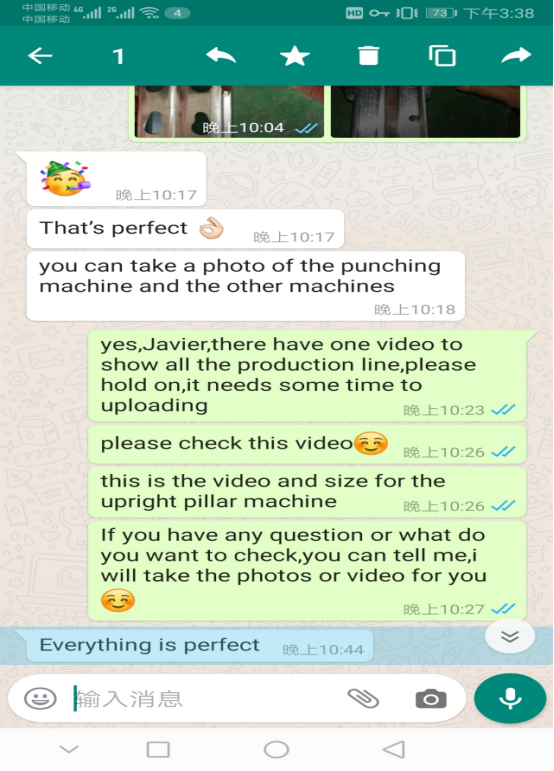

9. Client evaluation：
