Automatic steel roof sheet plate glazed tile roll former line

ID:20081417480

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 12000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

glazed tile roll former lineroof sheet making machinesteel roof sheet former line

Payment Method:

L/CT/TMoney GramOthers

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

SHIBO

Product Package

Container

Specification

steel roof sheet plate glazed tile roll former line

Place of Origin

China

Port

TIANJIN


Automatic steel roof sheet plate glazed tile roll former line

Product Description

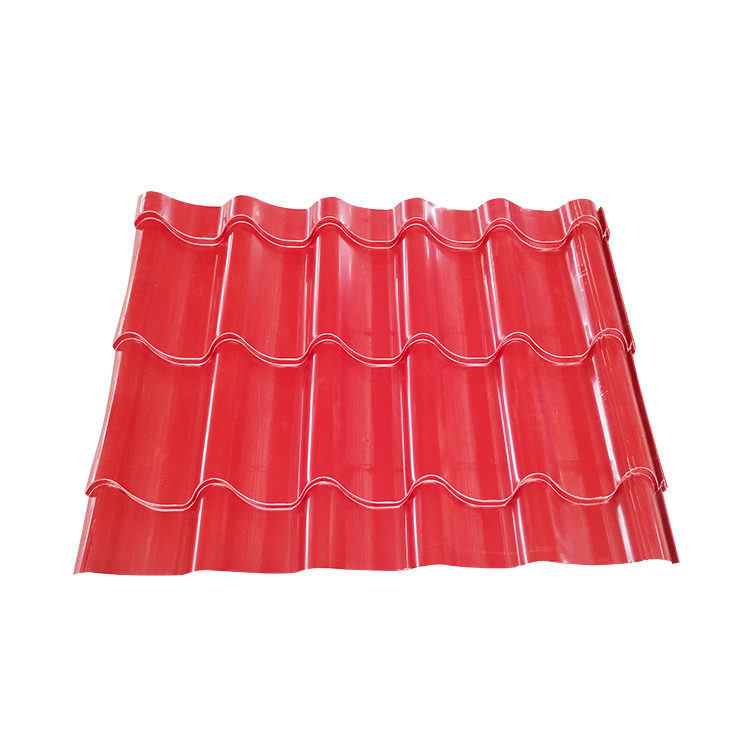

This machine takes GI/PPGI as raw material, through a series steps and can produce the metal roofing sheets. The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.Most people use this kind steel panel for factory roof, house roof and warehouse and so on.

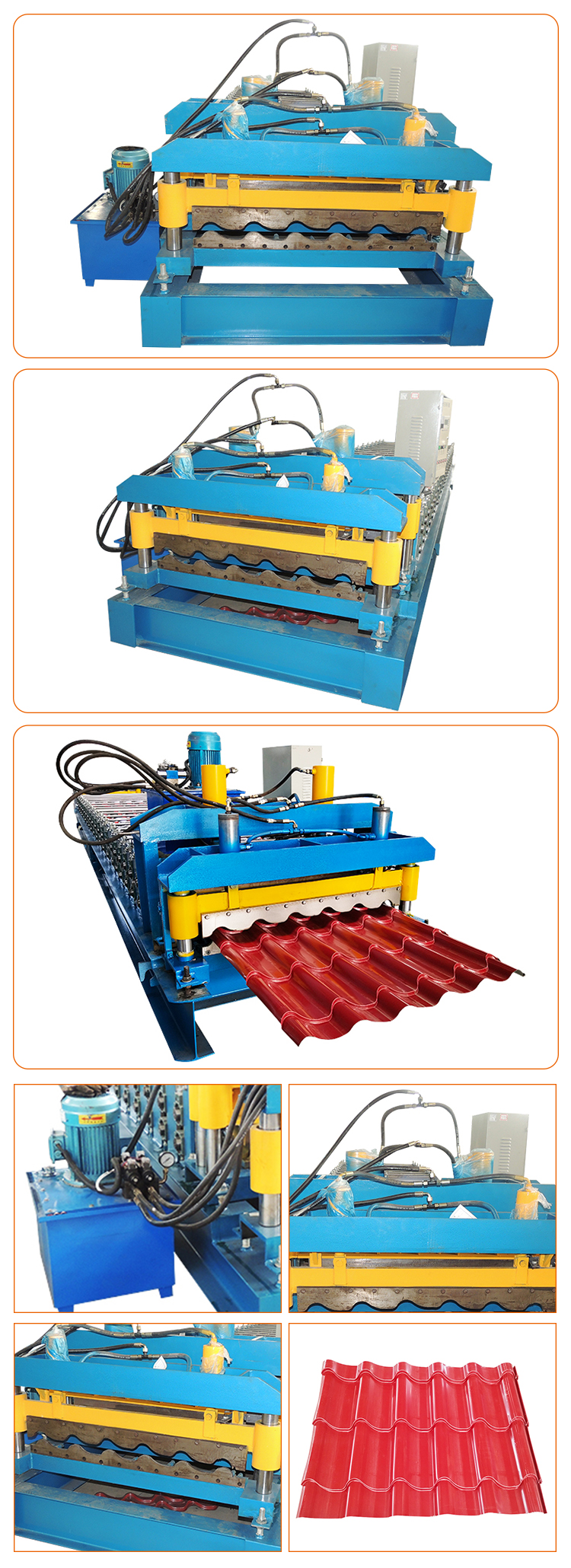

GLAZED TILE ROLL FORMING MACHINE
Feeding material	PPGI
Thickness of the plate	0.3-0.8mm
Coil width	1220mm
Machine size	about 7000mmX1600mmX1000mm
Diameter of the axle	Φ75mm
Rolling stages	20 stages
Productivity	8-12m/min
Total power	4kw machine motor +4 kw pump station motor
Voltage	220V 60Hz 3phase or as requirement
Weight	about 7T
Base frame	350H steel
Side board thickness	16mm
Cutting blade	Cr12 with heat treatment
Cutting system	Hydraulic cutting system after forming
Control cabinet	PLC and frequency changer in it
