Roll forming machineShelves pillar making machineUpright pillar machine
L/CT/TD/POthers
1.Title:Upright pillar roll forming machine
2. Properties of processed material：
Material： galvanized steel
Material thickness：1.5-2.5mm
Yield strength:235-450mpa
3. Profile drawing

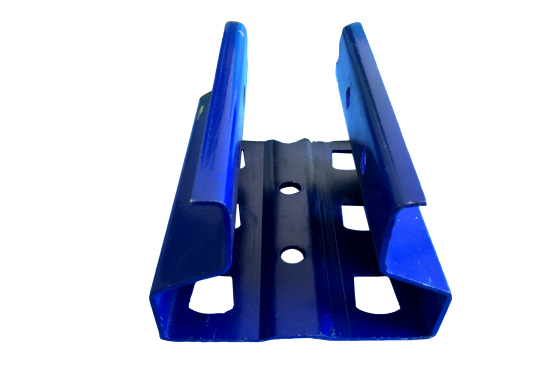

Products after roll forming
4.Machine details
Brand: RFM
Model number: FX100*68
Machine size: 7.5*0.8*1.2m
Weight: 4.5T
Voltage requirement: 380v50hz3p
Working speed：0-6m/min
Electric support wires: 8m2
Labor request:2-3 workers
5. Whole line components
No. | Item | Qty |
1. | Deciler | 1set |
2. | Main forming machine | 1set |
3. | Control panel | 1pcs |
4. | Hydraulic pump | 1pcs |
5. | Hydraulic pressing and cutting device | 1pcs |
6. | Manual holder | 1pcs |
7 | Punching machine | 1pcs |
6.Technical parameters
Machine base: 350H steel plate welded
Frame: memorial arch frame
Forming stations: 18steps
Roller: Cr15 with quenching
Shaft: 45#steel,diameter 70mm
Transportation: Gear box
Motor:18.5 kw
Pump: 5.5kw
Press mold:Cr12
Cutter: Cr12mov
7.Machine quick view

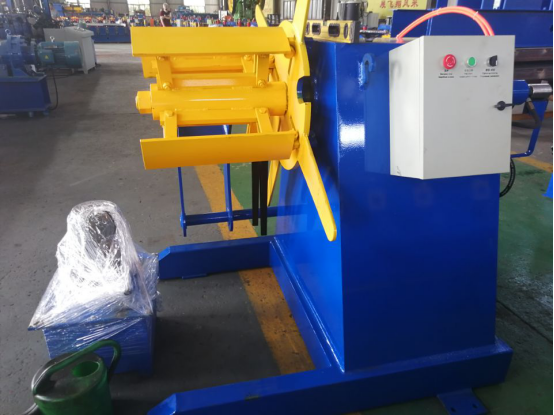

Decoiler：

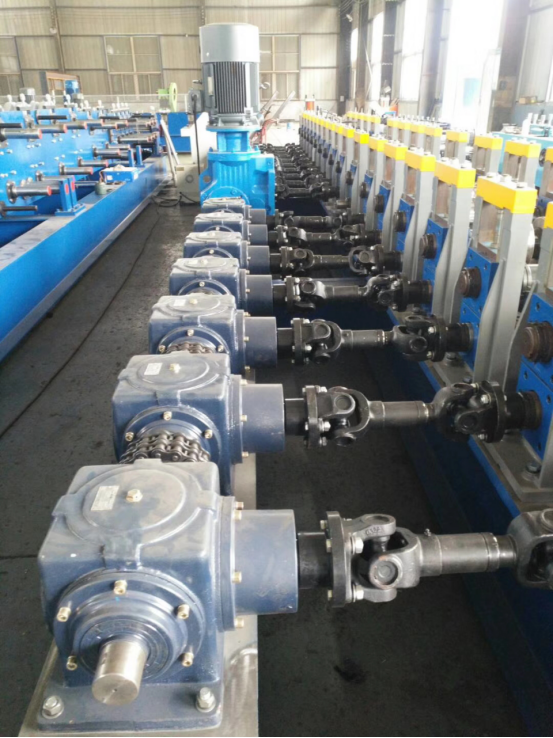

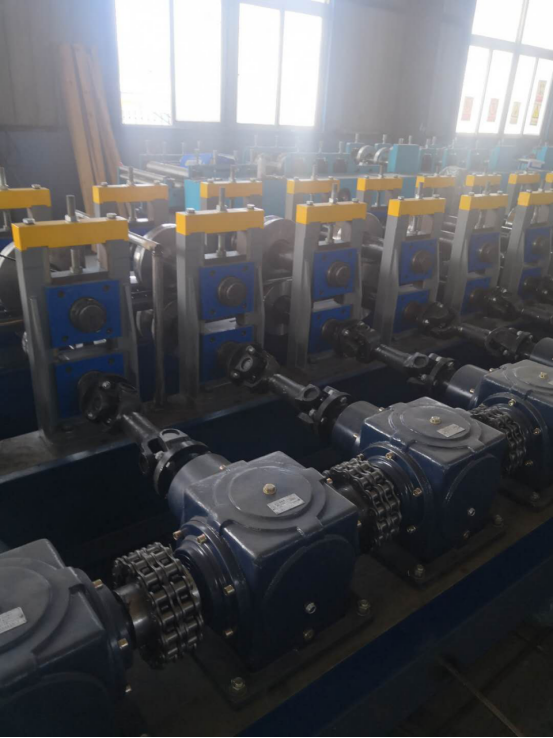

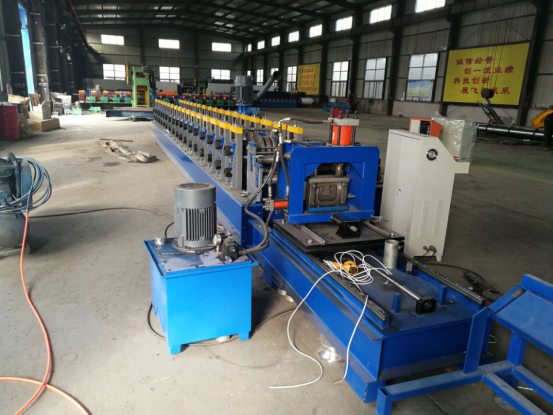

Main forming machine：
Front View，
Left side，
Right side，

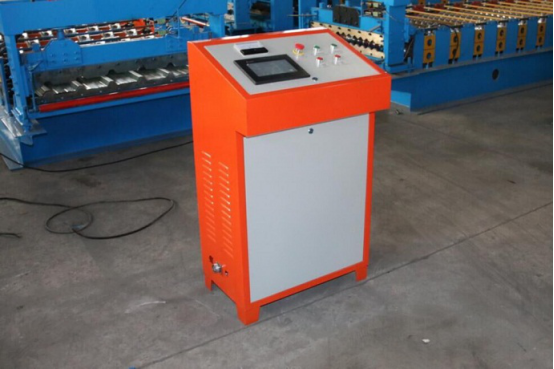

Control panel：

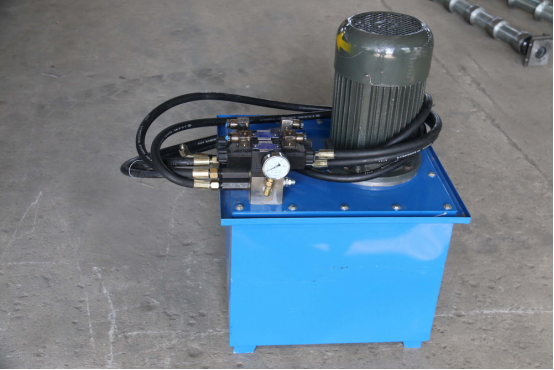

Hydraulic pump：

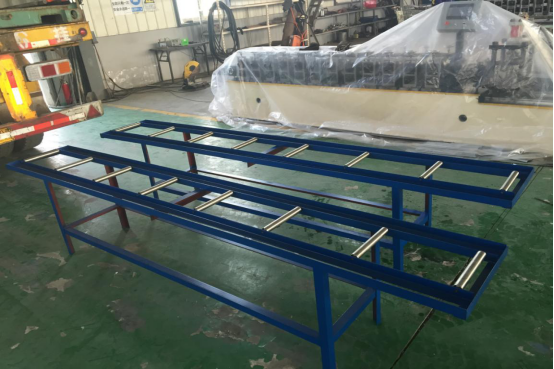

Manual holder：
8.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Machine adjusting on video call during Edidemic

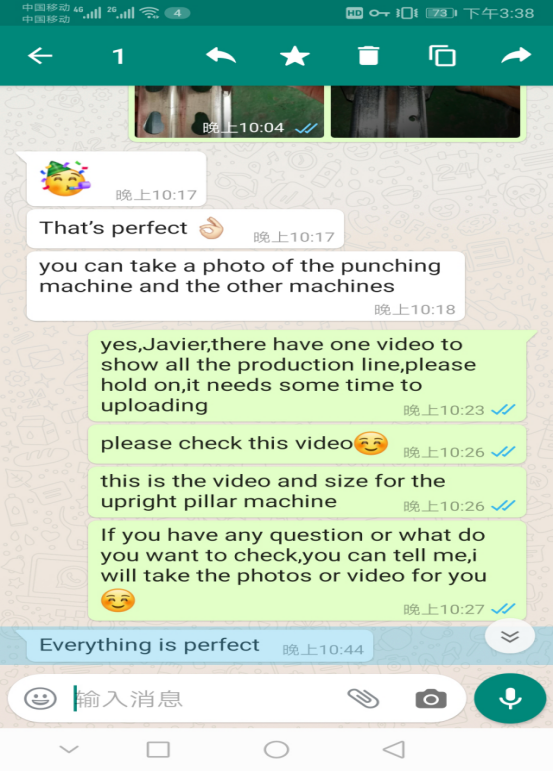

9. Client evaluation：
10. Contact me:
If you are interested in our machines,please contact me with whatsapp:008613582478685.
