1.Title:Automatic Door frame roll forming machine
2. Properties of processed material：
Material： galvanized steel or Aluminum
Material thickness：0.6 -1.2mm
Yield strength:235-450mpa
3. Profile drawing

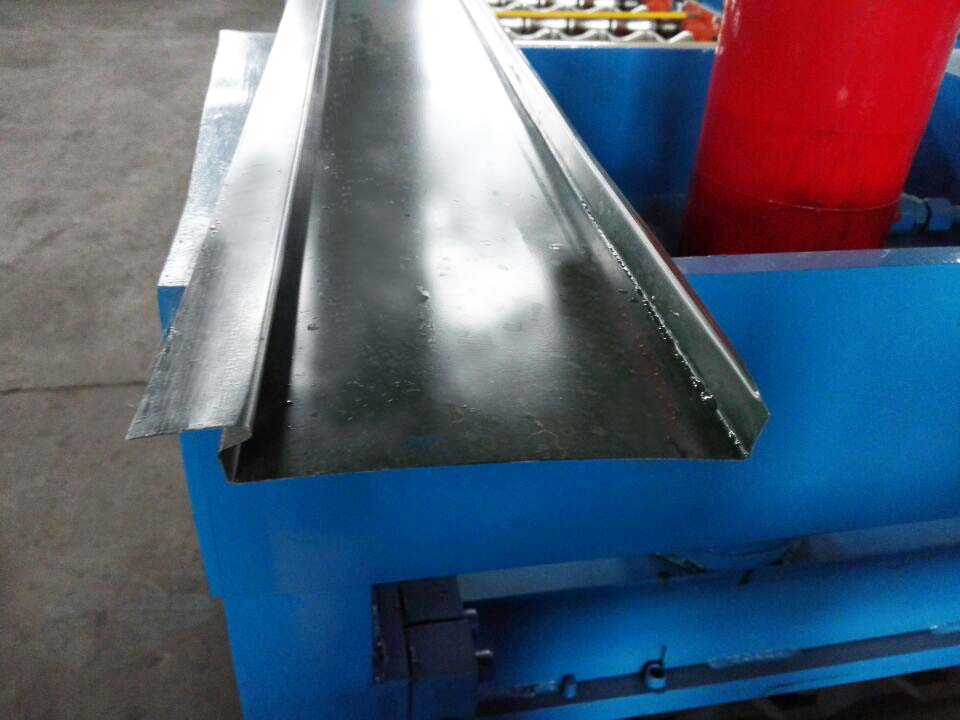

Products after roll forming
4.Machine details
Machine size: 5000*800*1250mm
Weight: 3.5T
Voltage requirement: 380v50hz3p or as your request
Working speed：0-15 m/min（around 20t /8h/day）
Electric support wires: 8m2
Labor request:1 workers
5. Whole line components
No. | Item | Qty |
1. | Decoiler | 1set |
2. | Main forming machine | 1set |
3. | Control panel | 1pcs |
4. | Hydraulic pump | 1pcs |
5. | Cutting device | 1pcs |
6. | Manual holder | 1pcs |
6.Technical parameters
Machine base: steel plate welded
Frame: Medium plate
Forming stations: 16 steps
Roller: Cr15
Shaft: 45#steel,diameter 70mm
Transportation: chain
Motor:Siemens,7.5 kw
Pump: Yuken 4kw
Punching mold:Cr12
Cutter: Cr12
7.Machine quick view

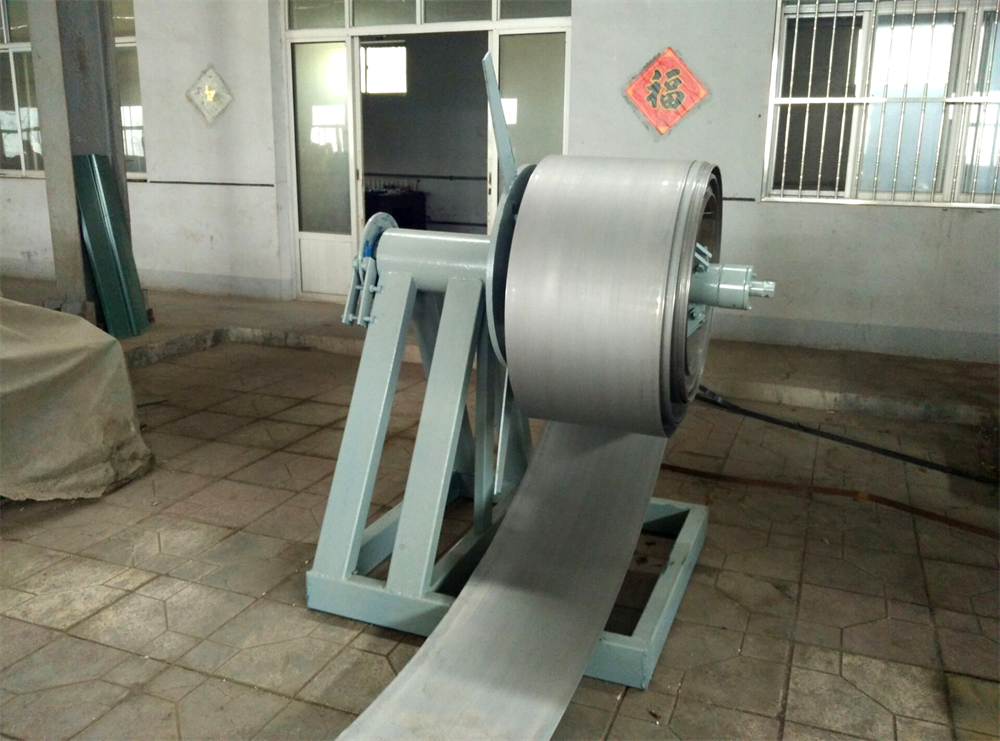

Decoiler：

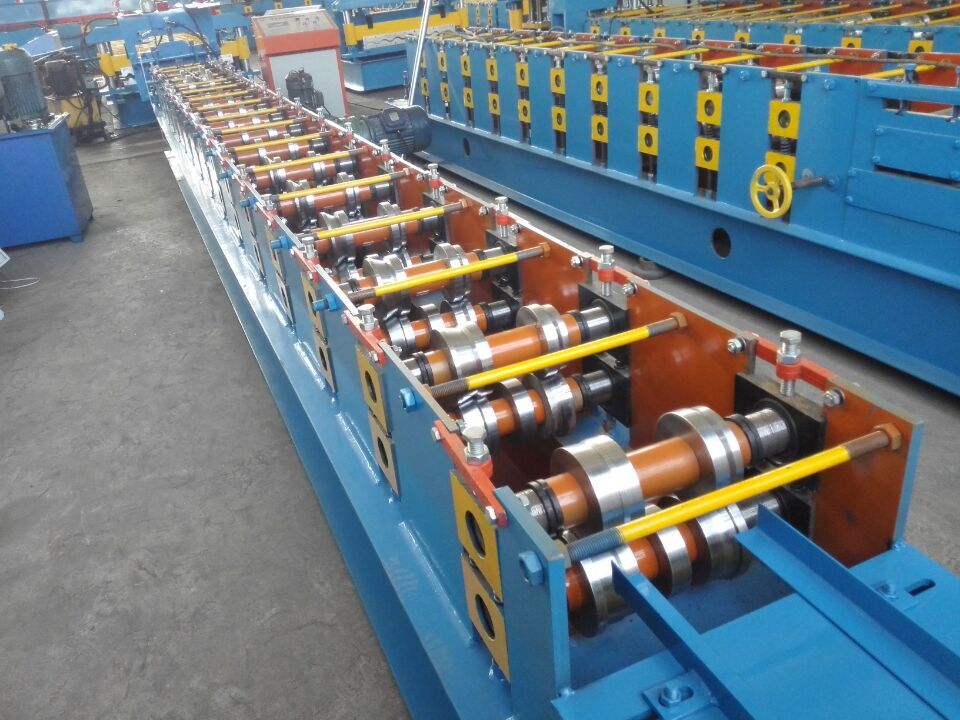

Main forming machine：

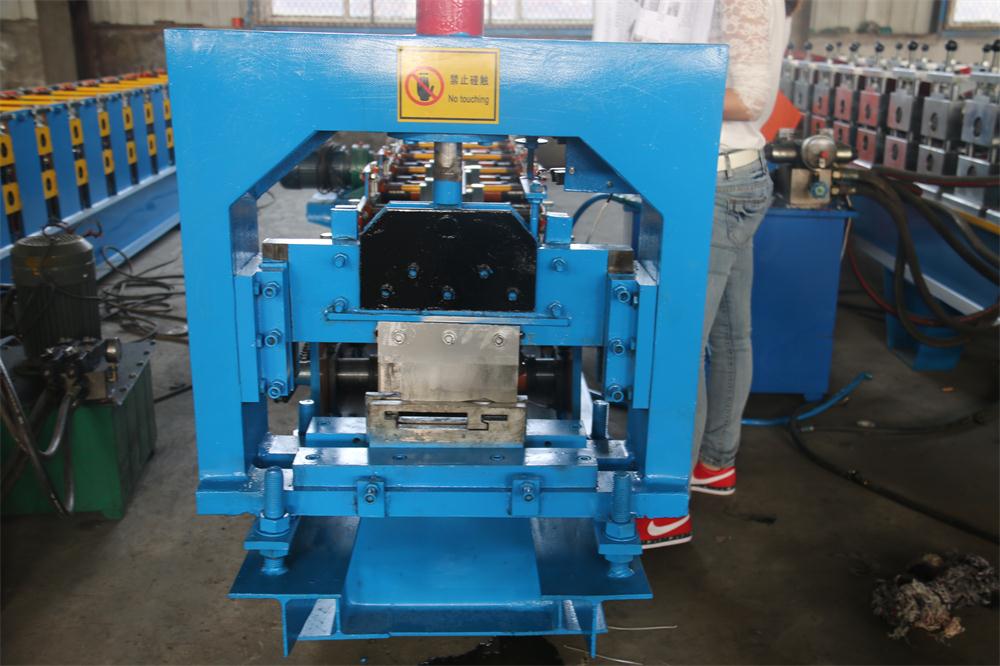

Front View，

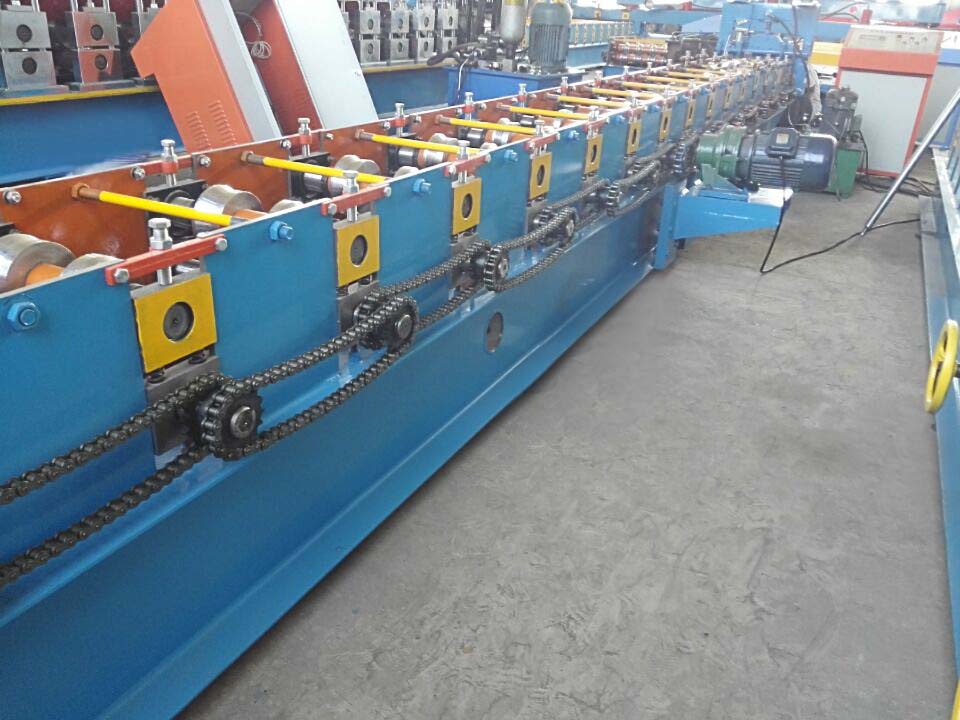

Left side，
Right side，

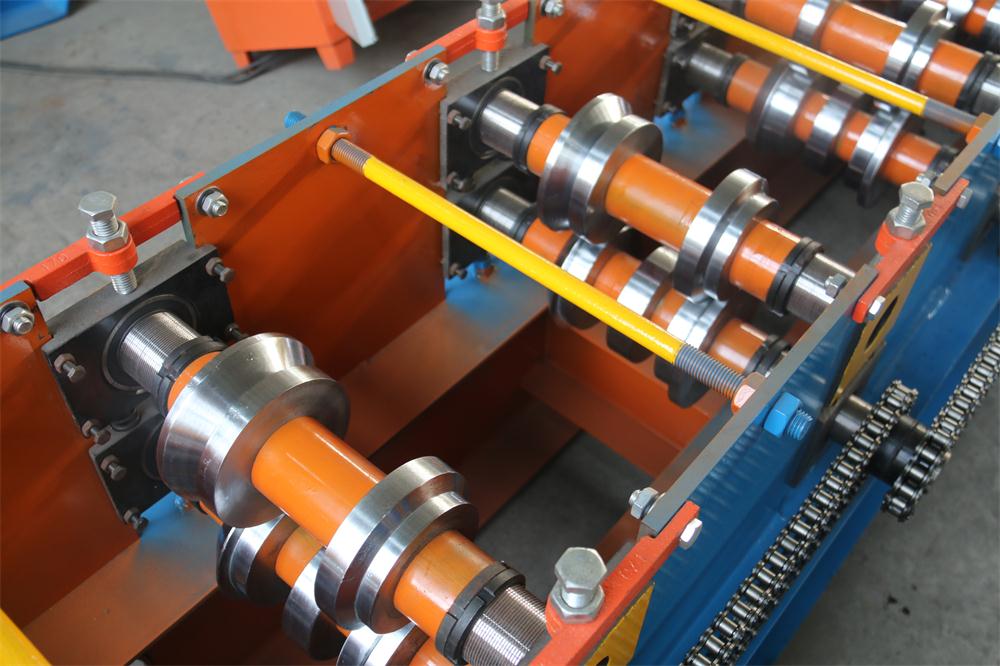

Roller，

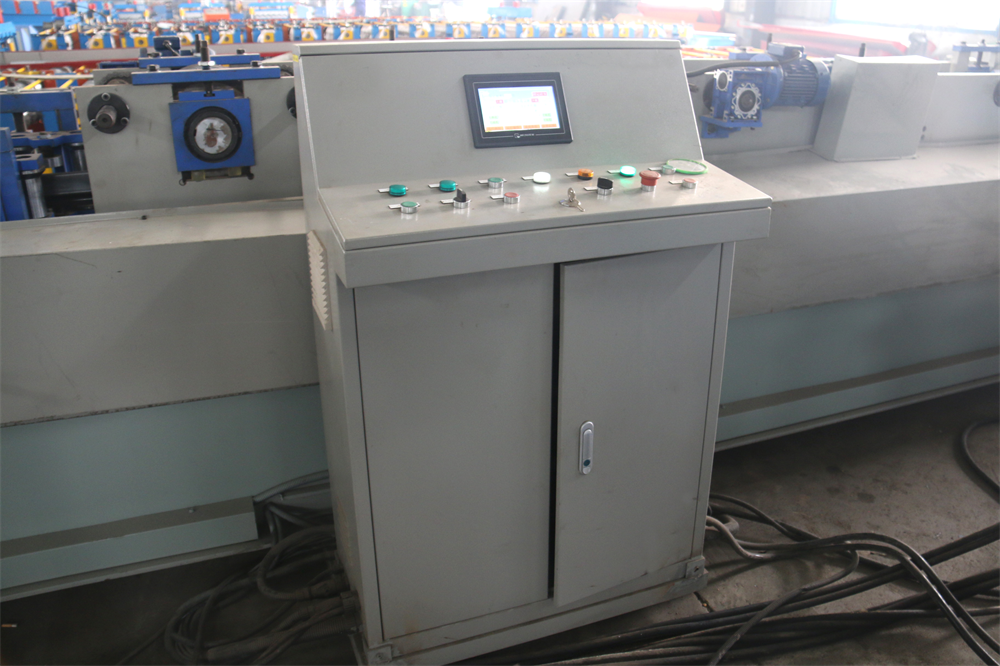

Control panel：

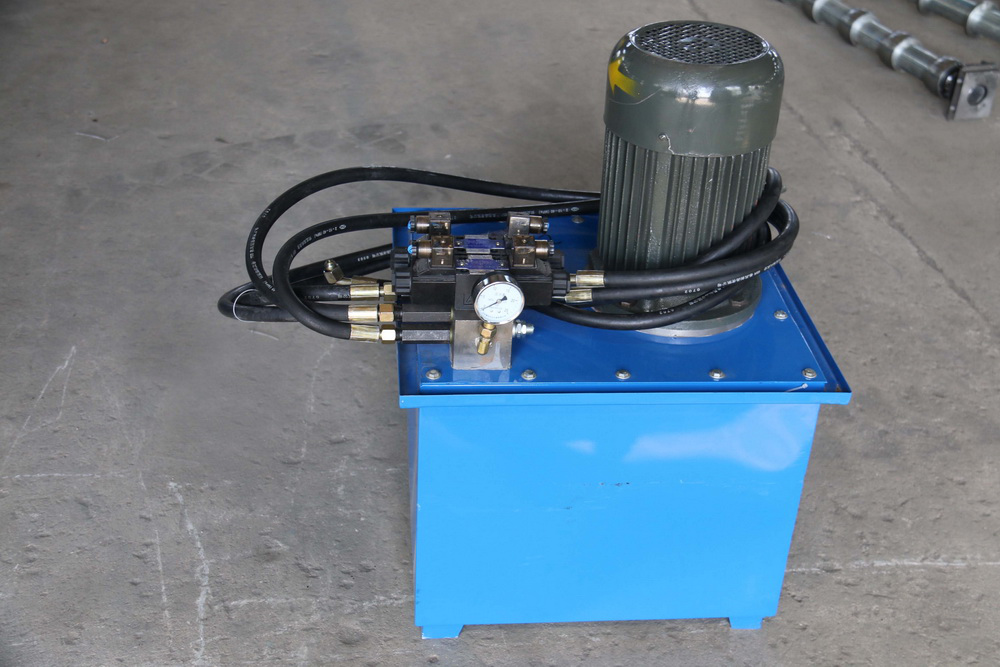

Hydraulic pump：

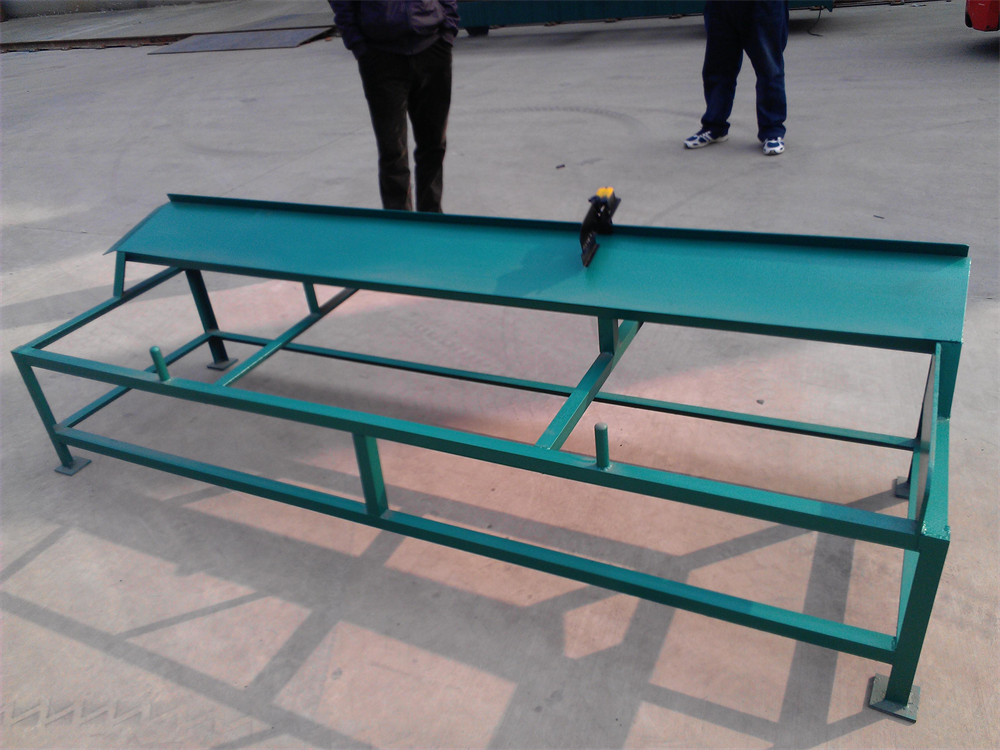

Manual holder：
8. CE and Letters patent
9.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Machine adjusting on video call during Edidemic

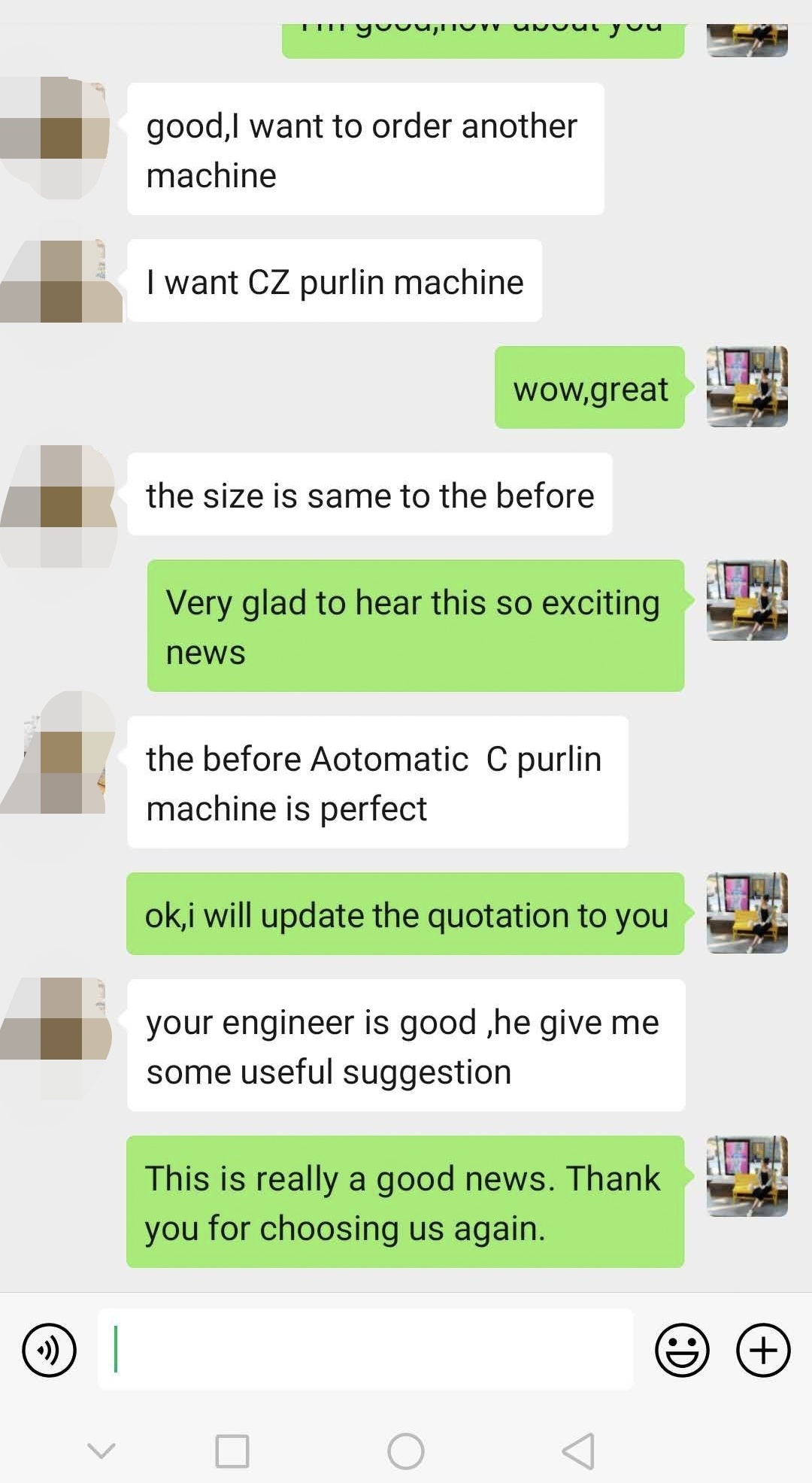

10.Client evaluation：
