High quality Light Gauge Steel Keel Truss Framing Making Cold Roll Forming Machine

ID:20081417536

Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 8000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Light Steel Keel Machineroll forming machineroofing sheet machine tiles making machinesTile Making Machineryroofing sheet making machinesroofing tiles making machinebuilding material machinerysheet metal machine Steel Keel making machine

Payment Method:

L/CT/TOthers

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

Hebei Tech-Alltrust International Trade Co., Ltd.

Product Package

cover the machine by plastic film, and then fix it into the container by steel line. We also can pack it according to customers special request.

Specification

4500mm x 800mm x 1000mm

Place of Origin

hebei,china

Port

tianjin

Products Description

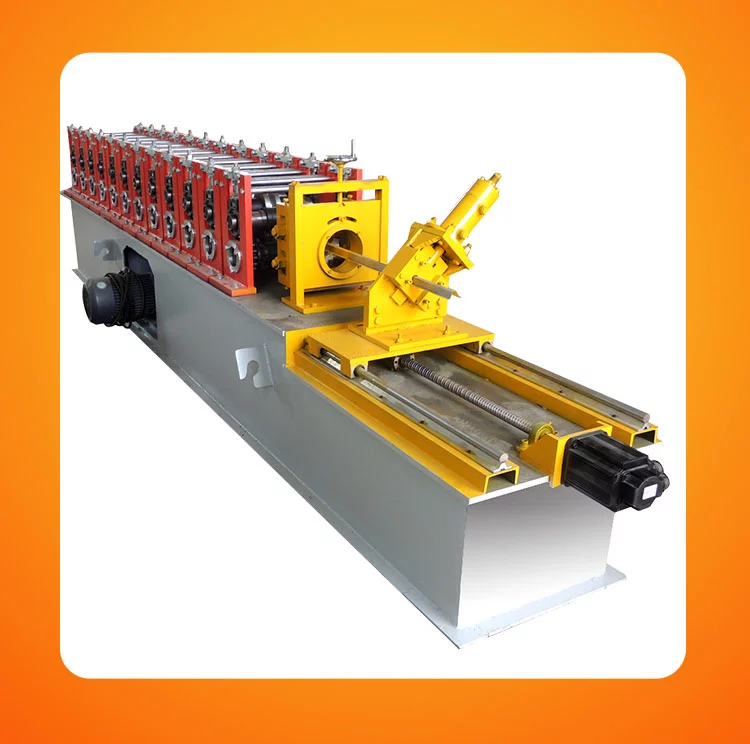

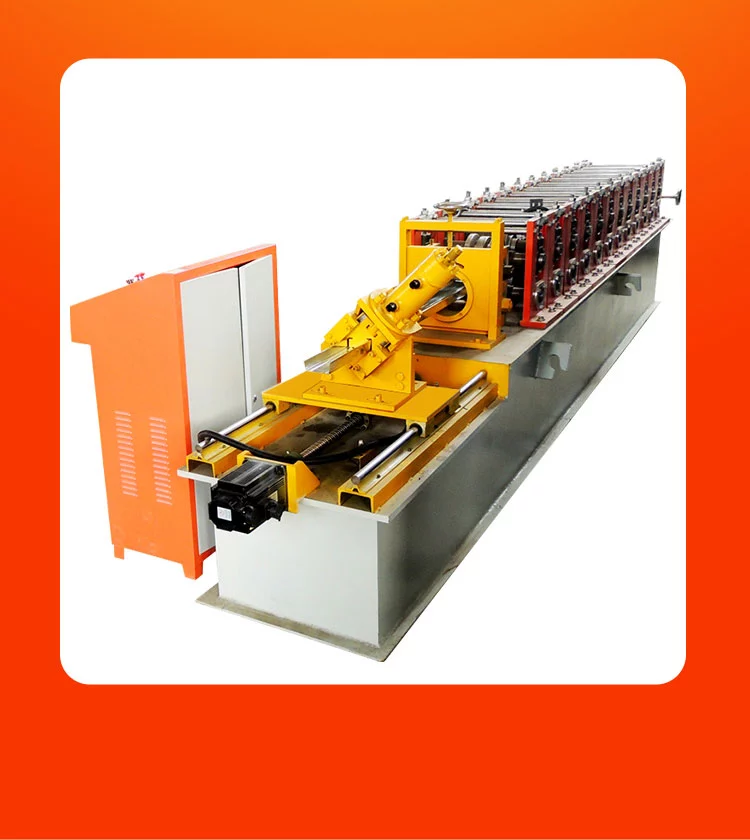

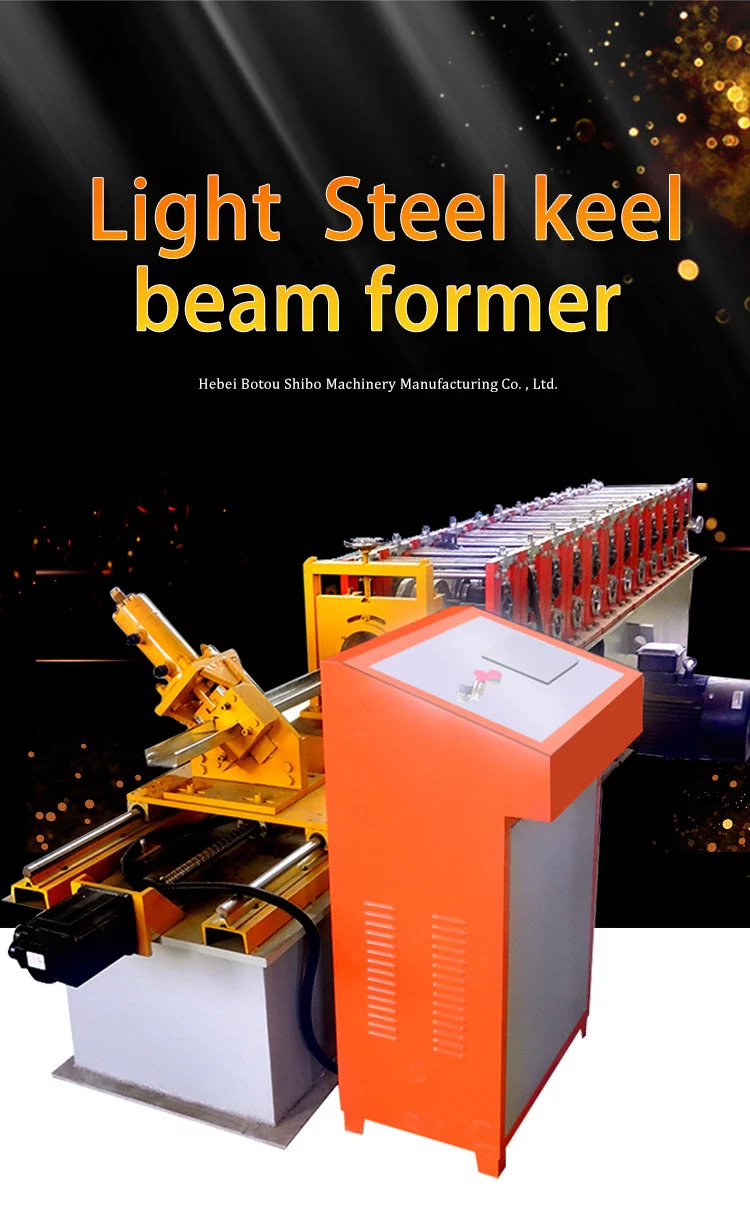

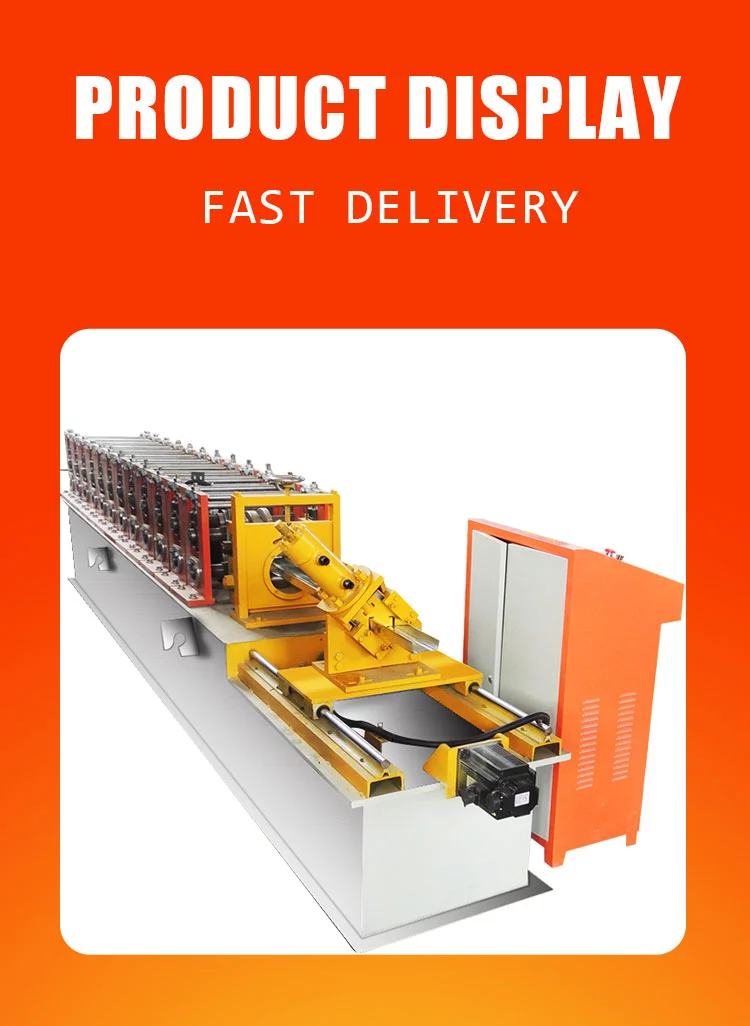

LIGHT KEEL ROLL FORMING MACHINE
Feeding material	Galvanized sheet
Thickness of the plate	0.3-0.35 mm

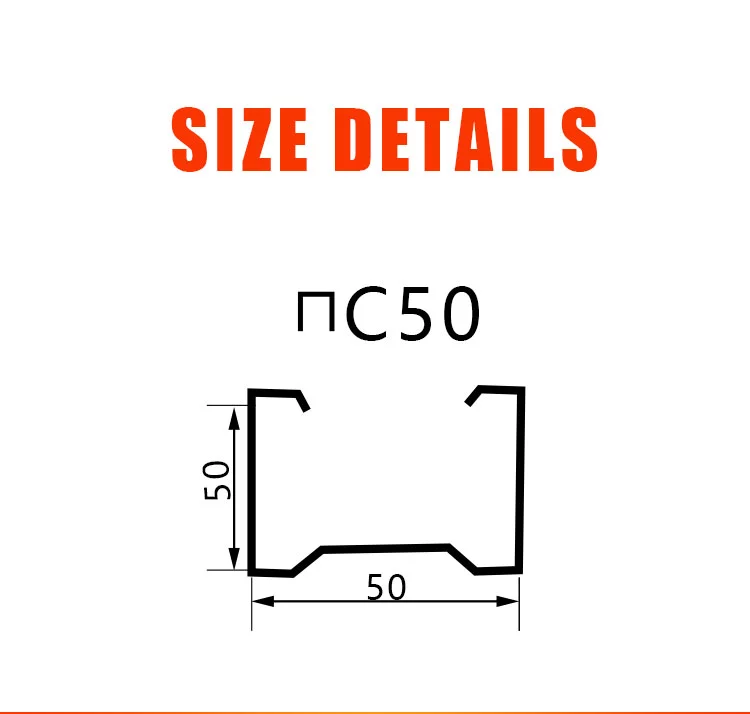

Feeding width	Depend on profile drawing

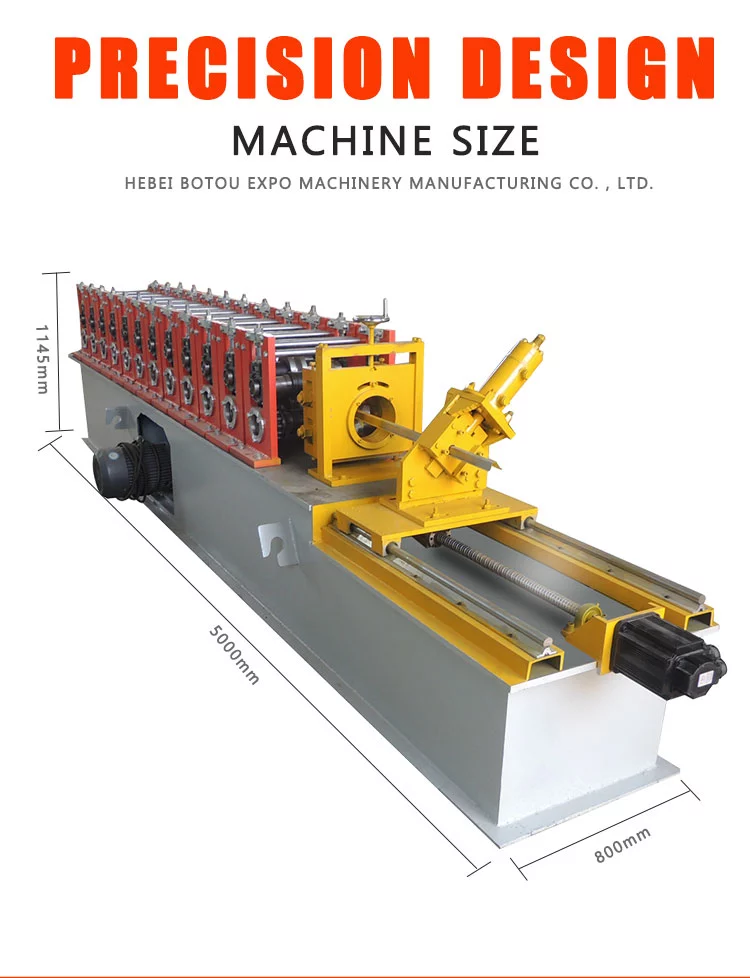

Dimensions	4500mm x 800mm x 1000mm
Diameter of the axle	Φ40mm
Rollers	12 rows
Roller material	45# steel
Productivity	About 25-30m/min
Total power	5.5+3kw
Voltage	220v or 380v 60hz 3phase
Weight	About 2.5-3t
Frame	Square steel box
Side board thickness	25mm

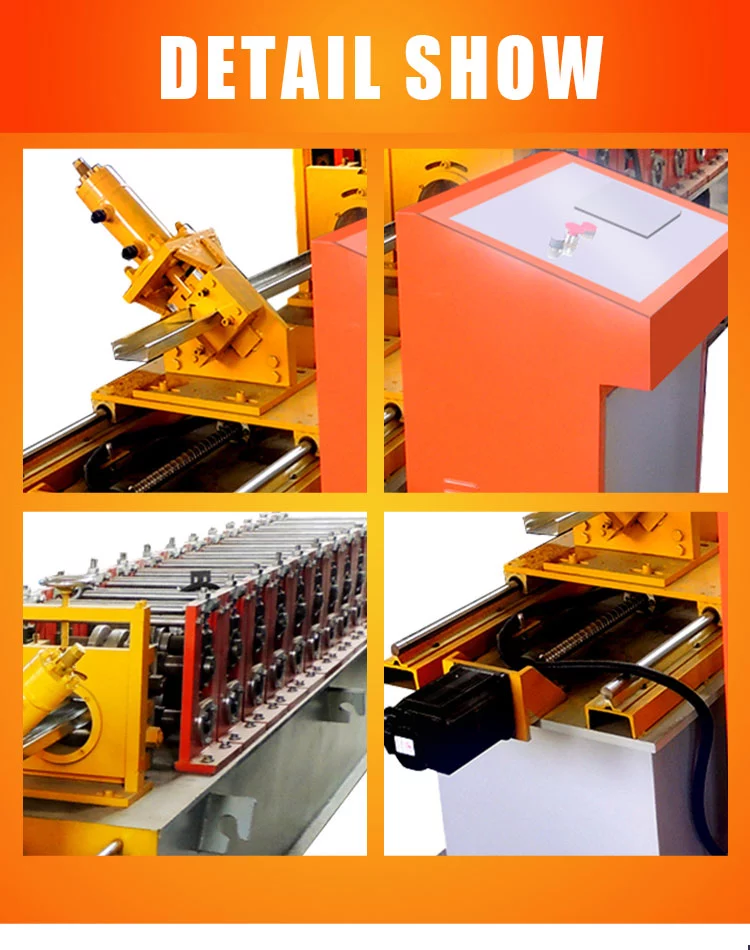

Cutting way	Automatic tracking cutting system with servo motor
Drive	By gear
