Double Layers Metal Color Steel Corrugated And Trapezoid Roofing Tile Roll Forming Machine.

ID:20081417540

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 15000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Metal Color SteelTile Making Machineryroll forming machineroofing sheet machinetiles making machinesroofing sheet making machinescorrugating machineceramic tile making machine door frame machineDouble Layers making machine

Payment Method:

L/CT/TOthers

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

Product Package

Double Layer Roll Forming Machine Main body of the containers naked into the containers,covered with plastic film,spear parts in the wooden box

Specification

6500mmX1600mmX1200mm

Place of Origin

Hebei,China

Port

TianJin Port

Product Description

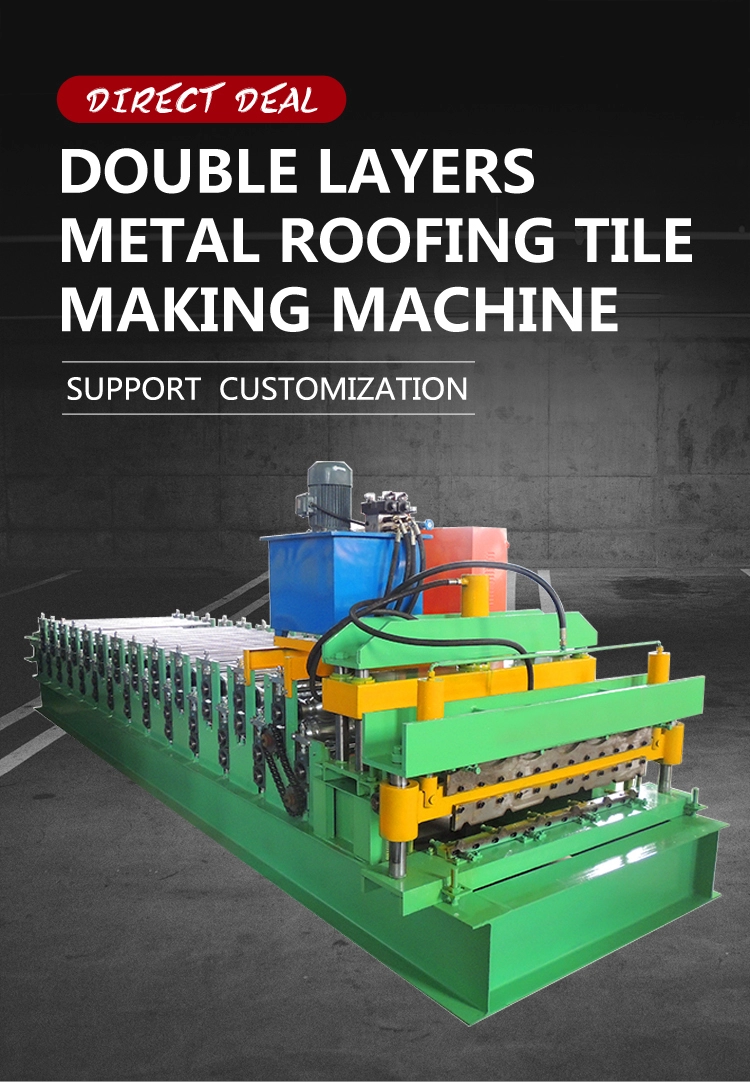

DOUBLE LAYER ROLL FORMING MACHINE
Feeding material	PPGI
Feeding width	1200mm
Thickness of the plate	0.65mm

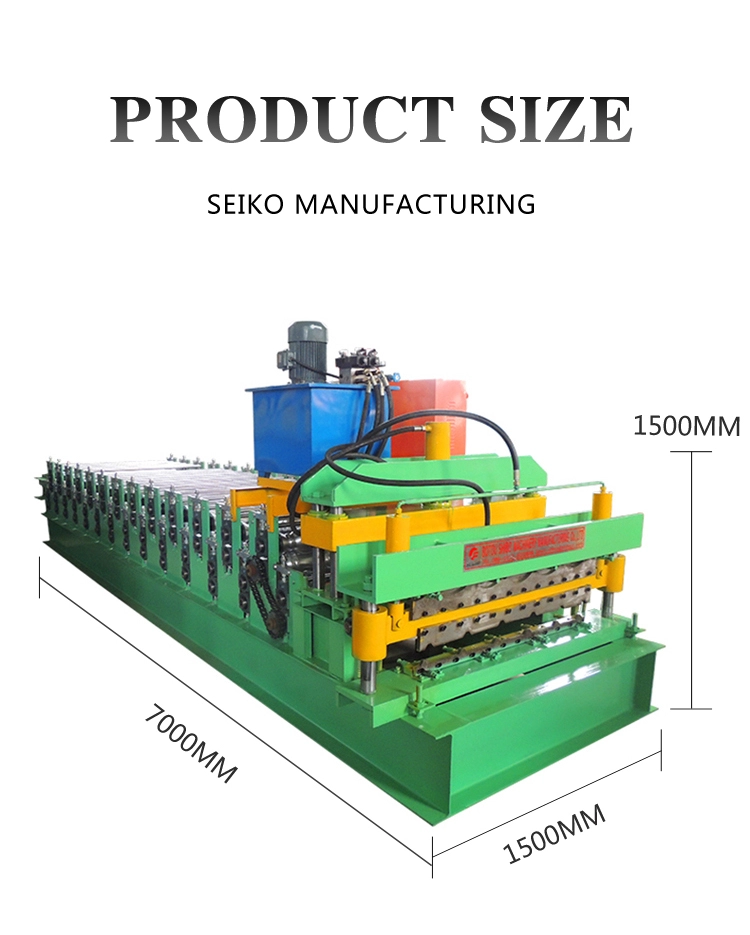

Machine size	about 6500mmX1600mmX1200mm
Diameter of the axle	Φ75mm
Rolling material	Forging Steel 45#
Rolling galvanization thickness	0.05 mm
Rolling stages	13-15stages
Productivity	up layer 0-4 m/min down layer 0-15 m/min
Total power	4 kw +4kw
Voltage	220V 60Hz 3phase or as requirement
Weight	about 4T
Base frame	300H steel
Side board thickness	14mm
Cutting blade	Cr12 with heat treatment
Cutting system	Hydraulic cutting system after forming
Control cabinet	PLC and frequency changer in it

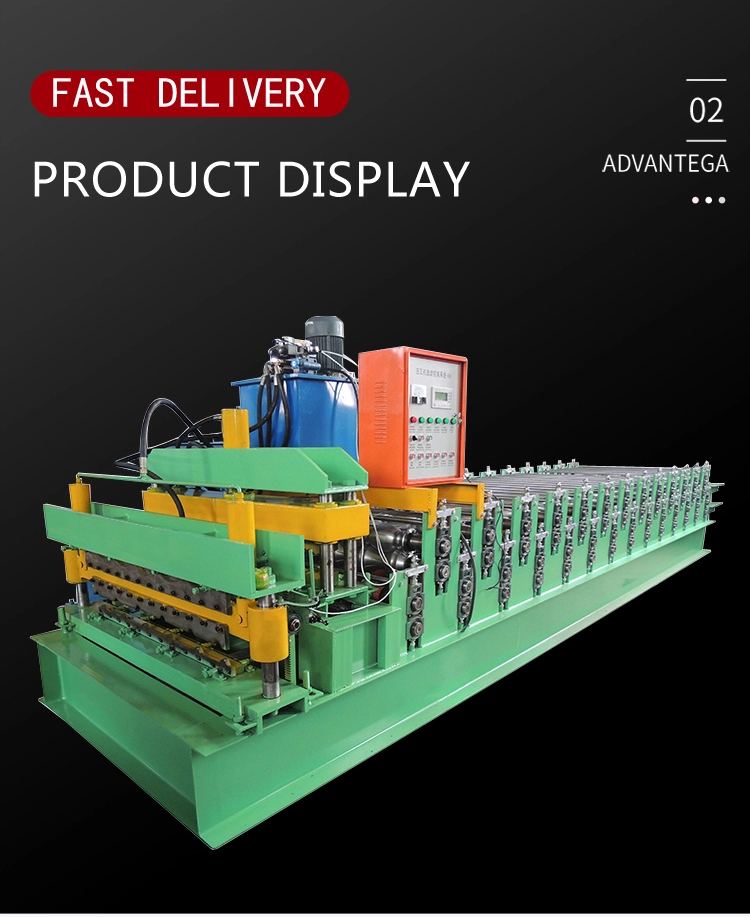

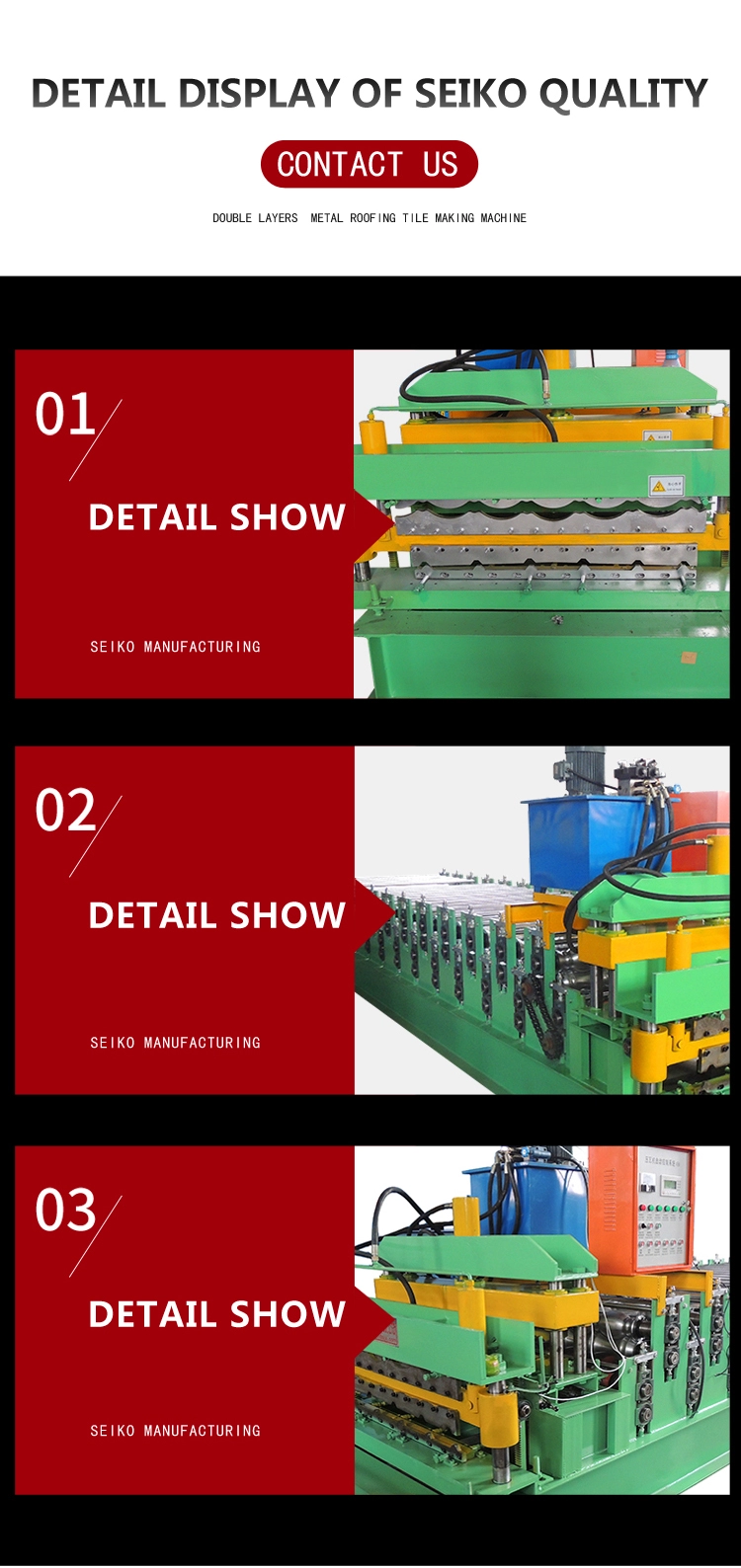

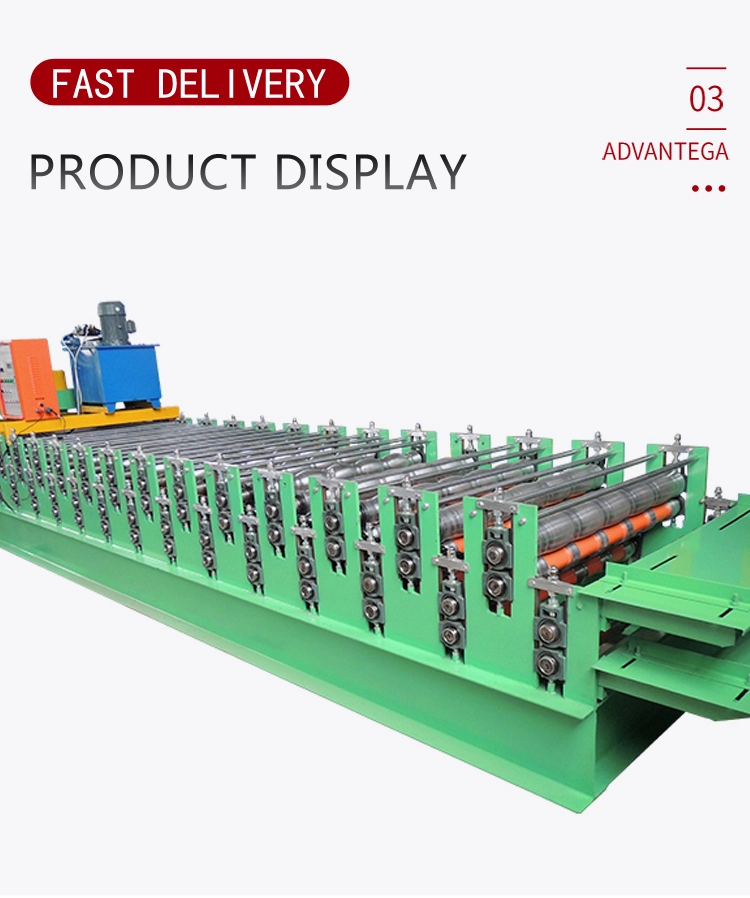

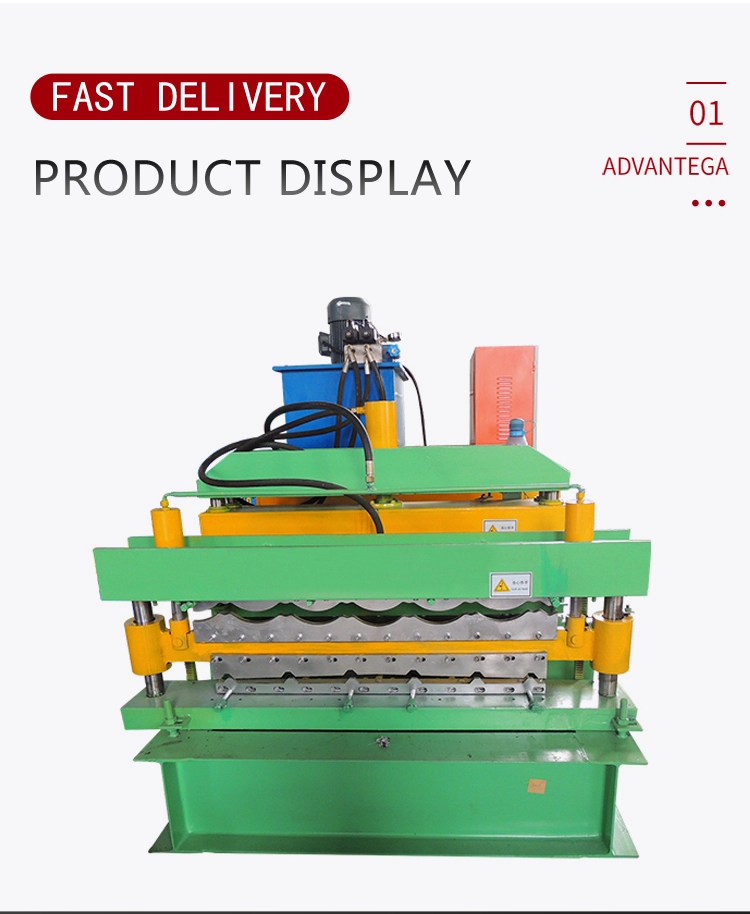

Detailed Images

Company Introduction

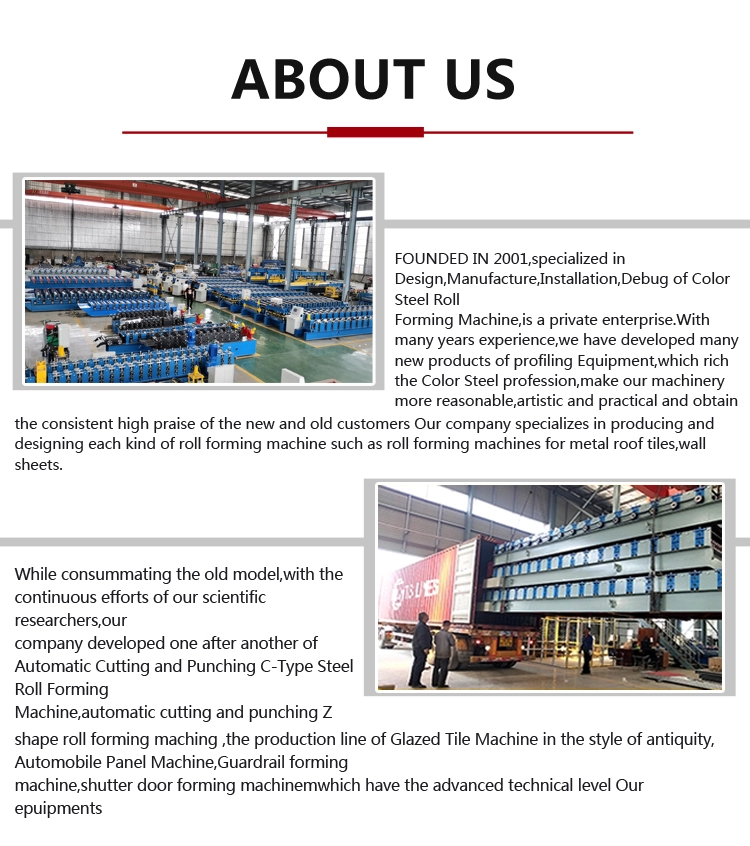

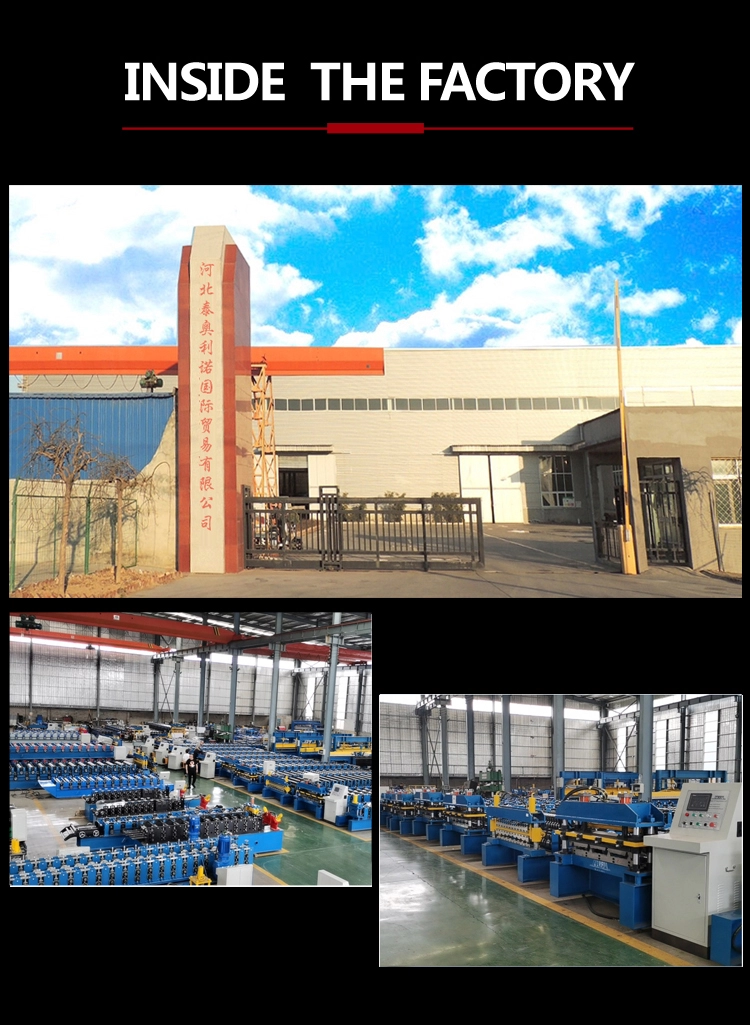

Our factory

We are specialized in various cold forming machineries and automatic production lines.Main products are : roofing/wall panel roll forming machines,tile roll forming machines,C/Z/U purlin roll forming machiens,floor decking roll form ing machines,steel framestruss roll forming machines,pipe roll forming machines,and customeried machiens.
Our products at large scales have been sold to more than 50 countries and regions,for Russia, Myanmar, Mongolia, Rumania, Iraq, south Korea, Canada, Mozambique Bahrain, Bolivia, Angola, Paraguay, Turkey, Sri Lanka, etc. Beautiful appearance, reasonable construction, pretty design of the tile has won the universal appreciation and commendation from the customers all over the world.
Control every detail,do a good job in every product”is regraded as our product quality pursuit.
Set up long term business,found hundred-year brand” is the company's goal. we are sincerely hope to creat a better future with you altogether.

Packing&Shipping

Our services

Technology R&D
We have R&D centers and innovative designing teams for different kinds of production lines.
Quality Control
We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.
After Sale Service
Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
Inspection
Inspected by the Sellers
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
Inspected by the Buyers
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.

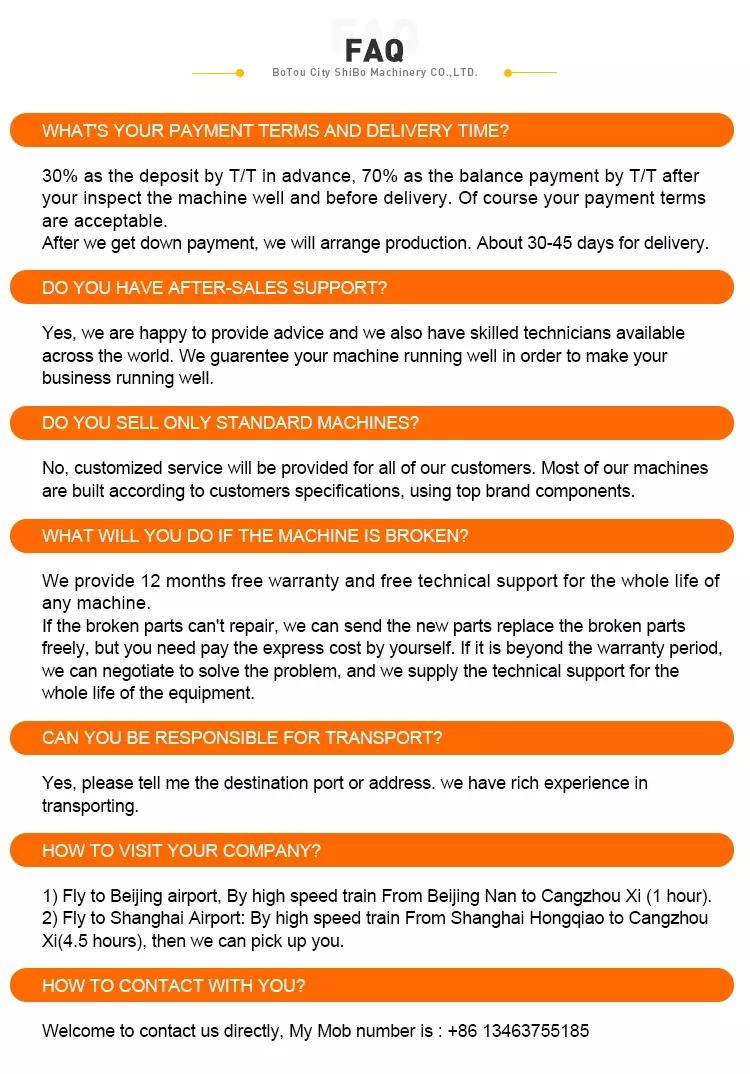

FAQ
