Technical specifications for double lines roll forming machine

  Applicable material GI

  Thickness:0.3-0.5mm

  Product size:According to the drawing

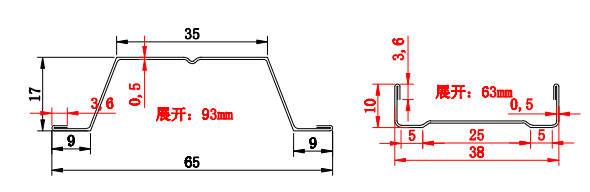

1.Sample Pictures

Profile：Double lines machine

2.Components for the roll forming machine

1. 1.5 tons manual uncoiler = 2 set

2. Roll forming machine = 2 set

3. Hydraulic cutting device = 2 set

4. Control box = 2 set

5. Run out table = 2 pieces

3.Machine Layout and Processing flow

1.5 tons manual Uncoiler  -----  Roll forming machine ------ Measure length ----- Hydraulic Cutting ----- Finished Product ----- Receiving table

4.Roll forming machine

Omega roll stations = 10 stations

Angle roll stations=8 stations

Roller material = Cr12 with quench treatment

Shaft diameter 40 mm

maximum production speed = 0-40 meter per minute

maximum production speed=0-40 meter per minute

Main motor = 4kw

Motor quantity=2 sets

Punching logo before cutting system

Motor brand=Shanghai brand( famous brand in China)

Motor frequency, voltage and phase = 50 Hz, 380V and 3 phase

Transmission by gear

Machine structure = Steel plate welded

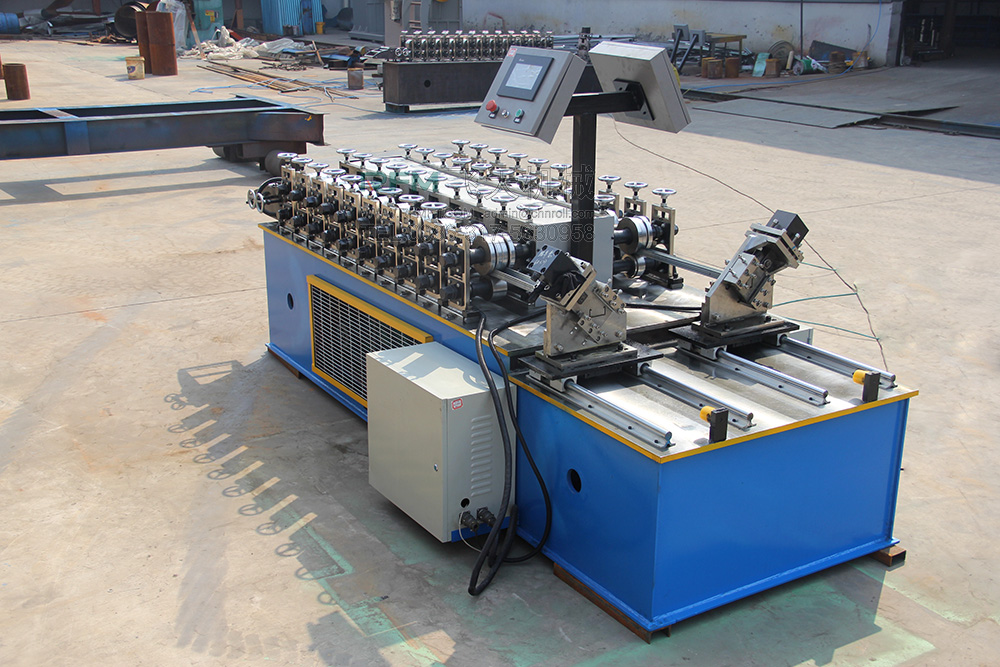

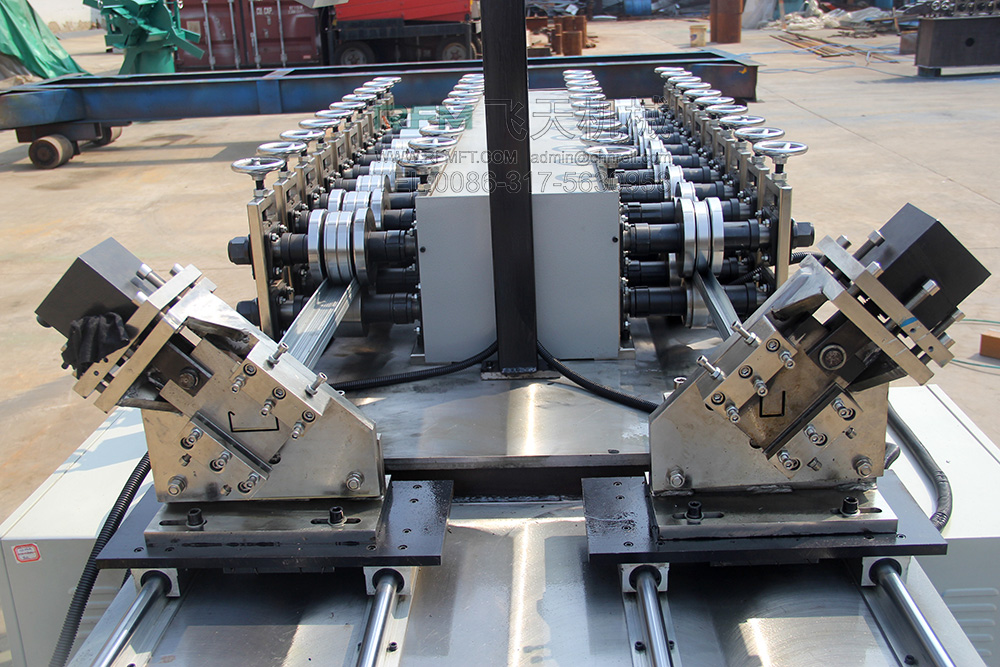

5.Final machine’s photos(Just make for reference)

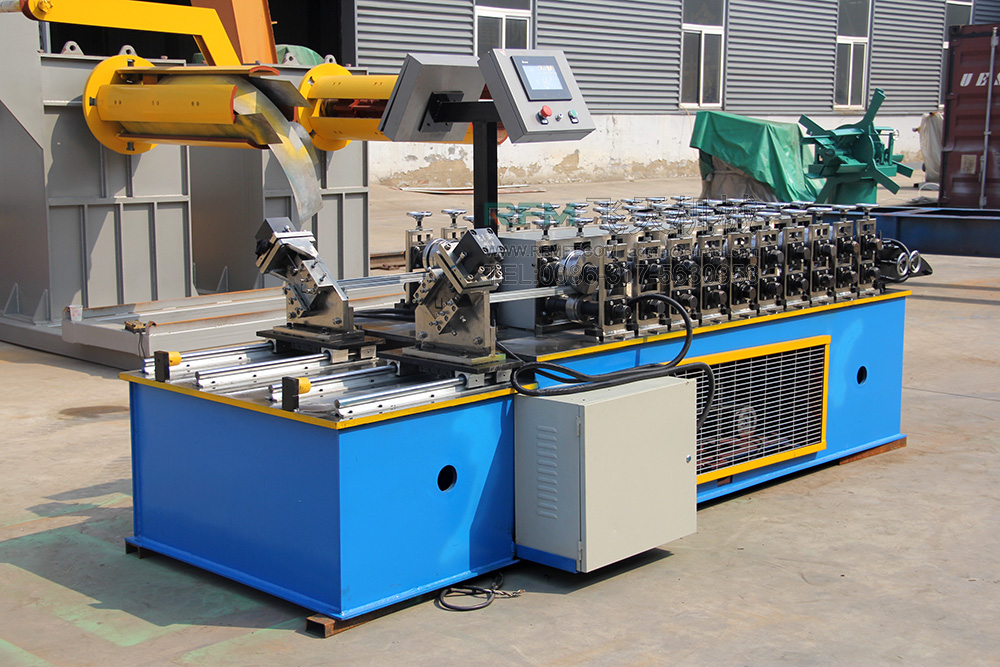

Main roll forming machine

6.Duration and Service

Delivery time : 45 days after the receipt of deposit.

Warranty: 2 years

After-sales service: 24h*7days*1year’s on line and

engineer service overseas

Machine adjusting in customer’s factory

Machine adjusting on video call during Edidemic

7.Contact me

If you are interested in our machine,please contact me with whatsapp 008613582478685.
