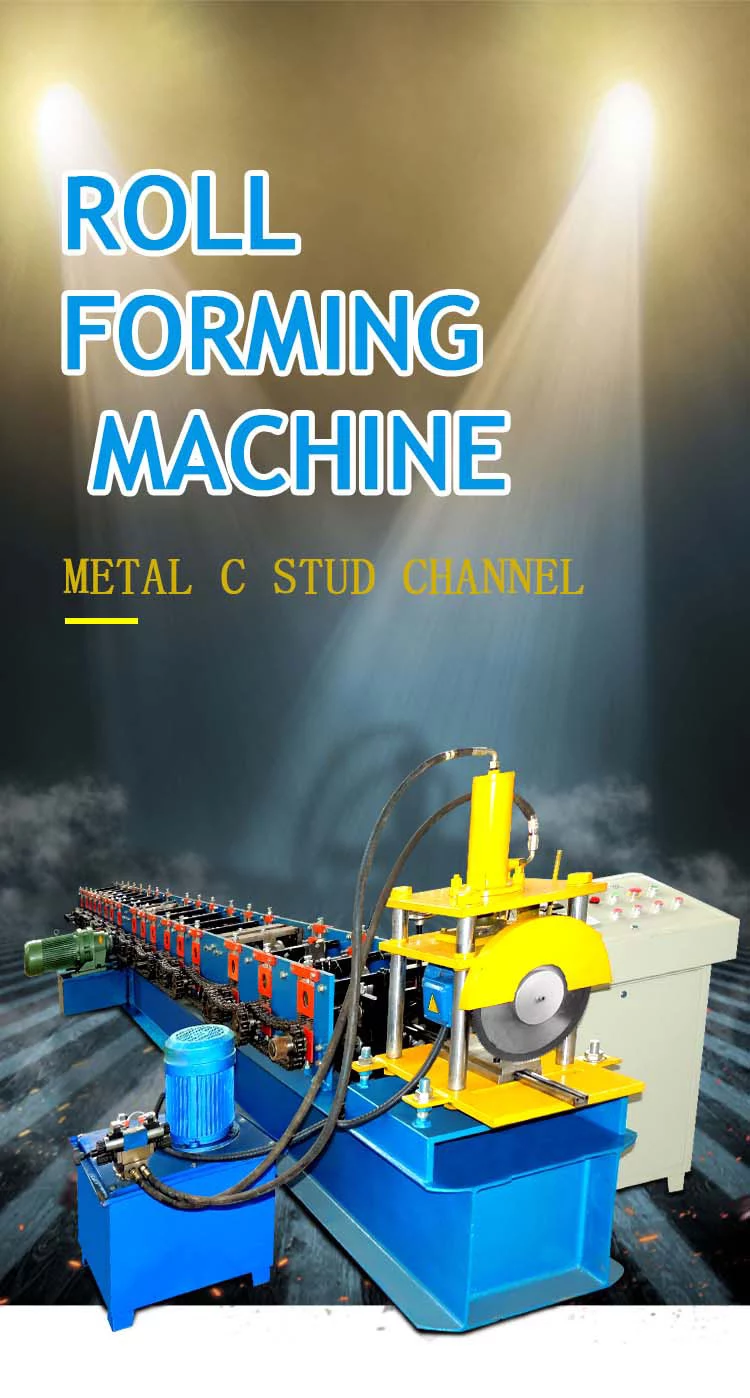

Automatic C Purline Shutter Door Light Gauge Steel Structure Roll Forming Machine

ID:20081417550

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 20000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

c purline roll forming machineshutter door forming machinelight gauge steel structureSteel Frame & Purlin MachinesCZ purlin machineSteel ChannelsStainless Steel ChannelsDoor & Window Framesroll forming machineBuilding Insulation Materials

Payment Method:

L/CT/TOthers

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

Product Package

Naked, with waterproof cloth and stow-wood. The computer controlling cabinet is packed with waterproof cloth and box

Specification

5500*900*1300Mm

Place of Origin

Hebei,China

Port

TianJin Port

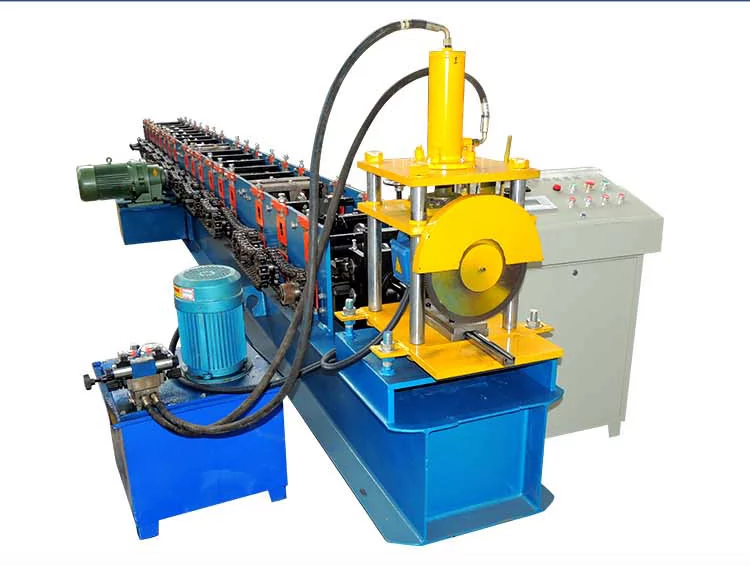

Automatic C Purline Shutter Door Light Gauge Steel Structure Roll Forming Machine

Product Description

Automatic C Purline Shutter Door Light Gauge Steel Structure Roll Forming Machine
Raw material	Galvanized sheet
Thickness of the plate	1.0-2.0 mm

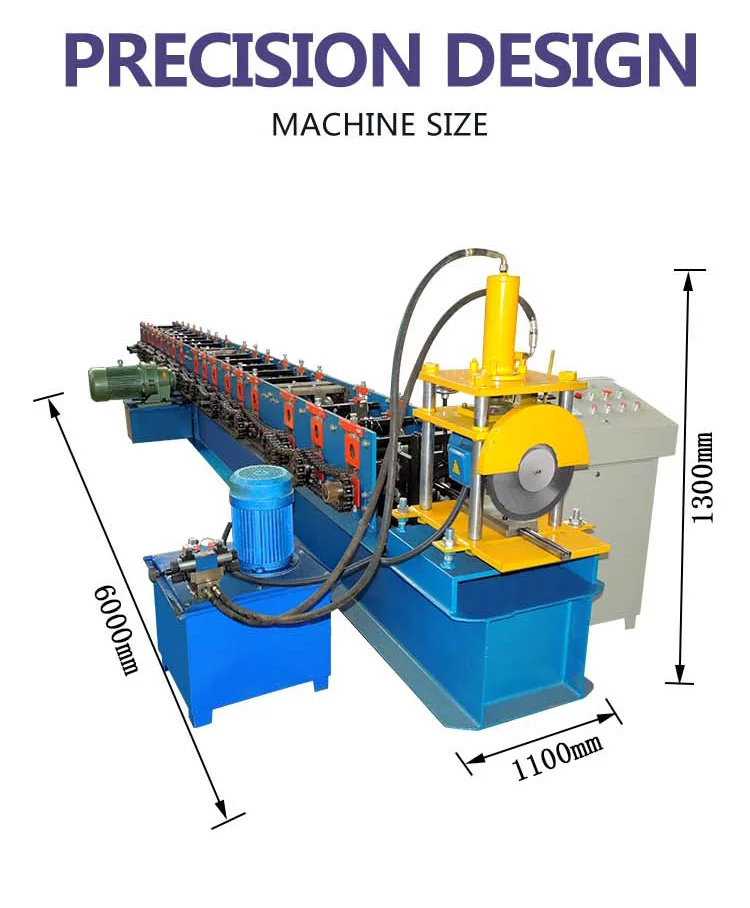

Machine size	55009001300Mm
Material of rollers	Gcr15
Productivity	15-20m/min
Total power	5.5 KW
Voltage	380V 60Hz 3phase or as requirement
Weight	4 T
Cutting blade	Cr12 Mould Steel

The advantages of High Quality Light Gauge Steel Framing Machine are as follows:
1). Easy operation,low maintenance cost
2).help to save material
3).Easy Operate cutting way and lower cost

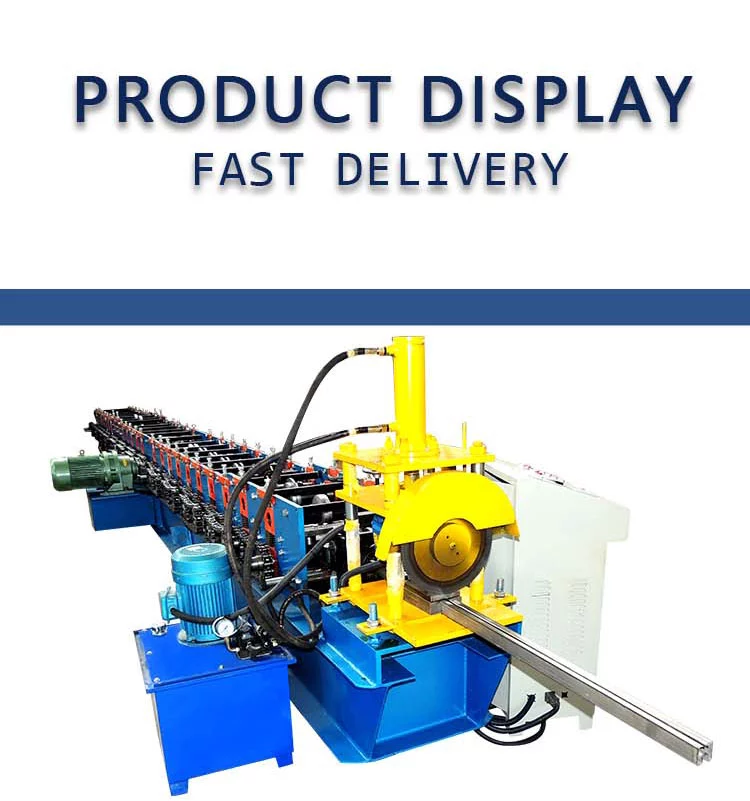

Details Images

1) Automatic Zinc Furring Channel Roll Forming machine Feeding device

2) High Quality Light Gauge Steel Framing Machine

Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 350# H type steel by welding

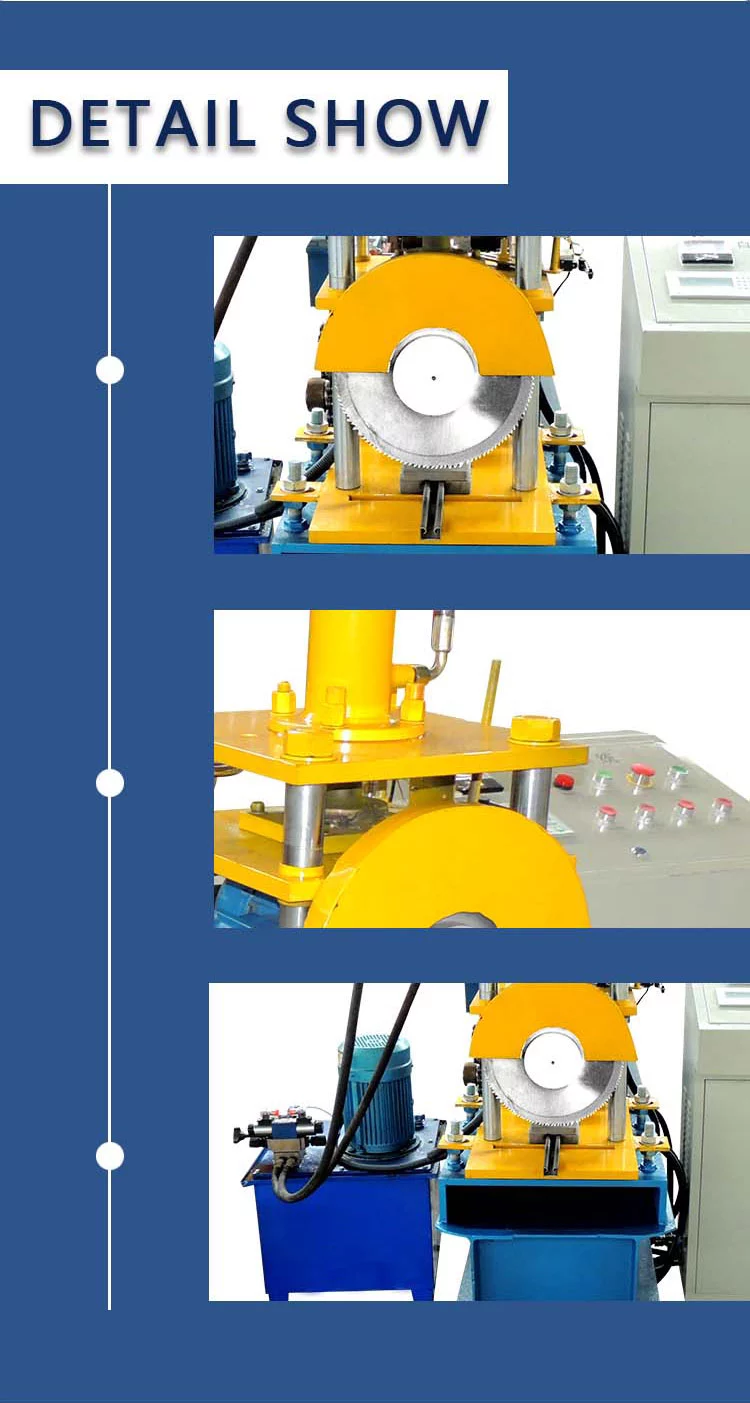

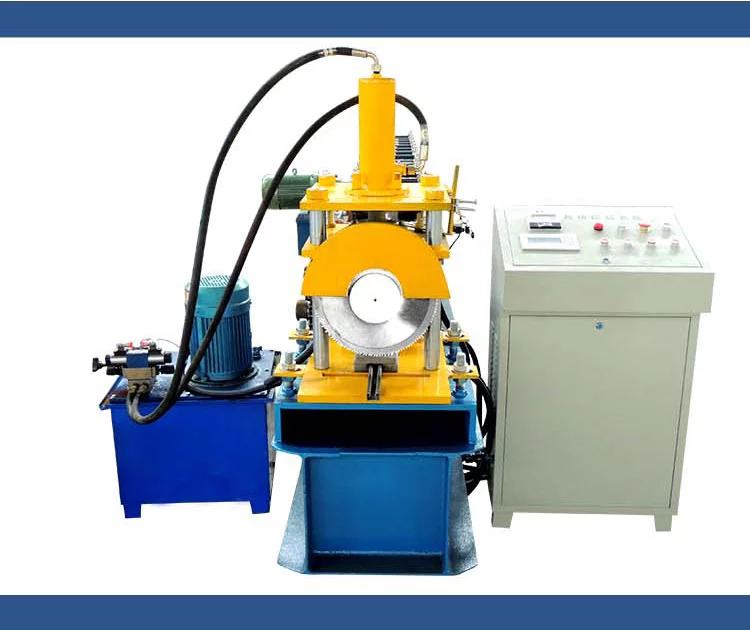

3) High Quality Light Gauge Steel Framing MachineCutter

No need to change cutter for different size,
made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality steel plate by welding
Fly Saw cutting Way
hydraulic motor: 5.5KW, Hydraulic pressure range: 0-16Mpa

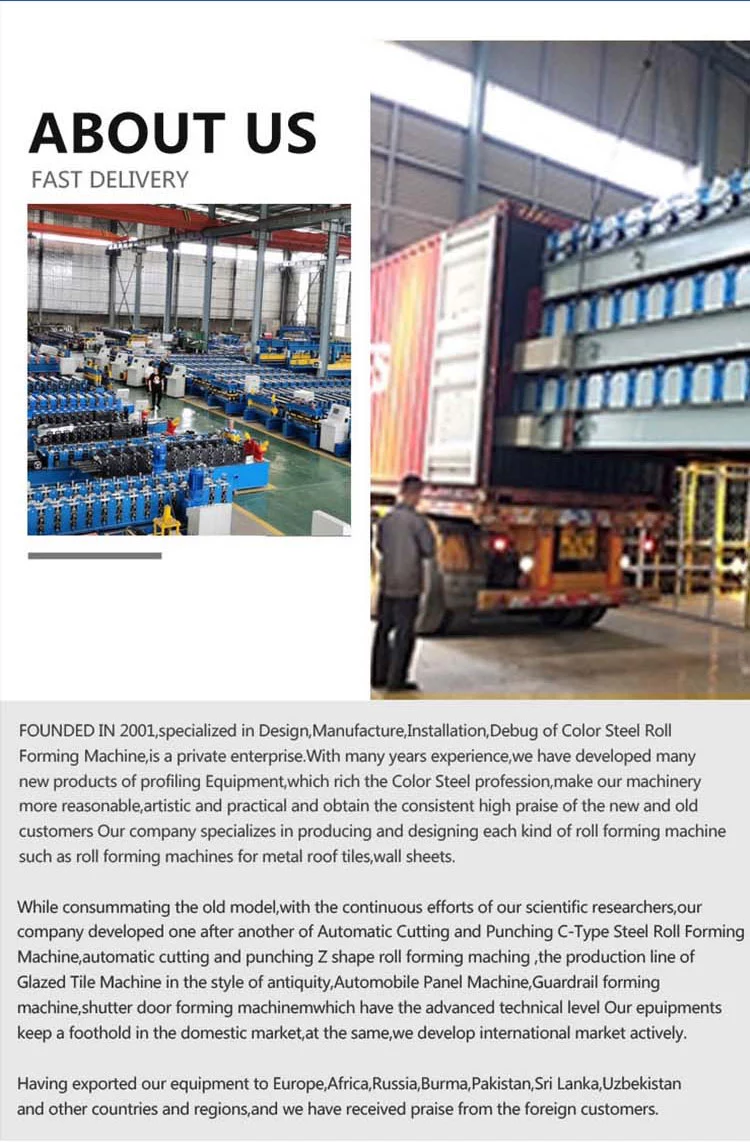

About Us

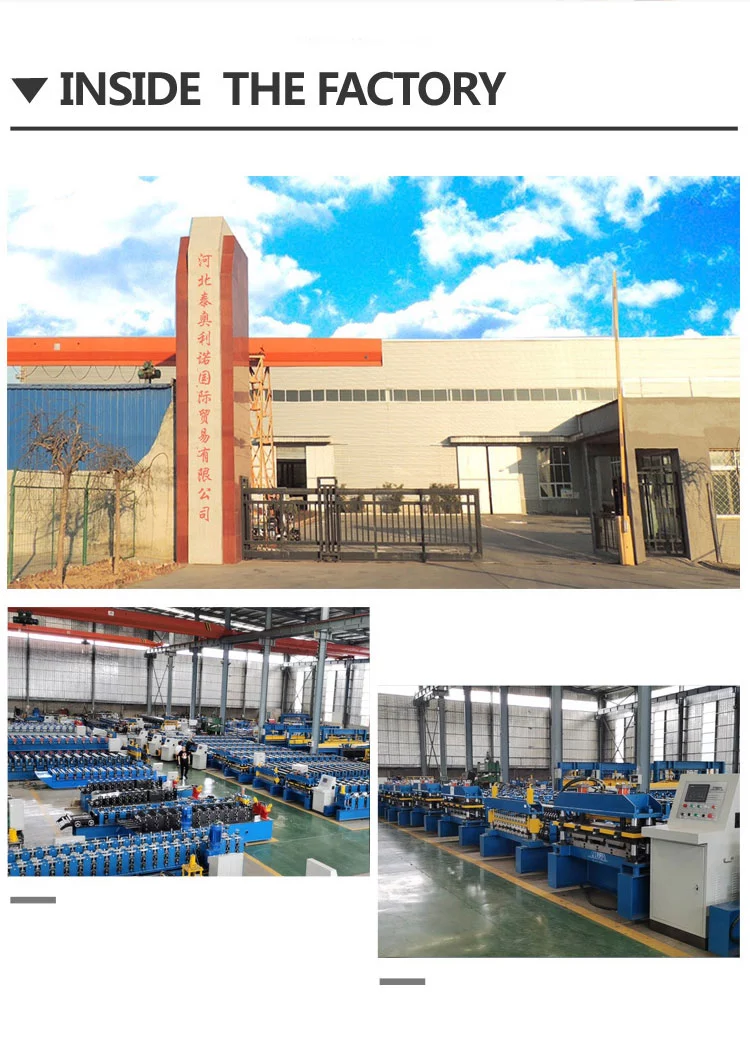

Our factory

We are specialized in various cold forming machineries and automatic production lines.Main products are : roofing/wall panel roll forming machines,tile roll forming machines,C/Z/U purlin roll forming machiens,floor decking roll forming machines,steel frames truss roll forming machines,pipe roll forming machines,and customeried machiens.
Our products at large scales have been sold to more than 50 countries and regions,for Russia, Myanmar, Mongolia, Rumania, Iraq, south Korea, Canada, Mozambique Bahrain, Bolivia, Angola, Paraguay, Turkey, Sri Lanka, etc. Beautiful appearance, reasonable construction, pretty design of the tile has won the universal appreciation and commendation from the customers all over the world.
Control every detail,do a good job in every product”is regraded as our product quality pursuit.
Set up long term business,found hundred-year brand” is the company's goal. we are sincerely hope to creat a better future with you altogether.

Packing&Shipping

Our services

Technology R&D
We have R&D centers and innovative designing teams for different kinds of production lines.
Quality Control
We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.
After Sale Service
Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
Inspection
Inspected by the Sellers
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
Inspected by the Buyers
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the
production lines in our factories.

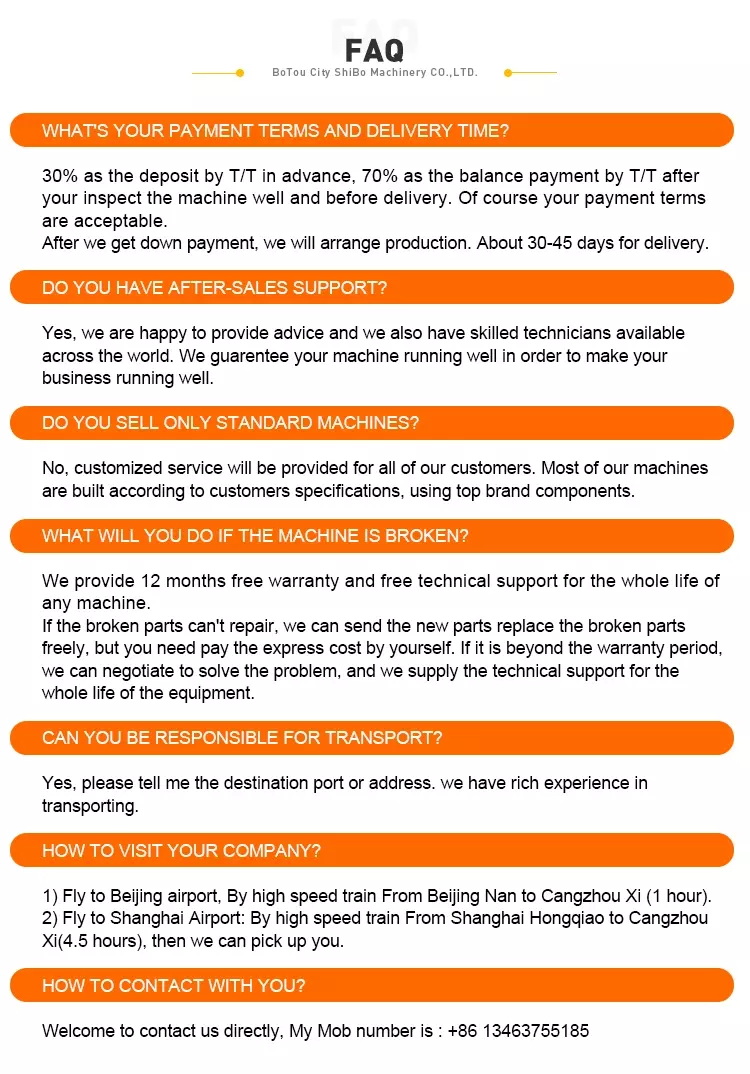

FAQ
