Automatic roofing sheet cz purlin door frame machine

ID:20081417565

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 35000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

door frame machineSteel Frame & Purlin Machinesroofing sheet machineCZ purlin machineShuttlecock light stell frame machineroofing sheet channel machinelight gauge steel framing roll forming machine china roll forming machine

Payment Method:

L/CT/TOthers

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

Product Package

When loading purlin roll forming machine. Main body of the machine are naked into the containers,packaged with plastic film,spear parts in the wooden

Specification

9600x1500x1600mm

Place of Origin

Hebei,China

Port

TianJin Port

Product Description

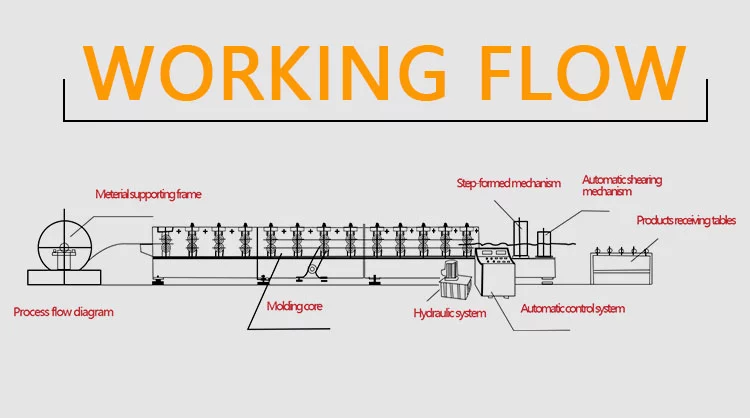

Processing flow:Manual holder—punching—cutter—Roll forming machine—computer control system—hydraulic control system

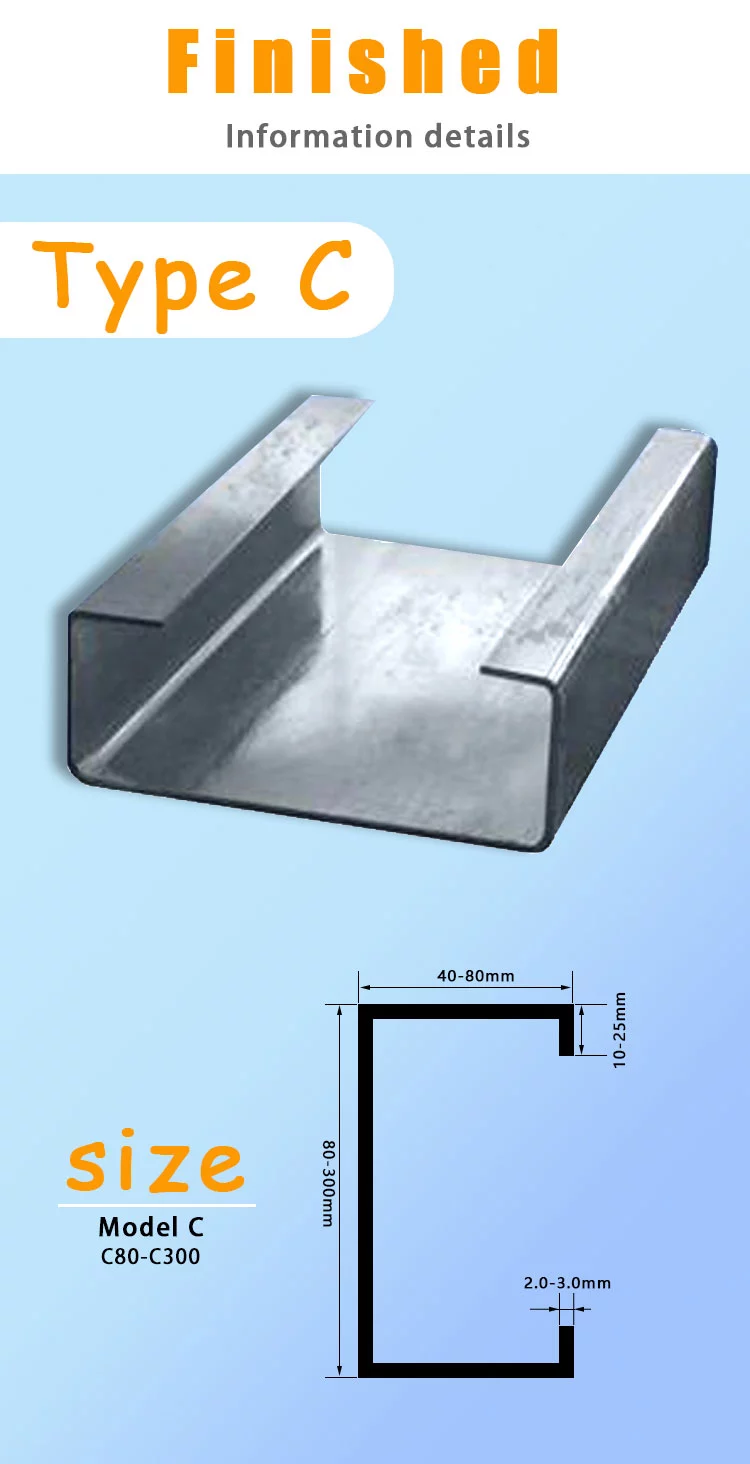

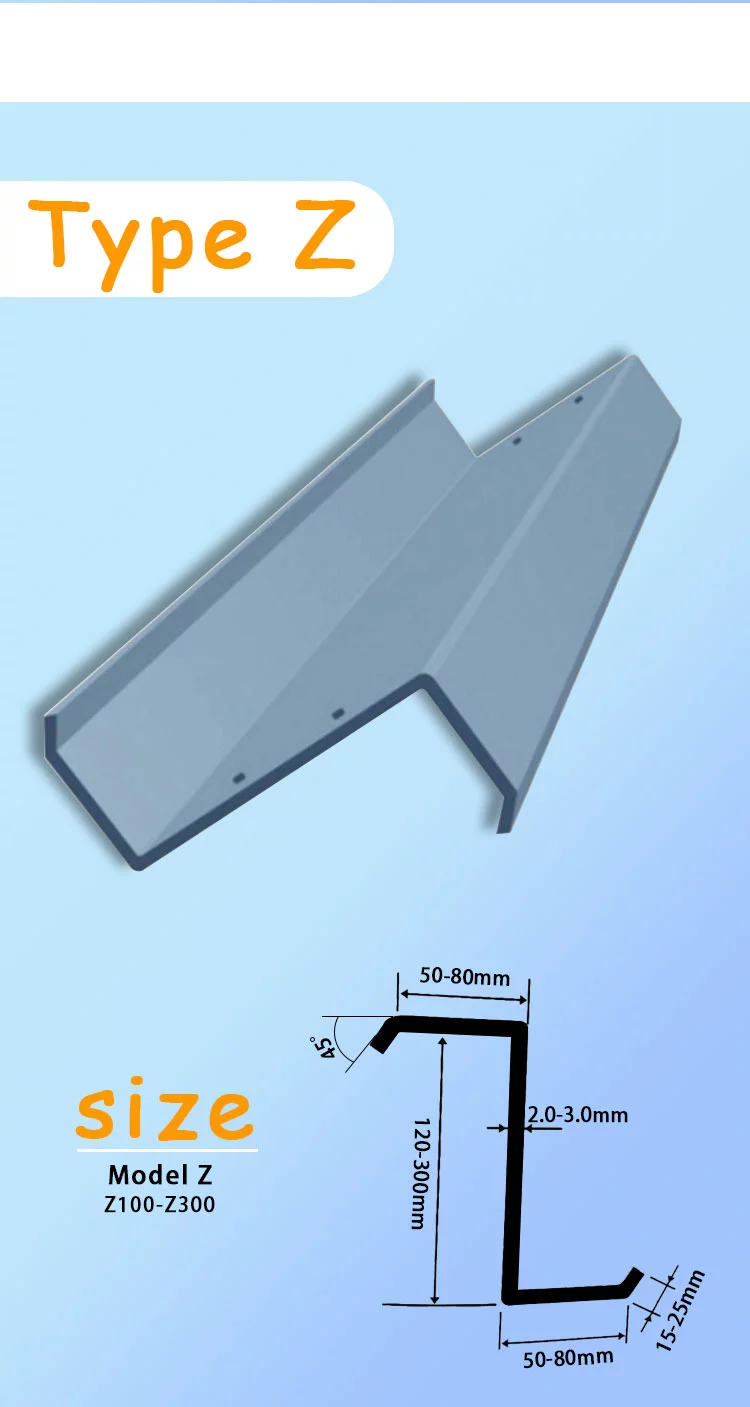

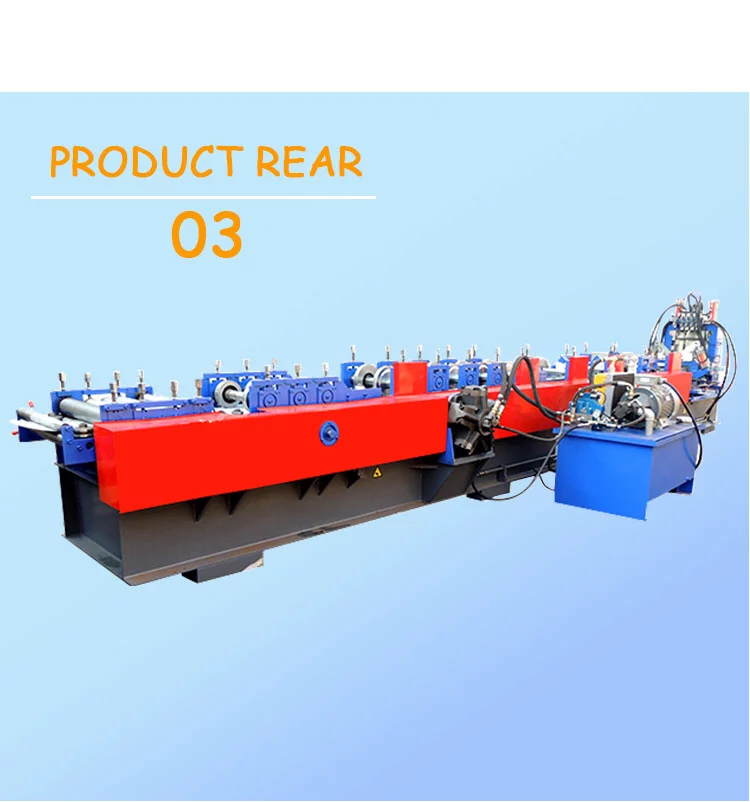

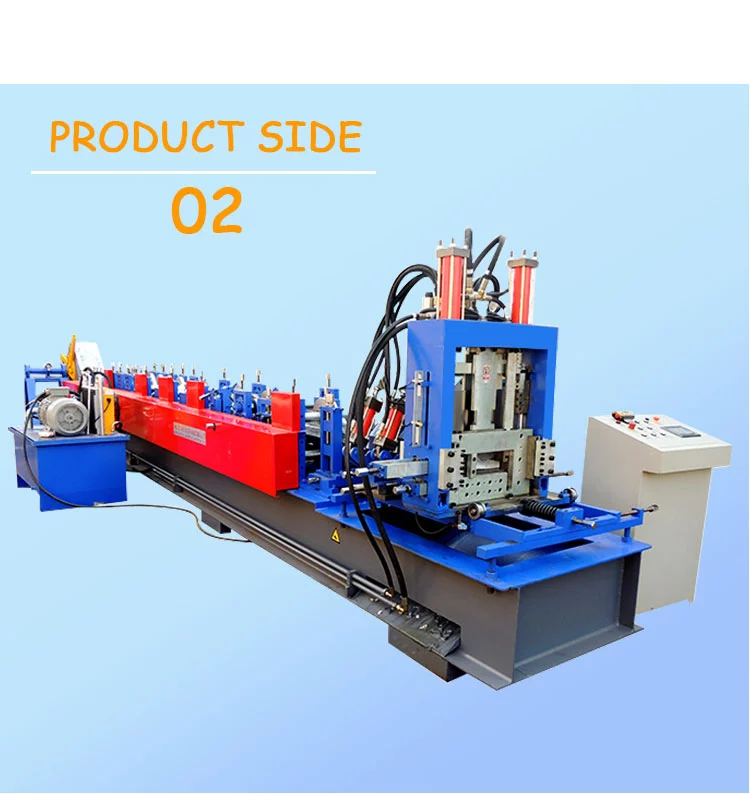

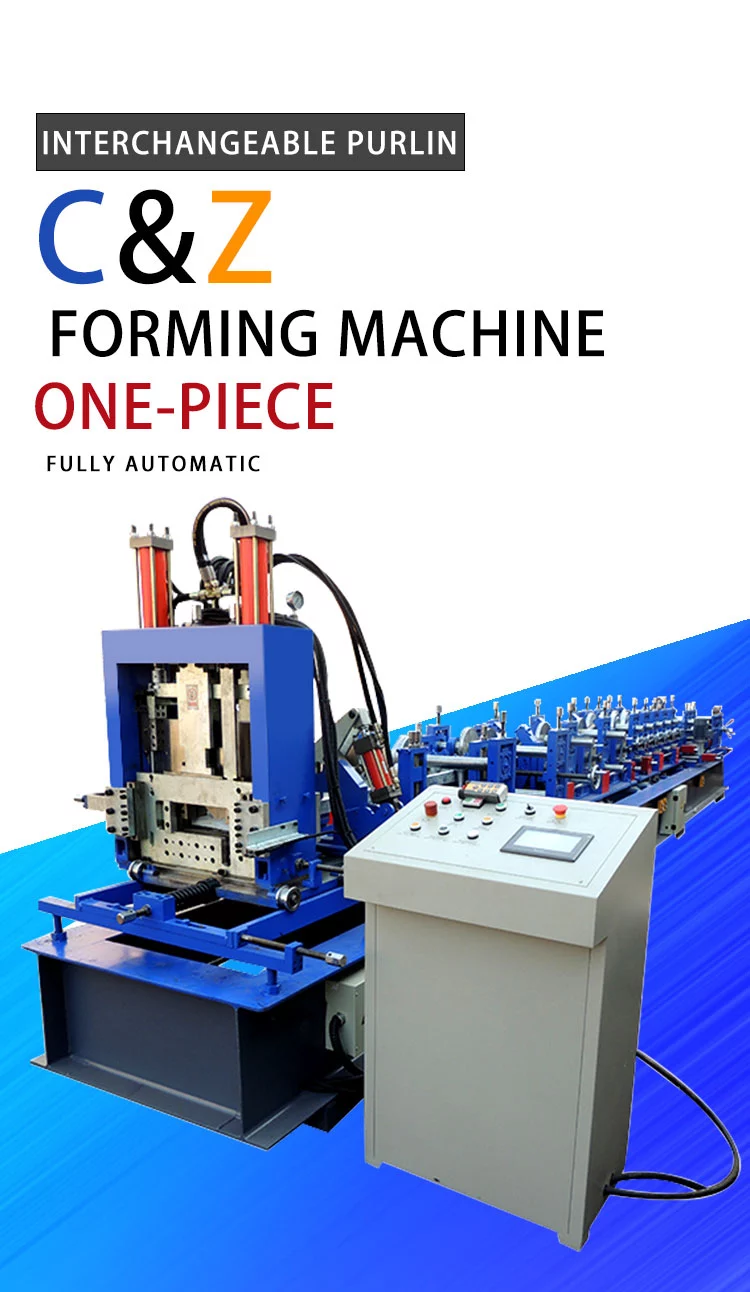

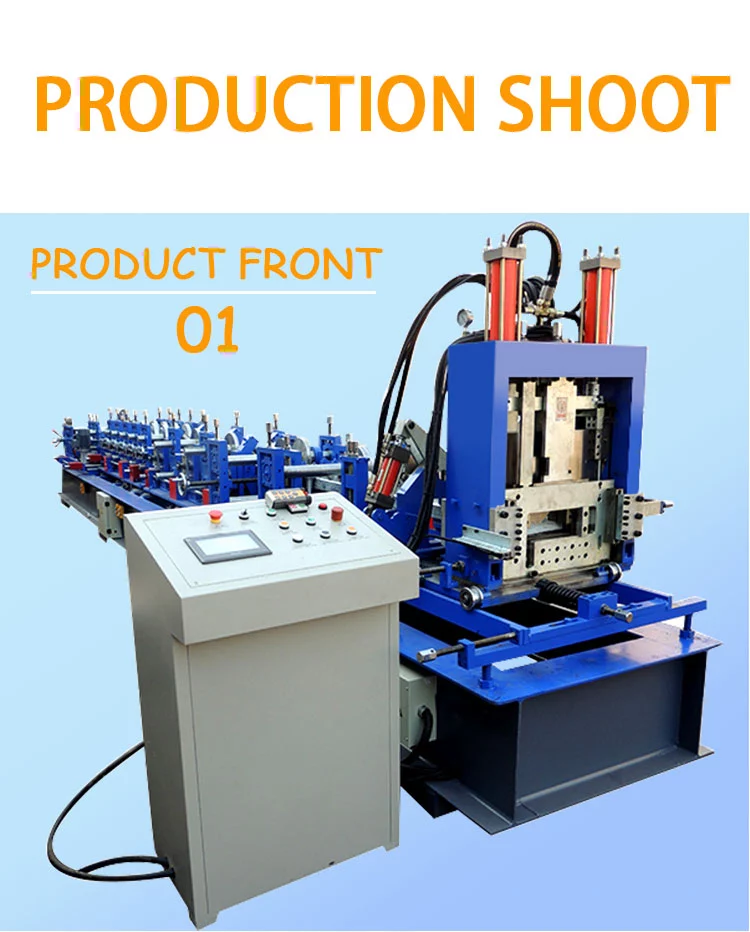

C&Z PURLIN ROLL FORMING MACHINE
Feeding material	Galvanized steel coil
The steel coil thickness scope	Within 3mm
Total power	22kw motor
Voltage	380v / 60hz / 3 phases

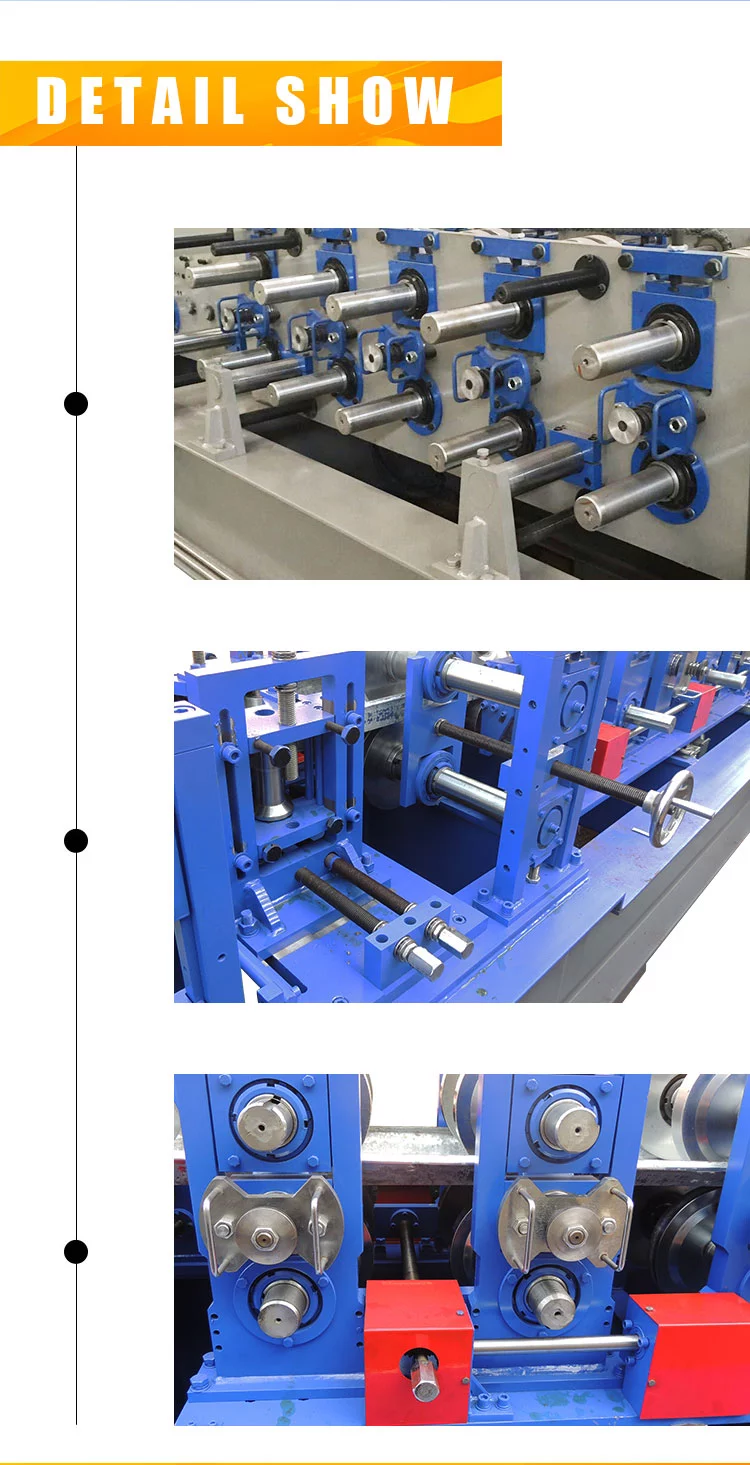

Number of forming rollers	18 steps
Working speed	About 25m/min(depend on holding)

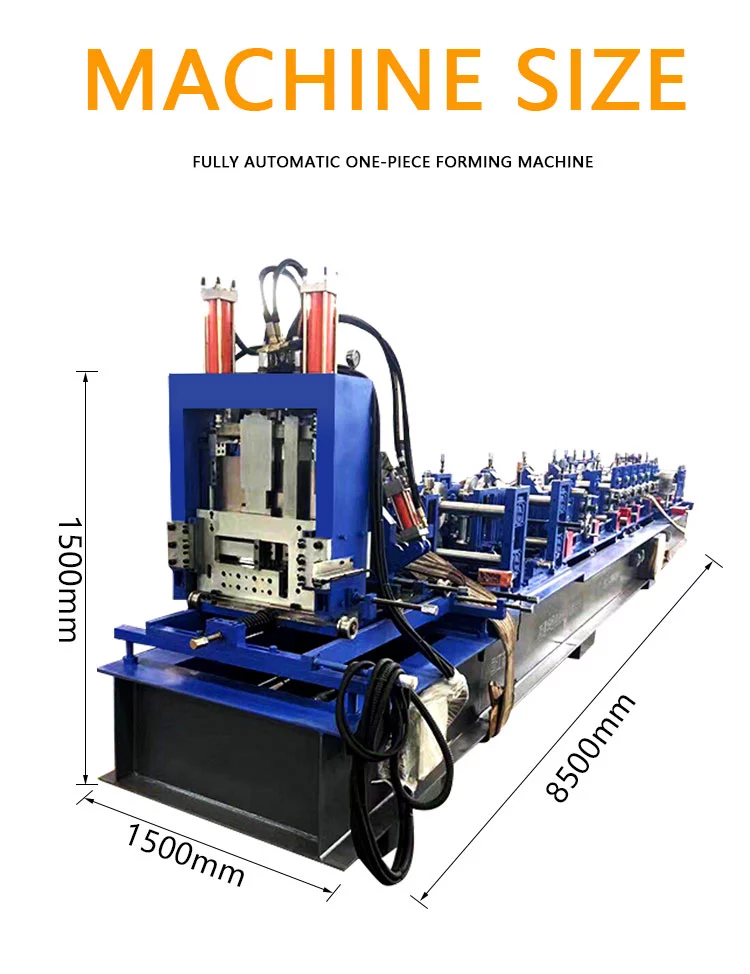

Machine size	9600x1500x1600mm
Machine weight	9.6tons
Punching device	Hydraulic punching device for punching hole
Control system	PLC control system + hand touch screen
Control system language	Chinese/English/Russian
The C and Z inter change	Changed by rotated device
The C or Z size change	Changed by a converter motor.

Features:
Punching is added to the flying saw cutting part, by the hydraulic control, mainly in the red c-shaped steel in the hole based,
can be set up according to their needs, can be washed from time to punch, simple to use.

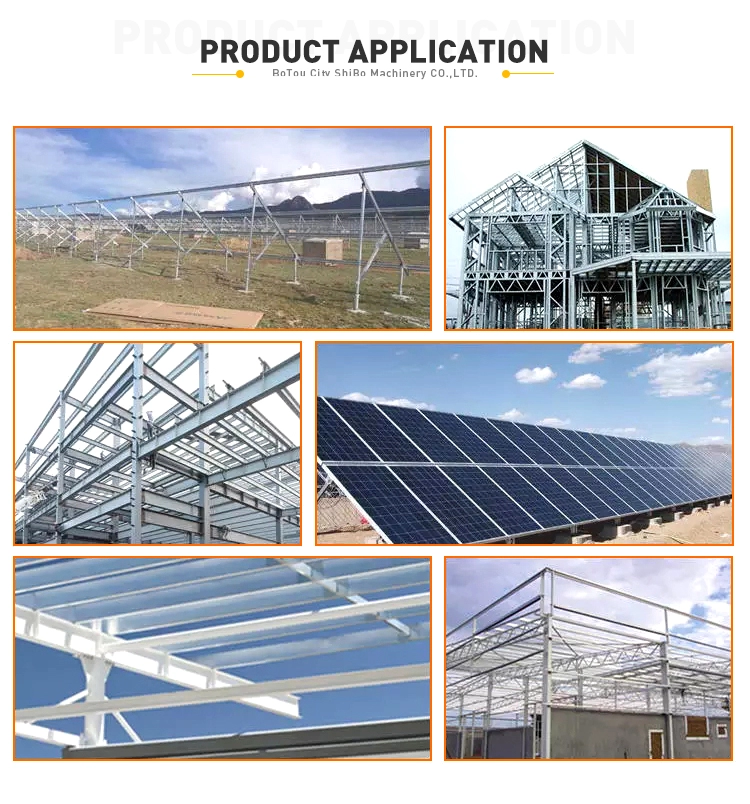

Application

This Galvanized Iron Roof Sheet Rolling Machine wide application. It produce building material so It is usually use for construction. To be more precise that's widely used in various industrial factory ,beauty spot, holiday village building,hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.
