Galvanized Color Steel Tile Roll Forming Machine Roofing Panel Roll forming Line

ID:20081417626

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 11000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Tile Making MachineryRoof Tilesroll forming machineGalvanized tile making machinecolor steel tile machinePanel Roll forming Linewall panel making machineroofing sheet machineroofing sheet making machinesRoof Sheets

Payment Method:

L/CT/TOthers

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

Product Package

Glazed Roofing Tile Roll Forming Machine the packing of ibr roll forming machine is container or according to the needs of the customer

Specification

6500*1300*1500mm

Place of Origin

Heibei,China

Port

TianJin Port

Product Description

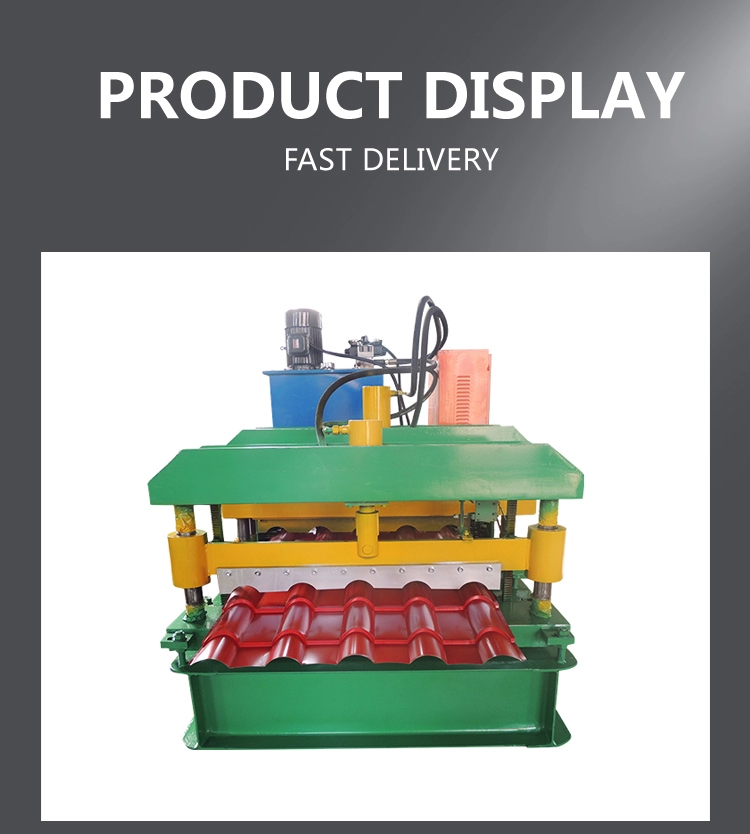

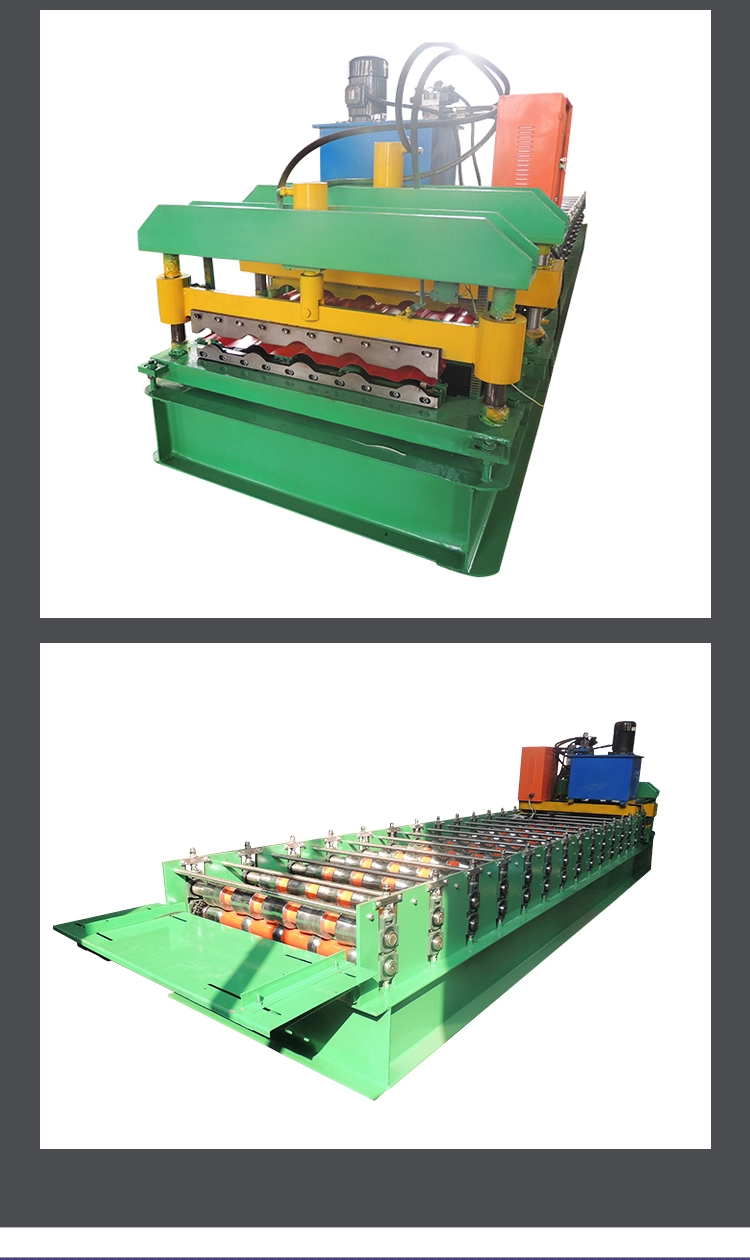

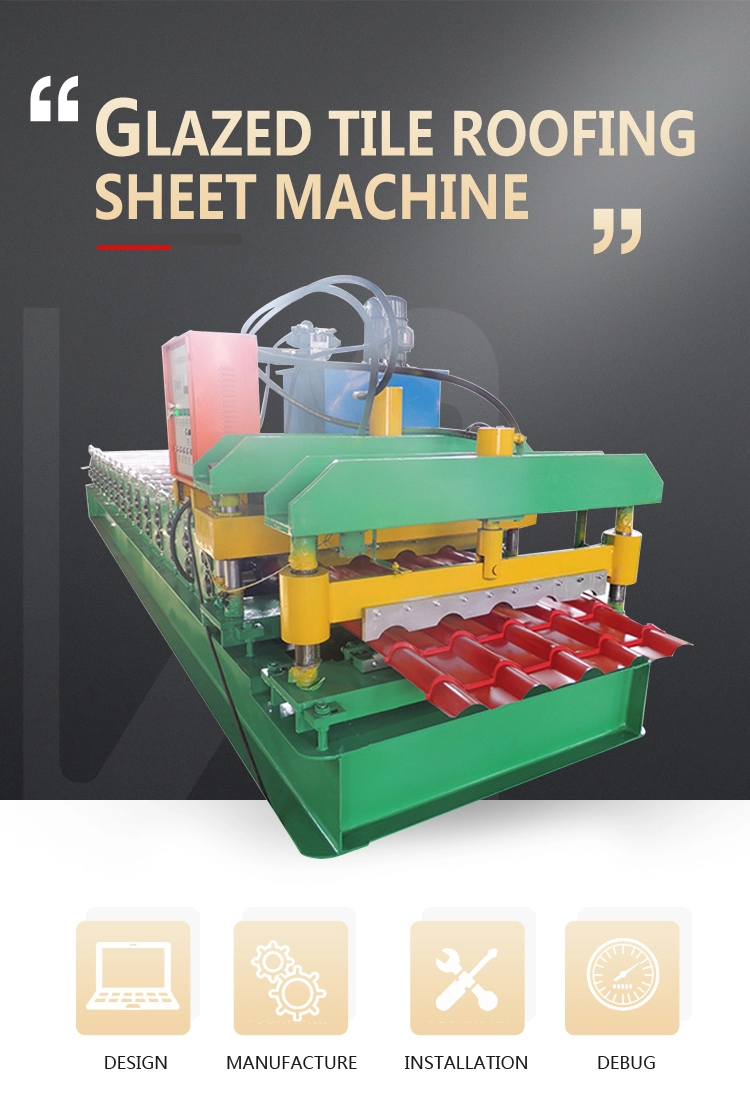

Galvanized/Aluminum Roof Sheet Glazed Tile Roll Forming Machine
Feeding material	PPGI
Thickness of the plate	0.3-0.8mm

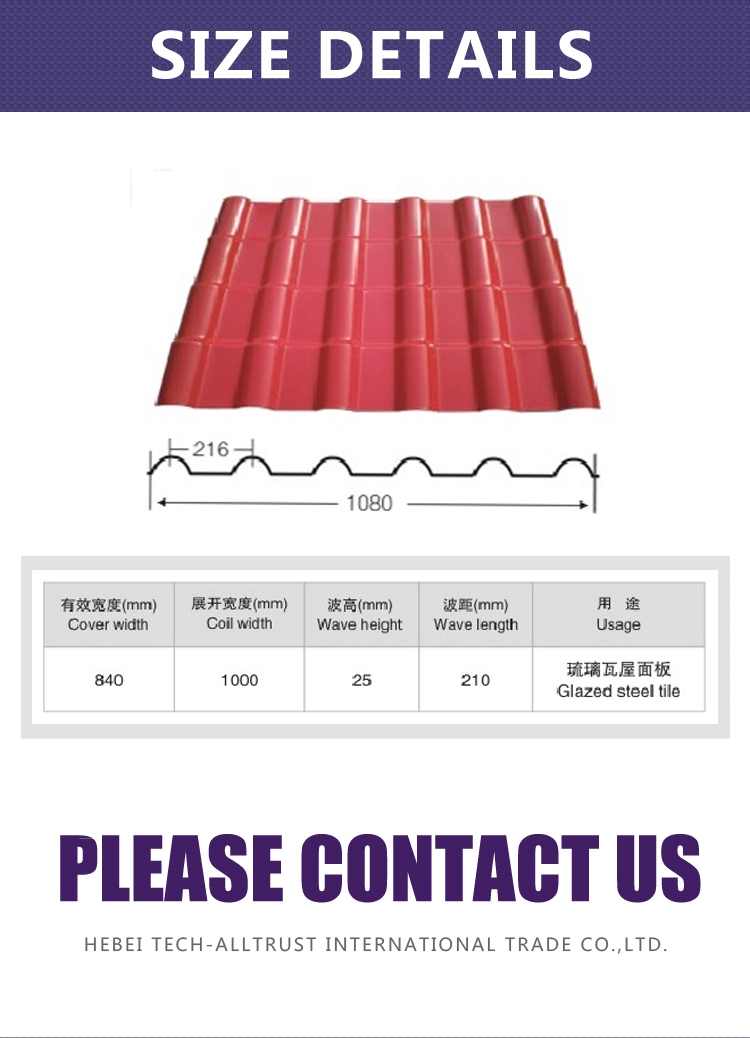

Coil width	914/1000/1200/1220/1250mm

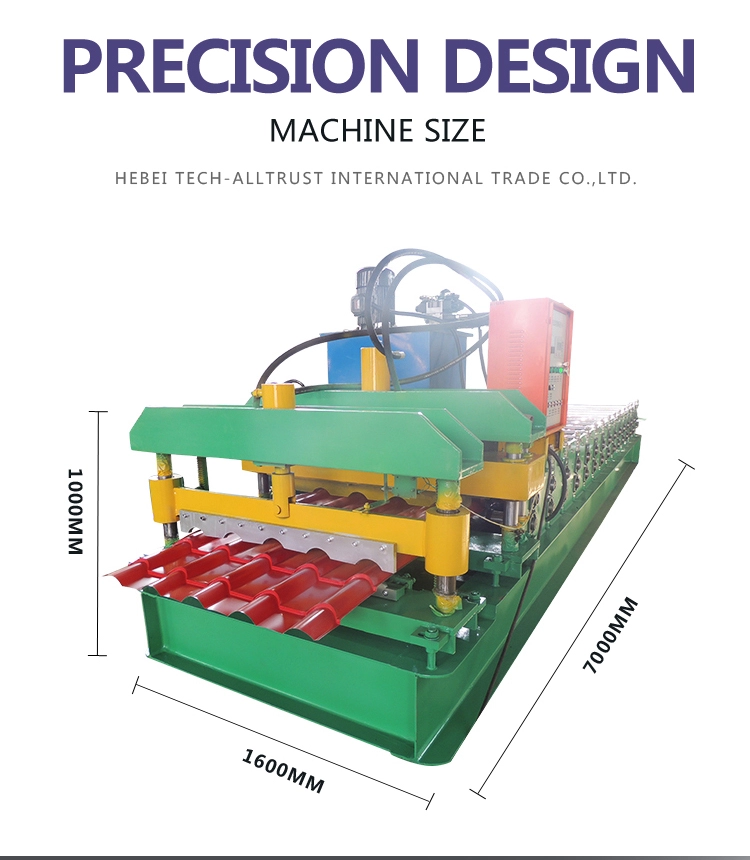

Machine size	about 7000mmX1600mmX1000mm
Diameter of the axle	Φ70/Φ75mm
Rolling stages	15-18 stages
Productivity	8-12m/min
Total power	4kw machine motor +4 kw pump station motor
Voltage	220V 60Hz 3phase or as requirement
Weight	about 4.5T

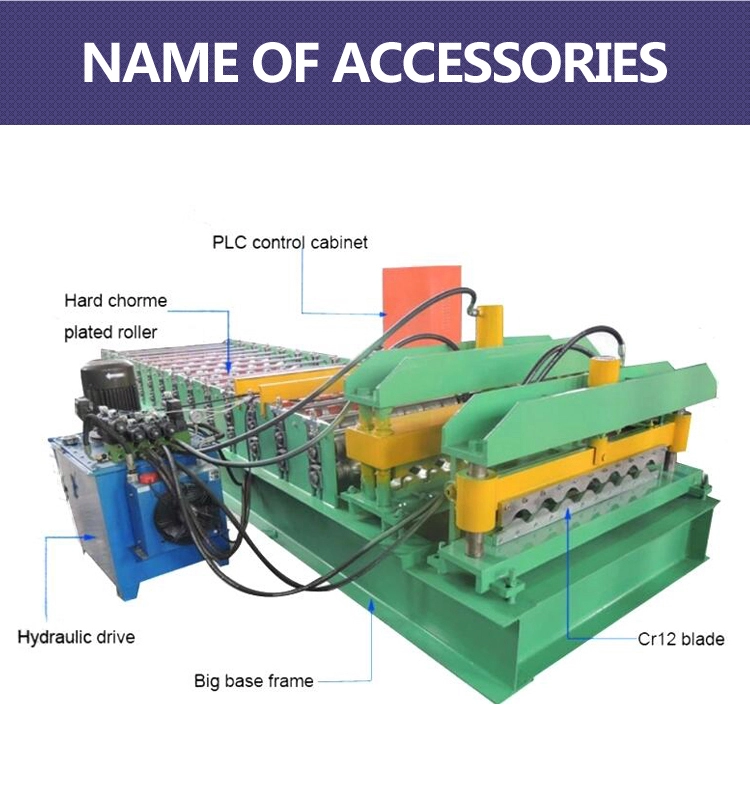

Base frame	300H steel
Side board thickness	16mm
Cutting blade	Cr12 with heat treatment
Cutting system	Hydraulic cutting system after forming
Control cabinet	PLC and frequency changer in it
