Golden Integrity Roll Forming Machine Co.,Ltd
We, Botou Golden Integrity Roll Forming Machine Co., Ltd, as a high and new technology enterprise,was established in 1995, and since then we have been engaged in developing and manufacturing in cold roll forming industry.
Our company is organized and run as a modern enterprise system. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.
We are not only offer customers a wonderful machine for making, but also the abundant experience, precision making, stable automatic manufacture by hydraulic power, hi-tech control system, and our enthusiasm.
Please have a look for the reference.

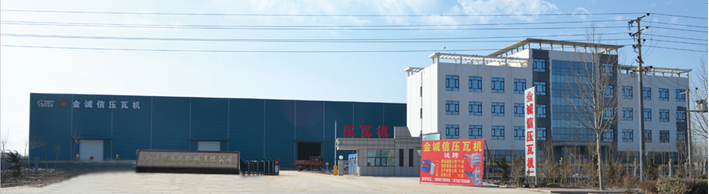

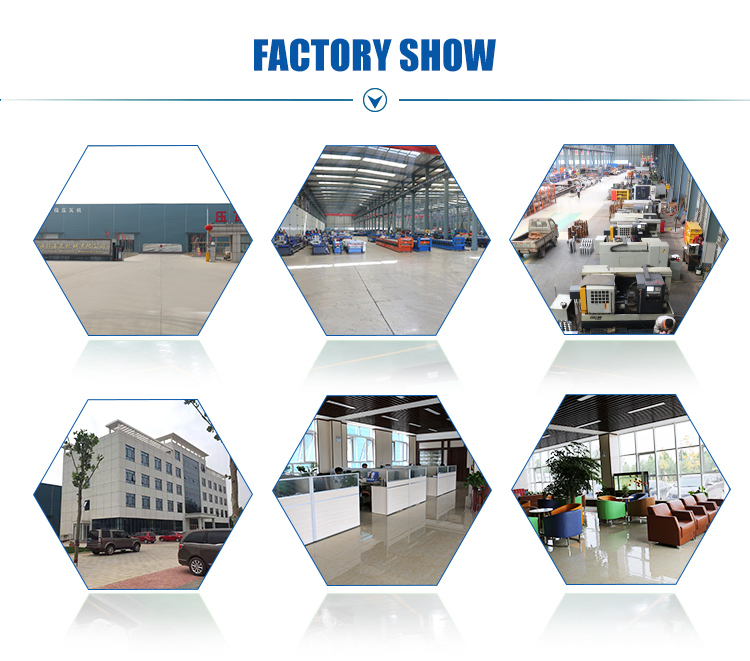

Our factory:
Machine technical parameters:
| Item. | Parameters(we can design accoding to customer requirement) |
| Control System | PLC Delta Inverter |
| Diameter of the shaft | 70mm |
| Wall panel thickness | 18mm |
| Driving mode | Chain 1 inch |
| Main motor power | 55 kw |
| HydraulicPressure | 12-16MPa |
| Roller stations | 16 rows |
| Pump power | 4 kw |
| Main electrical control system | Panasonic PLC, Delta frequency changer, Delta touch screen, Omron counter |
| Frame | Welded with 350H section steel |
Detailed description:

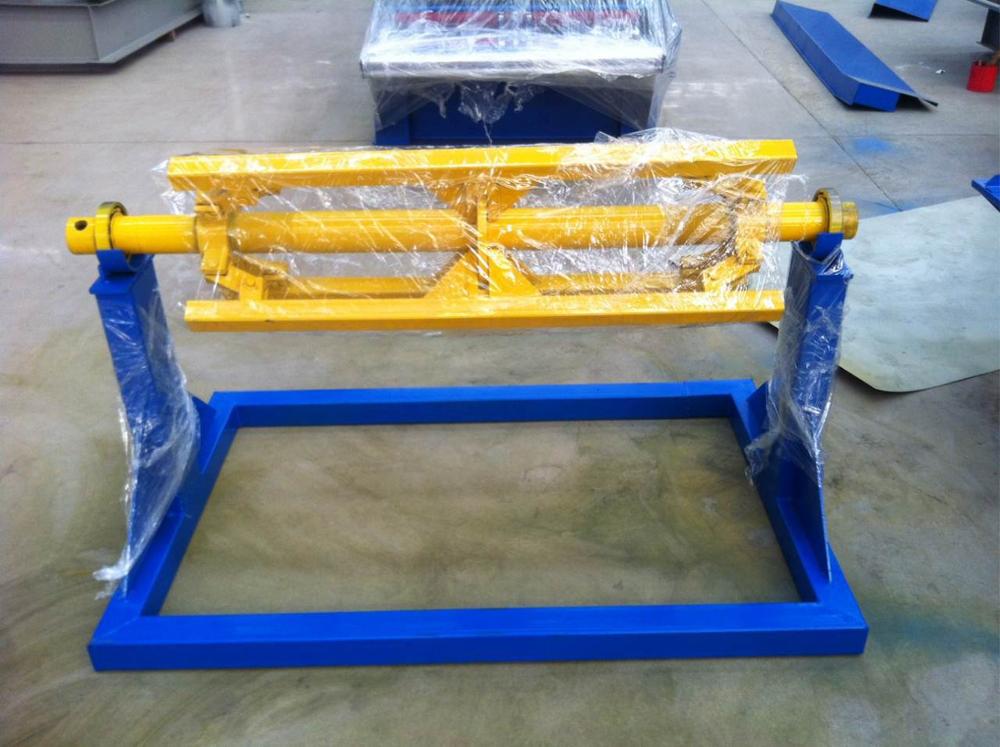

1.5T manual decoiler
Features: Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement. Power: None; Power of the open and closure of segments: Mechanical; Power of rotation of segment: Pull by forming system; Number of segment: 4pcs; Range of segment expansion: 460 ~ 520mm; Height of center of the mandrel: 0.65m; Feeding speed: depend on the roll forming machine speed; |
|

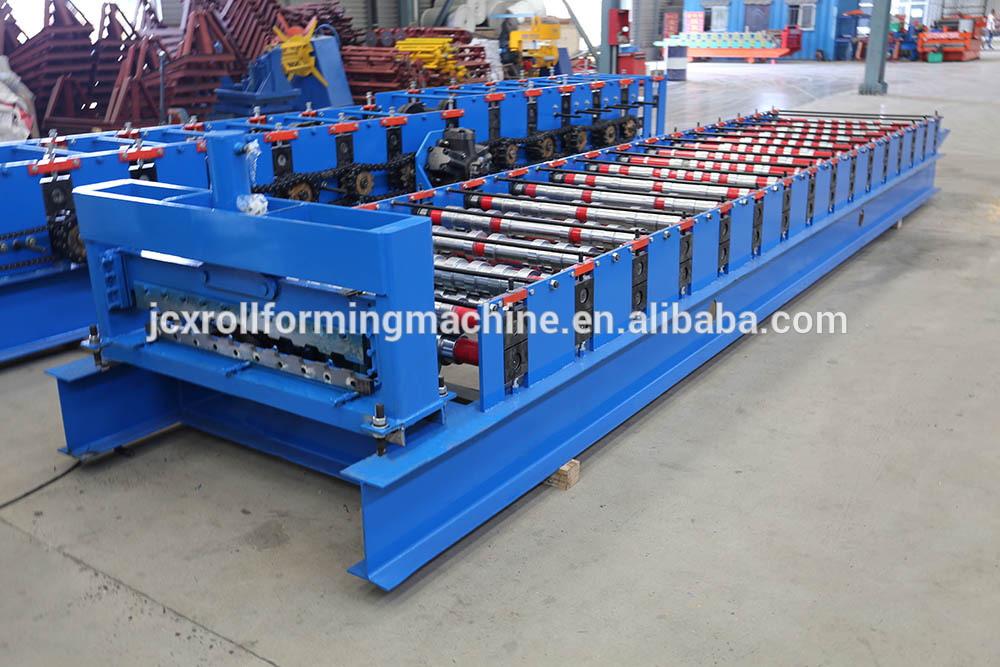

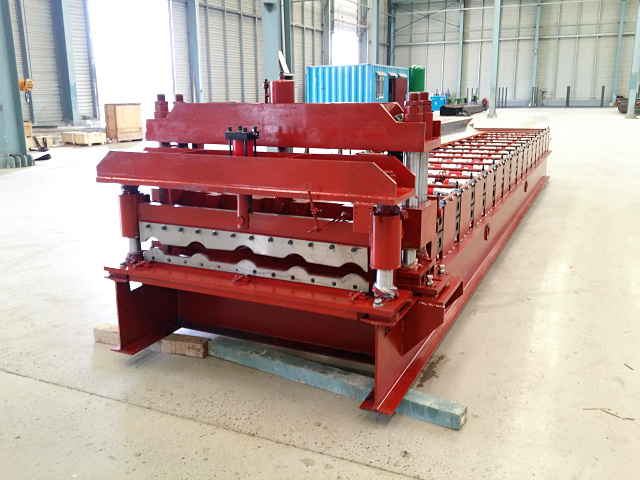

2.Main roll forming system:
1. Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;Shaft: manufactured with 45# high grade steel by CNC machine tools;Supporting frame: steel wallboard to guide the forming station bearing basement; 2. Frame: section steel be welded according to the profile forming requirement; Center height: it is more higher than normal structure, suitable for operation. |
 |

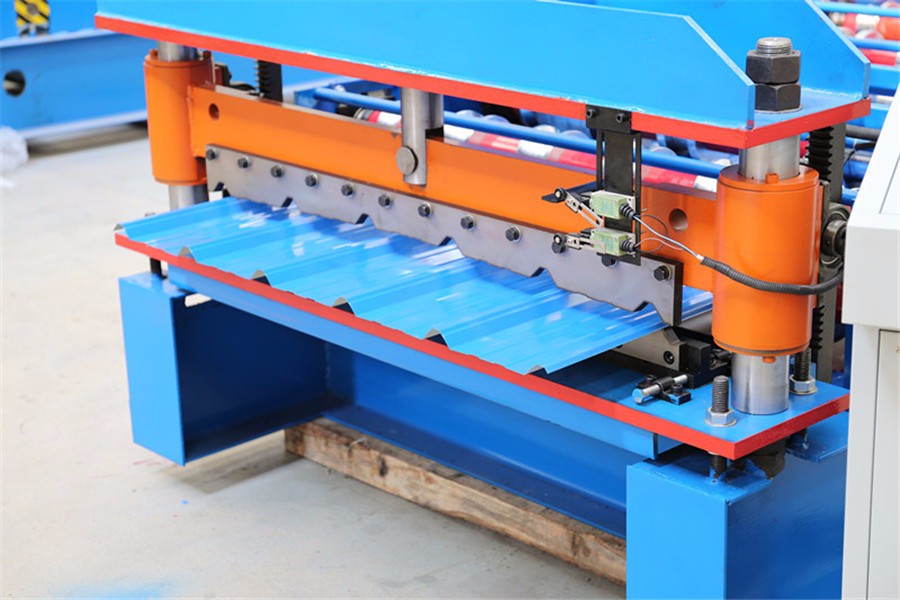

3.Cutting equipment:
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. Power supply: hydraulic station; Frame: welding steel frame; Stroke switch: non-contact photoelectric switch; Cutting after forming: cut the sheet after roll forming to required length; Length measuring: automatic length measuring. |
 |

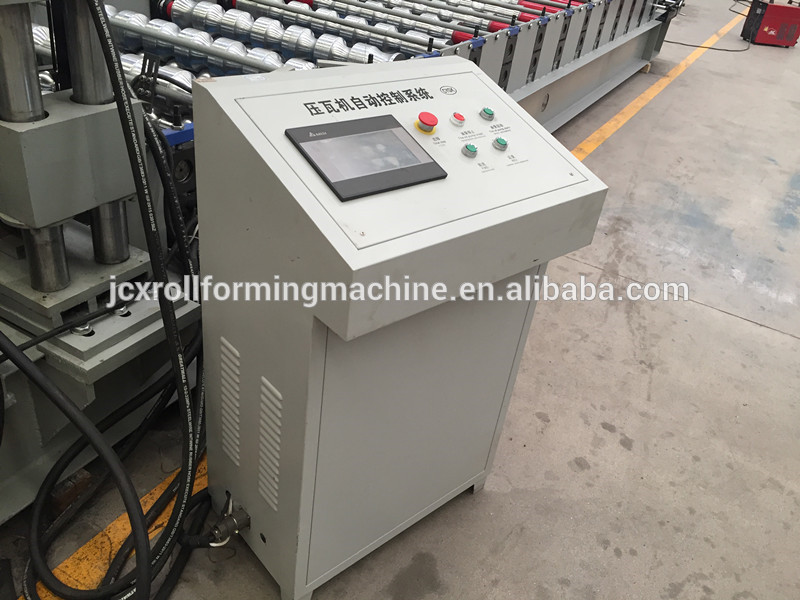

4.Electric control system:
Automatic length measurement: one unit tooling of length measuring which is lightly pressed on the surface of the steel sheet; the tolling will roll with the moving speed of the steel sheet and then sense to measure its length; length inaccuracy can be amended easily. Automatic quantity measurement; PLC is used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved; Control panel: Button-type switch, LED display length and quantity ; Unit of length: millimeter; Motor Over-Load, System Over-Current, Short circuit Protection function; Display total length and total quantity produced. |
 |

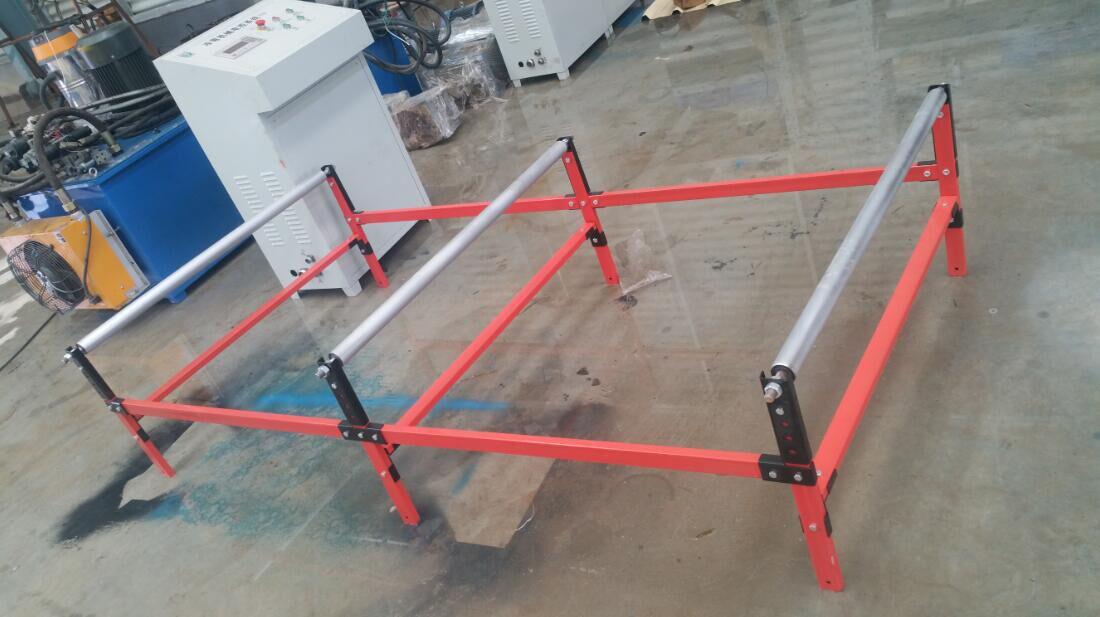

5.Run out table:
Feature: finish product collection; Material: steel frame and nylon shaft; Table length: 3 m * 2; Max supporting length: 12m. |
 |
we can give you the best service
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.
Thanks for visiting our products, if you have interest, please leave your message, or you can contact us, special design is available!
(we can design and make the machine according to your requests,and we have many kinds of machines)
Machine advantages
1.Easy operate with high production capacity
2.Carriage with hardened gear or chain
3.Magnetic linear encoder for direct measuring
4.Precision length and width control
5.Motor brake for secure positioning
If you have any questions,you can ask me,and i will give you anawer timely
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!

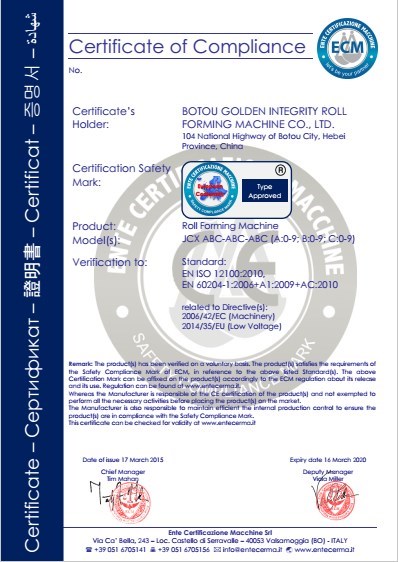

We have passed CE,ISO 9001and others machine testing!
Packing Details : Shippment standard packing, waterproof wrapped, Fixed in 20', 40'GP container.
Delivery Details : 25-30 working days after receiving the deposit.
Package Type:nude with waterproof cloth,the computer control cabinet is packed with waterproof cloth,thw whole set machine need one 40' container to load.
