Roofing EPS Standard Sandwich Panel Sheet Roll Forming Machine

ID:20081717815

Category: Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ 25000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Roofing sheet machineEPS sandwich forming machineroofing sandwich panel machineroofing panel making machineEPS standard panel machinepanel sheet forming machine

Payment Method:

Product Category

Manufacturing & Processing Machinery > Industrial Processing Machinery

Trademark

SHIBO

Product Package

Container

Specification

Roofing EPS Standard Sandwich Panel Sheet Roll Forming Machine

Place of Origin

China

Port

TIANJIN

00000 海报.jpg

Roofing EPS Standard Sandwich Panel Sheet Roll Forming Machine

Product Description

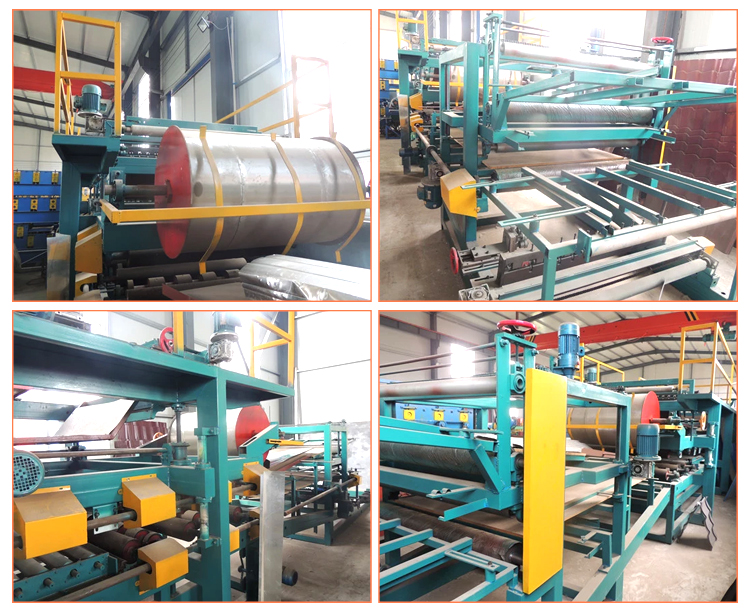

Rock Wool EPS Sandwich Panel Roll Forming Machine
Power supply	380V/50-60HZ
The whole line length	35M
The glue pump motor power	4kw
The total power	32kw
Producing speed	0-4m/min
Blank pressing roller	Electrofacing treatment
The brand of motor	Lichao made in Shanghai
The brand of pneumatic	Shenchi pneumatic
The brand of PLC	Delta made in Taiwan
The thickness of the color steel sheet	0.3-0.8mm
The thickness of the production	50-300mm
The total weight	13 T

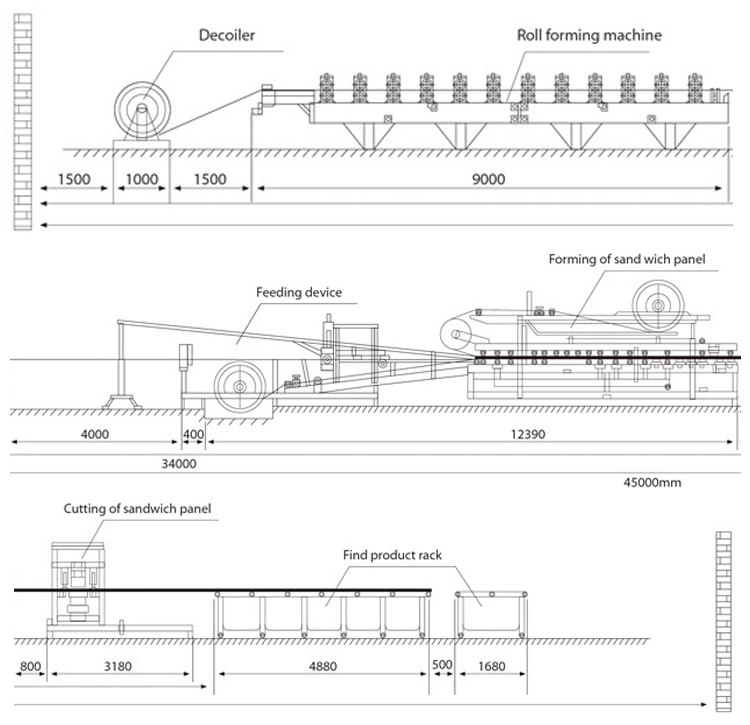

Processing technique and deployment:

Processes: Decoiler—Roll Forming machine—Feeding device—laminating system (ribbon, gelatinizing, heating up, compounding, crimping, notching, edge trimmer)—cutting system—Runout Table
