Standing Seam Roofing Sheet Roll Forming machine

ID:20081717820

Category: Manufacturing & Processing Machinery Engineering & Construction Machinery

FOB Price:US$ 9000.000 / Set(s)

MOQ:1.00 Set(s)

Product Keywords:

Standing seam roofing sheet Standing seam forming machineStanding seam machineryRoof roll forming machineStanding seam

Payment Method:

L/CT/TPaypal

Product Category
Manufacturing & Processing Machinery > Engineering & Construction Machinery
Trademark
JCX
Product Package
Nude roll forming machine will be packed in 40 feet container with steel rope fixed.
Specification
10M*1.1M*1M(L*W*H)
Place of Origin
HeBei,China
Port
TianJin Port

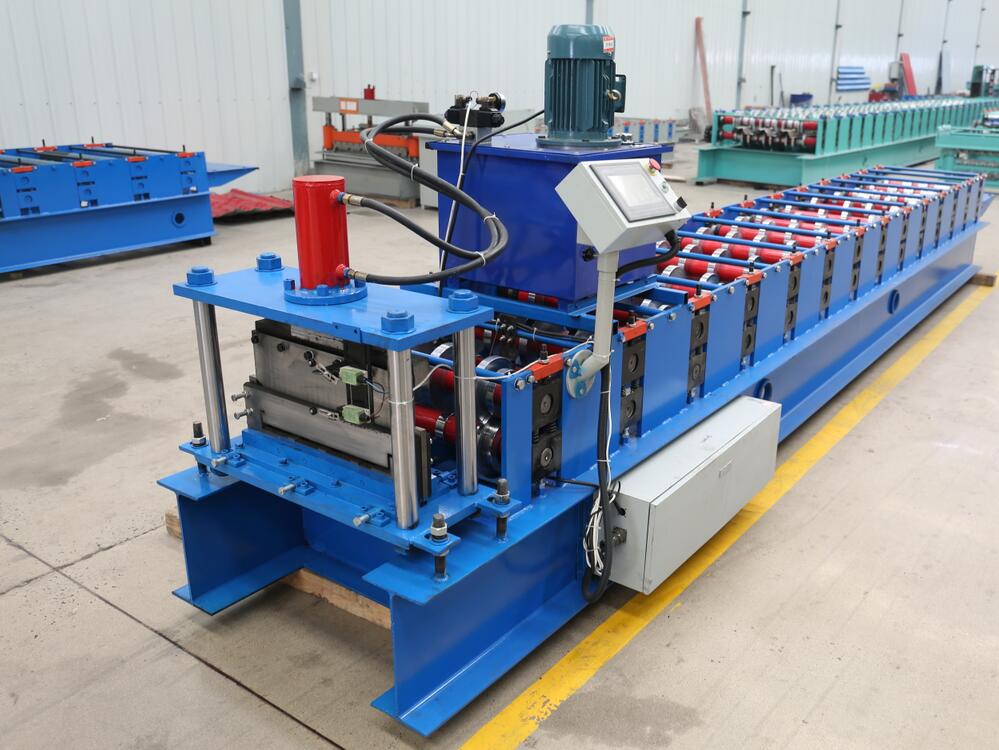

JCX 660 JCH Roofing Sheet Roll Forming Machin[JJ_O`8R9J`RSPN~SOPNNXM.jpg



1.Product Description:

1. Profile

1 Feeding width: 1000mm

2 Effective width:820mm

3 Material thickness: 0.3-0.8mm

2. Process flow





Decoiling--feeding---forming---cutting---production





3.Manual Decoiler

1 Material coil inner diameter: 450mm-700mm

2 Max coil width: 1200mm

3 Carrying capacity: 6.8T

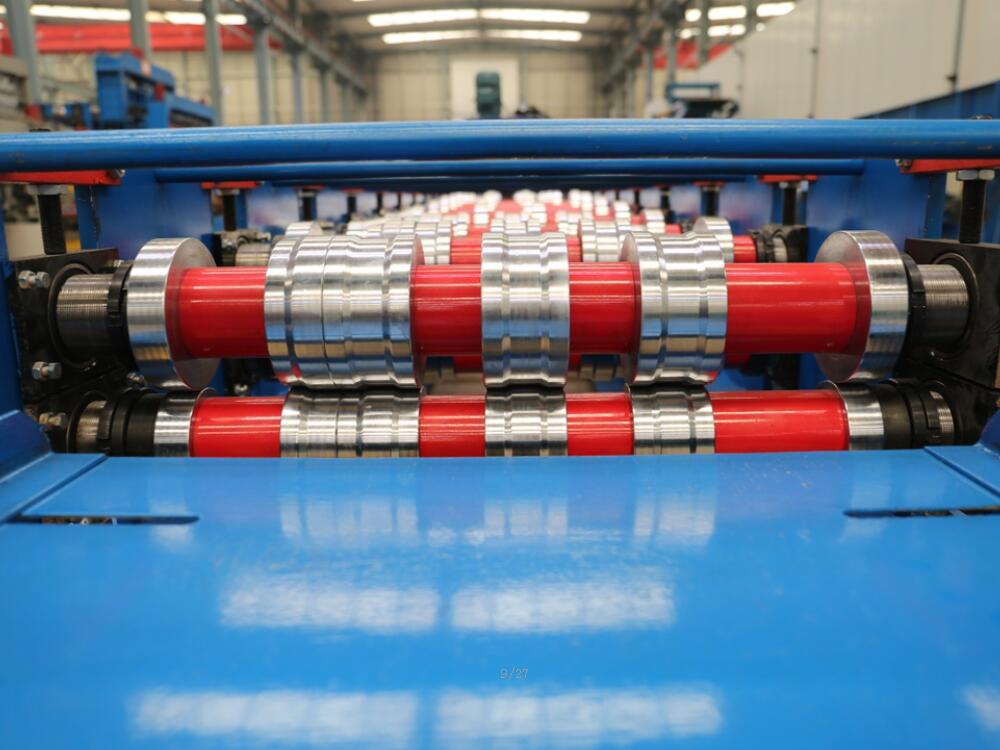

4.Forming Device

1 Number of forming steps:15 steps

2 Shaft material: 45# steel with harden treatment, outer diameter 75mm

3 Roller material: 45# steel

4 Main motor power: 5.5kw

5 Forming speed: 8-12m/min(So year production is about 520000 pieces generally)

6 Voltage:380V/50Hz/3 phrase

5.Cutting Device

1 hydraulic cutter

2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62°C

3 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.

6.Controlling Device

1 screen: 5.7 inch Taida screen from Taiwan

2 PLC: Taida DVP14ES from Taiwan

7. Hydraulic

1 Advanced hydraulic system from Taiw

8.Simple output frame

simple frame weld bu #8 U bar, 1 pcs of 3m

9.Payment and terms



Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.



10.Warranty

One year, and we will provide the technical support for the whole life.



11. Packing

Container packing of the line suitable for overseas shipping

The subject can be loaded in one 40’ GP container.

Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box.

12.Assemble, train the machine

It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time





13. Maintain

It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $50/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain).

2.Machine Detail Description:

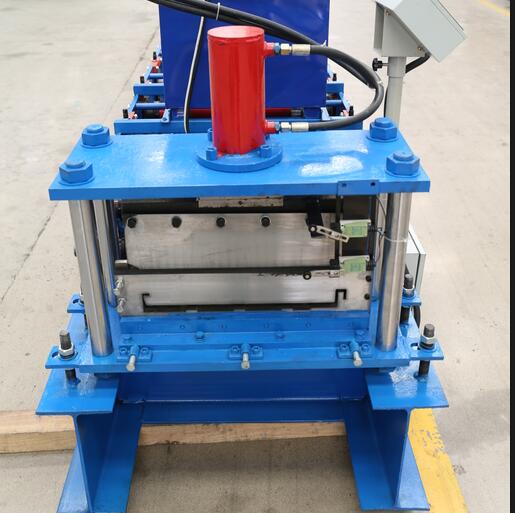

Hydraulic cutting equipment

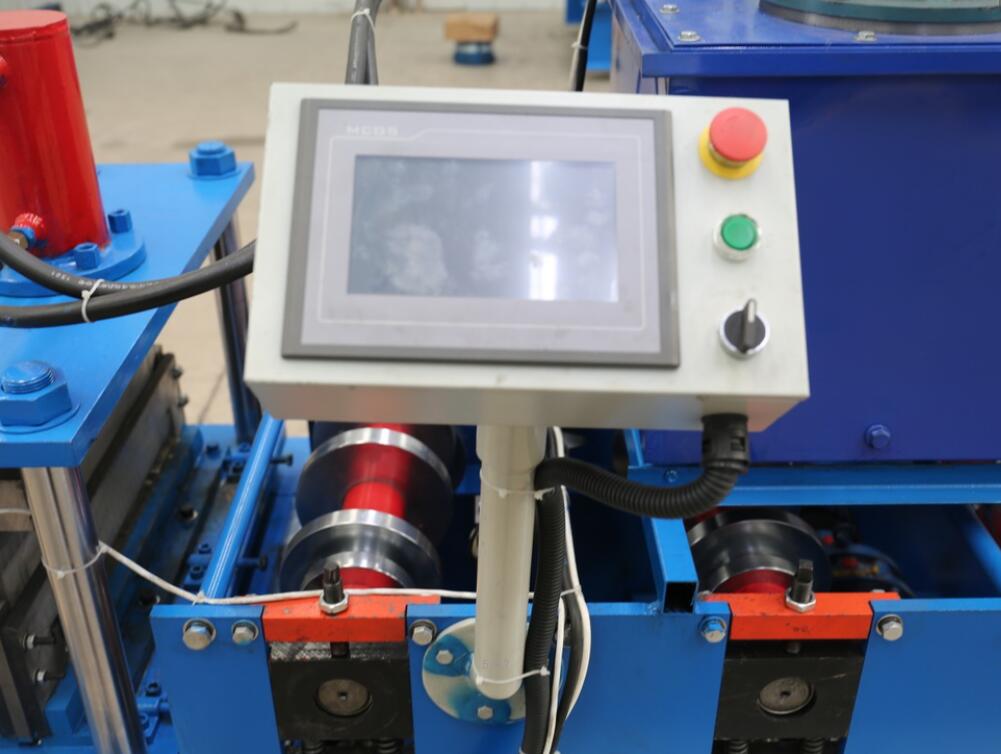

PLC control system(touch screen)

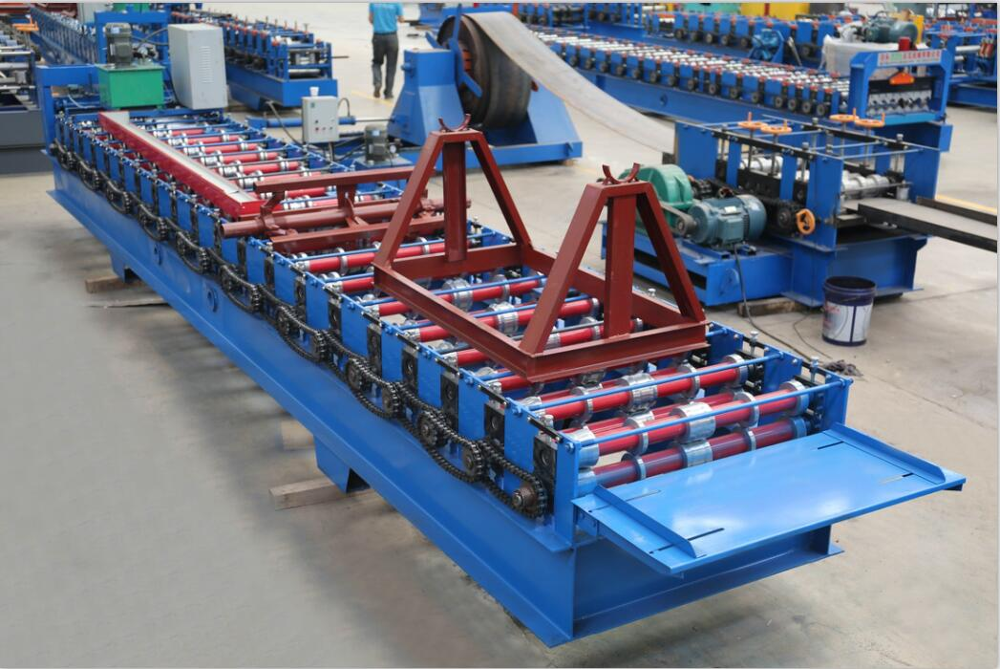

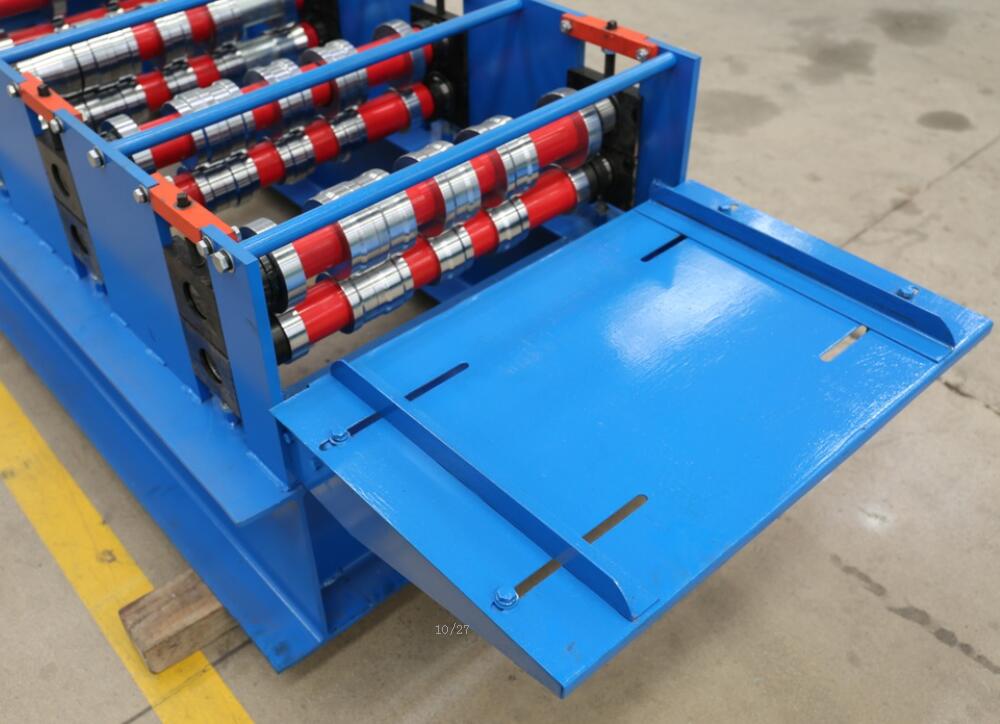

Main roll forming machine


Feeding equipment

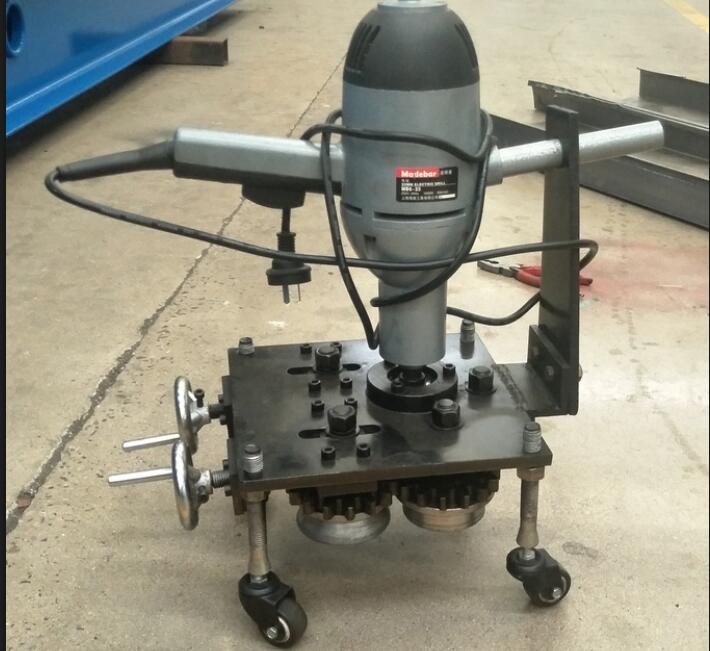

Electric seaming machine

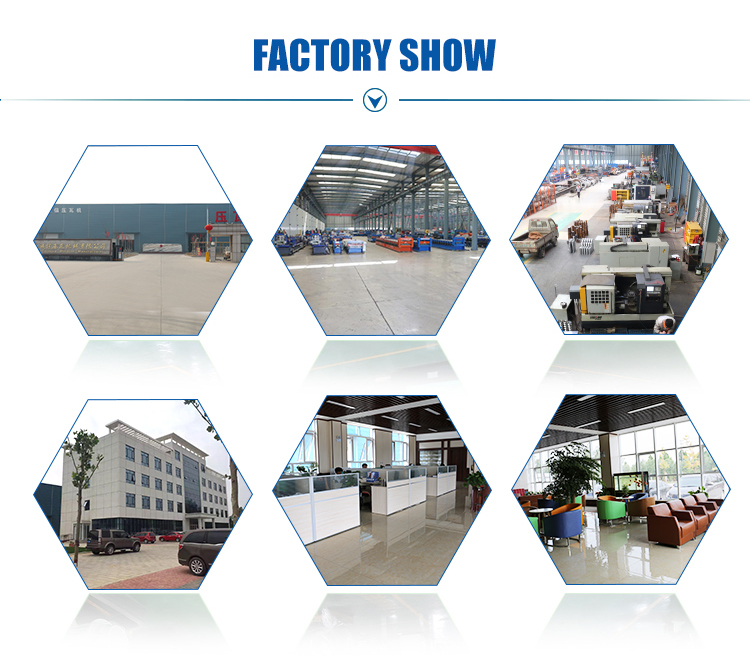

Company Information

Our company is organized and run as a modern enterprise system. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.

We are not only offer customers a wonderful machine for making, but also the abundant experience, precision making, stable automatic manufacture by hydraulic power, hi-tech control system, and our enthusiasm.






Our Services

1. we can produce the special machine,send your drawing to us,we can design for you.

2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

4. engineers available to service machinery overseas.

5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, please leave your message, or you can contact us, special design is available!

The real data, the most professional foreign trade team, your best trustworthy partner.

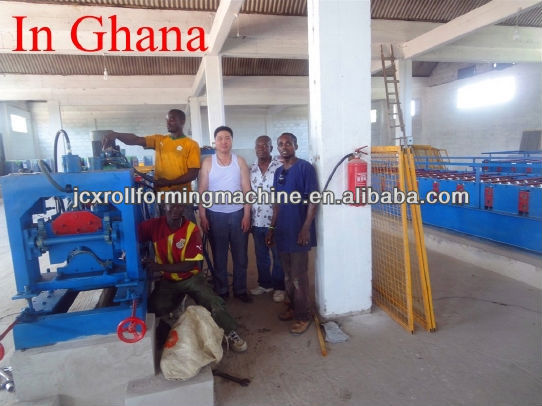

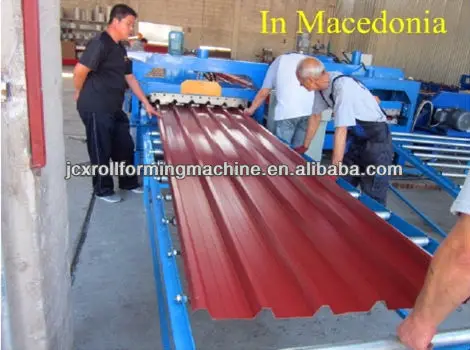

after service 3after service 1after service 2

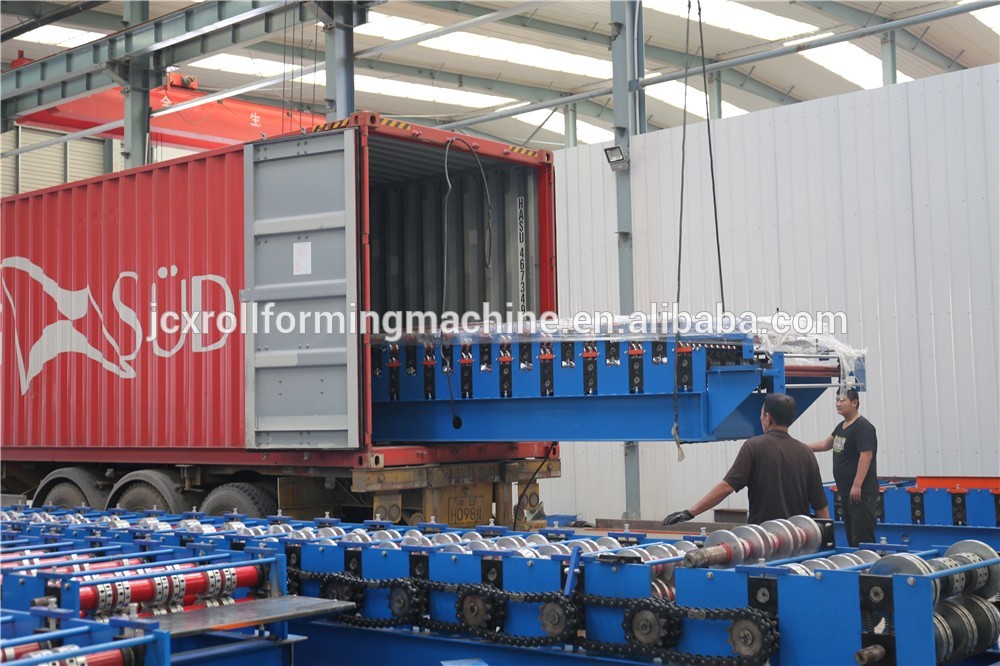

Packaging & Shipping

Straight welded pipe mills package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.

Warranty

1). One year, and we will provide the technical support for the whole life.

2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas

and USD50/person/day for salary.

3). Need one technicians

4).Training time: one week (contains the time of installation and adjustment)

.jpg



FAQ

1) Q: Are you manufacturer or trading company?

     A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?

     A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?

     A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?

     A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?

A:  1) We record the testing video for your reference. Or,

      2) We welcome you visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?

     A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?

     A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).

   We join Alibaba Trade Assurance.

8) Q:What should I provide if I`d love to customized my machine?

     A: To customize machine, we`d love to know:

          1. Profile drawing
          2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
          3. Voltage: designed per your requirement
          4. Configuration requirement: Hydraulic or manual decoiler/ stacker
