Metal Floor Deck Cold Roll Forming Machine With Good Quality

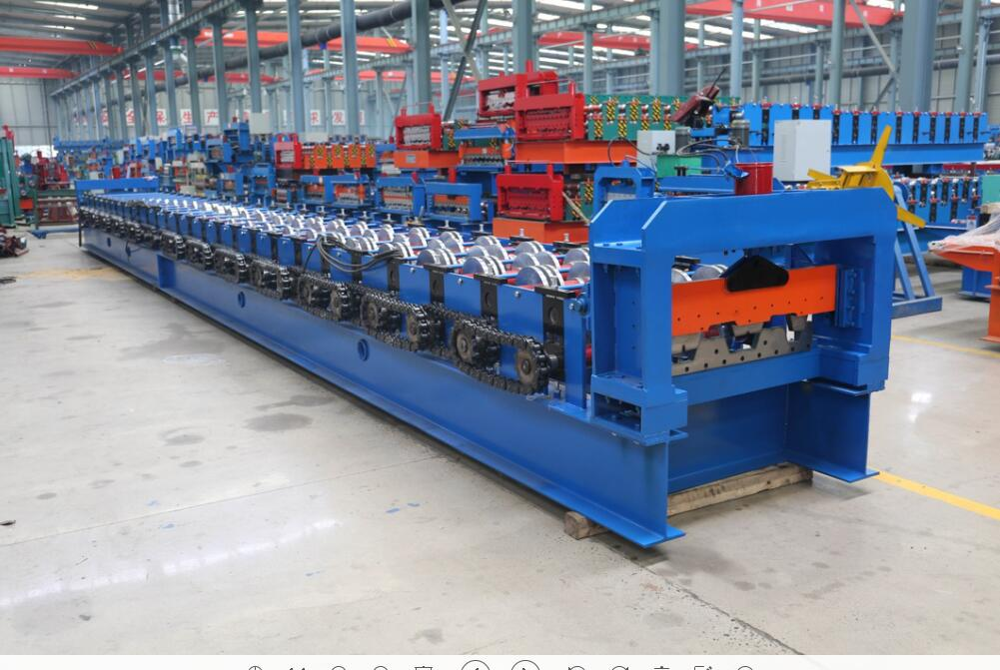

JCX Floor Deck Roll Forming Machine

1.technical parameters:(customized)

(1). Suitable material to process: PPGI coil and GI coil;
(2). Thickness of the plate: 0.2-0.8 mm;
(3). Width of the plate: as per profile drawing;
(4). Effective area for use: as per profile drawing;
(5). Productivity: 8-15 m/min;
(6). Roller stations: around 14 rows;
(7). Diameter of the shaft: φ70 mm;
(8). Material of roller: 45# steel with CNC machining, plated hard chromium surface;
(9). Material of main shaft: 45# steel with grinding process and then slack quench processed;
(10). Frame: welded with 350H section steel;
(11). Wall panel thickness: 16 mm;
(12). Main motor power: 4 KW;
(13). Hydraulic station power: 4 KW;
(14). Main electrical control system: Panasonic PLC, Delta frequency changer, Delta touch screen, Omron counter;
(15). Material of cutter: Cr12 MoV with hard treatment;
(16). Driving mode: single chain 1 inch;
(17). Power supply: 380V, 50HZ, 3 PHASES;

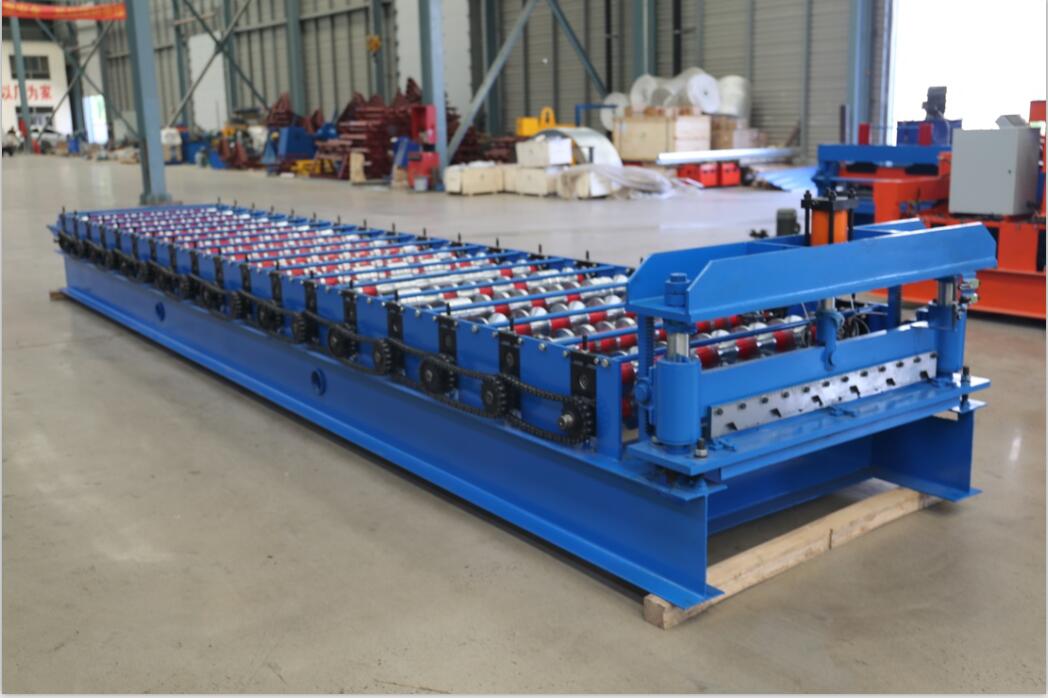

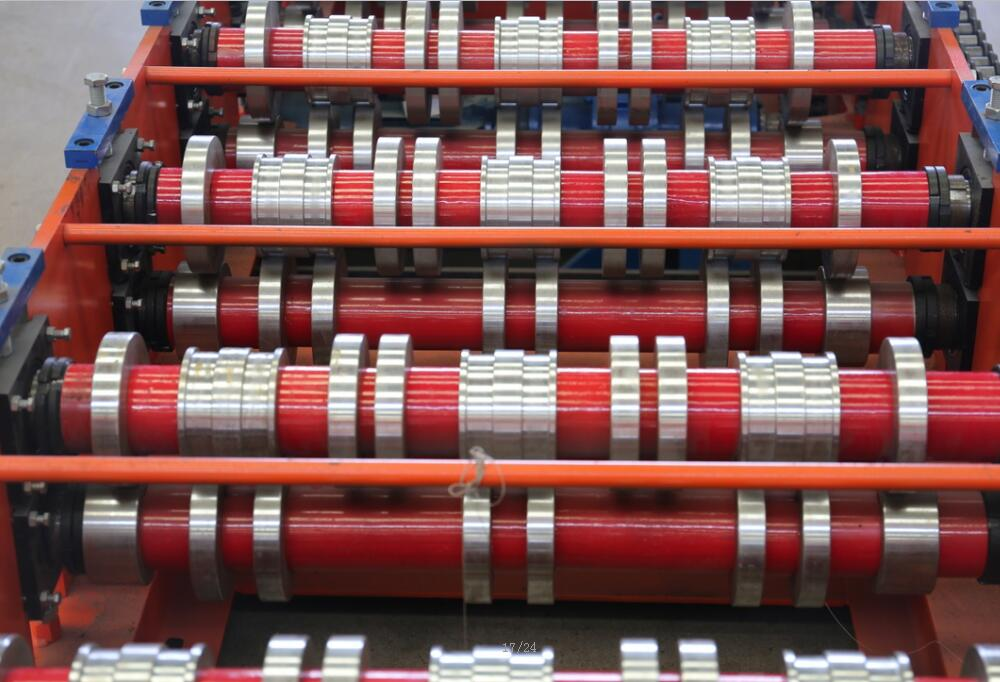

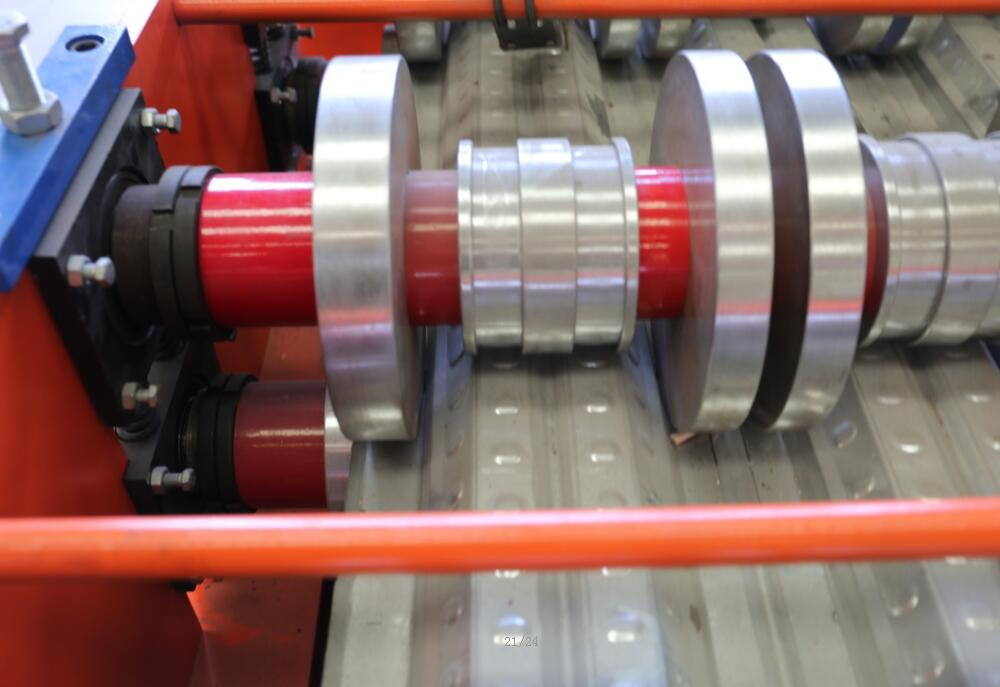

2.machine details description:

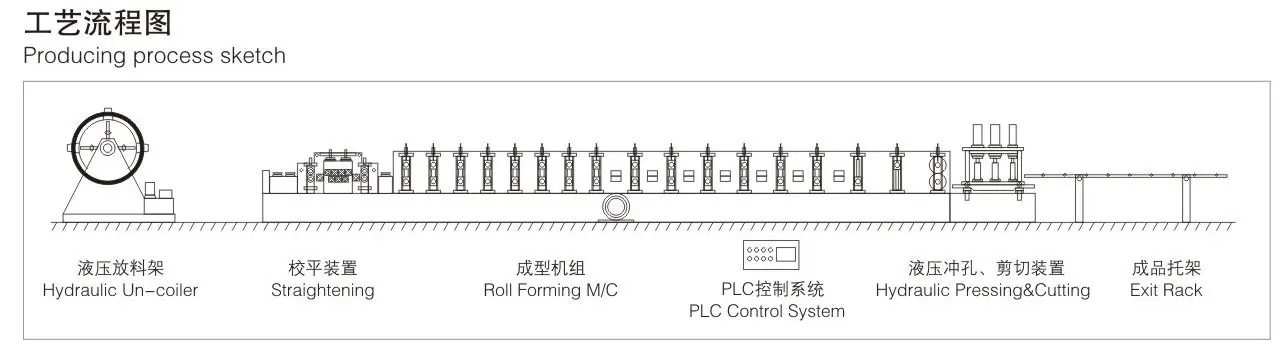

3.working process flow:

manual or hydraulic decoiler--feeding and straightening--roll forming--measure length--hydraulic cutting--run out table

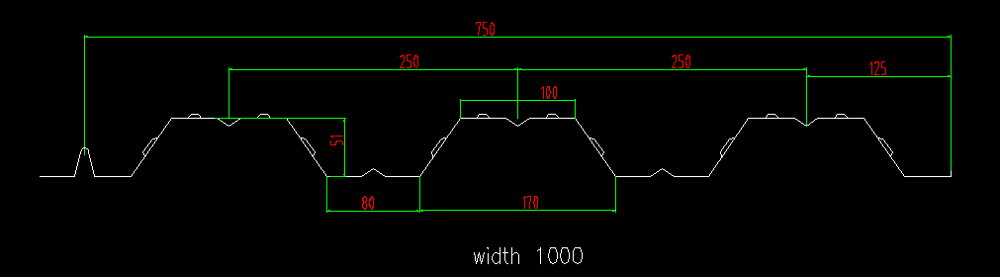

profile drawing for reference:

1.introduction of company:

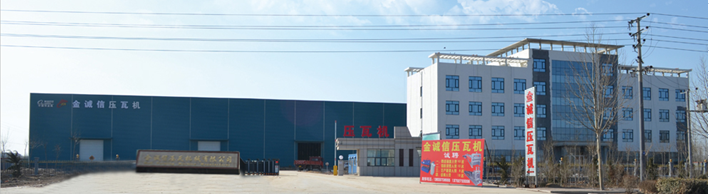

We, Botou Golden Integrity Roll Forming Machine Co., Ltd, as a high and new technology enterprise,was established in 1995, and since then we have been engaged in developing and manufacturing in cold roll forming industry.

Our company is organized and run as a modern enterprise system. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.

We are not only offer customers a wonderful machine for making, but also the abundant experience, precision making, stable automatic manufacture by hydraulic power, hi-tech control system, and our enthusiasm.

1. we can produce the special machine,send your drawing to us,we can design for you.

2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.

3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.

The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US100.

4. engineers available to service machinery overseas.

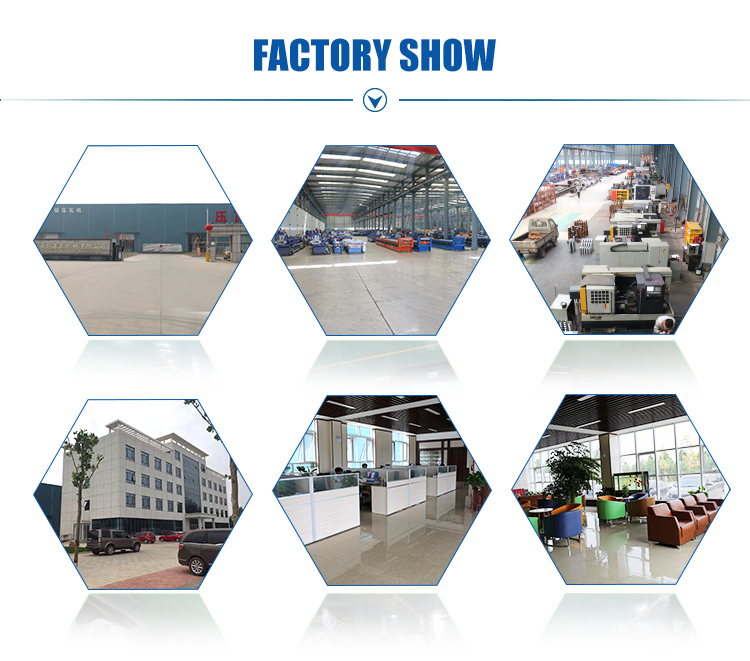

5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, please leave your message, or you can contact us, special design is available!

The real data, the most professional foreign trade team, your best trustworthy partner.

Straight welded pipe mills package Wiped Anti Rust Oil, Rollers and Shafters covered by waterproof film,Hydraulic station, PLC control Box, Spare parts and some small parts packed in plywood box. All Components Fixed by steel wire with Container.

Warranty

1). One year, and we will provide the technical support for the whole life.

2).Training: the buyer should charge of visa, return ticket, food and accommodation overseas

and USD50/person/day for salary.

3). Need one technicians

4).Training time: one week (contains the time of installation and adjustment)

1) Q: Are you manufacturer or trading company?

     A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?

     A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?

     A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?

     A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?

A:  1) We record the testing video for your reference. Or,

      2) We welcome you visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?

     A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?

     A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).

   We join Alibaba Trade Assurance.

8) Q:What should I provide if I`d love to customized my machine?

     A: To customize machine, we`d love to know:

          1. Profile drawing
          2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
          3. Voltage: designed per your requirement
          4. Configuration requirement: Hydraulic or manual decoiler/ stacker
