MT-130 Automatic Round Bottle Labeling Machine

ID:20081717859

Category: Manufacturing & Processing Machinery

FOB Price:US$ 12000.000 / Piece(s)

MOQ:1.00 Piece(s)

Product Keywords:

Labeling MachineAutomatic labeling machineRound bottle labeling machine

Payment Method:

T/T

Product Category

Manufacturing & Processing Machinery

Trademark

LEADTOP

Product Package

wooden box

Specification

Customizable

Place of Origin

Zhejiang, China

Port

Shanghai

Quotation Sheet:

Quote Subject: MT-130 Automatic Round Bottle Labeling Machine

Item	Description of the goods	Quantity	Unit Price	Total Amount FOB Shanghai	Remark
1	MT-130 Automatic Round Bottle Labeling Machine	1 Set	USD12,000.00	USD12,000.00	Include: 1. Single label three sides labeling 2. Siemens Touch Screen Operation 3.Step Motor for driving
Optional parts

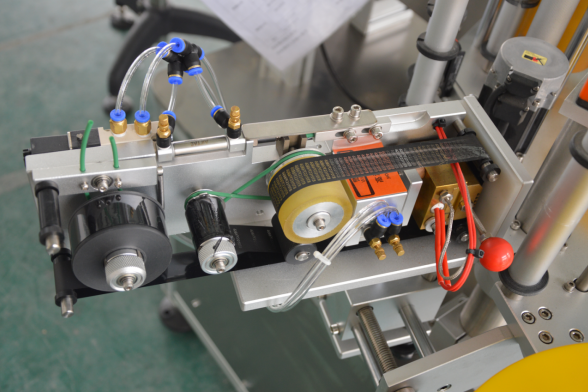

1	Ribbon coding system	1 set	USD700.00	USD700.00
2	Automatic Bottle Ordering Table(Turn Table)	1 set	USD1,000.00	USD1,000.00
3	Transparent Label			USD600.00
4	Servo motor for driving			USD1,600.00

Installation and after sales service:

Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.

Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.

After sales service: 1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

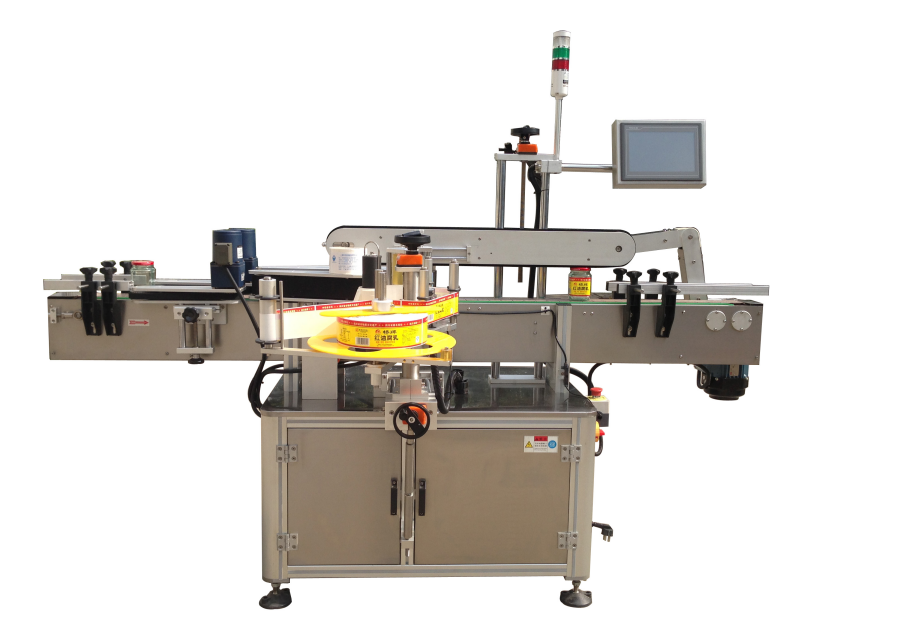

MT-130 Automatic Square and Round Bottle Labeling Machine


Summary:

MT-130 model vertical type Square and Round bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.

Working principle:

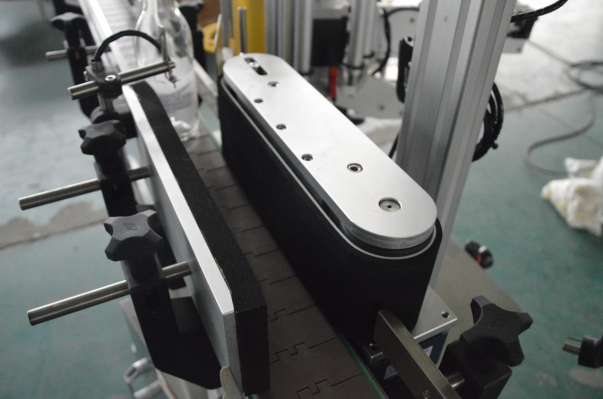

Put the bottles into the conveyor system (or Auto Bottle Ordering Machine is optional), the conveyor will transport the bottles to labeling station. There is automatic sensor equipped on the machine will sense the passed bottle and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

Main Feature:

The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)

PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.

The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.

The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.

Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.

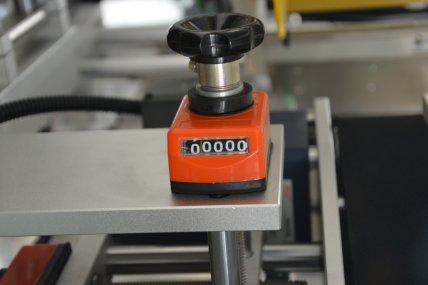

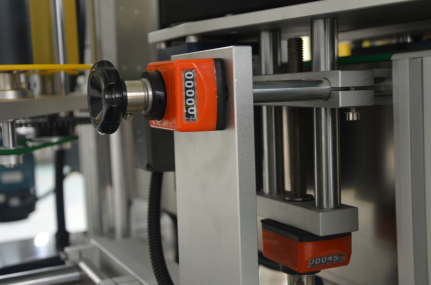

The position of height and backwards or forwards are adjustable.

***Please see more details by following Pages***

Main Technical Data:

Driver Motor:	Stepping motor
Operation:	Right or left
Running speed:	10-100 PCS/min
Packaging Range:	Length:15-260mm Width: 20-150mm Height: 25-350mm Label size width 10-150mm length 15-200mm
Maximum diameter of label:	Ф 300mm
Coil diameter:	Ф 75mm label
Weight:	200kg
Power supply:	AC220V 0.5Kw 60HZ
Overall Size:	2000X1300X1500
*Ribbon Coding machine:	HP 260Q
