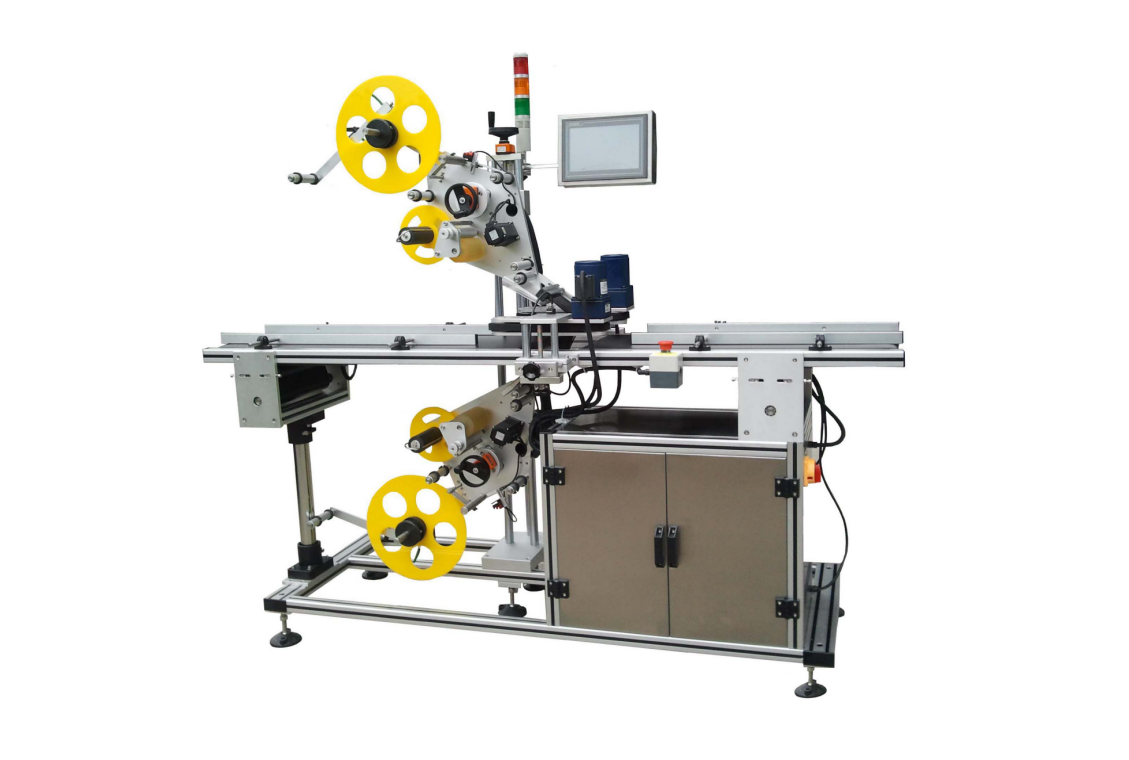

MT-100S Single Side Upper or Down Labeling Machine

MT-100S Single Side Upper or Down Labeling Machine

Machine Main Characteristics

Adopt mature technology PLC control system, operation is stable and high-speed

Using touch-screen control operating system, simple and efficient;

Upgrade new standard station design, the angle can adjust depends on different carton size;

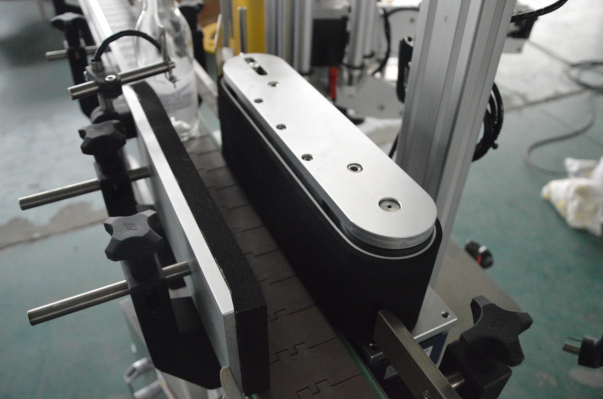

Top press device ensure stability of carton when labeling, particularly applicable for light and --small cartons;

Combine the characteristic of light label objects, adopt Belt conveyor with High stability;

Mechanical Design:

1. Using side label method, add Press carton structure, ensure the stability of carton.

2. When the label touch the carton, the brush firm the front label, make sure the label is smooth and firm.

3. Conveyor speed can be adjusted to match up the send label speed, ensure label no wrinkle.

4. The inverter control the Motor, make sure the conveyor speed、press carton speed and send label 5. speed synchronous operation, label surface is smooth and label position is accurate.

6. The durable engine and parts are solid and durable, adopt standardized modular design completely interchangeable, 24-hour operation ensure the security and stability.

7. The whole machine use S304 stainless steel and anodized senior aluminum alloy, Never rust and with high corrosion resist

Technical Parameters:

Quotation Sheet

Quotation Subject: MT-100S Single Side Upper or Down Labeling Machine

Price:12,500USD FOB Shanghai Port

The price includes: 1. Single Side Labeling  3. Touch Screen Operation 4. Step Motor for driving  5. Coding Machine

Optional Parts Price:

1. Automatic Bottle Ordering Table(Turn Table): 1,500USD

2. Transparent Label: 800USD

Payment: 30% for deposit, 70% T/T before shipment.

Delivery Time:   30 days when receive your T/T.

Installation and after sales service:

Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.

Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.

After sales service:  1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

   California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahore (Distributor)

Coding Machine for printing Bach Number(LTPM CHINA special)

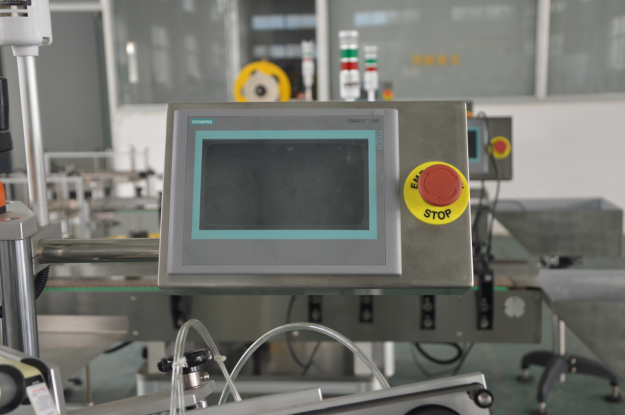

Siemens Touch Screen:

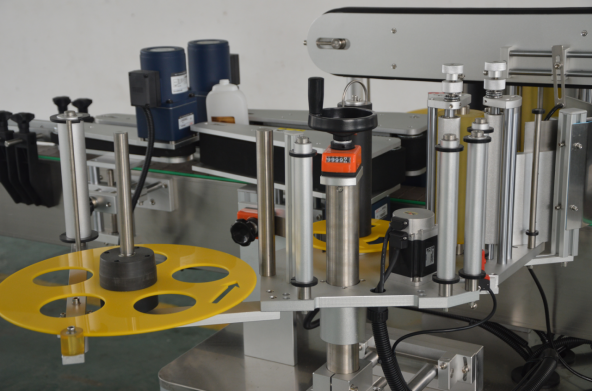

Labeling Station:

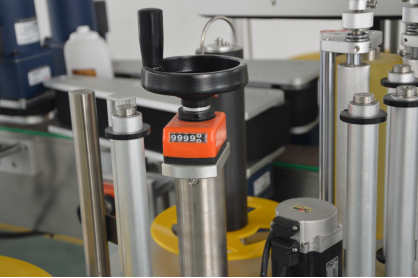

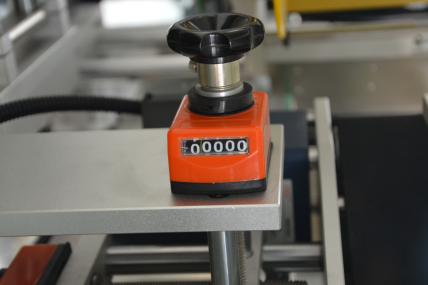

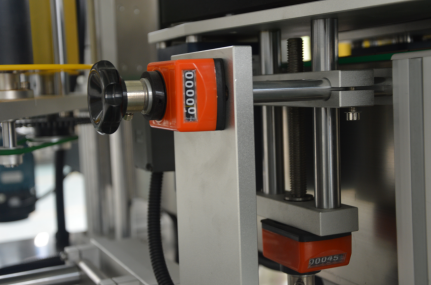

Adjusting Wheel with Numbers: It is easy adjusting for different bottle and label.

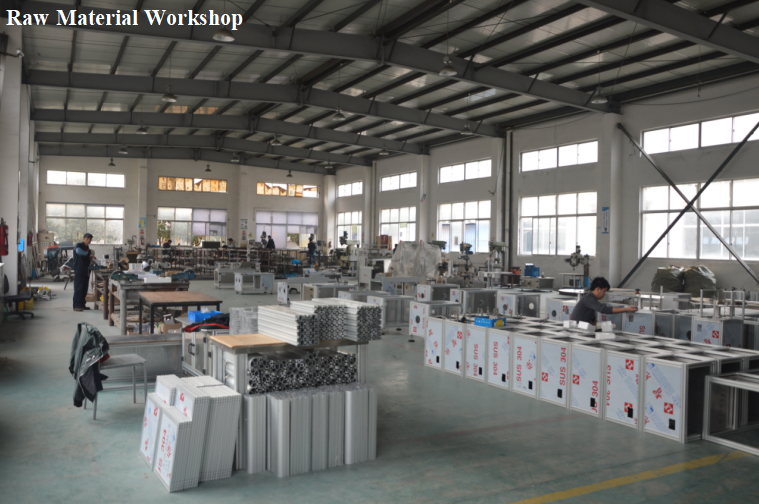

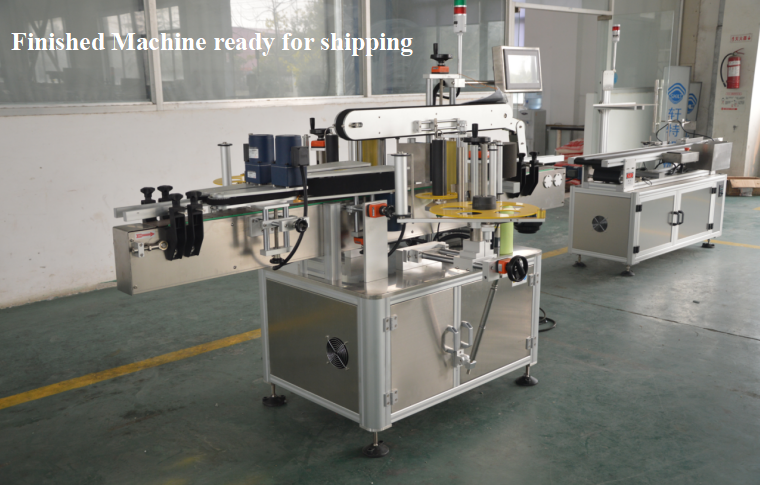

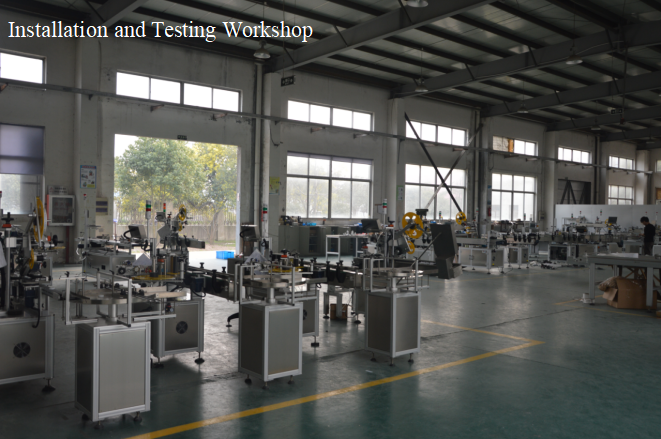

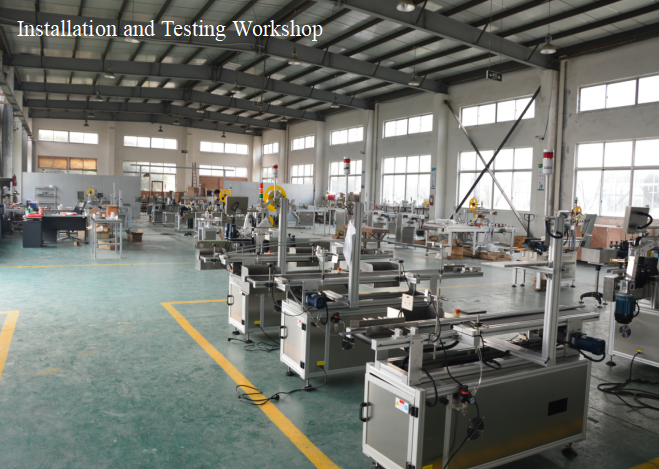

Production and Processing Information in workshop:
