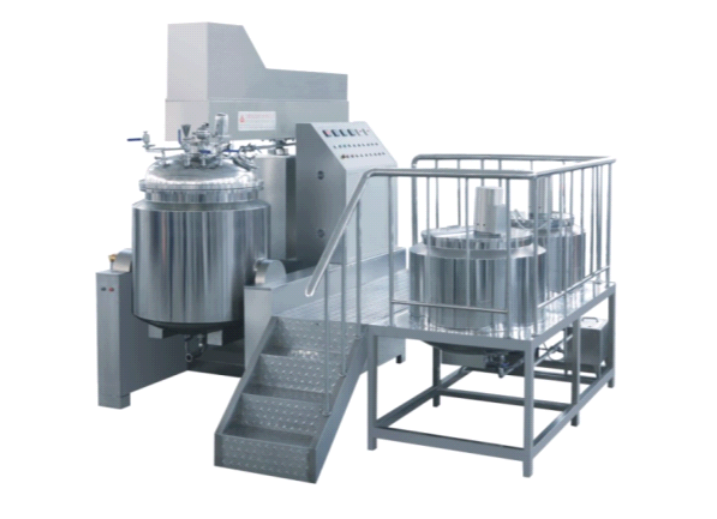

ZJR-650L Vacuum Emulsifying Mixer

ZJR-650L Vacuum Emulsifying Mixer

Quotation Sheet

Quotation Subject: ZJR-650L Vacuum Emulsifying Mixer

Price: 40,500USD FOB Ningbo

The price includes: 1. Main machine for mixing 2. Oil pot   3. Water pot    4. Contact Part:SUS316L

Payment: 30% for deposit, 70% T/T to Seller’s Bank Account before shipment.

Delivery Time:   30 days when receive your T/T.

Installation and after sales service:

Installing and Commission: We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging & Boarding expenses shall be payable by you. In case the stay of our technician, the service charges US $ 50 per day will be charged extra.

Warranty Period: There is one year for fully machine guarantee. And in this year if the machine broken caused by Mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.

After sales service:  1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities: California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent)

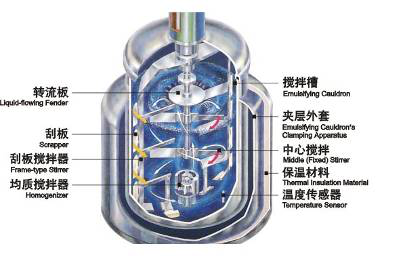

Working principle

• The ZJR-650 Vacuum Emulsifying Mixer is composed of main pot, vacuum unit, up-and down system, electrical control system and the motor frame etc.

• The main pot is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.

• The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.

• The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.

• The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.

Technical date:

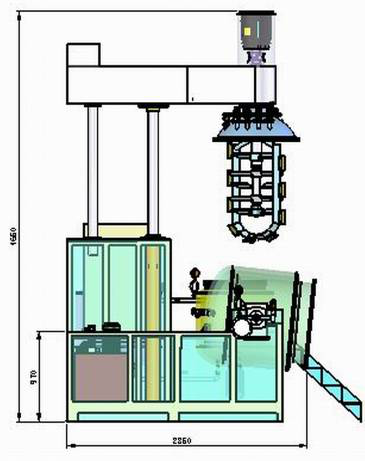

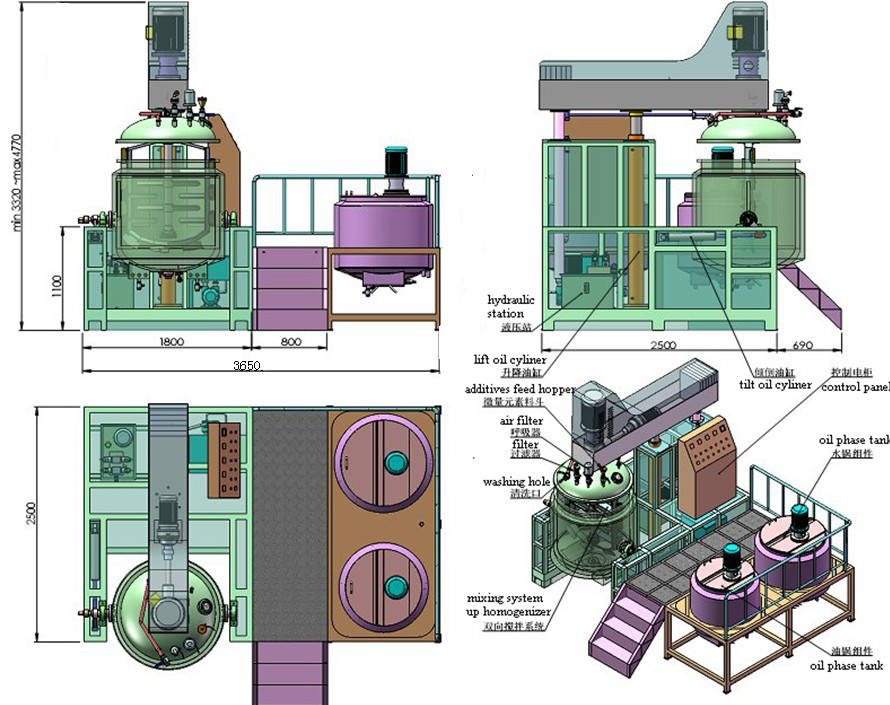

Drawings

Details:

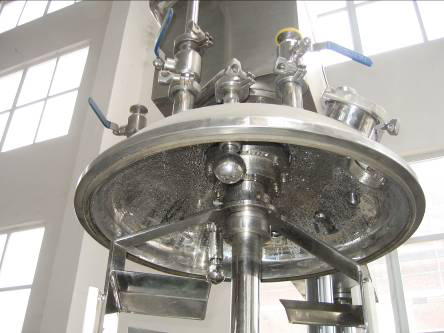

inside of the cover

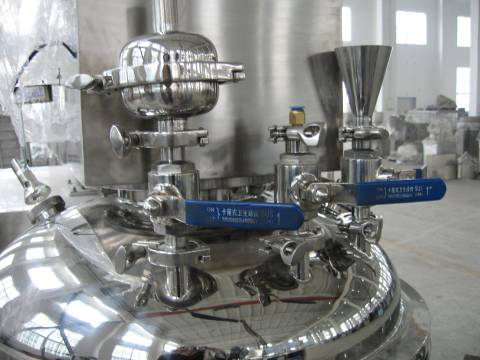

The cover of the pot

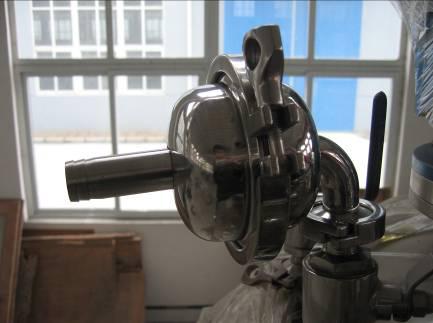

Filter (the material which will be mixed feeds in from here)

Inside of the filter

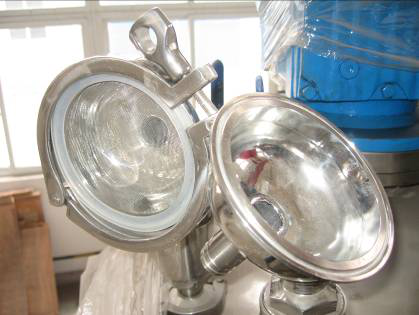

Inspection light

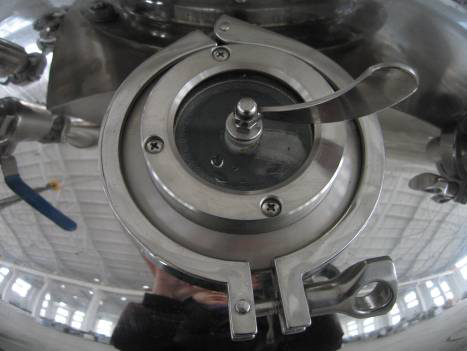

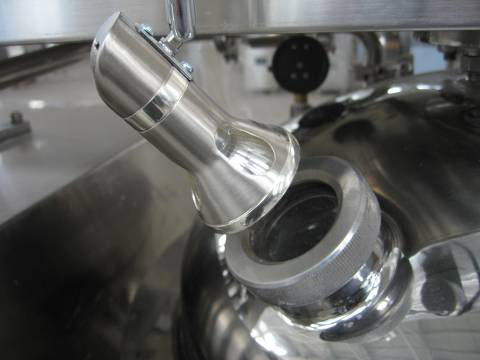

View window

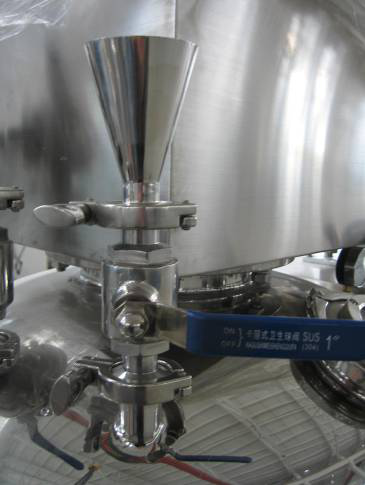

Small hopper for adding small quantity material

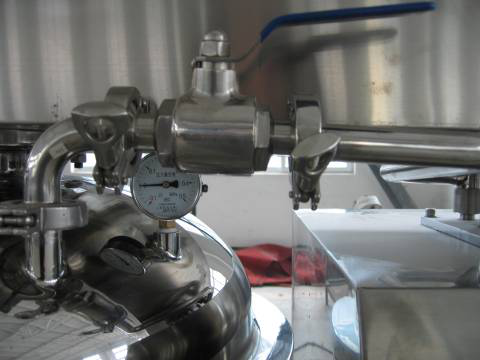

Vacuum valve and pressure indicator (for the pressure in the pot)

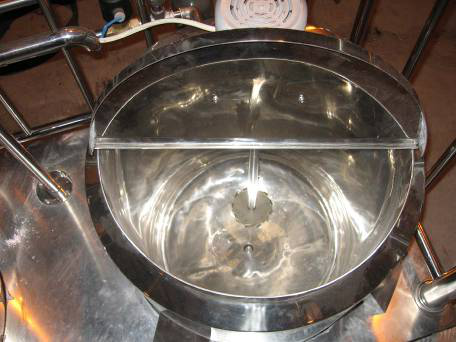

Inside structure of oil pot and water pot:

The mixing device is dispersing disk(speed 960 rpm)

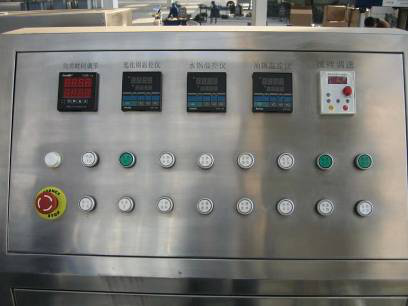

Control panel:

Button control

Export standard Package :

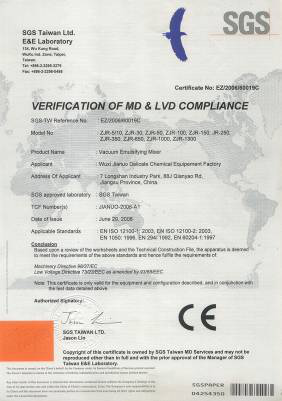

Certificate:

ISO 9001 certification.

CE certification.
