roll forming machineAngle steel making machine corner beads making machine
L/CT/TD/POthers
1.Title:Angle steel bar roll forming machine corner beads making machine
2. Properties of processed material：
Material： galvanized steel
Material thickness：0.3-0.8mm
Yield strength:235-450mpa
3. Profile drawing
4.Machine details
Forming steps：7 steps
Shaft diameter:40mm
Machine stand:Column type（please see the photo as below）With thickness of 24mm
Roller material:Cr12 HRC55-58°C
Shaft material:45# steel with quenching and tempering
Work speed:15-20m/min
Transport:By gear
Machine size: 3*0.8*1.2m
Weight: 2T
Voltage requirement: 380v50hz3p
Working speed：0-45m/min
Electric support wires: 8m2
Labor request:2 workers
5.Whole line components
No. | Item | Qty |
1. | Deciler | 1set |
2. | Main forming machine | 1set |
3. | Control panel | 1pcs |
4. | Hydraulic pump | 1pcs |
5. | Hydraulic pressing and cutting device | 1pcs |
6. | Manual holder | 1pcs |
7 | Punching machine | 1pcs |

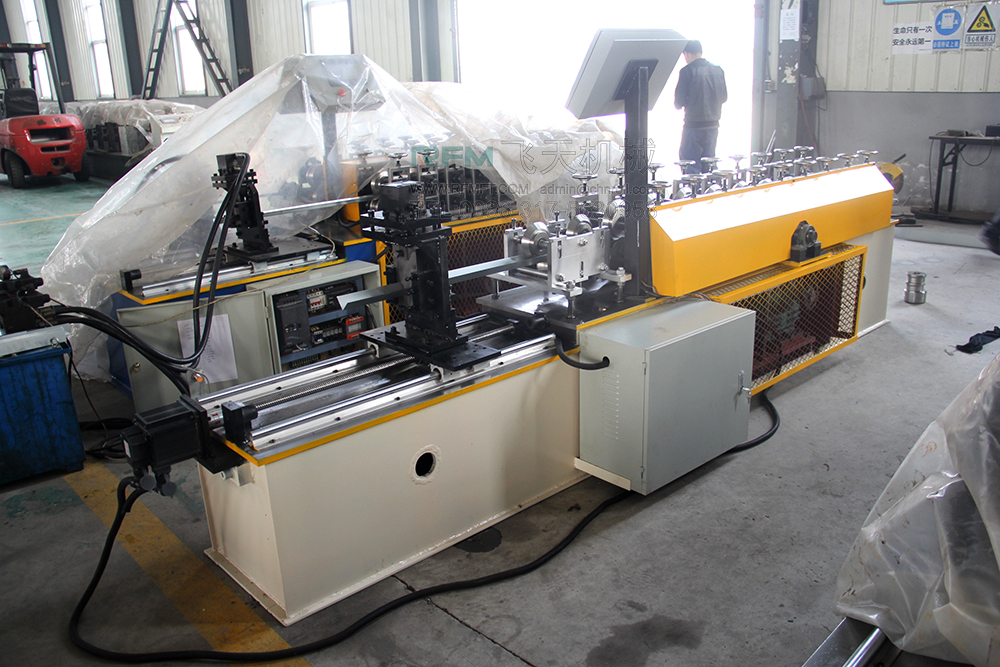

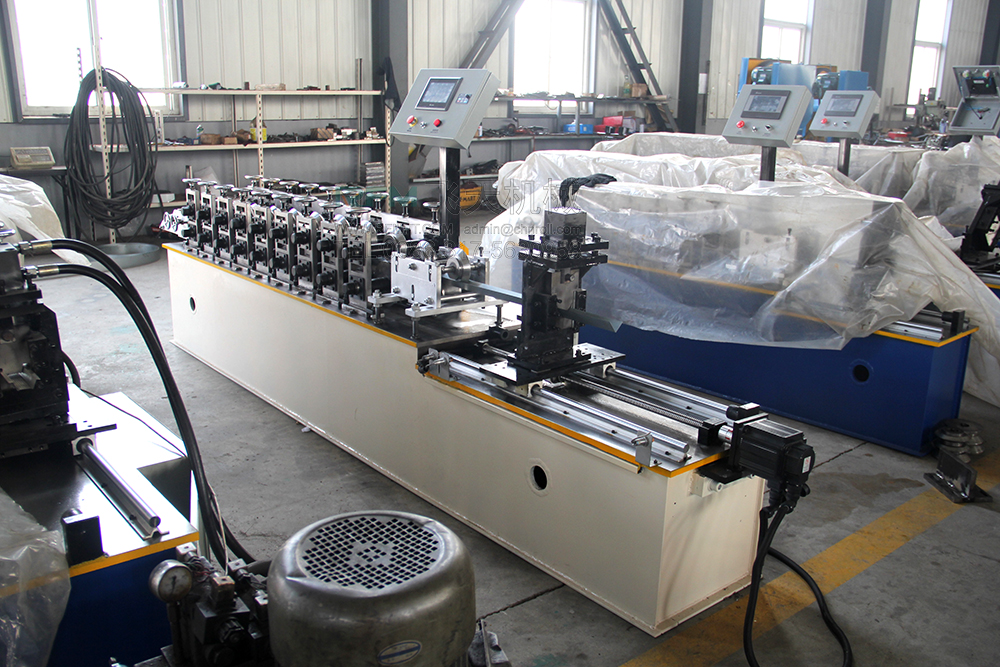

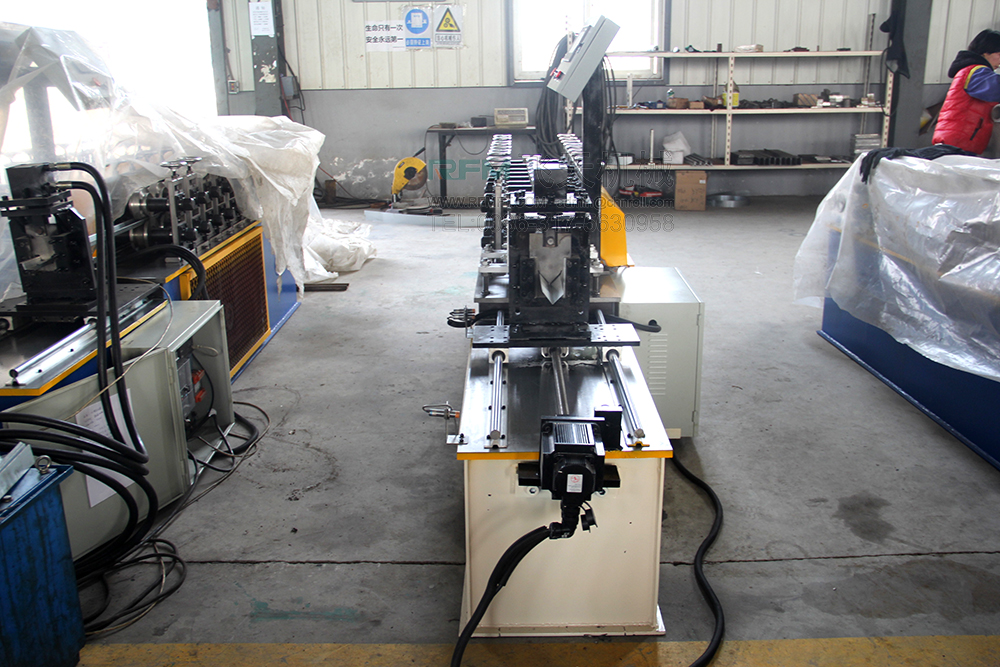

6.Machine quick view

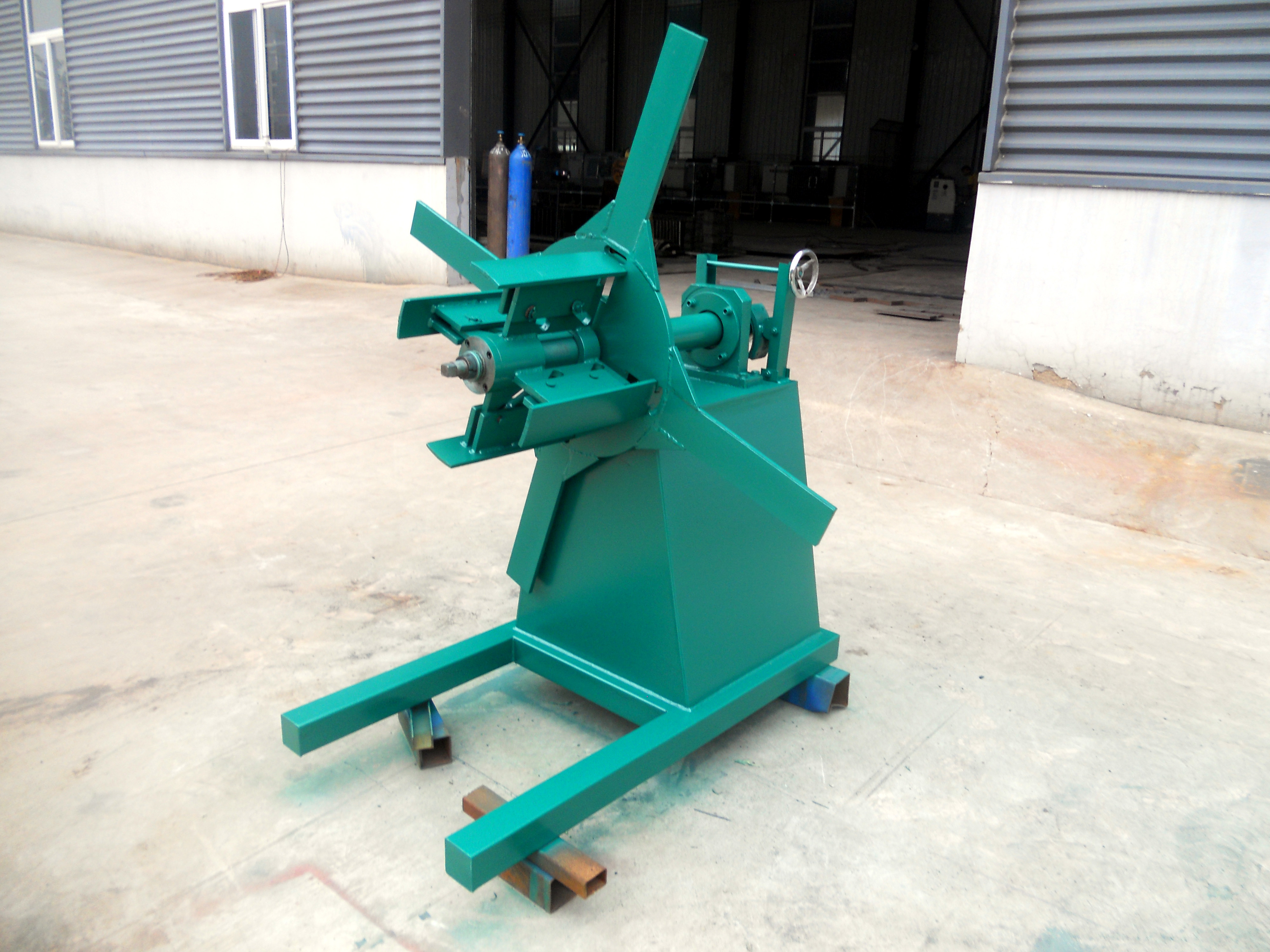

Decoiler:

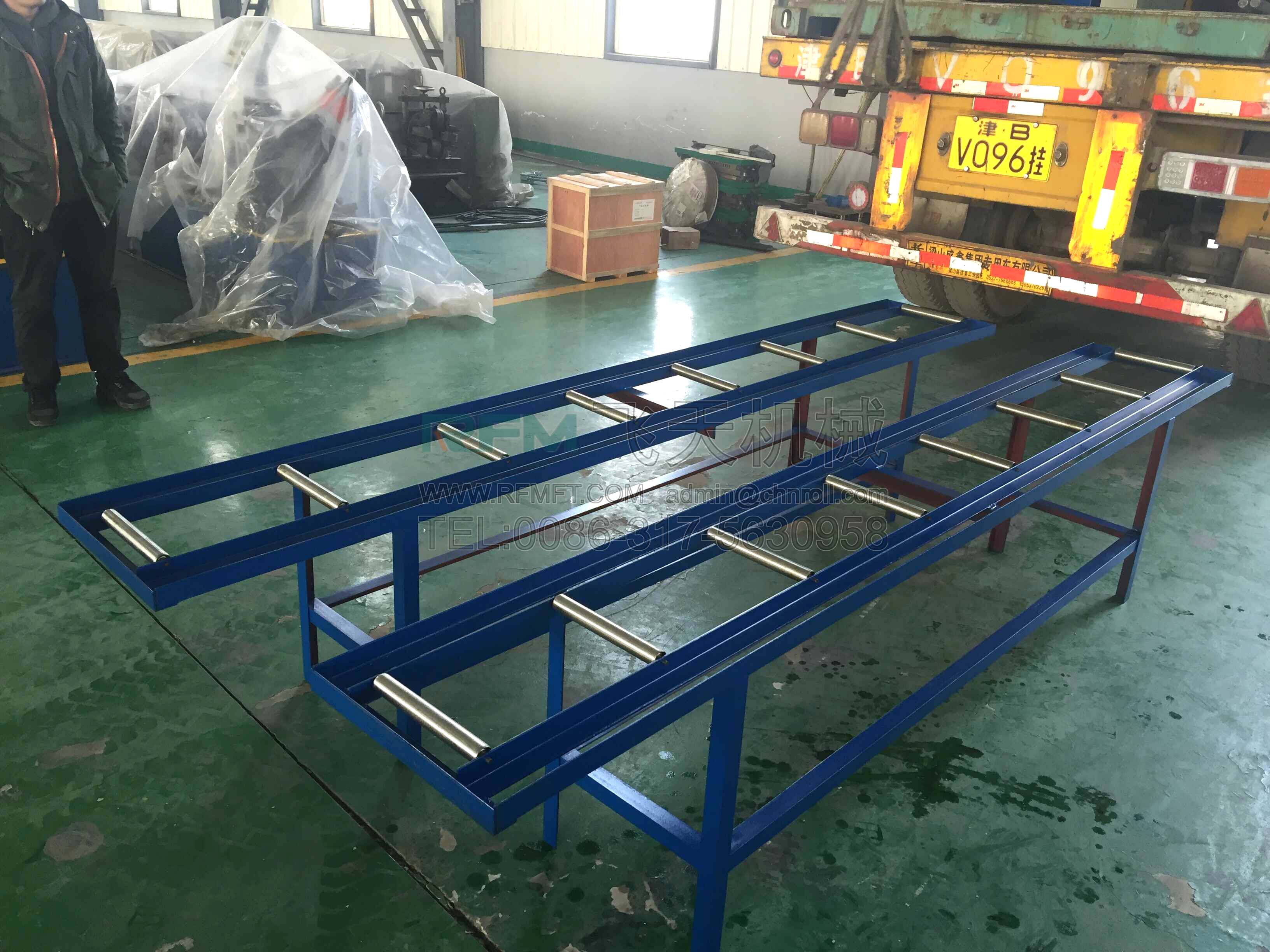

Run out of table:
7.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 1 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
Machine adjusting on video call during Edidemic
